5 Axis Desktop CNC Dust Vacuum




Dust vacuum for CNC mill. Designed for compact size, very low noise, high vacuum, and low vibration.





Dust Vacuum (12/11/2012)

Vacuum blower.



Dust Vacuum (12/11/2012)

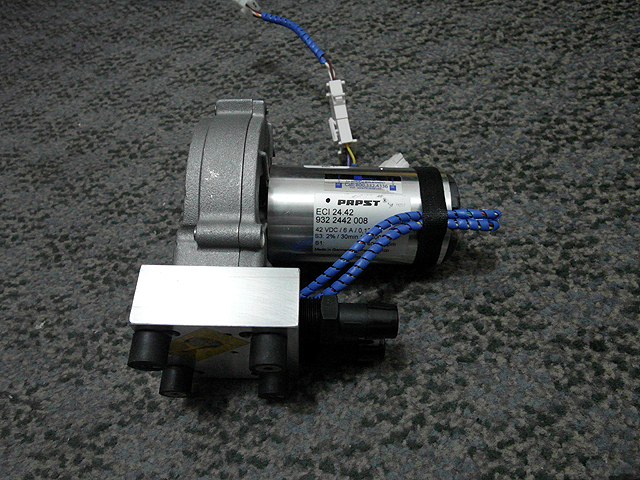

Vacuum blower. Papst ECI 24.42 motor. 24V 7.6A



Dust Vacuum (12/11/2012)

Vacuum blower. Rietschle Thomas SGP 16 blower. +150, -160mbar 17M^3/H



Dust Vacuum (12/11/2012)

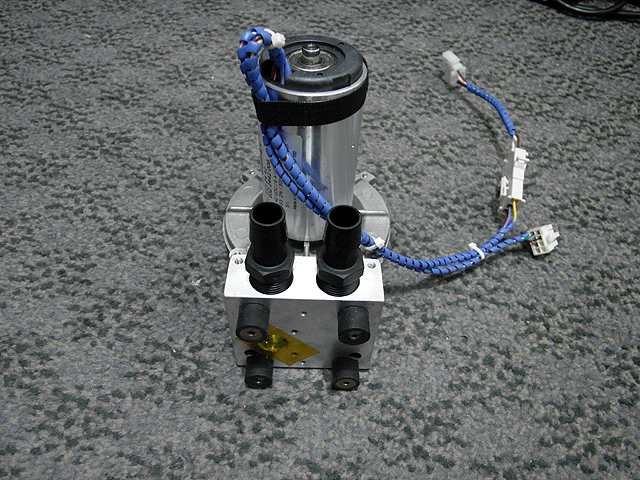

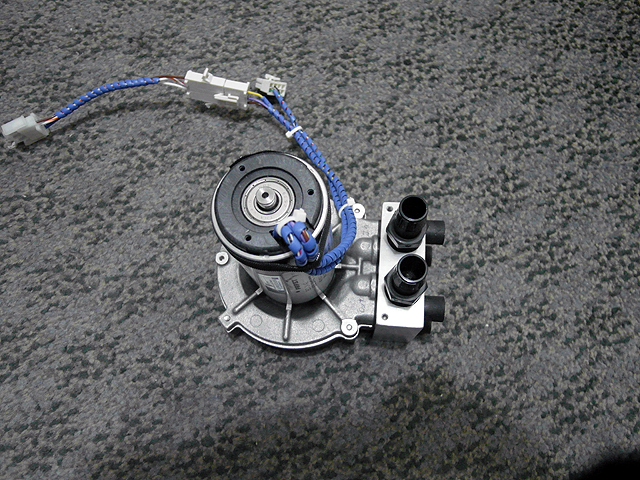

Vacuum blower. NPT fittings to 5/8 tube.



Dust Vacuum (12/11/2012)

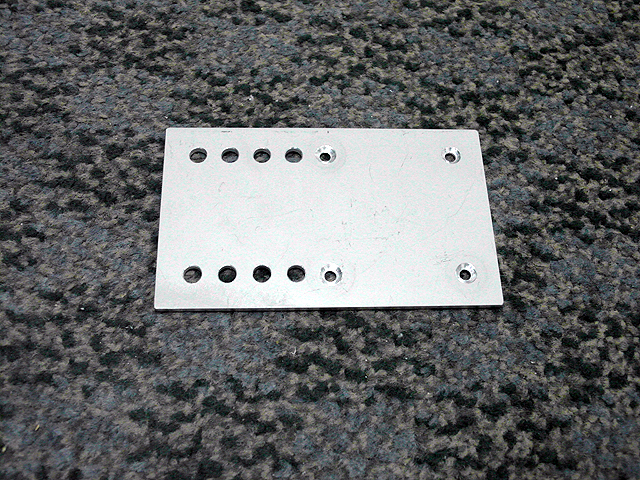

Mounting plate.



Dust Vacuum (12/11/2012)

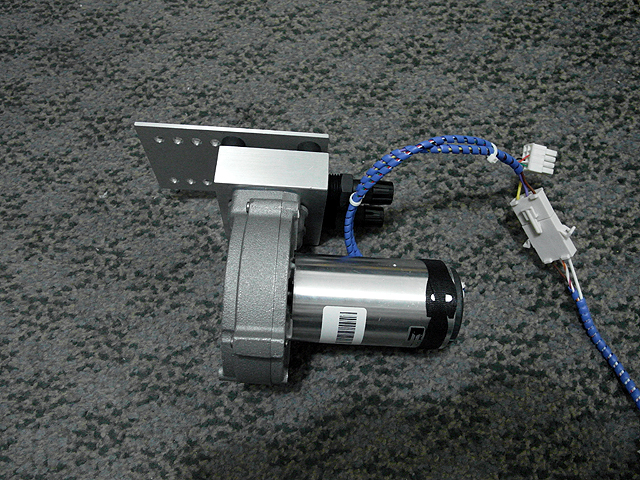

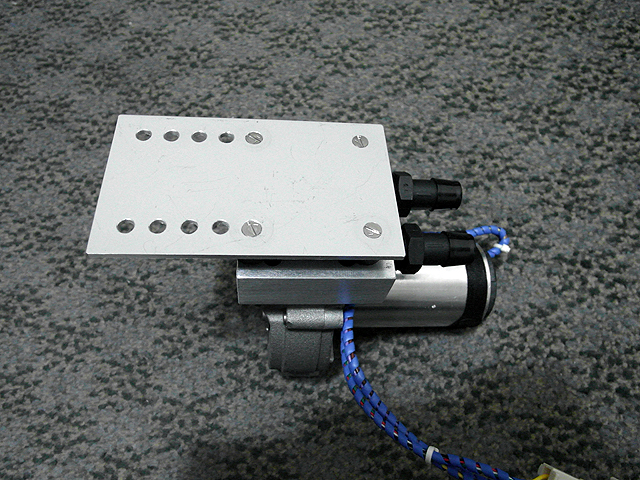

mounting plate attached to blower.



Dust Vacuum (12/11/2012)

Vibration isolating feet separate blower and mounting plate preventing transfer of vibration to the mill's z-axis mount.



Dust Vacuum (12/11/2012)

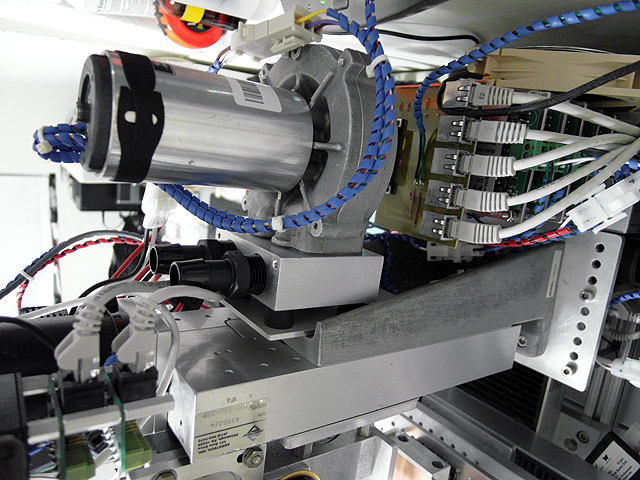

Vacuum blower mounted on z-axis support.



Dust Vacuum (12/11/2012)

Vacuum blower mounted on z-axis support.



Dust Vacuum (12/11/2012)

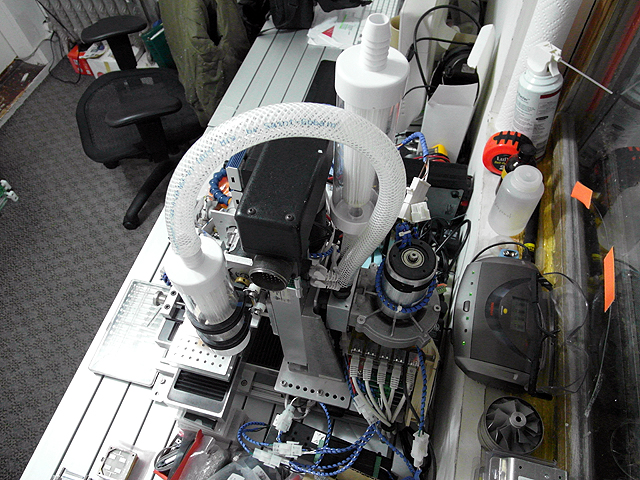

Vacuum blower connected to HEPA filter canisters. The canister on the exhaust acts as a muffler.



Dust Vacuum (12/11/2012)

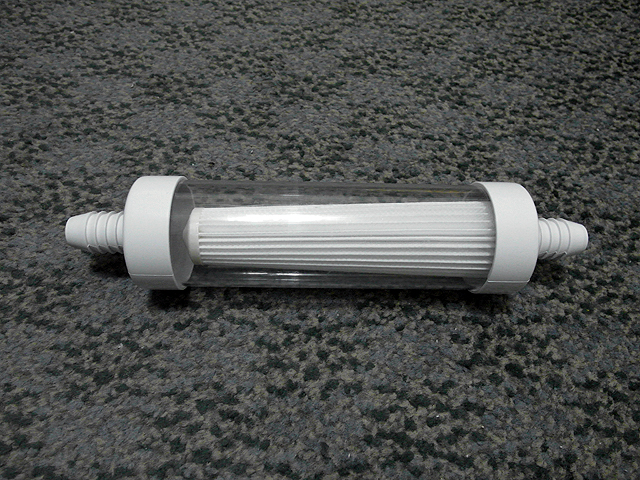

HEPA canister. Conical air filter allows high flow with minimal pressure drop.



Dust Vacuum (12/11/2012)

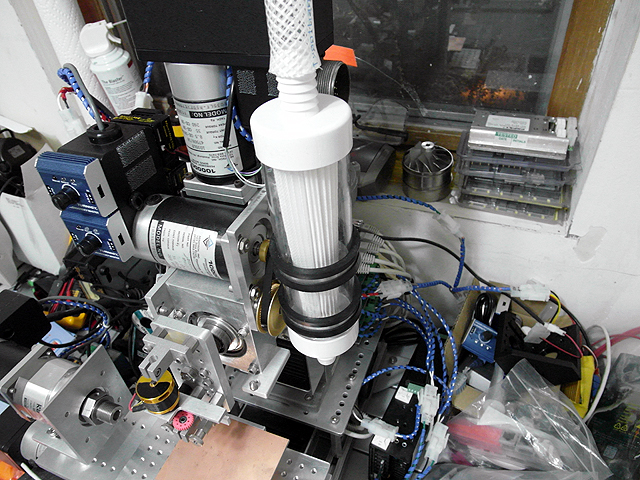

HEPA filter mounted on z-axis stage.



Dust Vacuum (12/11/2012)

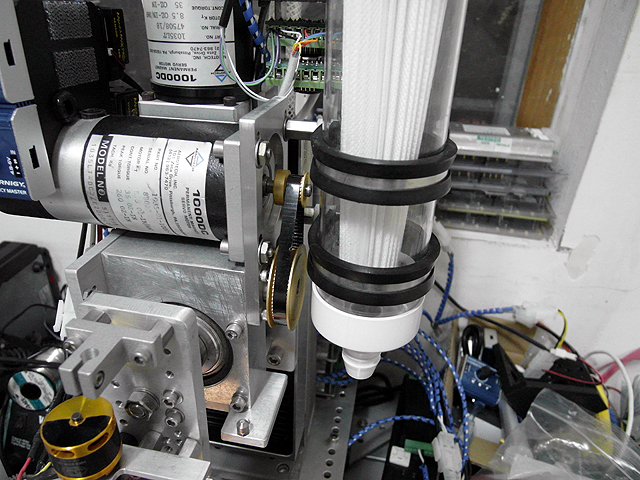

HEPA filter mounted on z-axis stage.



Dust Vacuum (12/11/2012)

Spindle and vacuum controls.



Dust Vacuum (12/11/2012)

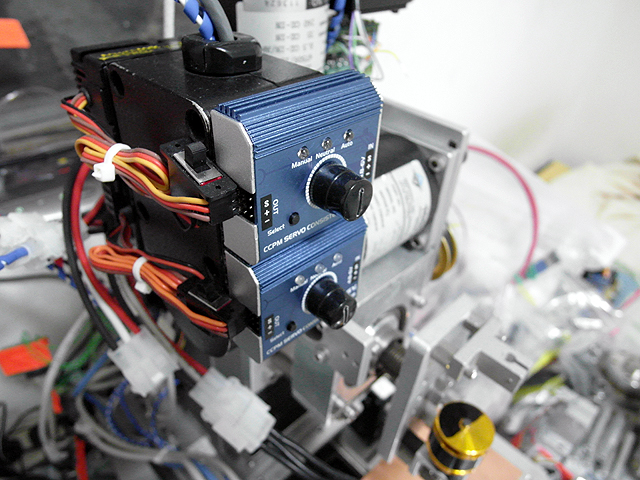

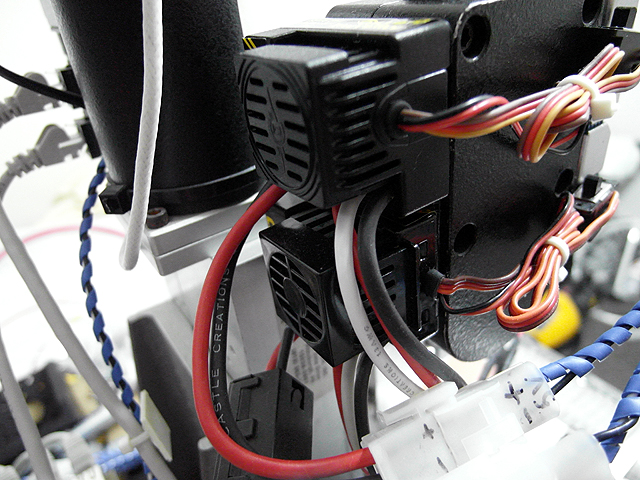

Spindle and vacuum brushless motor controllers.



Dust Vacuum (7/06/2013)

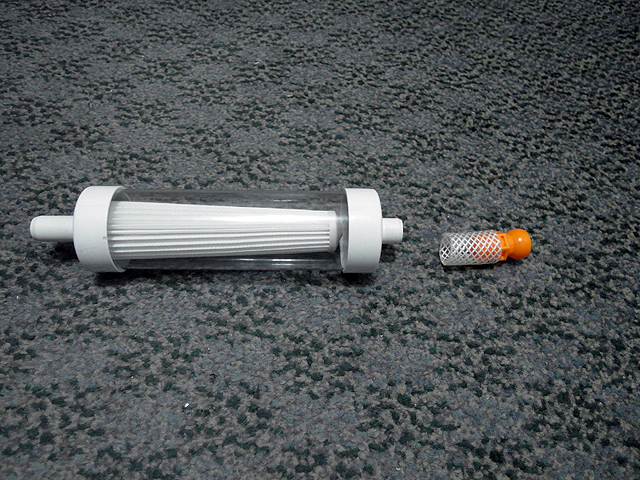

Adapter to flex hose.





Dust Vacuum (7/06/2013)

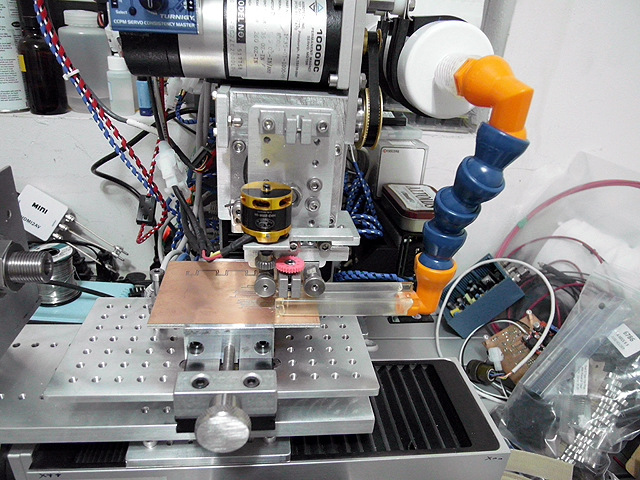

Filter mover to horizontal position, flex hose, and nozzle.





Dust Vacuum (7/06/2013)

Filter mover to horizontal position, flex hose, and nozzle.





Dust Vacuum (7/06/2013)

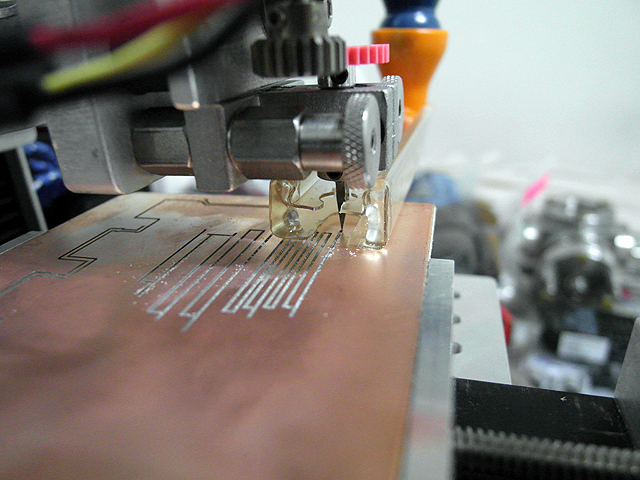

Vacuum nozzle.
