| Hydraulic Pump Stratopower 65w | |
 |
 |
 |
 |
 |
 |
 |
| Tear down of a stratopower 65w Hydraulic Pump. This is a variable displacement wobble plate pump with pressure controlled piston bypass valve. The drive spline and piston bypass valve are missing rendering the pump inoperative. |
|
 |
Hydraulic pump (12/16/2014) Stratopower 65w Hydraulic Pump and induction motor |
 |

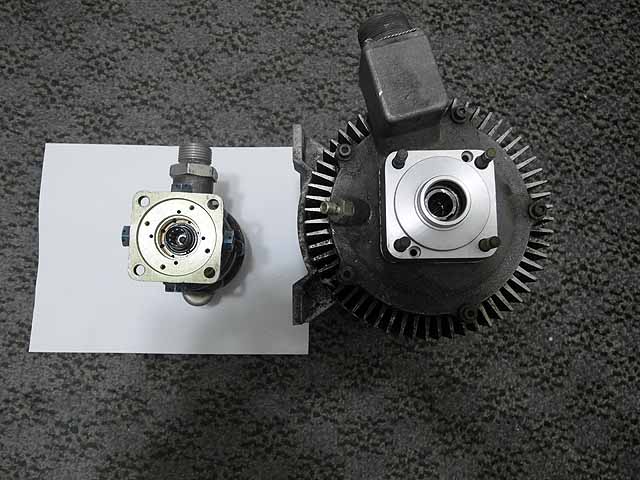

Hydraulic pump (12/16/2014) Pump separated from motor, spline coupler is missing |
 |

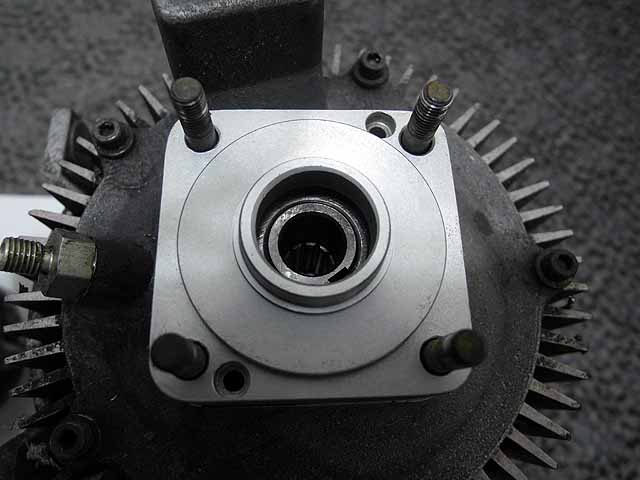

Hydraulic pump (12/16/2014) Motor drive spline |
 |

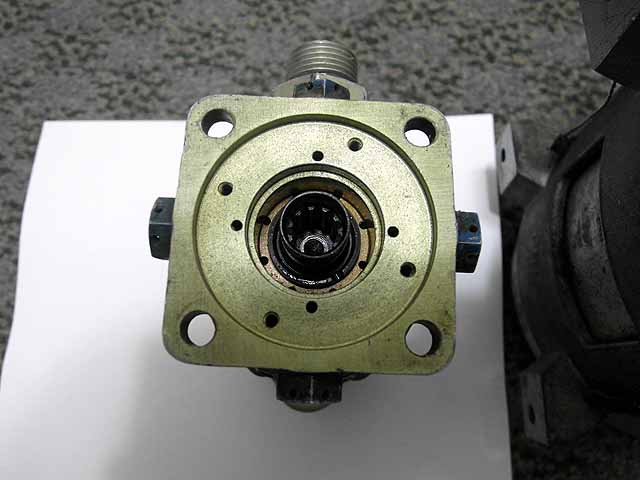

Hydraulic pump (12/16/2014) Pump drive spline |
 |

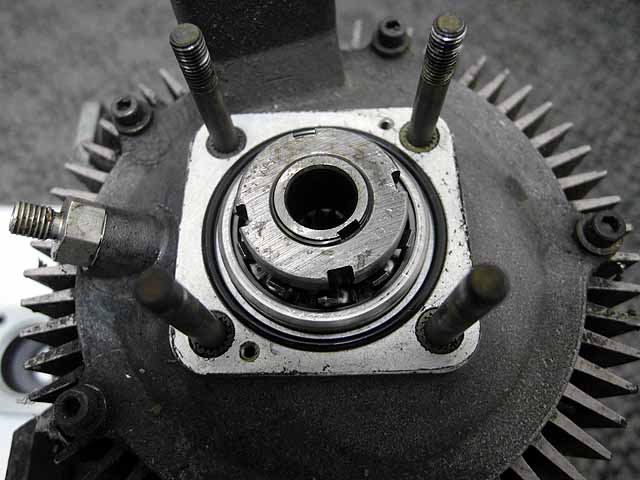

Hydraulic pump (12/16/2014) Motor bearing |
 |

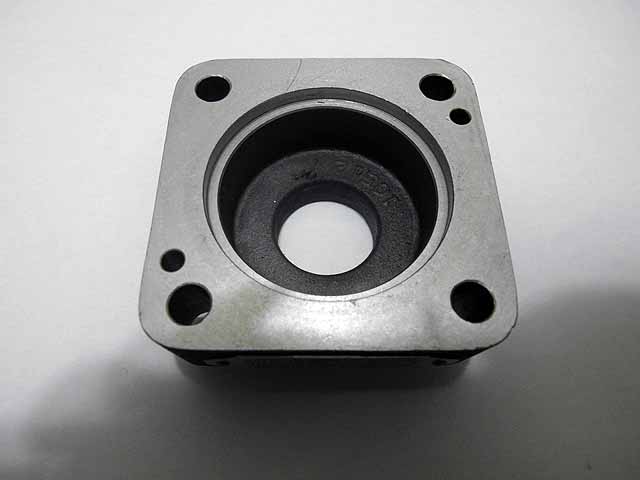

Hydraulic pump (12/16/2014) Pump standoff |
 |
Hydraulic pump (12/16/2014) Pump spec plate |
 |
Hydraulic pump (12/16/2014) Piston head and outlet valves |
 |
Hydraulic pump (12/16/2014) Outlet valves |
 |
Hydraulic pump (12/16/2014) Piston head |
 |
Hydraulic pump (12/16/2014) Valves positioned on piston head |
 |
Hydraulic pump (12/16/2014) Valve mounts and springs |
 |
Hydraulic pump (12/16/2014) Piston slippers |
 |

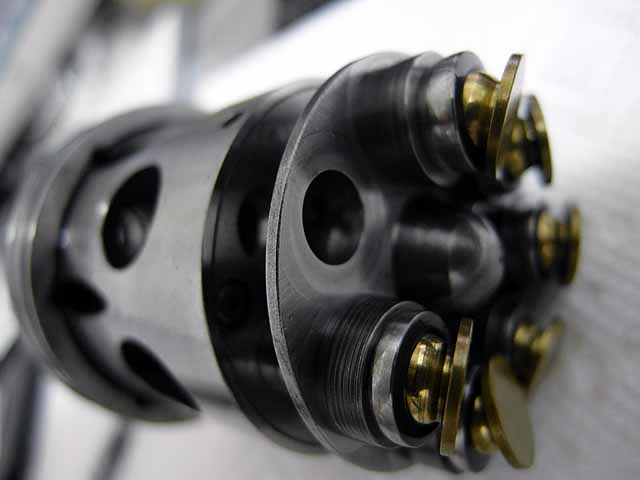

Hydraulic pump (12/16/2014) Piston assembly |
 |
Hydraulic pump (12/16/2014) Piston |
 |
Hydraulic pump (12/16/2014) Piston |
 |
Hydraulic pump (12/16/2014) Piston hole in wobble plate |
 |

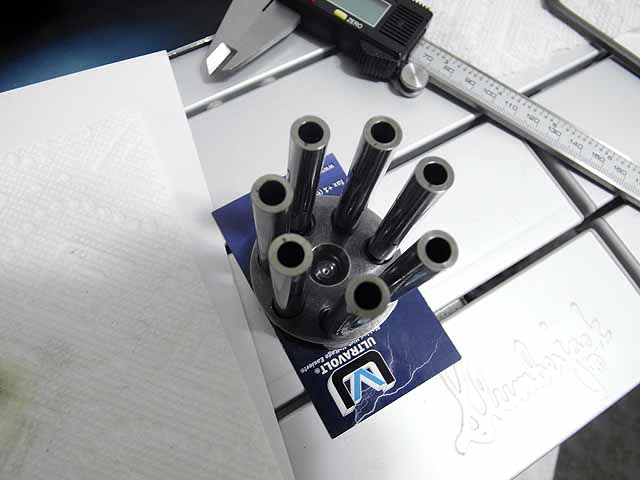

Hydraulic pump (12/16/2014) Pistons |
 |
Hydraulic pump (12/16/2014) Piston block |
 |
Hydraulic pump (12/16/2014) End cap removed, piston valve actuator (piston valve plate missing) |
 |
Hydraulic pump (12/16/2014) End cap |
 |
Hydraulic pump (12/16/2014) End cap |
 |
Hydraulic pump (12/16/2014) Piston valve actuator |
 |
Hydraulic pump (12/16/2014) Piston valve actuator rod |
 |
Hydraulic pump (12/16/2014) Piston valve actuator rod and housing |
 |
Hydraulic pump (12/16/2014) Piston head |
 |

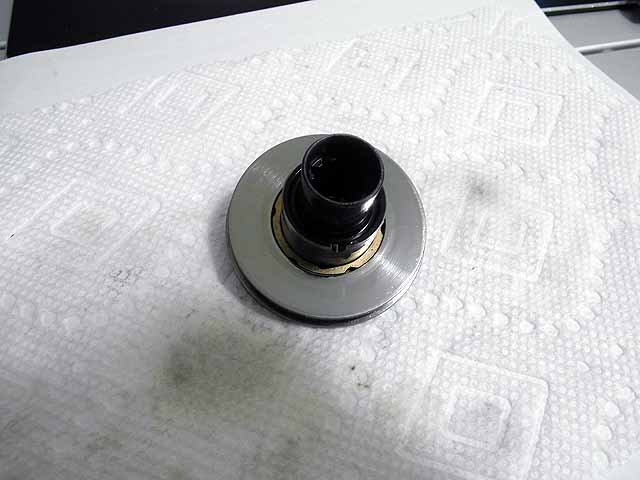

Hydraulic pump (12/16/2014) Bearing plate |
 |
Hydraulic pump (12/16/2014) Drive cam |
 |
Hydraulic pump (12/16/2014) Creep plates and drive cam |
 |
Hydraulic pump (12/16/2014) Drive cam |
 |
Hydraulic pump (12/16/2014) Drive cam aligned with pistons |
