| Pfeiffer TPH055 Tear down | |
 |
 |
 |
 |
 |
 |
 |
| A pfeiffer TPH055 turbo pump was dismantled. |
|
 |

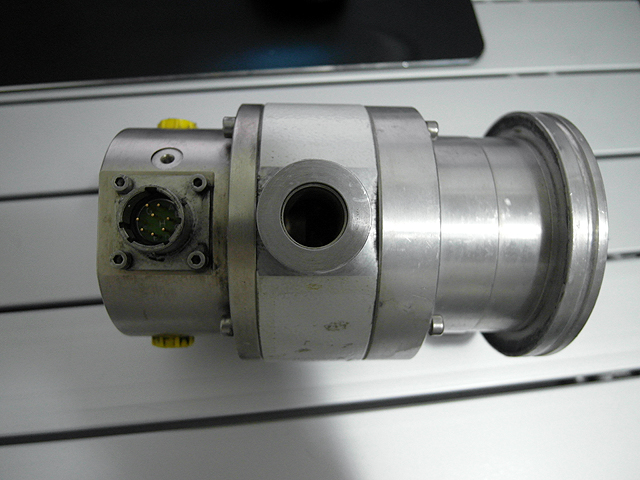

TPH055 (7/27/2013) Pump side |
 |

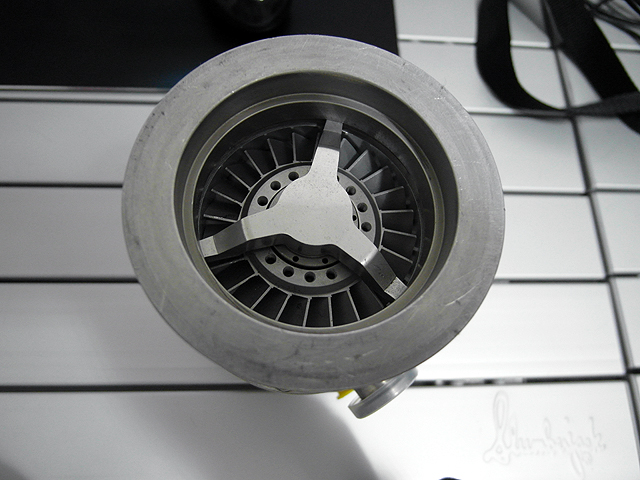

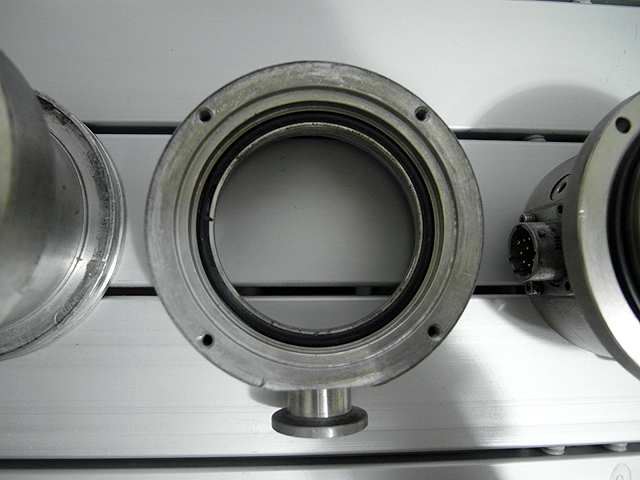

TPH055 (7/27/2013) pump inlet flange (ISO63) |
 |

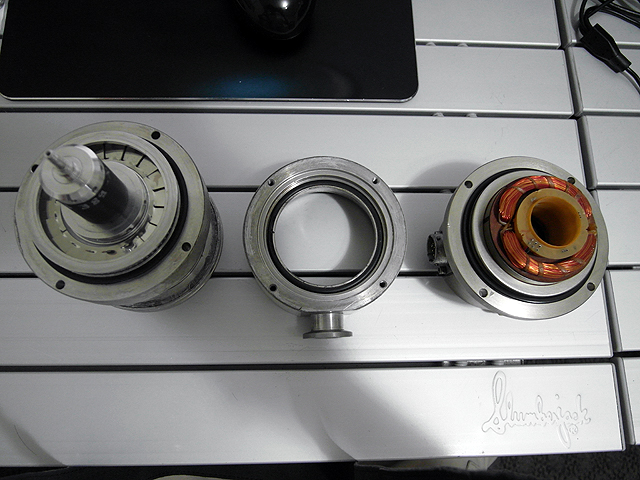

TPH055 (7/27/2013) Pump base with cap, oil reservoir, and bearing retainer removed. |
 |

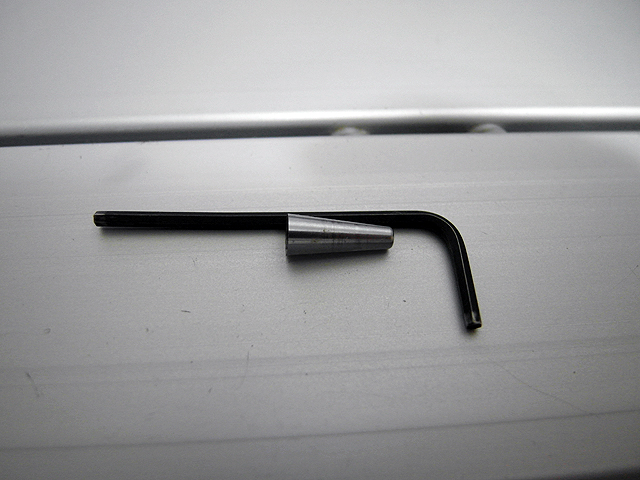

TPH055 (7/27/2013) Bearing nut(left handed thread) |
 |

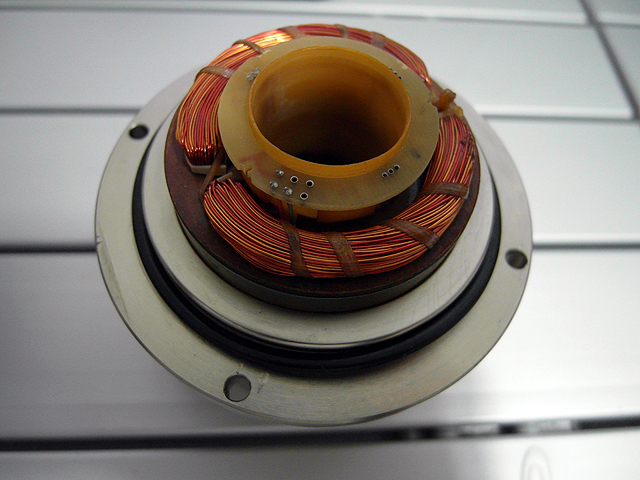

TPH055 (7/27/2013) Motor(2 pole brushless dc) |
 |

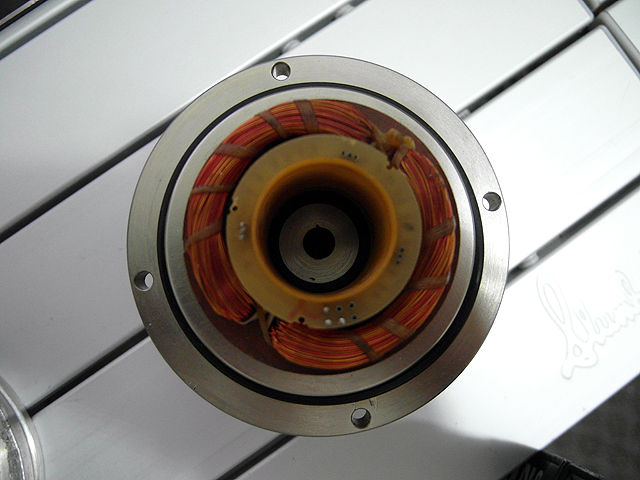

TPH055 (7/27/2013) motor |
 |

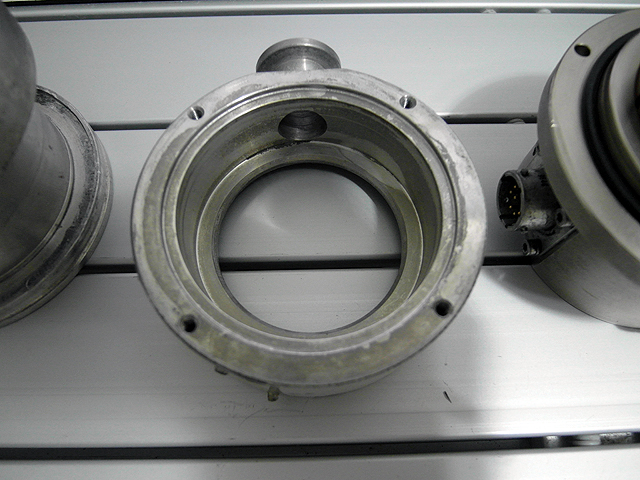

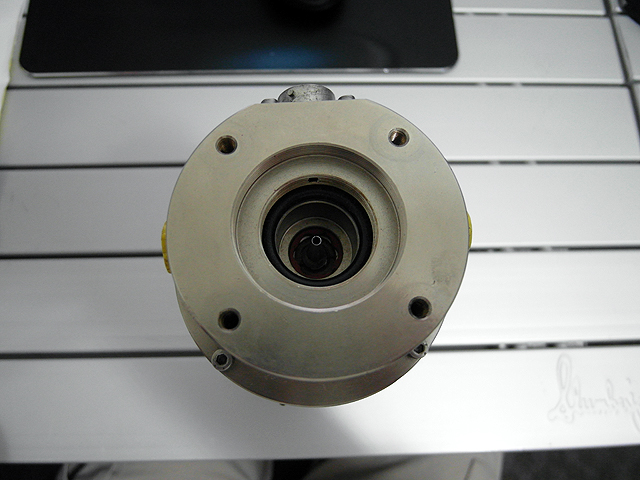

TPH055 (7/27/2013) Backing pump flange |
 |
TPH055 (7/27/2013) Backing pump flange |
 |
TPH055 (7/27/2013) Backing pump flange |
 |

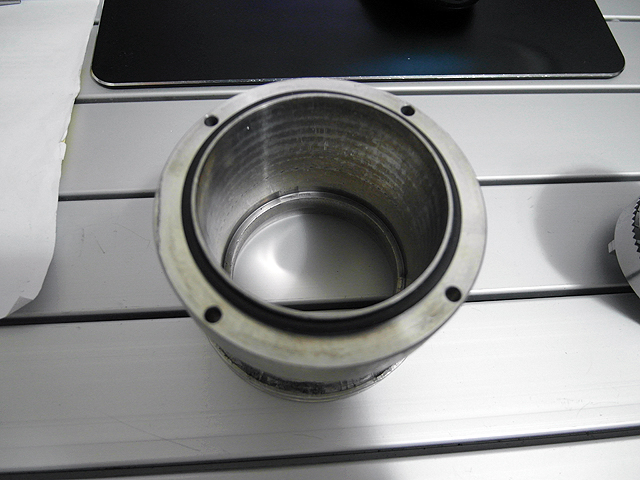

TPH055 (7/27/2013) Rotor stack casing |
 |

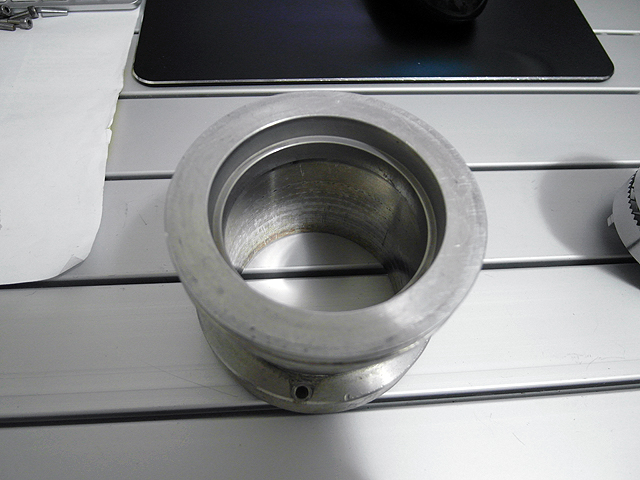

TPH055 (7/27/2013) Rotor stack casing |
 |

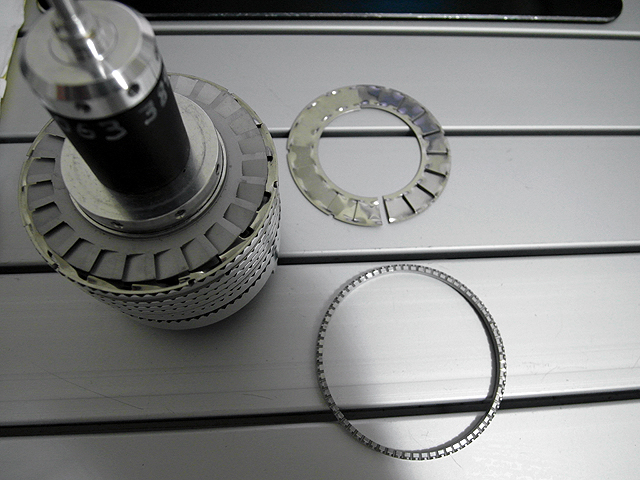

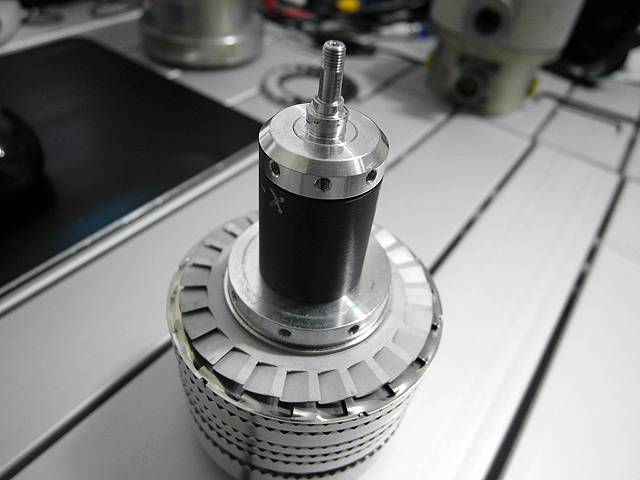

TPH055 (7/27/2013) Rotor / stator assembly |
 |
TPH055 (7/27/2013) Permanent magnet |
 |

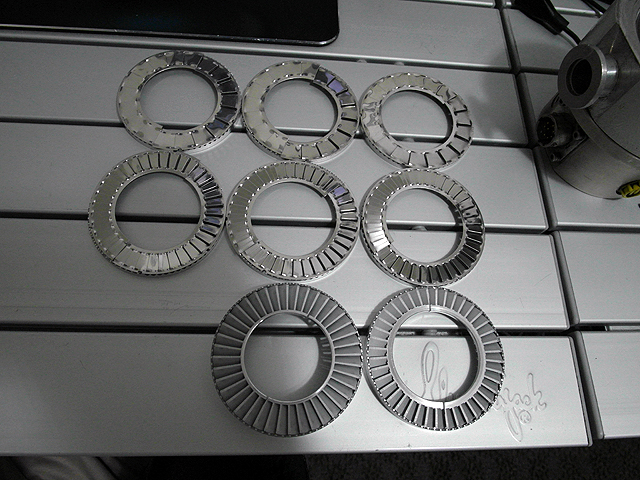

TPH055 (7/27/2013) Stator blades |
 |

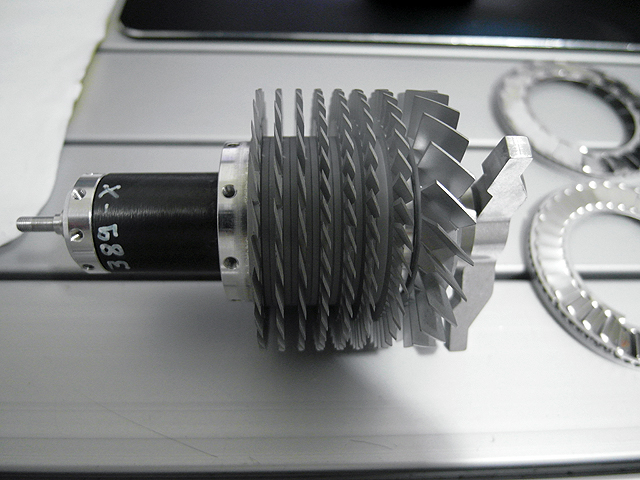

TPH055 (7/27/2013) Rotor blades |
 |

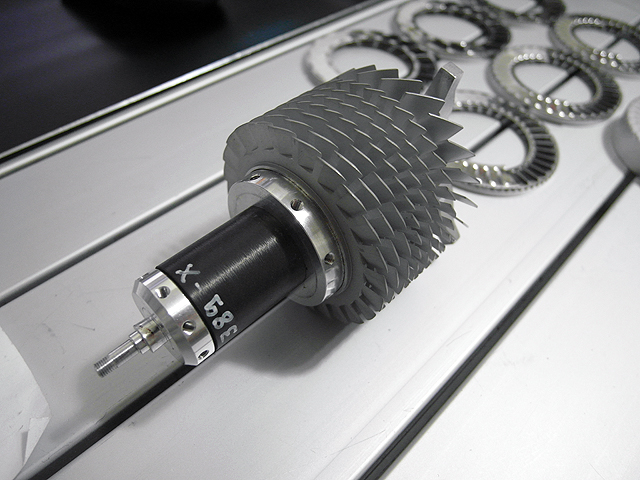

TPH055 (7/27/2013) Rotor blades |
 |

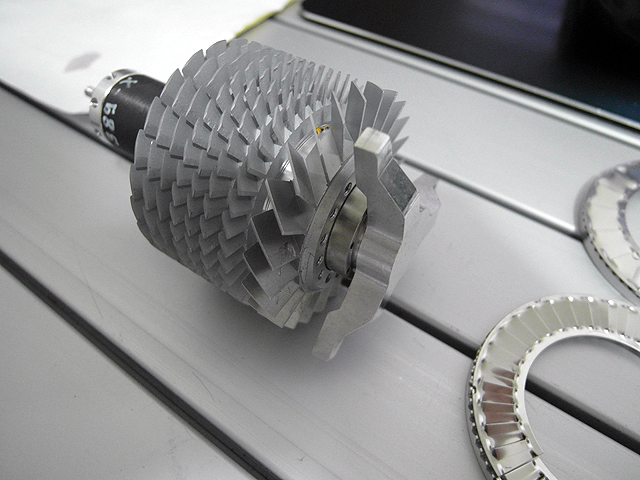

TPH055 (7/27/2013) Rotor blades and magnetic bearing |
