| Pfeiffer Turbomolecular Pump Station | |
 |
 |
 |
 |
 |
 |
 |
| A compact portable turbomolecular pump station was constructed |
|
 |
Turbo Station (4/3/2014) Pfeiffer duo 1.5A backing pump TCP-015 Controller TPU 055 Turbo Pump |
 |
Turbo Station (4/3/2014)
|
 |

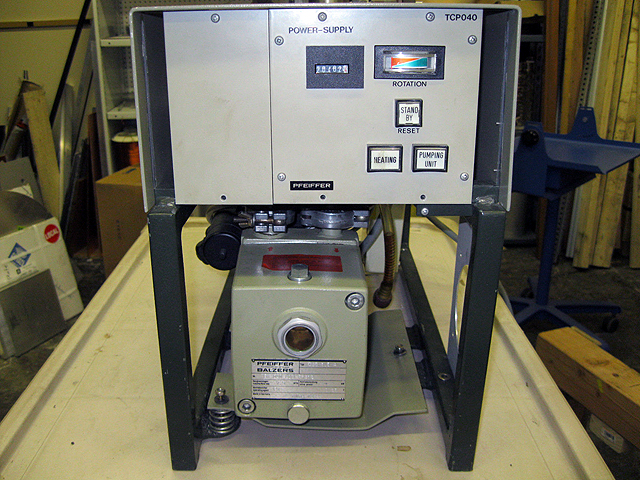

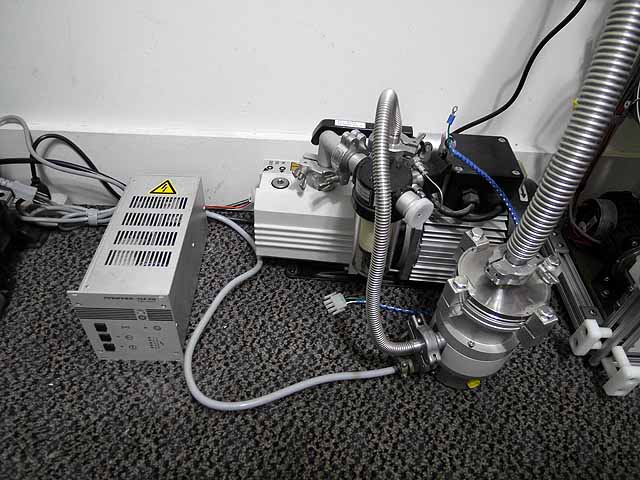

Turbo Station (4/3/2014) What the original system would have looked like |
 |
Turbo Station (4/3/2014) What the original system would have looked like |
 |
Turbo Station (4/3/2014) What the original system would have looked like |
Turbo Station (4/3/2014) Turbo station construction |
|
 |

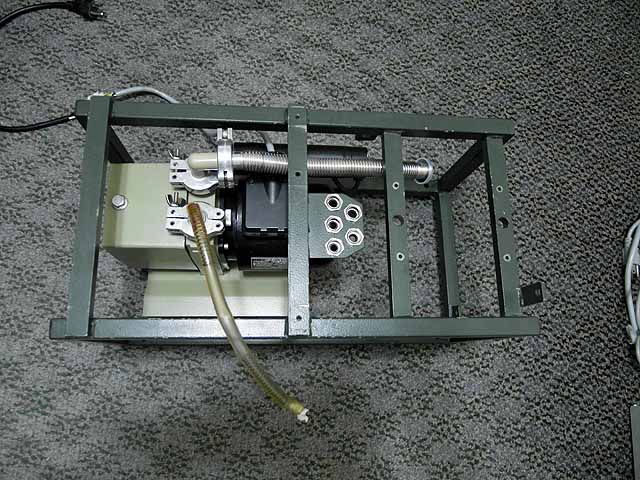

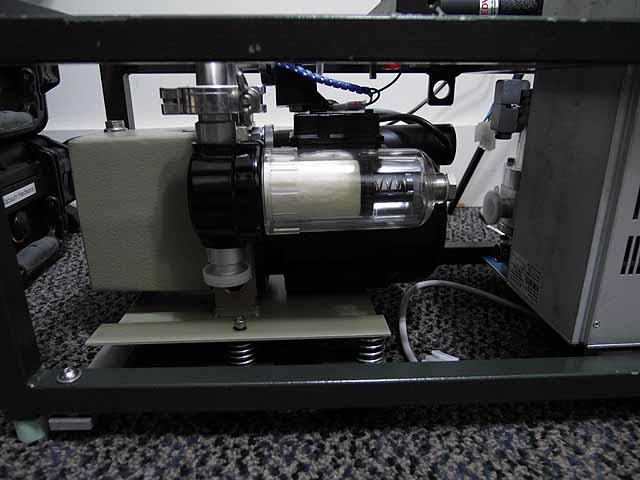

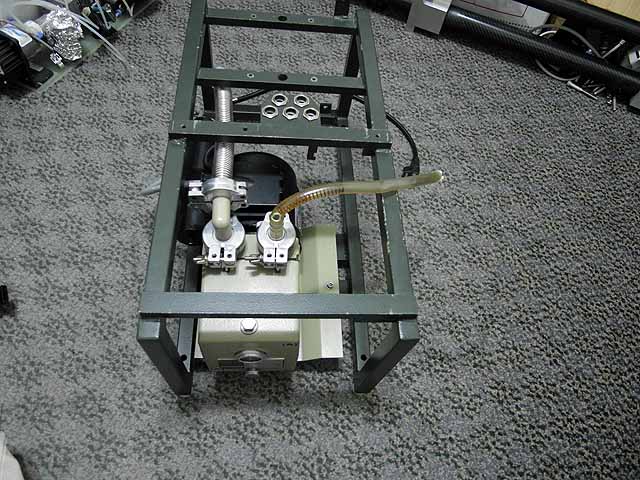

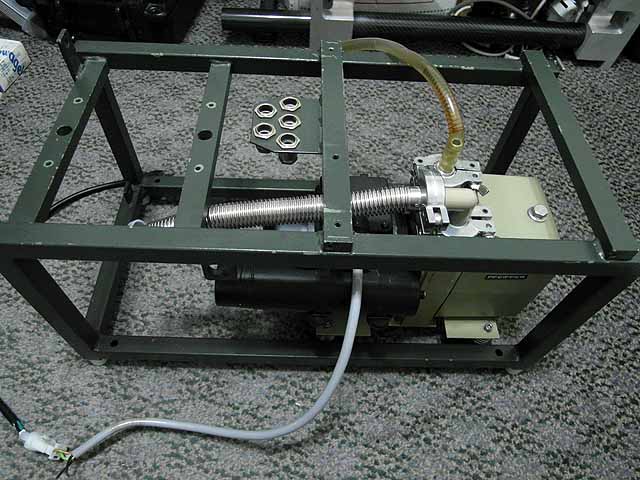

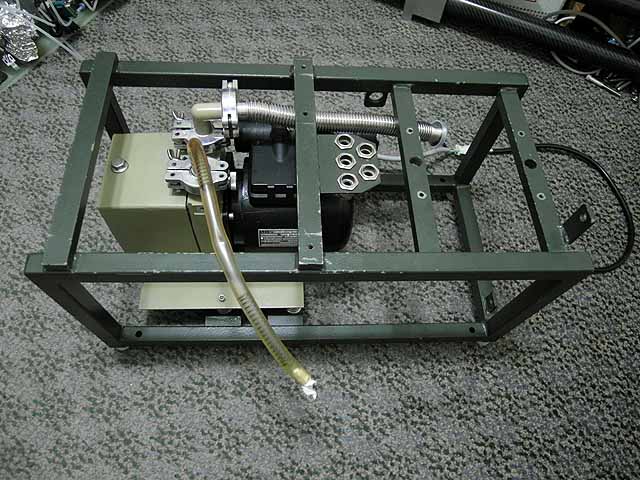

Turbo Station (4/3/2014) Backing pump and frame |
 |
Turbo Station (4/3/2014) Backing pump and frame |
 |
Turbo Station (4/3/2014) Pump motor |
 |

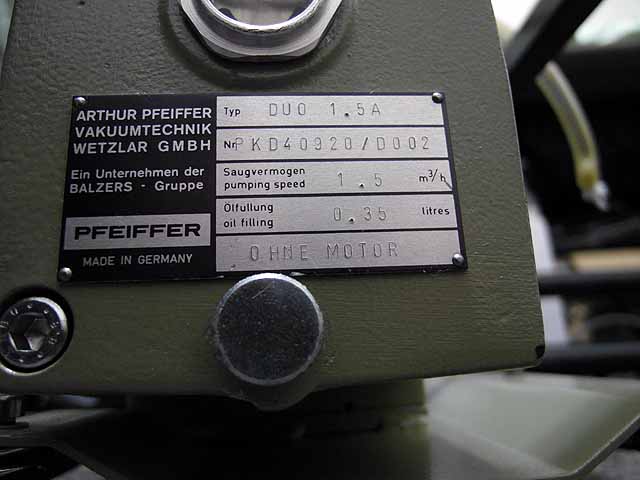

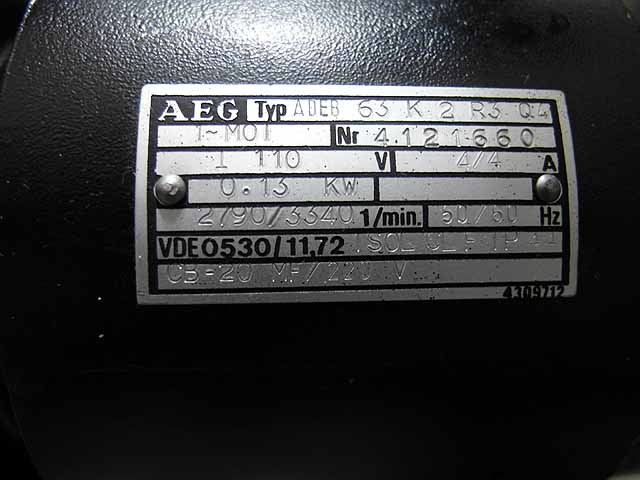

Turbo Station (4/3/2014) Pump spec plate |
 |

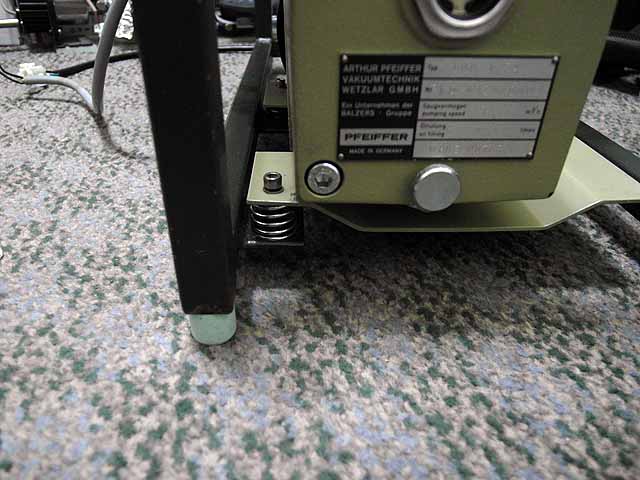

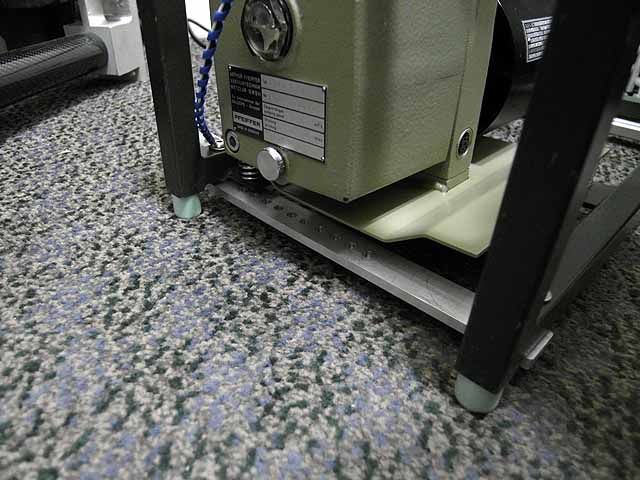

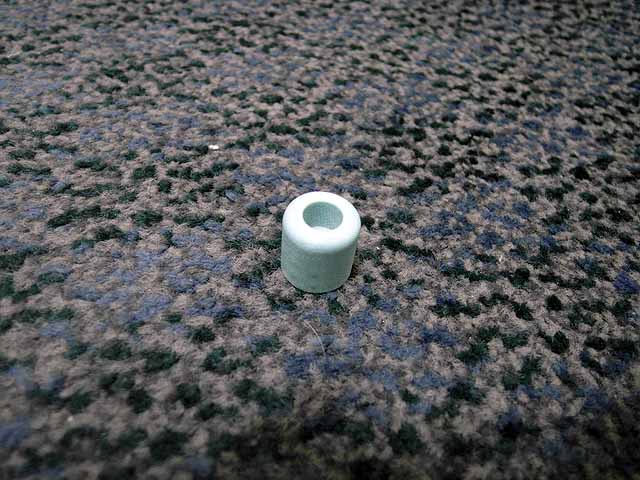

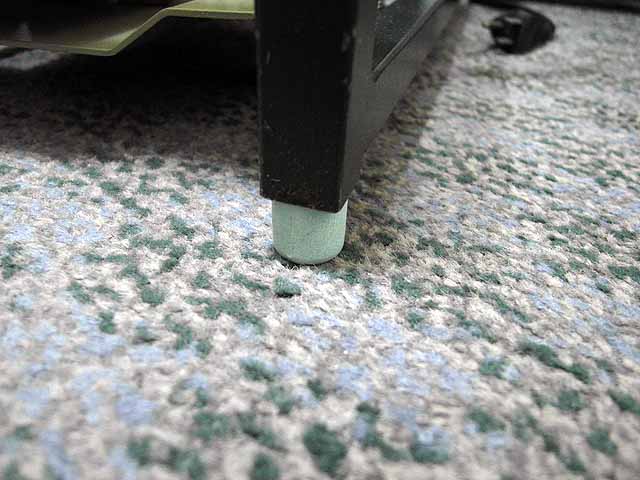

Turbo Station (4/3/2014) Standoff foot |
 |
Turbo Station (4/3/2014) Foot bolted on frame |
 |
Turbo Station (4/3/2014) Backing pump and frame |
 |
Turbo Station (4/3/2014) Backing pump and frame |
 |
Turbo Station (4/3/2014) Backing pump and frame |
 |

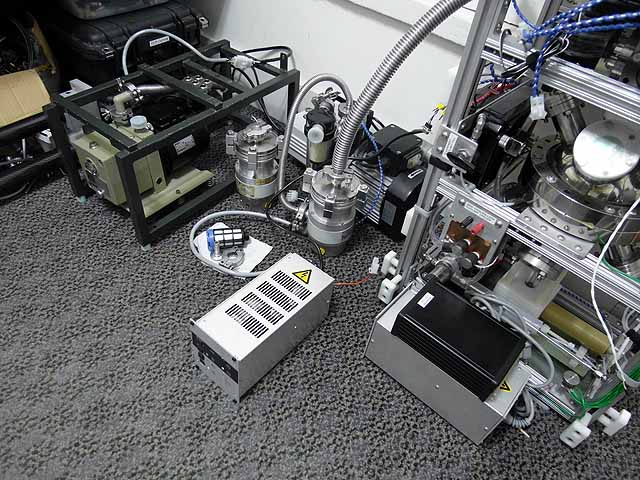

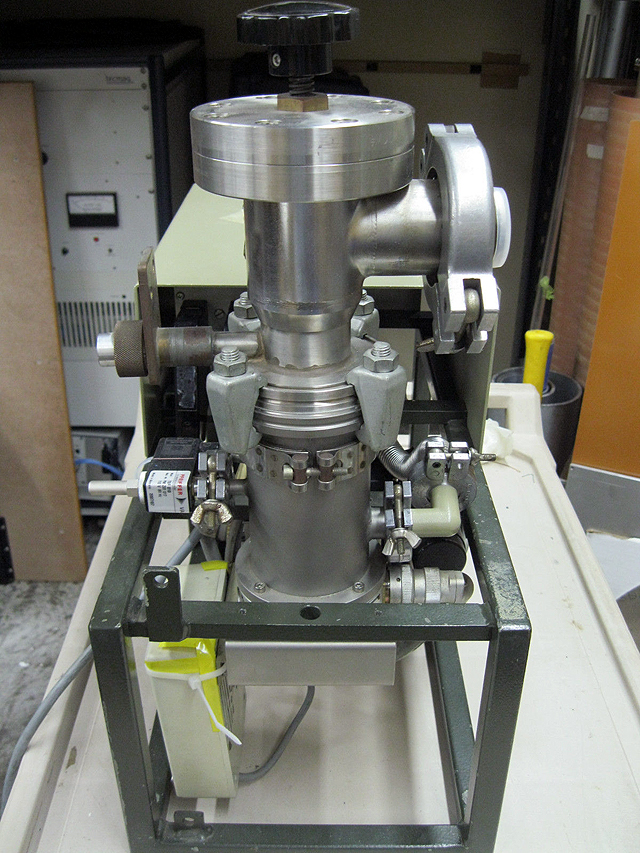

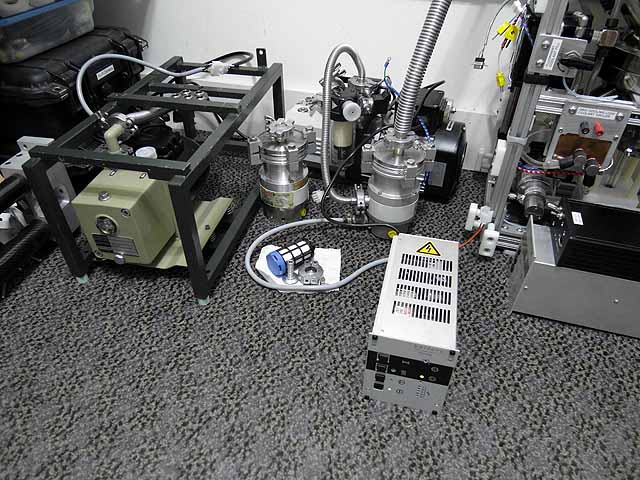

Turbo Station (4/3/2014) Old turbo setup |
 |

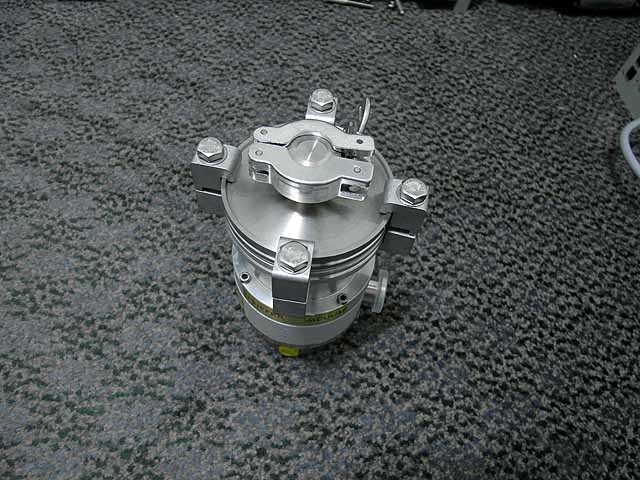

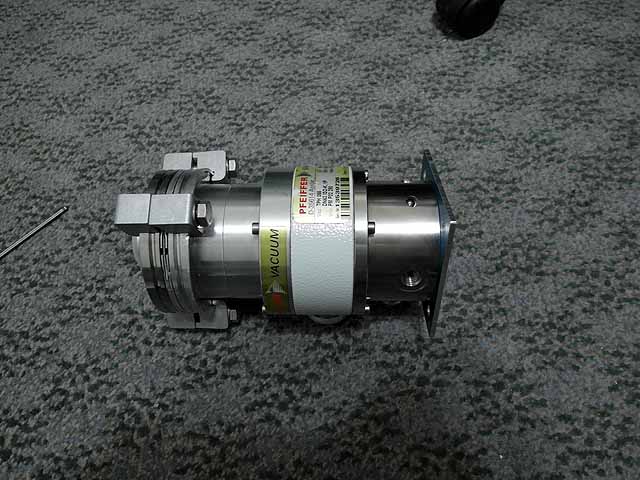

Turbo Station (4/3/2014) TPU 055 turbo pump |
 |
Turbo Station (4/3/2014) TPU 055 turbo pump |
 |

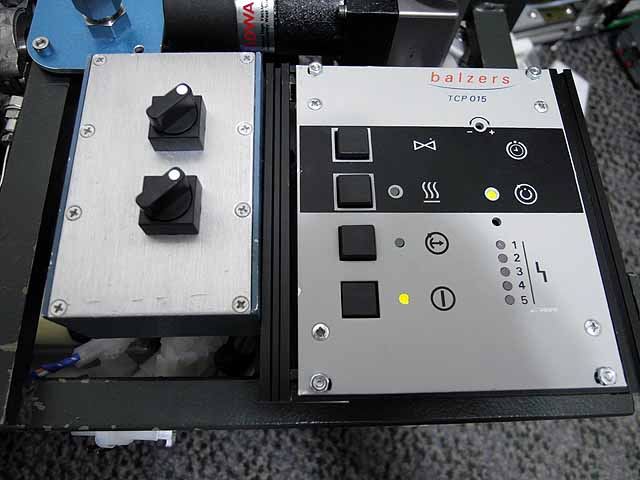

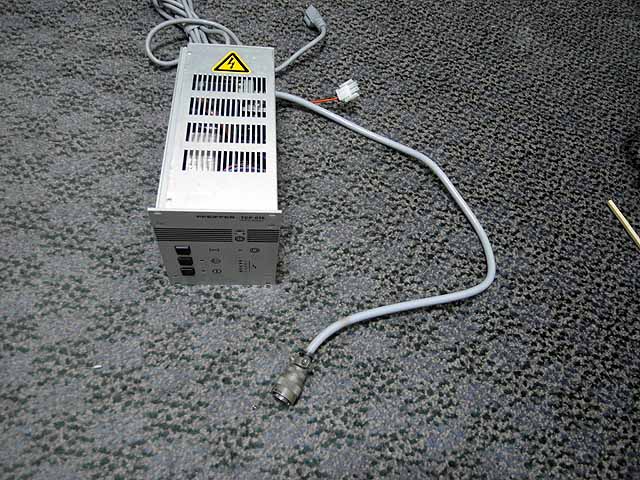

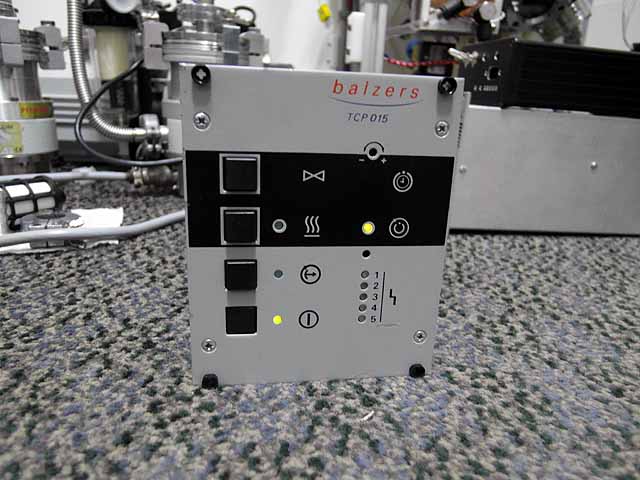

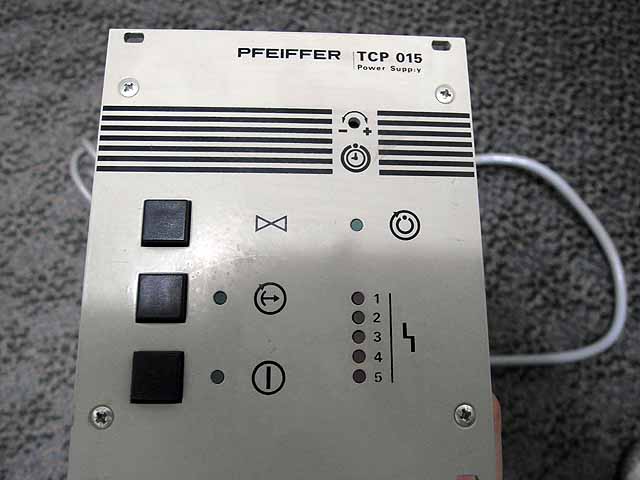

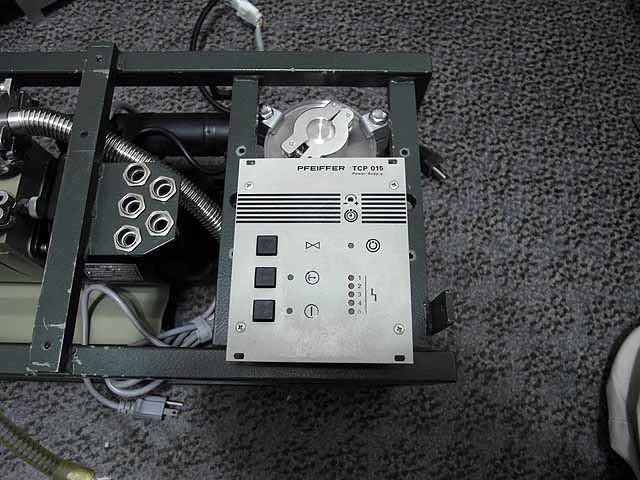

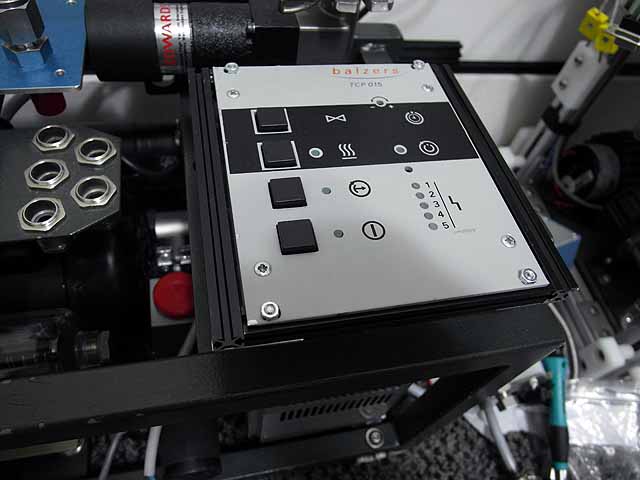

Turbo Station (4/3/2014) TCP 015 controller |
 |
Turbo Station (4/3/2014) TCP 015 controller |
 |

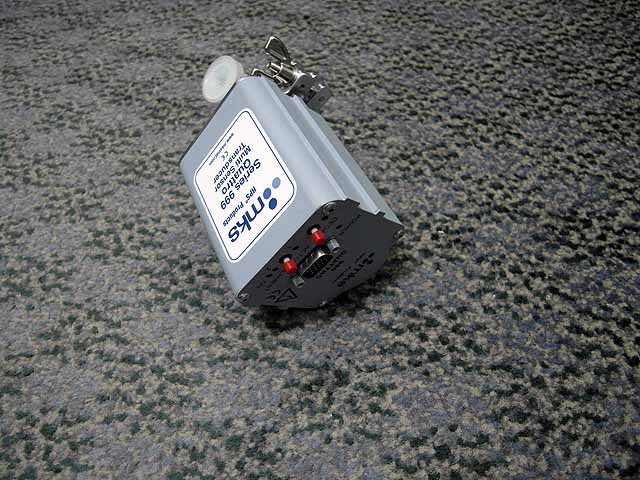

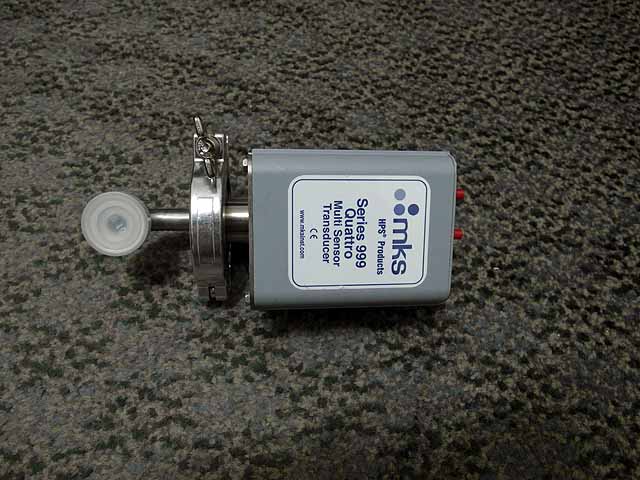

Turbo Station (4/3/2014) Quattro 999 vacuum gauge |
 |
Turbo Station (4/3/2014) Quattro 999 vacuum gauge |
 |

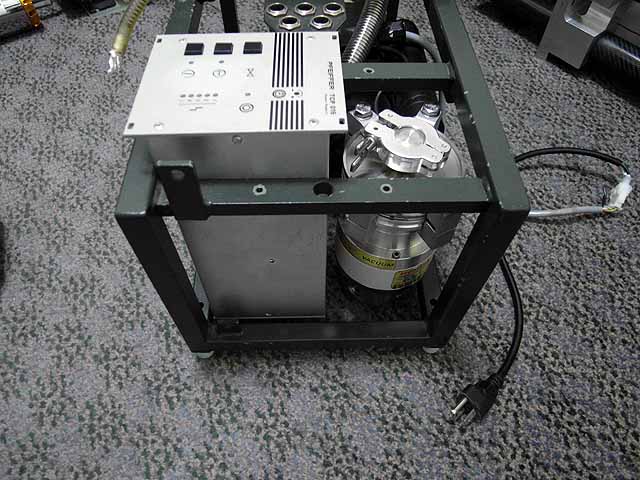

Turbo Station (4/3/2014) Controller and turbo in approximate positions in frame |
 |
Turbo Station (4/3/2014) Controller and turbo in approximate positions in frame |
 |
Turbo Station (4/3/2014) New controller with IEC power plug instead of hard wired connection |
 |
Turbo Station (4/3/2014) Controller testing |
 |
Turbo Station (4/3/2014) Controller testing |
 |

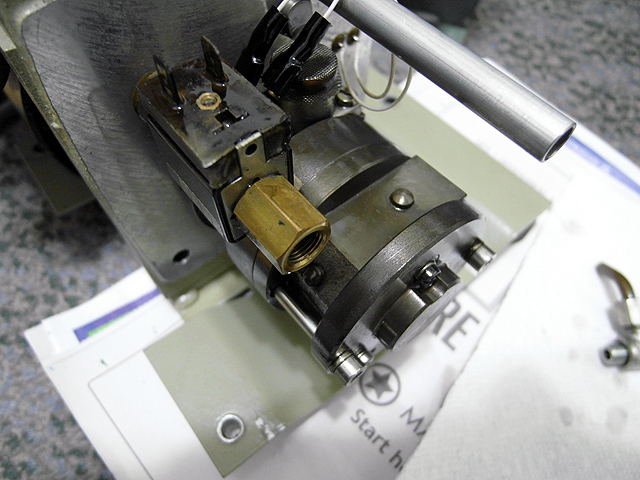

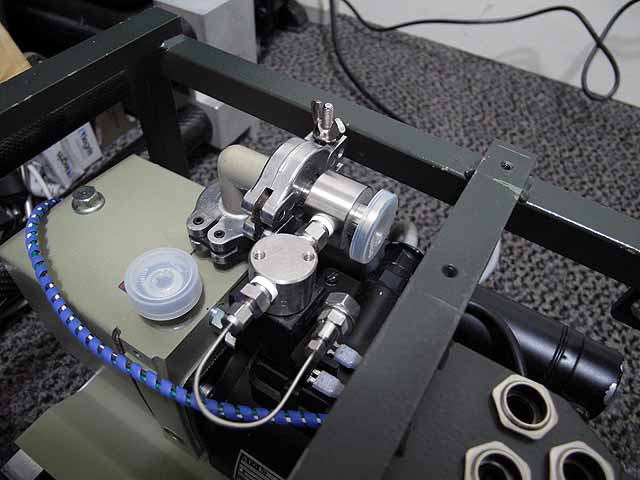

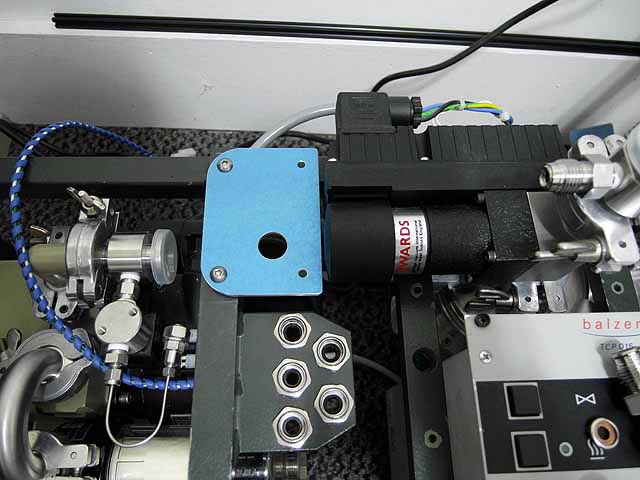

Turbo Station (4/3/2014) Vent valve and capillary tube for vent rate regulation |
 |

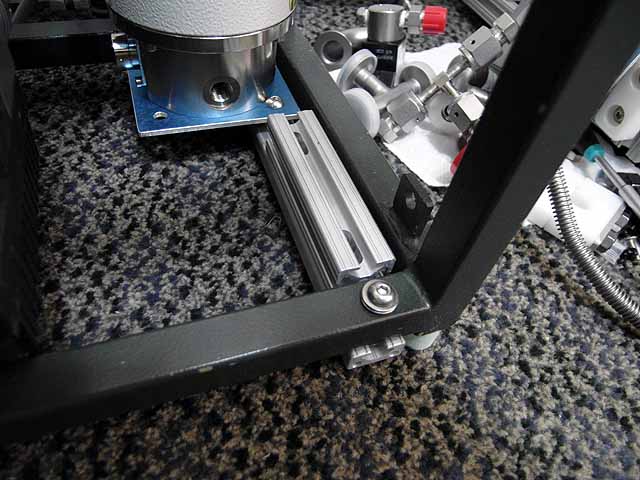

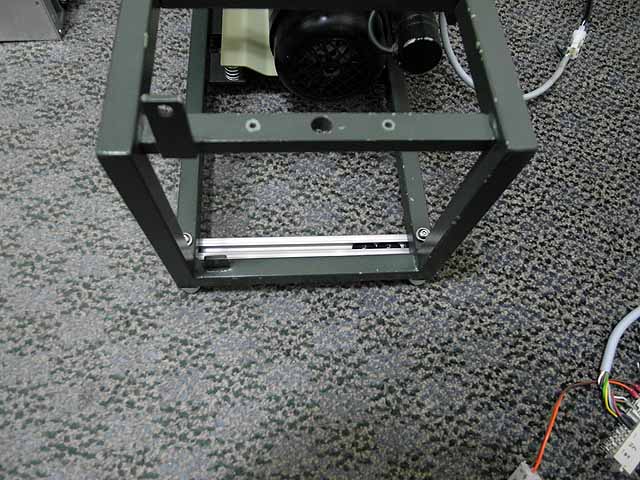

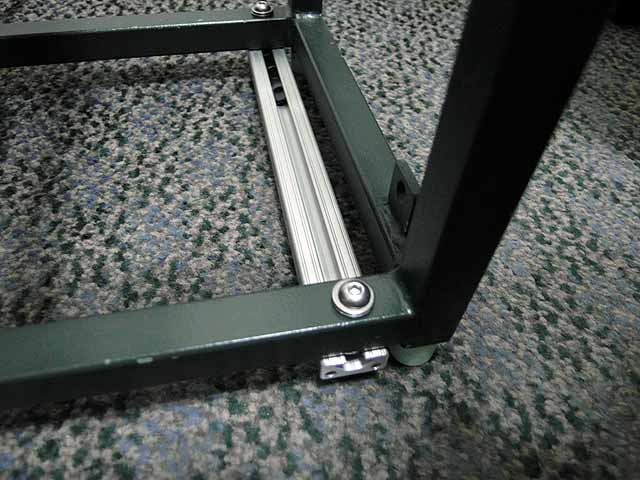

Turbo Station (4/3/2014) 8020 mounting rail |
 |
Turbo Station (4/3/2014) 8020 mounting rail |
 |
Turbo Station (4/3/2014) Aluminum bracket added to front |
 |

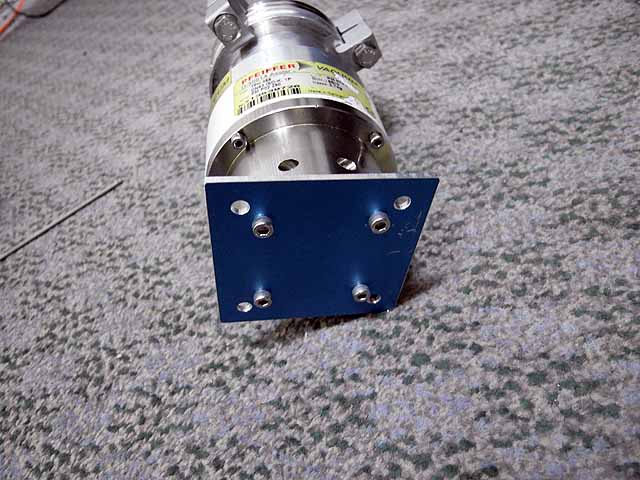

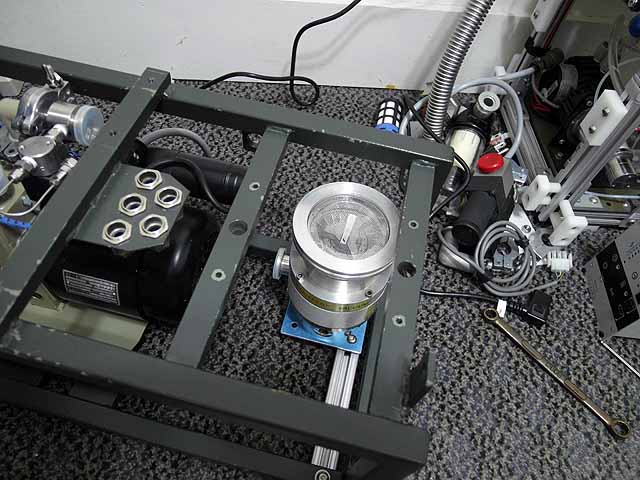

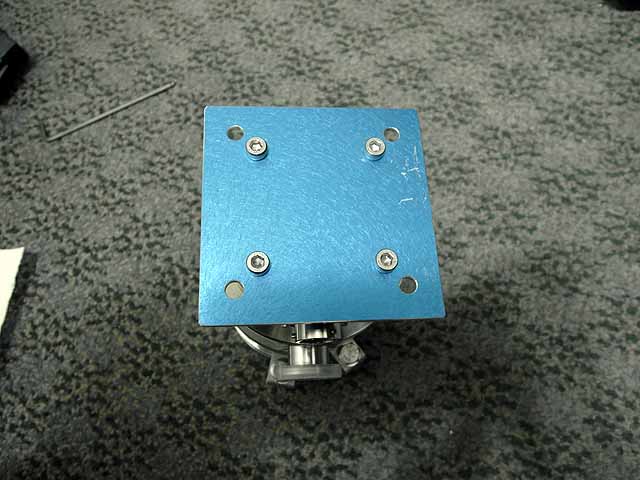

Turbo Station (4/3/2014) Turbo pump mounting plate |
 |
Turbo Station (4/3/2014) Turbo pump mounting plate |
 |
Turbo Station (4/3/2014) Turbo pump mounting plate |
 |

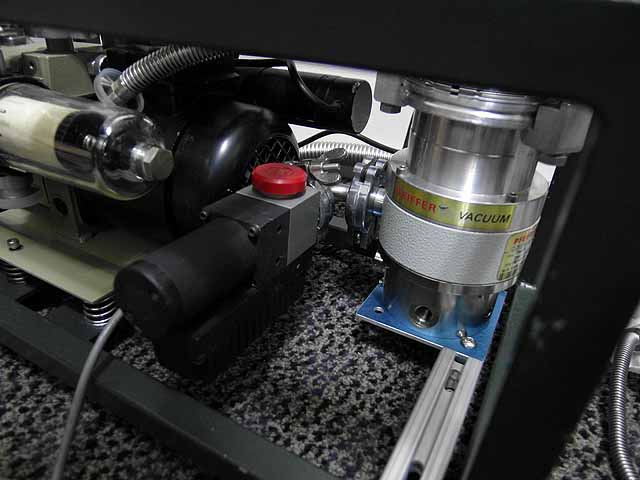

Turbo Station (4/3/2014) Turbo pump mounted and splinter guard added |
 |

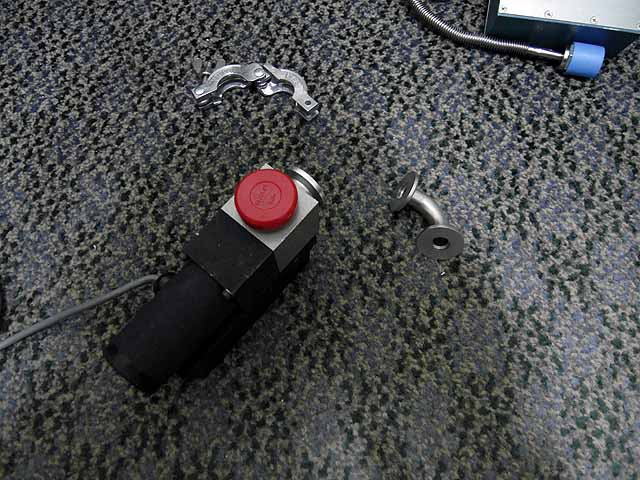

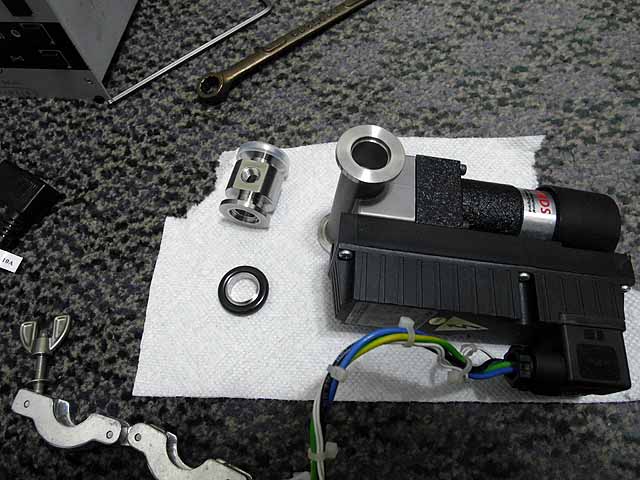

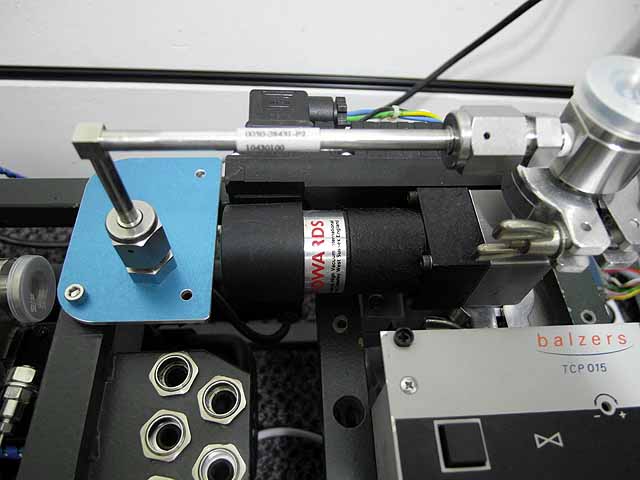

Turbo Station (4/3/2014) Solenoid fore line valve |
 |
Turbo Station (4/3/2014) Solenoid fore line valve |
 |

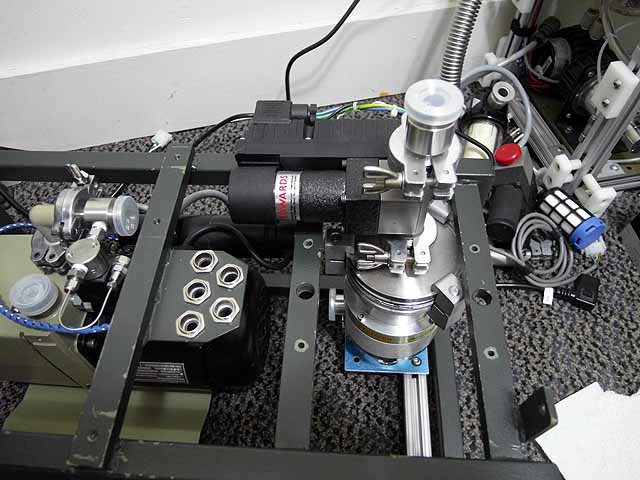

Turbo Station (4/3/2014) Solenoid fore line valve mounted on turbo pump. |
 |

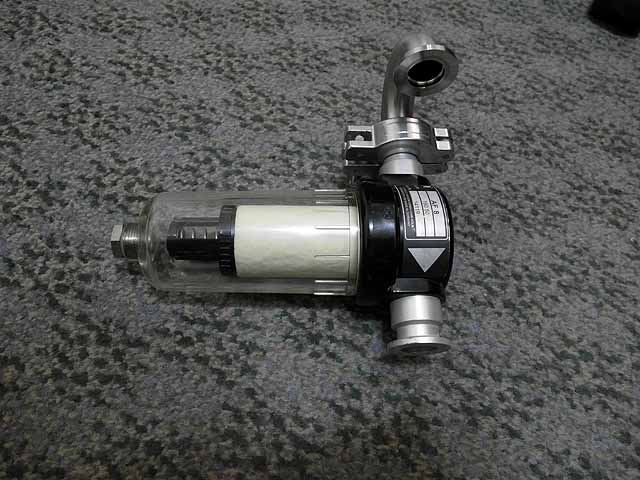

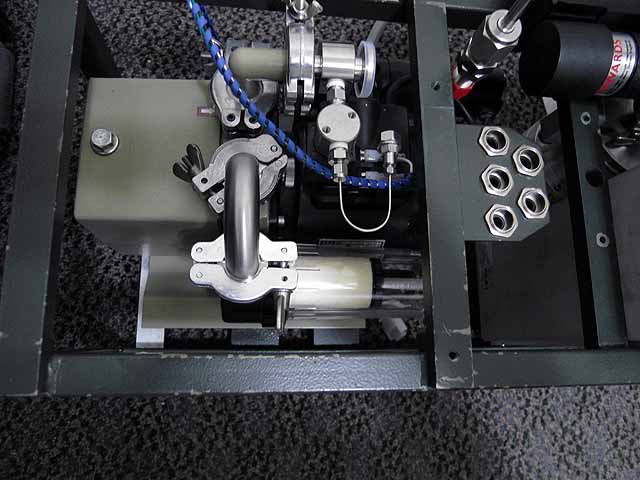

Turbo Station (4/3/2014) Backing pump exhaust mist eliminator and 180degree elbow |
 |
Turbo Station (4/3/2014) Exhaust mist eliminator mounted |
 |
Turbo Station (4/3/2014) Exhaust mist eliminator mounted |
 |
Turbo Station (4/3/2014) Exhaust mist eliminator mounted |
 |
Turbo Station (4/3/2014) Turbo bypass line mounting plate |
 |

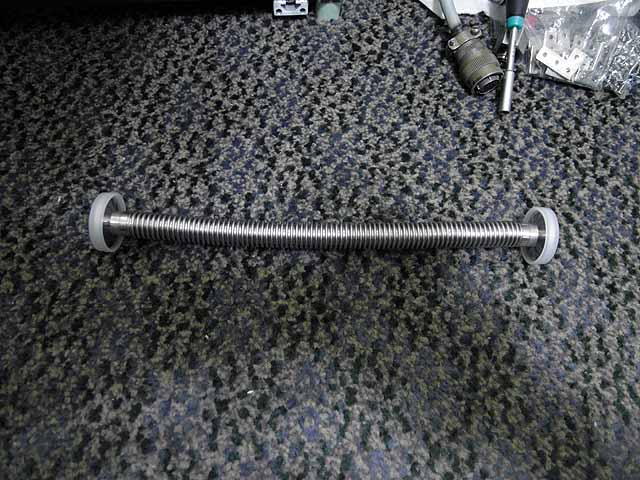

Turbo Station (4/3/2014) Turbo bypass line to rough out vacuum chamber while the turbo is isolated and running |
 |
Turbo Station (4/3/2014) Turbo bypass line |
 |
Turbo Station (4/3/2014) Controller standoff to allow cable clearance on the bottom |
 |

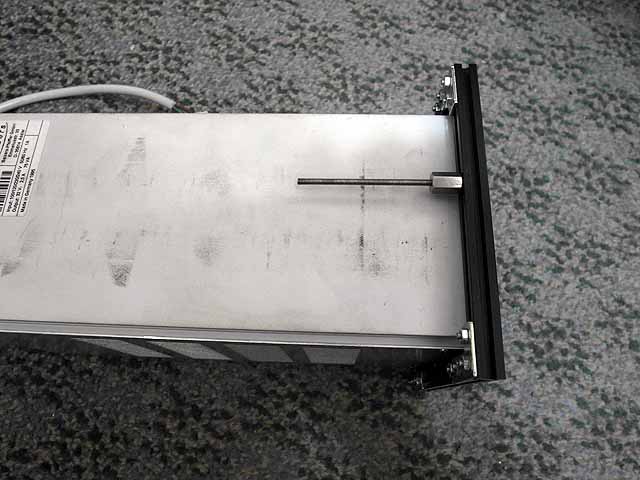

Turbo Station (4/3/2014) Turbo controller attached to maker beam frame |
 |
Turbo Station (4/3/2014) Turbo controller attached to maker beam frame |
 |
Turbo Station (4/3/2014) Roughing line |
 |

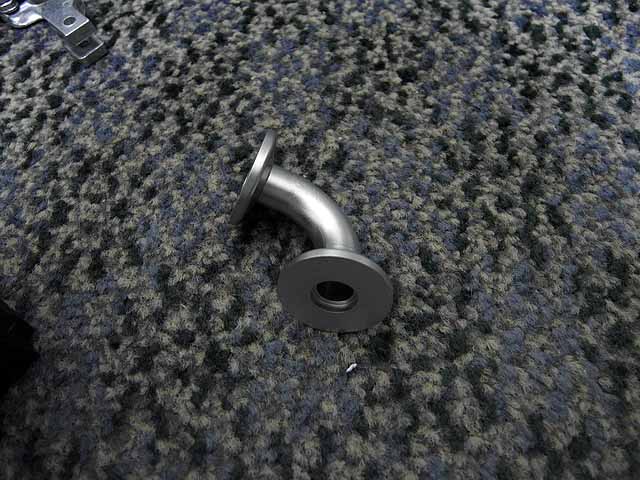

Turbo Station (4/3/2014) KF10 elbow |
 |

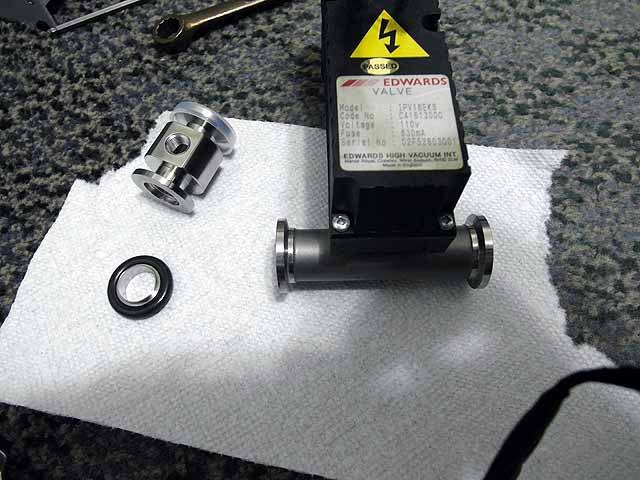

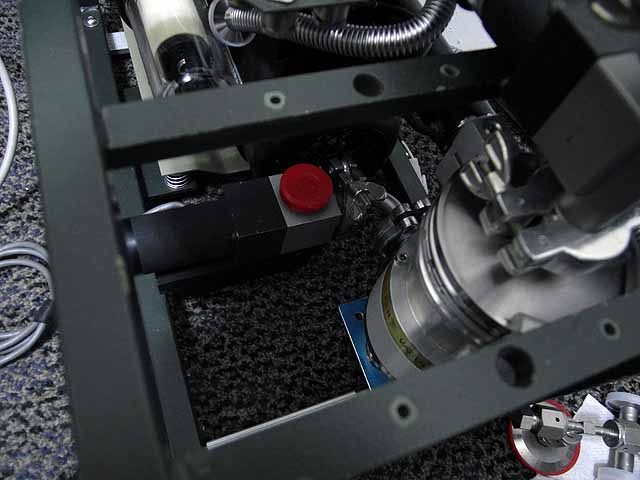

Turbo Station (4/3/2014) Turbo backing line isolation valve |
 |
Turbo Station (4/3/2014) Turbo backing line isolation valve |
 |
Turbo Station (4/3/2014) Turbo backing line isolation valve |
 |

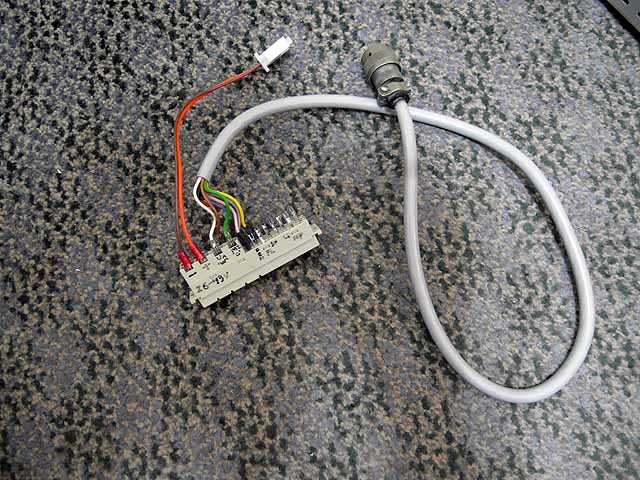

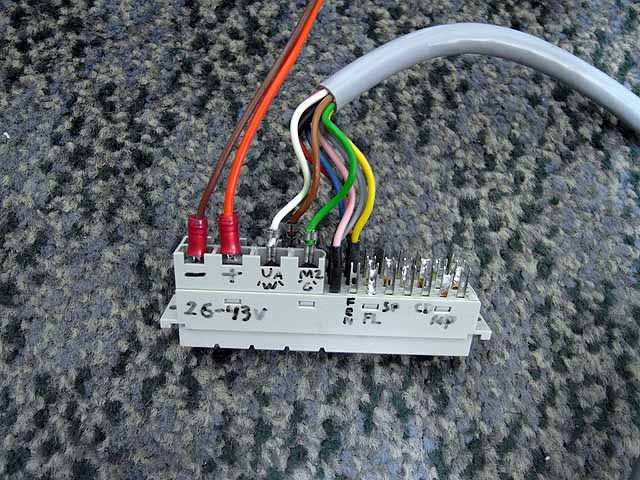

Turbo Station (4/3/2014) Turbo controller cable |
 |
Turbo Station (4/3/2014) Turbo controller cable |
 |

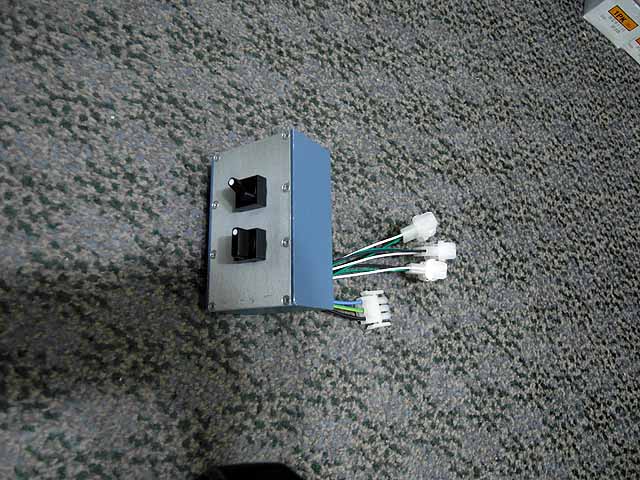

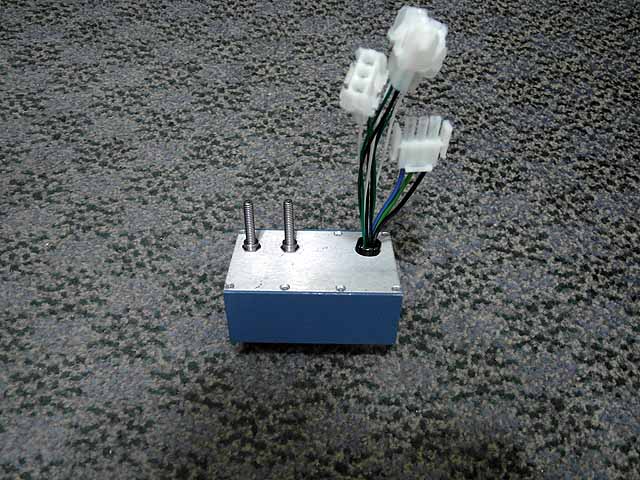

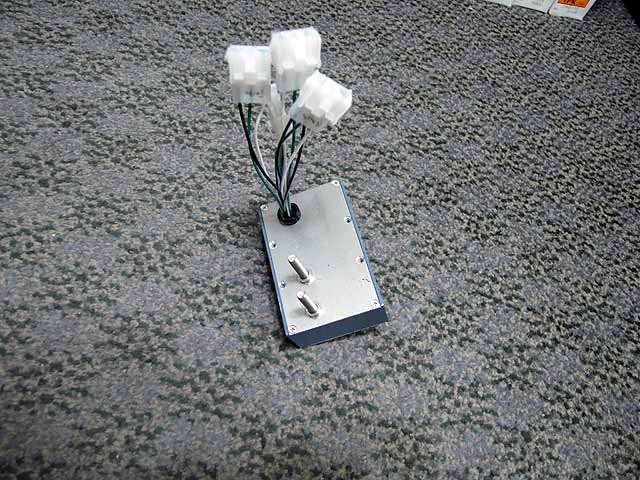

Turbo Station (4/3/2014) Backing pump and valve control box |
 |
Turbo Station (4/3/2014) Backing pump and valve control box |
 |
Turbo Station (4/3/2014) Backing pump and valve control box |
 |

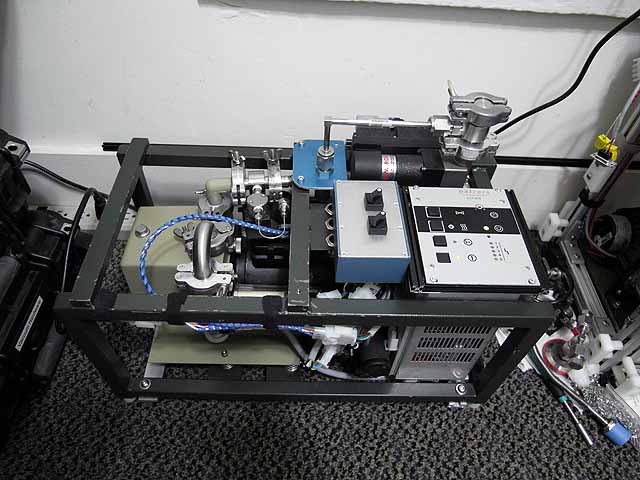

Turbo Station (4/3/2014) Control box mounted |
 |

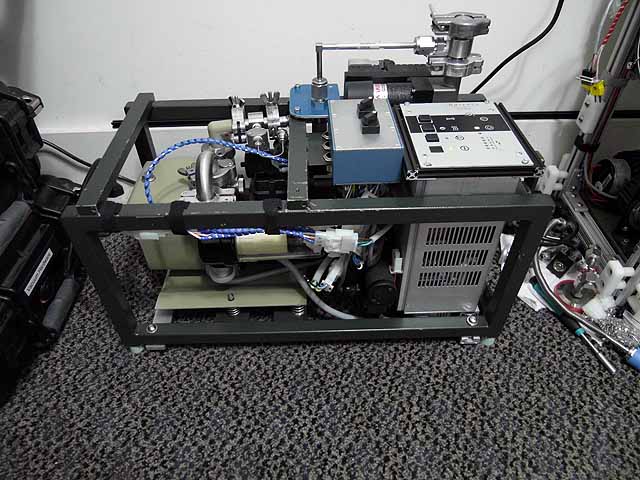

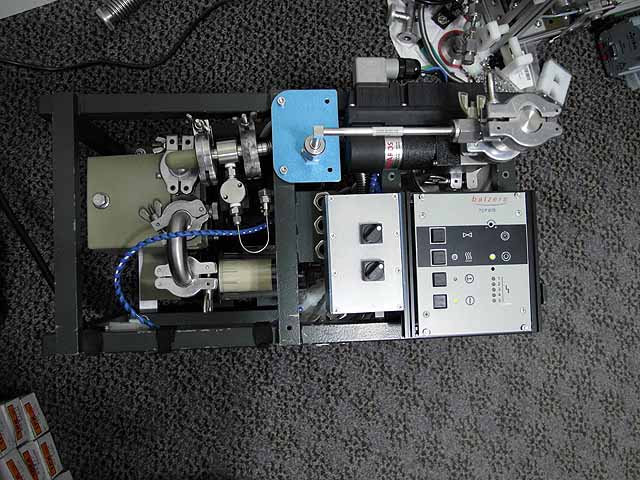

Turbo Station (4/3/2014) Turbo operation test |
 |
Turbo Station (4/3/2014) Turbo operation test |
|
Turbo Station (4/3/2014) Turbo operation test |
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
Turbo Station (4/3/2014)
|
|
