Hydraulically powered exoskeleton. Frame

Frame (10/19/2013)

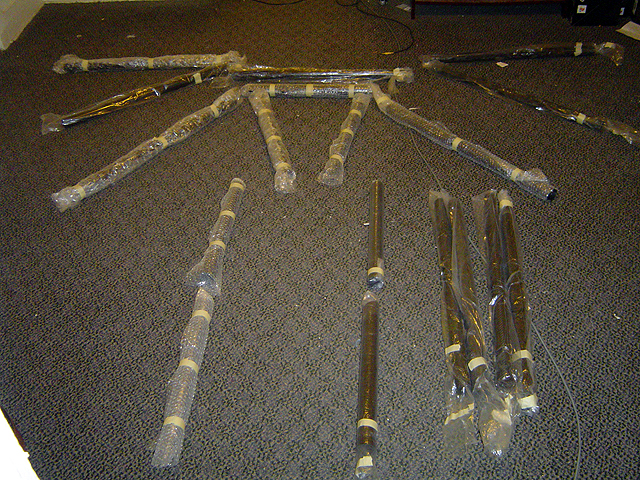

Filament wound and twill rolled carbon fiber tubing

Frame (10/19/2013)

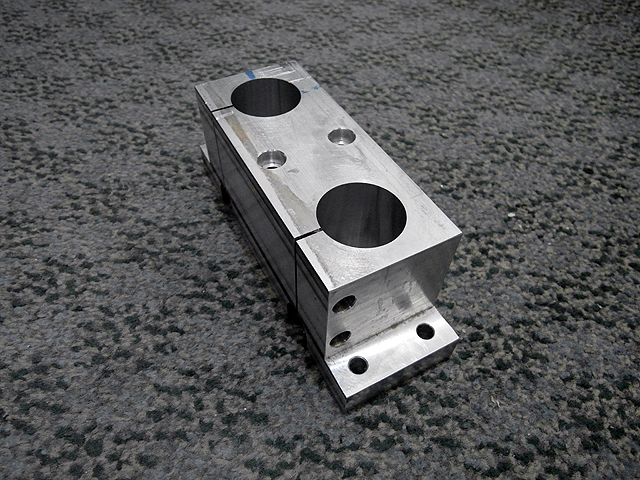

8020 mounting block

Frame (10/19/2013)

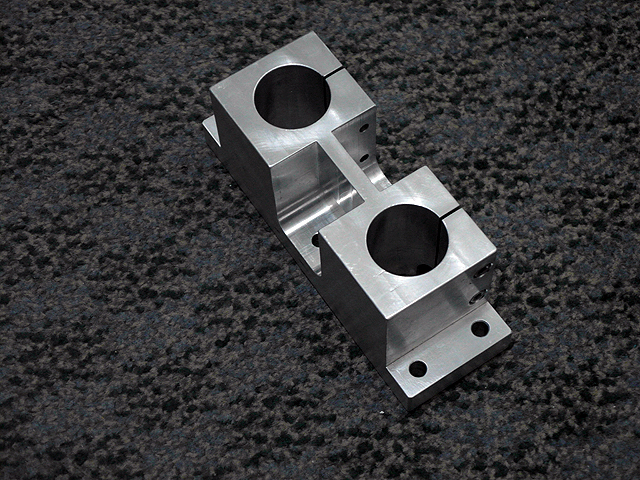

Block pocket milled for weight reduction

Frame (10/19/2013)

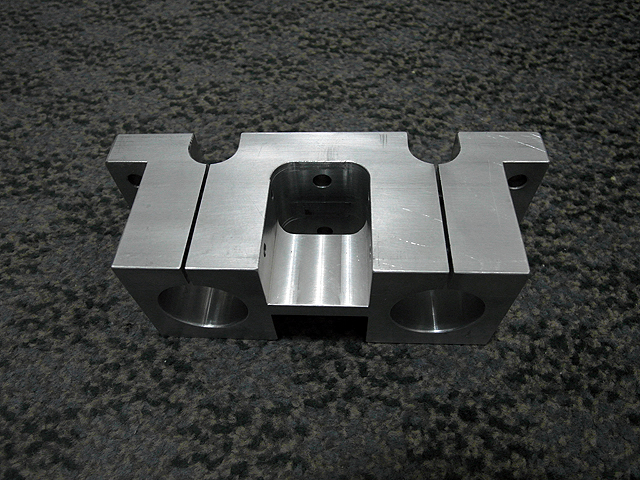

Block pocket milled for weight reduction

Frame (10/19/2013)

Block pocket milled for weight reduction

Frame (10/19/2013)

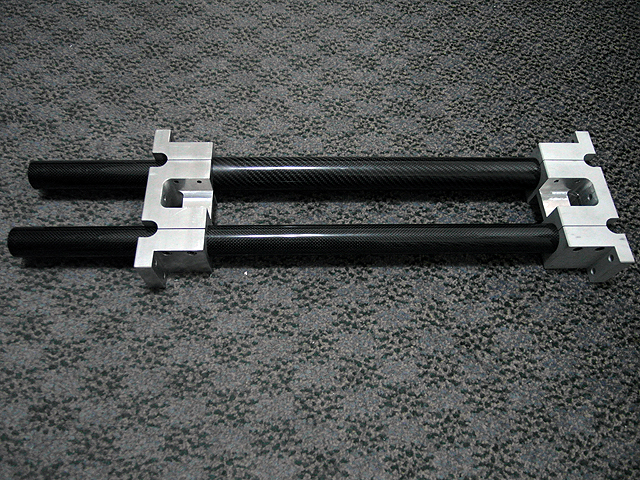

Carbon fiber tubes mounted in block

Frame (10/19/2013)

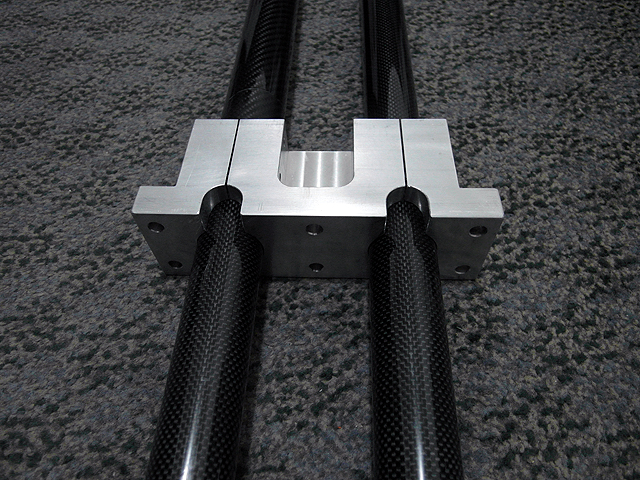

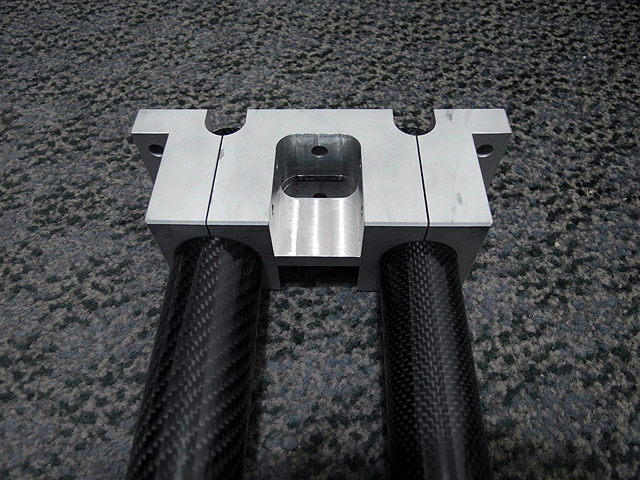

Carbon fiber tubes mounted in block

Frame (10/19/2013)

Back support, shoulder and hip mounts.

Frame (10/19/2013)

Basic frame design

Frame (10/19/2013)

With hydraulic cylinders

Frame (10/19/2013)

Operator harness

Frame (10/19/2013)

Frame (10/19/2013)

Frame (10/19/2013)

Frame (10/19/2013)
