| Powered Exoskeleton Helmet | |
 |
 |
 |
 |
 |
 |
 |
Hydraulically powered exoskeleton. Helmet and head mounted display |
|
 |
Helmet / HMD (2/26/2014) Current status |
 |

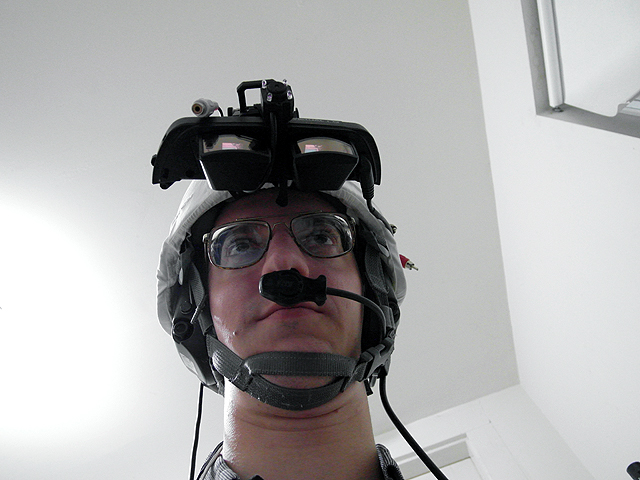

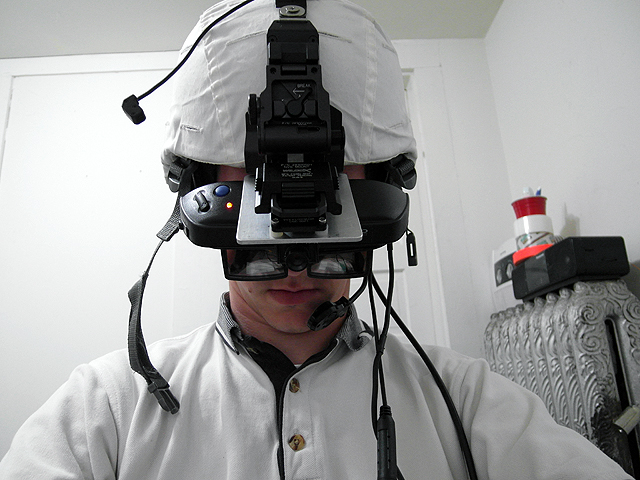

Helmet / HMD (10/19/2013) Virtual IO iglasses. Head mounted display (HMD) projects composite video signal into your field of view. |
 |

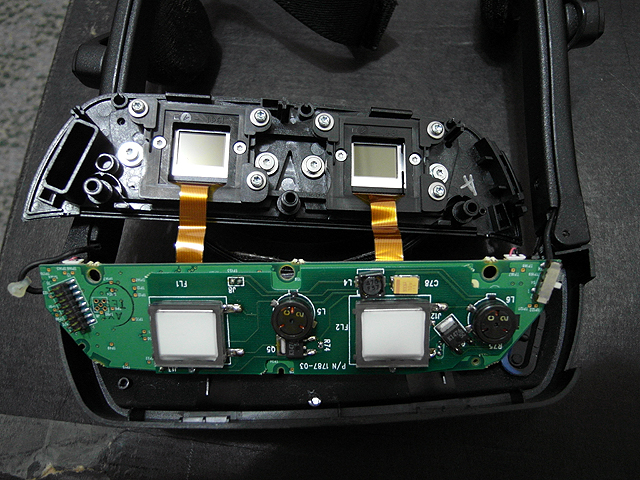

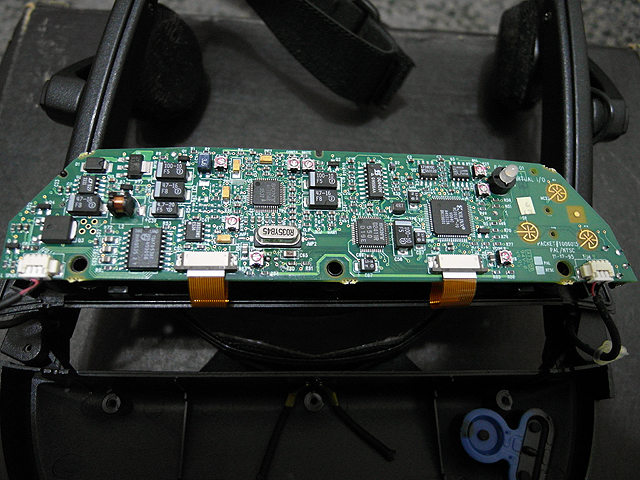

Helmet / HMD (10/19/2013) iglasses interior |
 |
Helmet / HMD (10/19/2013) iglasses interior |
 |
Helmet / HMD (10/19/2013) Large advanced combat helmet (ACH) and wilcox mount |
 |

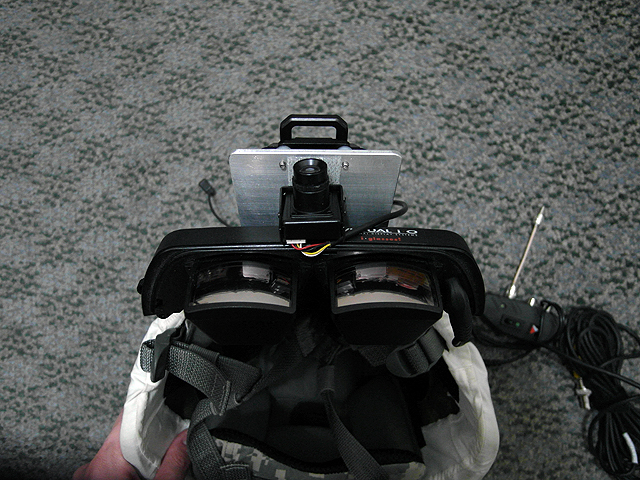

Helmet / HMD (10/19/2013) Prototyping HMD optical alignment |
 |

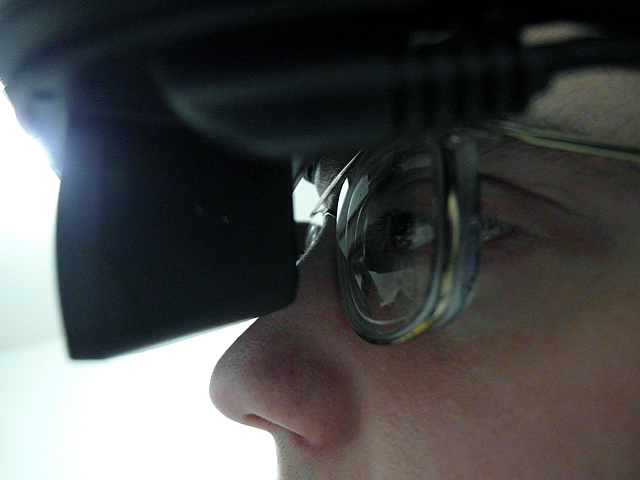

Helmet / HMD (10/19/2013) Optical center of display positioned in front of eyes |
 |

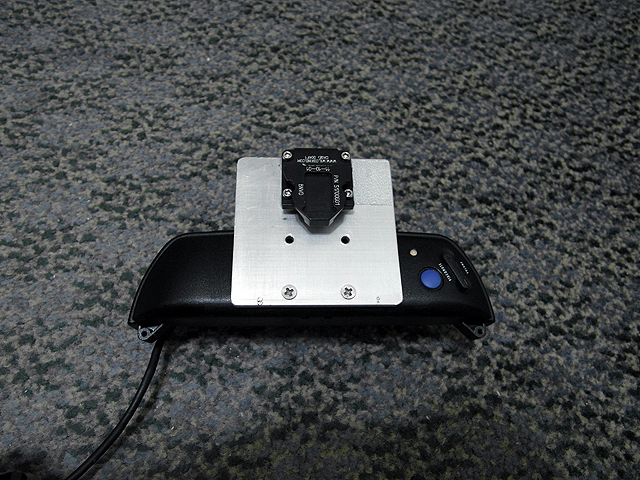

Helmet / HMD (2/26/2014) Mounting plate adapts HMD to wilcox dovetail mount. |
 |

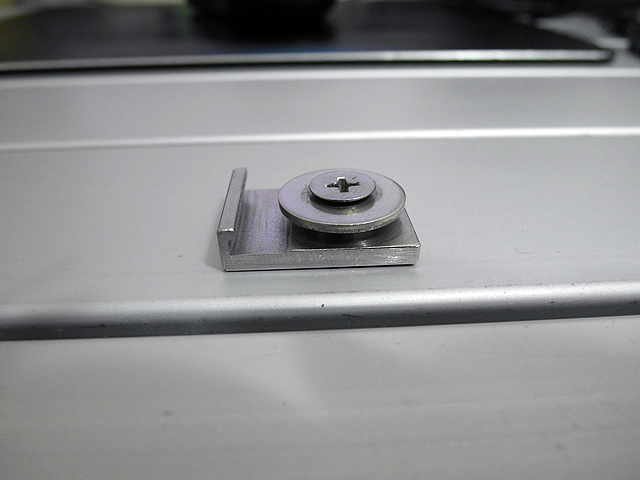

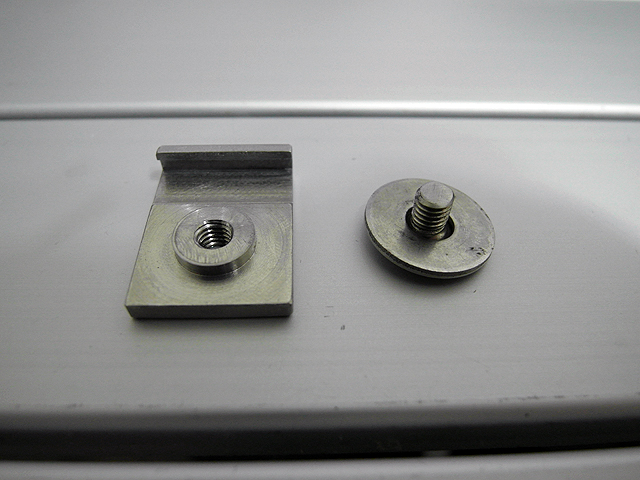

Helmet / HMD (10/19/2013) Adapter plate attaches HMD to wilcox dovetail receiver. |
 |

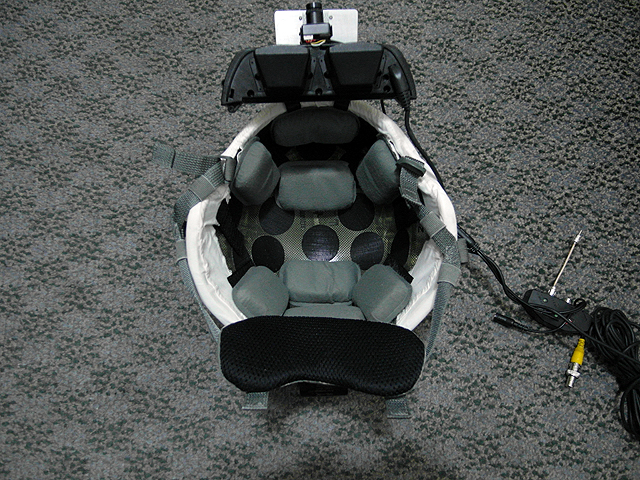

Helmet / HMD (10/19/2013) Helmet bottom |
 |

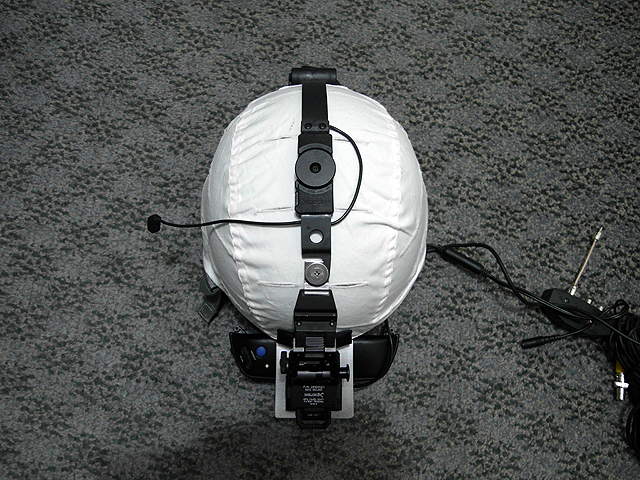

Helmet / HMD (10/19/2013) Helmet top. Counterweight added to back of helmet |
 |

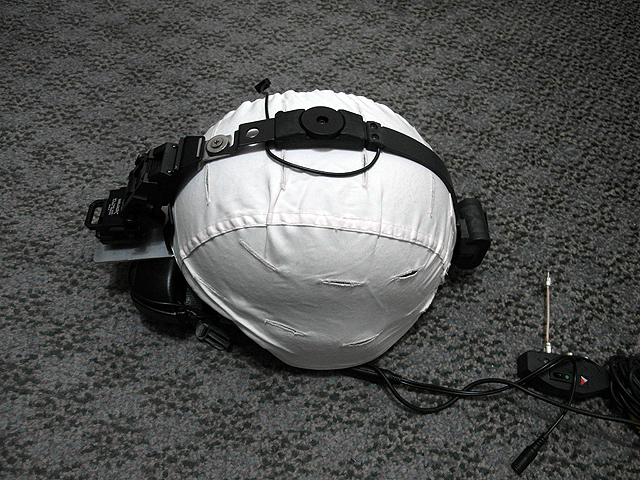

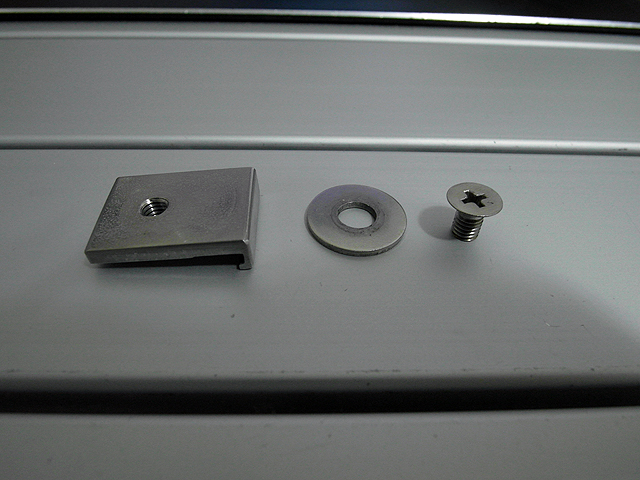

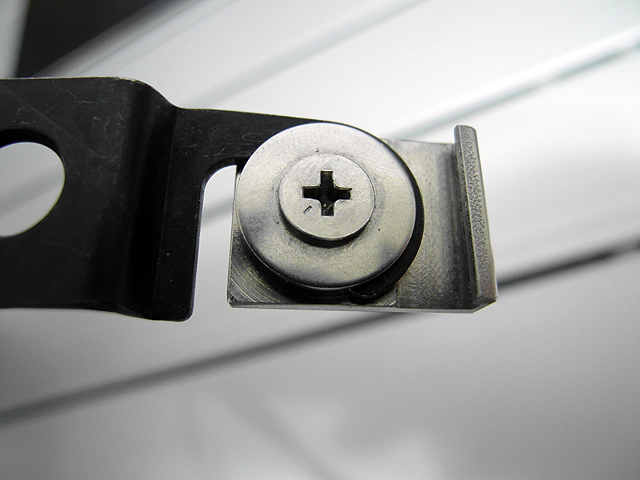

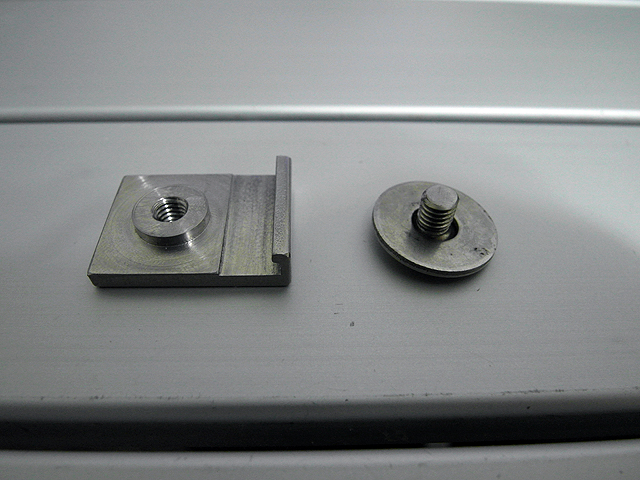

Helmet / HMD (2/26/2014) Adapter allows wilcox NVG mount designed for a strap to be connected to a wilcox power rail system. |
 |
Helmet / HMD (2/26/2014) Adapter allows wilcox NVG mount designed for a strap to be connected to a wilcox power rail system. |
 |
Helmet / HMD (2/26/2014) Adapter allows wilcox NVG mount designed for a strap to be connected to a wilcox power rail system. |
 |
Helmet / HMD (2/26/2014) Adapter allows wilcox NVG mount designed for a strap to be connected to a wilcox power rail system. |
 |
Helmet / HMD (2/26/2014) Adapter close up. |
 |
Helmet / HMD (10/19/2013) Helmet side |
 |
Helmet / HMD (10/19/2013) HMD mount close up. High dynamic range camera added |
 |

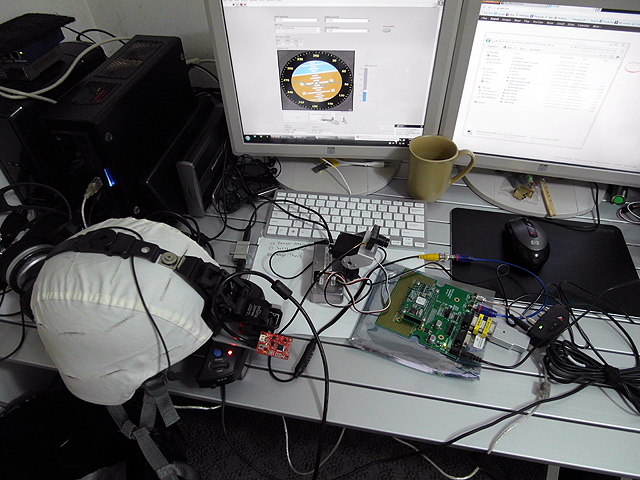

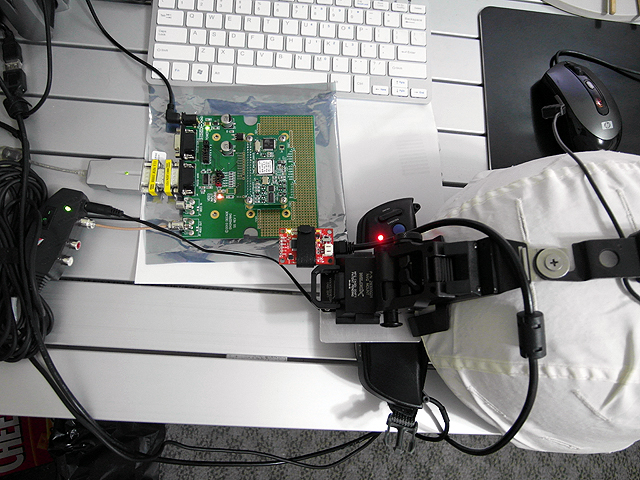

Helmet / HMD (10/19/2013) Attitude and heading reference system (AHRS), GPS receiver, and composite graphics overlay generator. |
 |
Helmet / HMD (10/19/2013) AHRS and GPS receiver |
 |

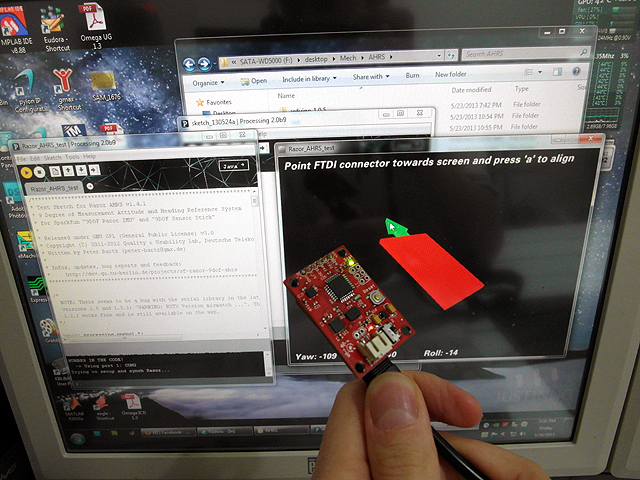

Helmet / HMD (10/19/2013) AHRS tracking position in arduino development environment |
 |

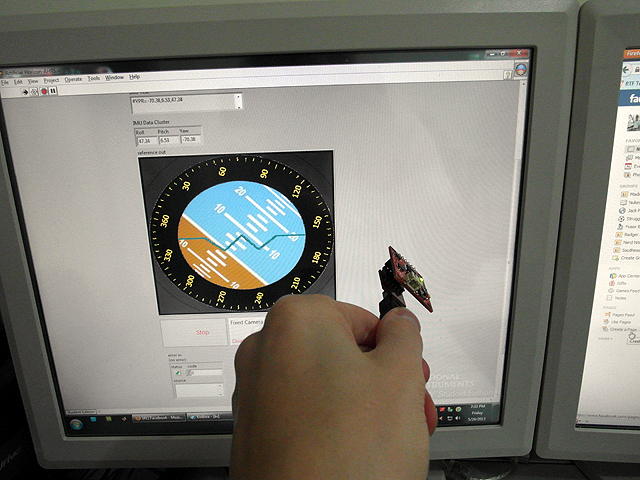

Helmet / HMD (10/19/2013) AHRS tracking position labview |
 |
Helmet / HMD (10/19/2013) AHRS mounted on helmet |
 |
Helmet / HMD (10/19/2013) AHRS and composite graphics overlay generator |
 |

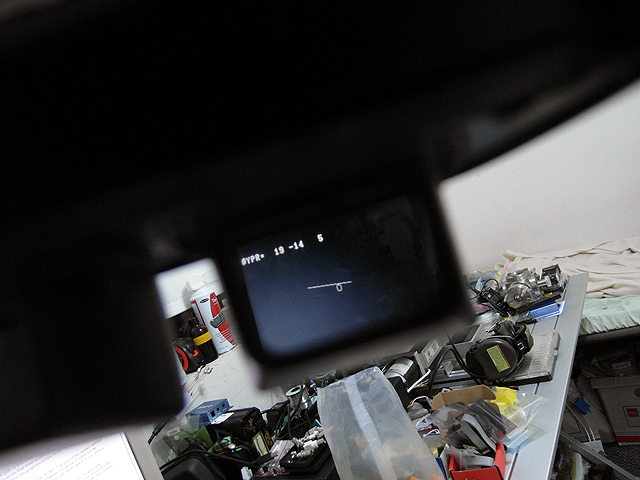

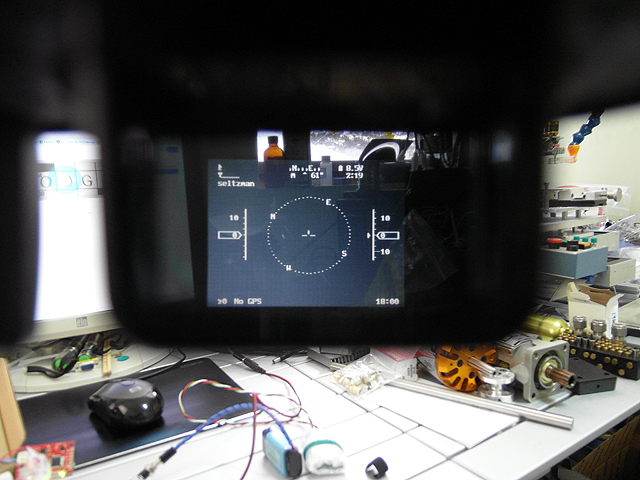

Helmet / HMD (10/19/2013) Test of HUD projection |
 |
Helmet / HMD (10/19/2013) Test of HUD projection and head tracking |
 |
Helmet / HMD (10/19/2013) Head tracking controlling remote camera |
 |
Helmet / HMD (10/19/2013) Head tracking controlling remote camera |
 |

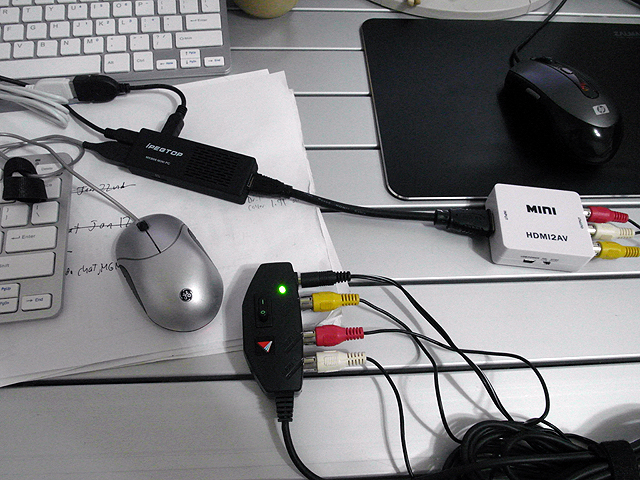

Helmet / HMD (10/19/2013) MK808 mini PC (ARM9 / android 4) with adapters to display on HMD |
Helmet / HMD (10/19/2013)
|
|
|
Helmet / HMD (10/19/2013) Attitude and heading reference system (AHRS) in arduino development environment |
|
Helmet / HMD (10/19/2013) AHRS in labview |
|
Helmet / HMD (10/19/2013) AHRS tracking helmet orientation |
|
Helmet / HMD (10/19/2013) AHRS driving HUD overlay on HMD |
Helmet / HMD (10/19/2013) AHRS tracking helmet orientation with hud overlay |
|
Helmet / HMD (10/19/2013) Camera being controlled by HMD attitude with hud overlay. |
|
Helmet / HMD (10/19/2013) AHRS tracking helmet orientation with hud overlay controlling remote camera |
|
|
Helmet / HMD (10/19/2013) AHRS tracking helmet orientation with hud overlay controlling remote camera |
 |

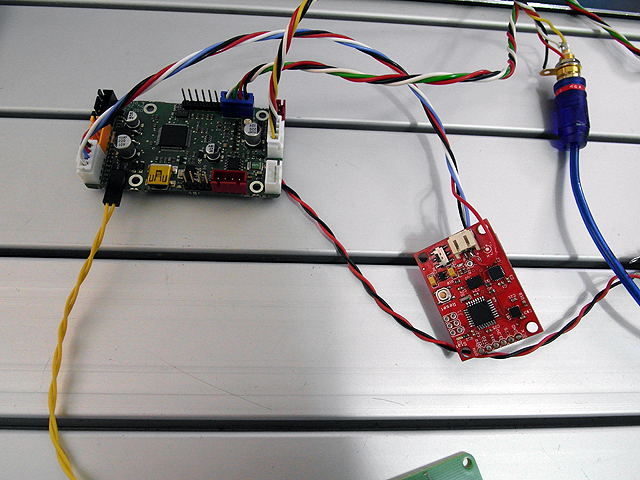

Helmet / HMD (12/30/2013) Pitlab OSD with razor AHRS |
 |
Helmet / HMD (12/30/2013) Attitude display |
 |
Helmet / HMD (12/30/2013) Compass and position display |
 |

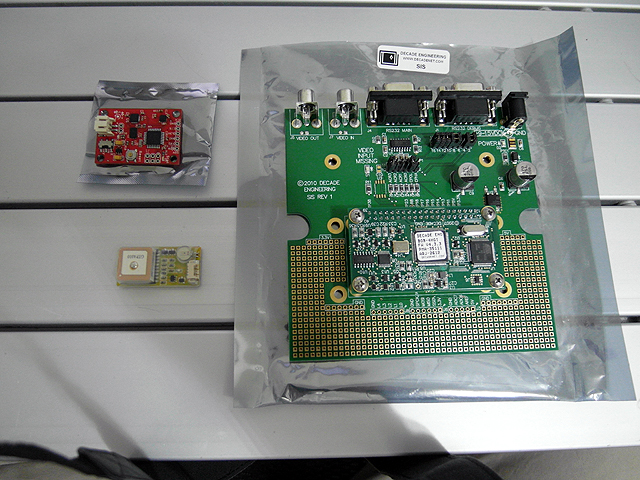

Helmet / HMD (1/17/2014) GNSS board. Receives GPS and GLONASS networks. |
 |
Helmet / HMD (1/17/2014) Original keyboard to program hud and switches and resistors in GNSS module cover. Unibox p/n: 108 |
 |

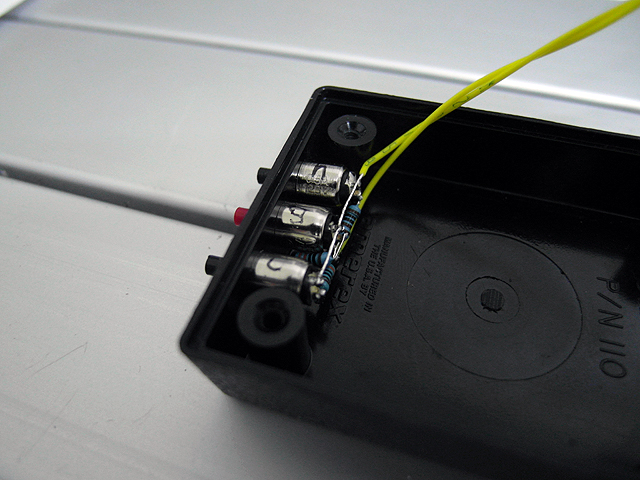

Helmet / HMD (1/17/2014) switches and resistors Each switch connects the two wires through a given resistor.
|
 |
Helmet / HMD (1/17/2014) switches and resistors |
 |

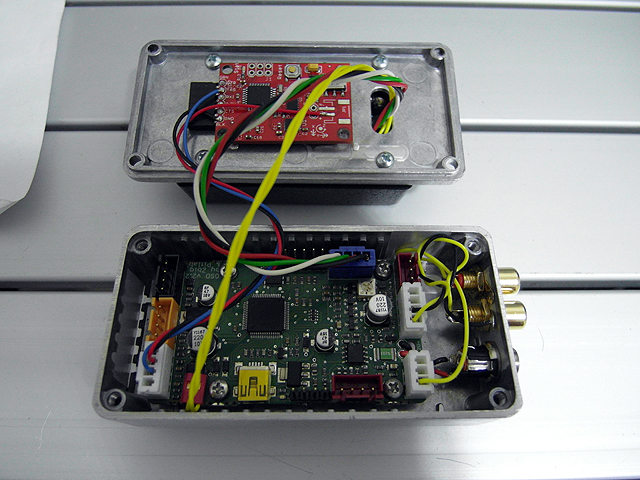

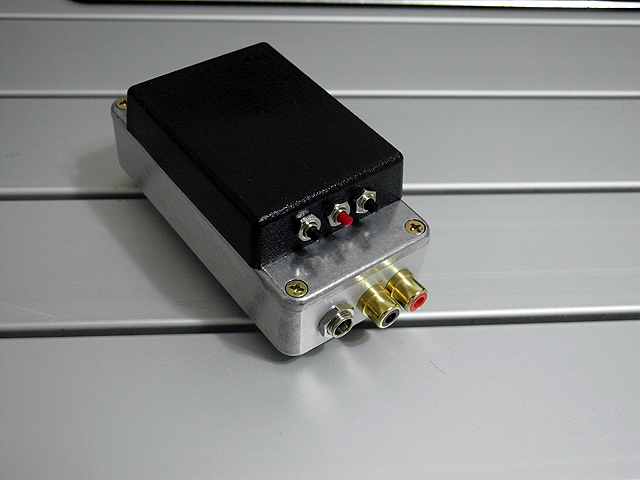

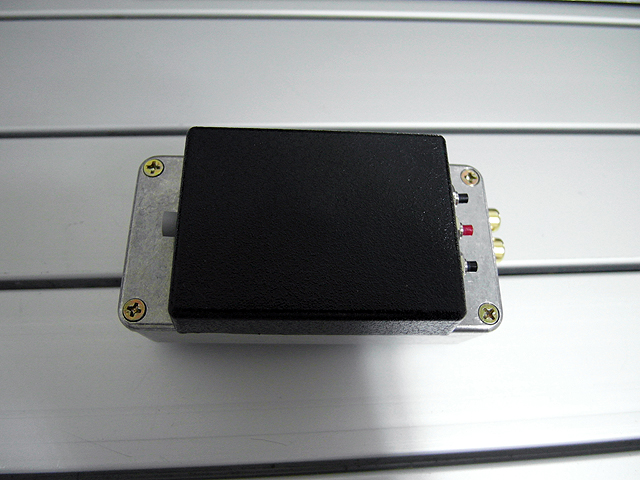

Helmet / HMD (1/17/2014) Arduino razor IMU and pitlab osd mounted in aluminum box Jameco p/n: 11957 |
 |
Helmet / HMD (1/17/2014) GNSS cover with switches mounted |
 |
Helmet / HMD (1/17/2014) GNSS cover with switches mounted |
 |
Helmet / HMD (1/17/2014) Labels added |
 |
Helmet / HMD (1/17/2014) AHRS test |
Helmet / HMD (1/17/2014) AHRS test |
|
Helmet / HMD (1/17/2014) AHRS test |
|
 |

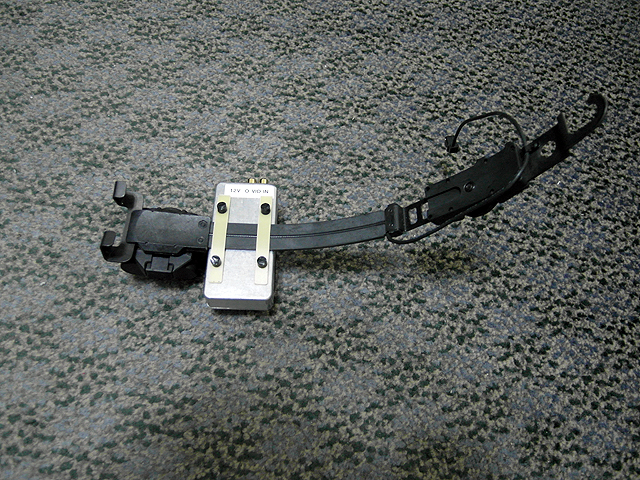

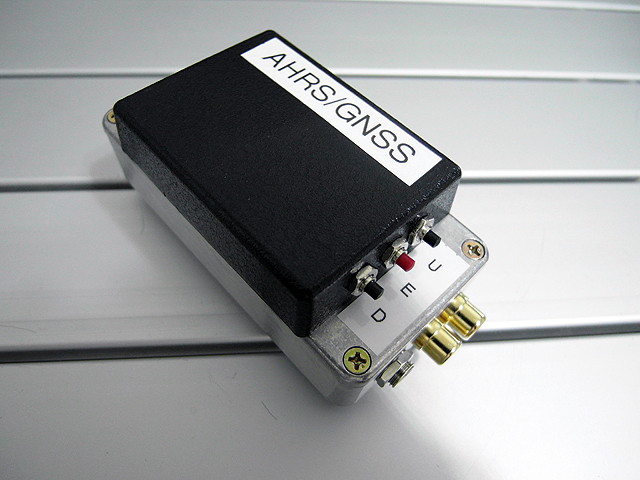

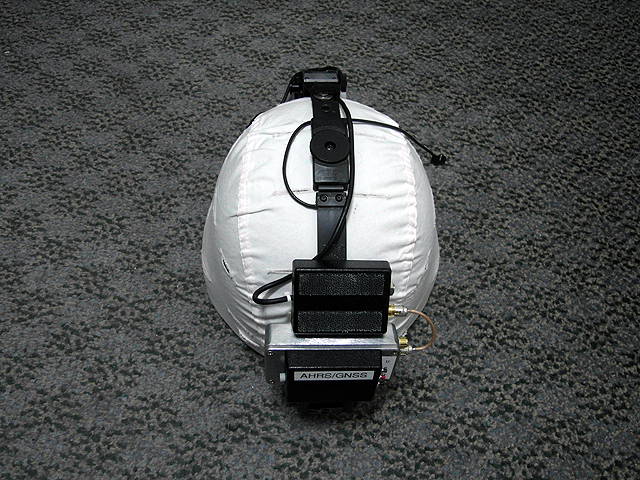

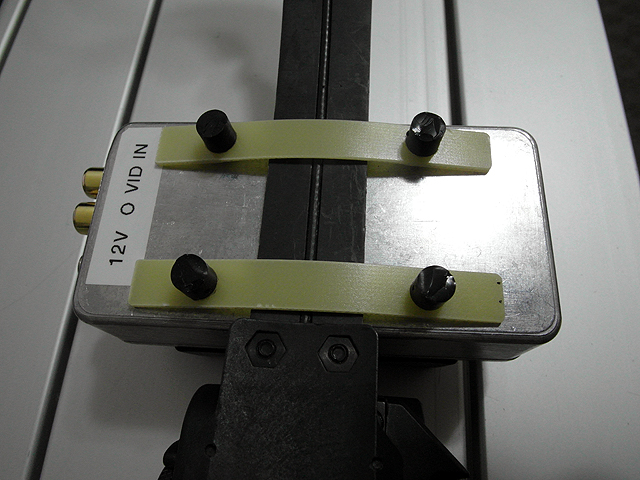

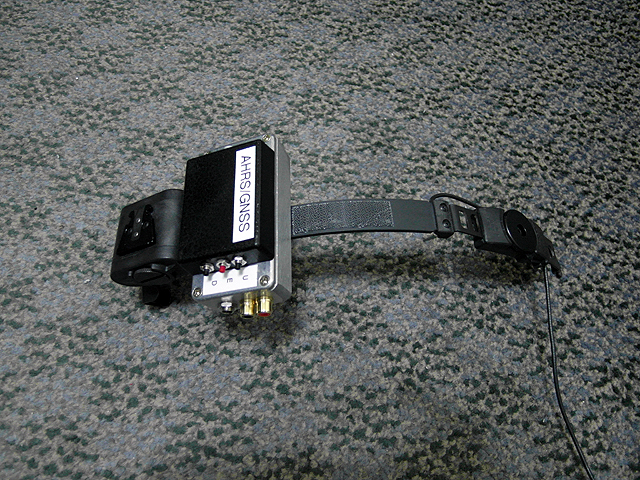

Helmet / HMD (2/26/2014) AHRS/GNSS module mounted on power rail. |
 |
Helmet / HMD (2/26/2014) AHRS/GNSS module mounted on power rail. |
 |
Helmet / HMD (2/26/2014) AHRS/GNSS module mounted on power rail. |
 |

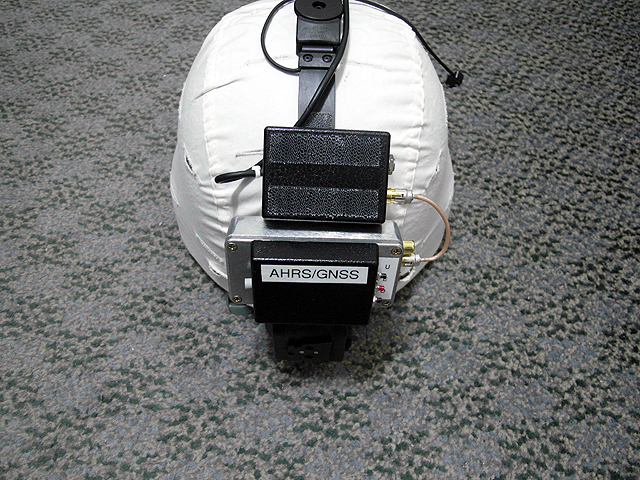

Helmet / HMD (2/26/2014) AHRS/GNSS mounted on helmet |
 |

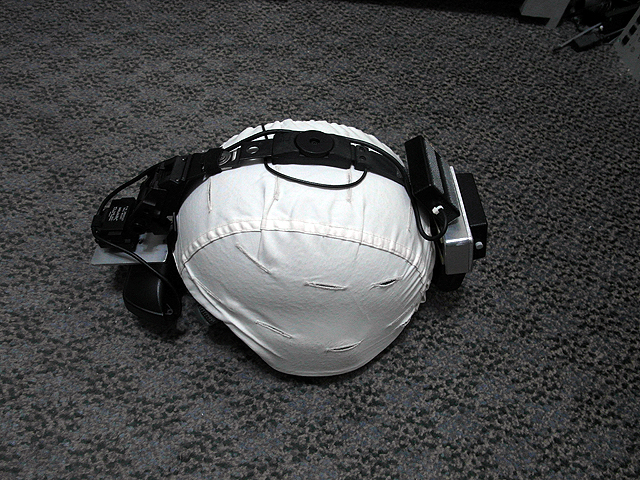

Helmet / HMD (2/26/2014) AHRS/GNSS mounted on helmet |
|
Helmet / HMD (2/26/2014) AHRS/GNSS mounted on helmet |
Helmet / HMD (6/15/2014) Added a rotation matrix to the attitude reference system code to compensate for mounting offset on the helmet. |
|
Helmet / HMD (6/15/2014) Added a rotation matrix to the attitude reference system code to compensate for mounting offset on the helmet. |
|
Helmet / HMD (2/26/2014)
|
|
Helmet / HMD (2/26/2014)
|
|
