Powered Exoskeleton Hydraulic Power Unit




Hydraulically powered exoskeleton. Hydraulic power unit.


Hydraulic power unit (7/4/2014)

Brushless motor coupled to hydraulic pump



Hydraulic power unit (7/4/2014)

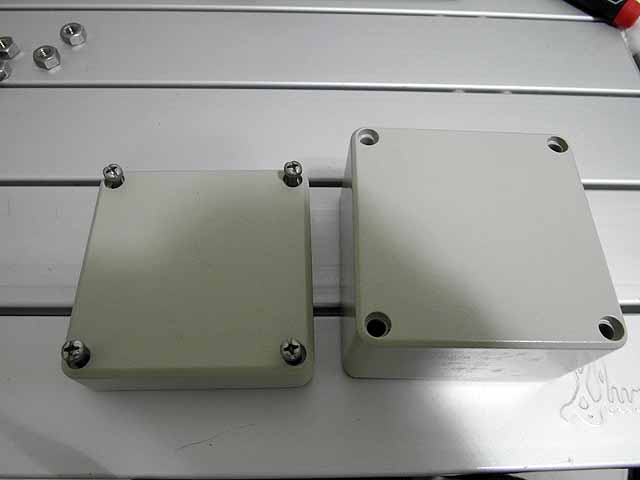

Hammond R100-080-000 aluminum box



Hydraulic power unit (7/4/2014)

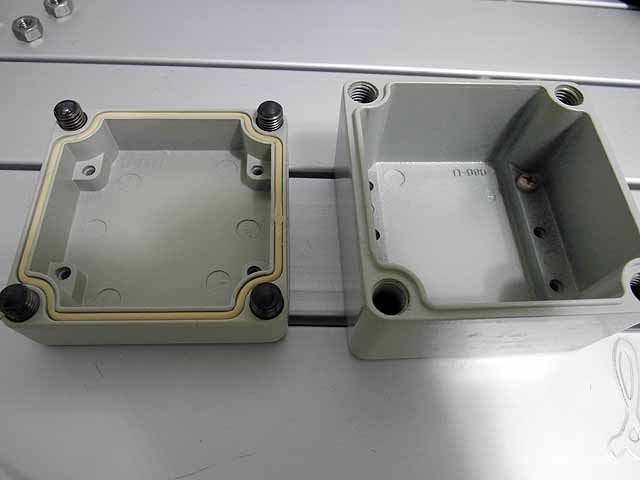

Hammond R100-080-000 aluminum box



Hydraulic power unit (7/4/2014)

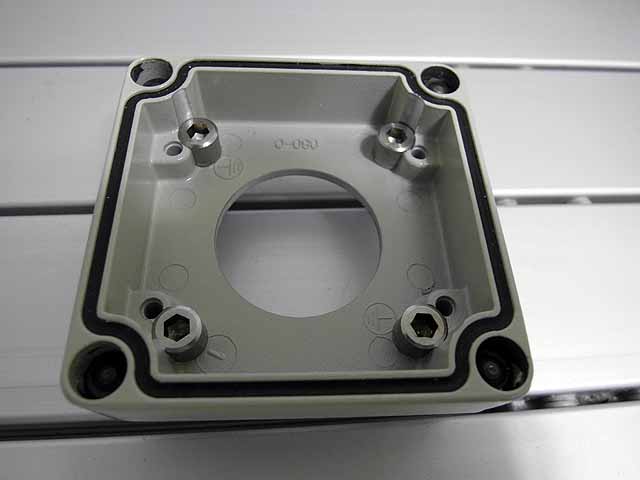

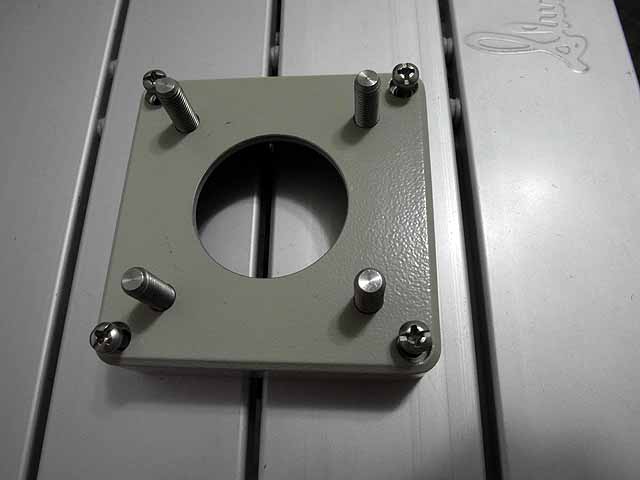

Box top machined to AND20000 flange standard to aircraft hydraulic pumps. Bolts screwed into threaded holes



Hydraulic power unit (7/4/2014)

Box top machined to AND20000 flange standard to aircraft hydraulic pumps. Bolts screwed into threaded holes



Hydraulic power unit (7/4/2014)

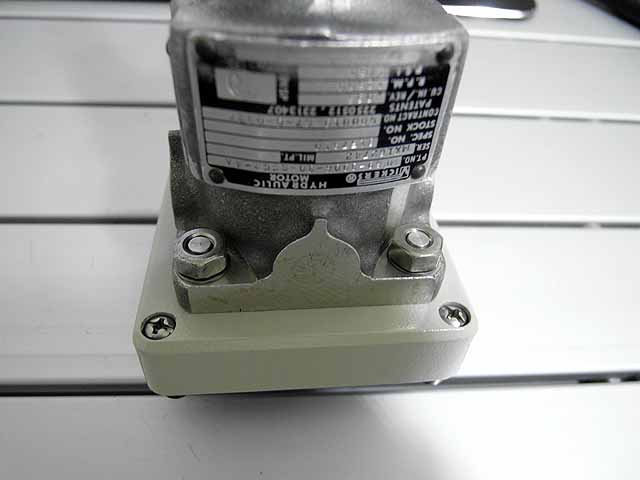

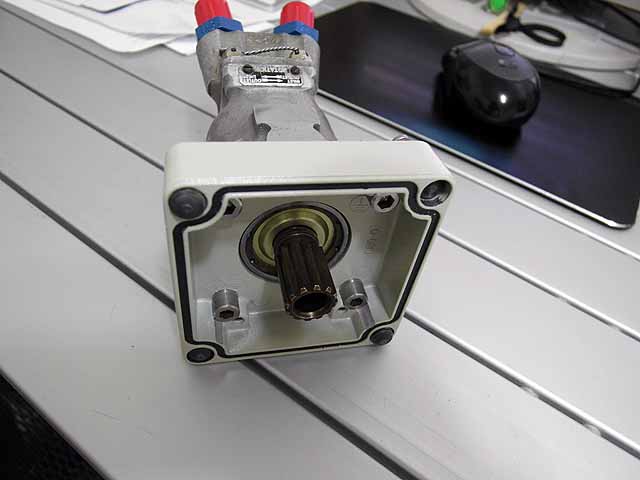

Hydraulic pump mounts to box top.



Hydraulic power unit (7/4/2014)

Hydraulic pump mounts to box top.



Hydraulic power unit (7/4/2014)

Hydraulic pump mounts to box top.



Hydraulic power unit (7/4/2014)

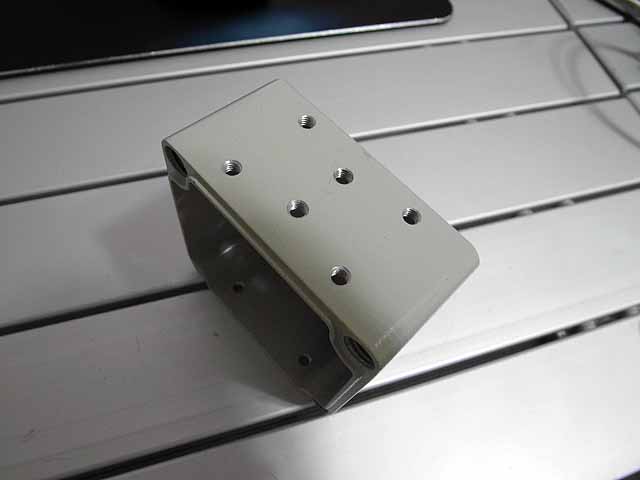

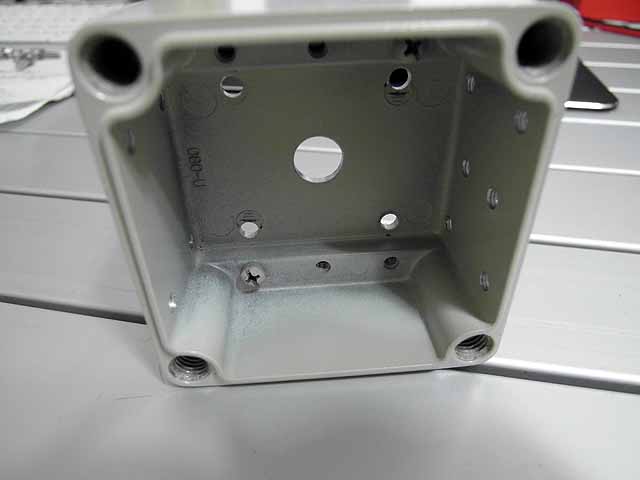

Box bottom machined with mounting holes for motor and attach points to exoskeleton.



Hydraulic power unit (7/4/2014)

Box bottom machined with mounting holes for motor and attach points to exoskeleton.



Hydraulic power unit (7/4/2014)

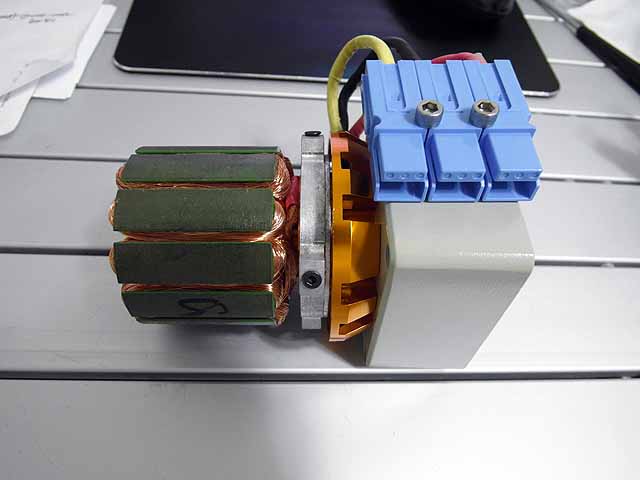

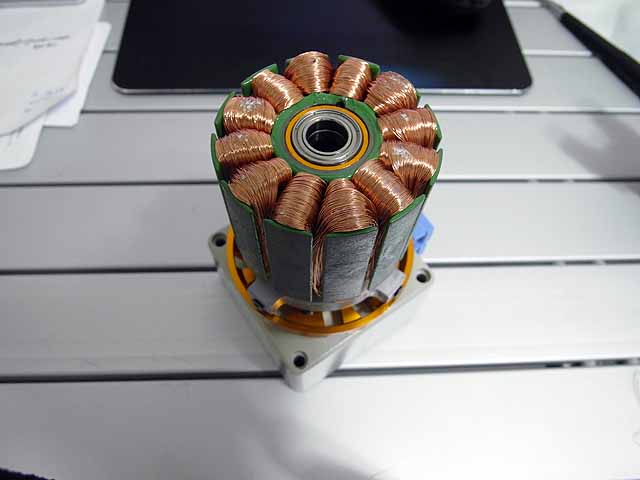

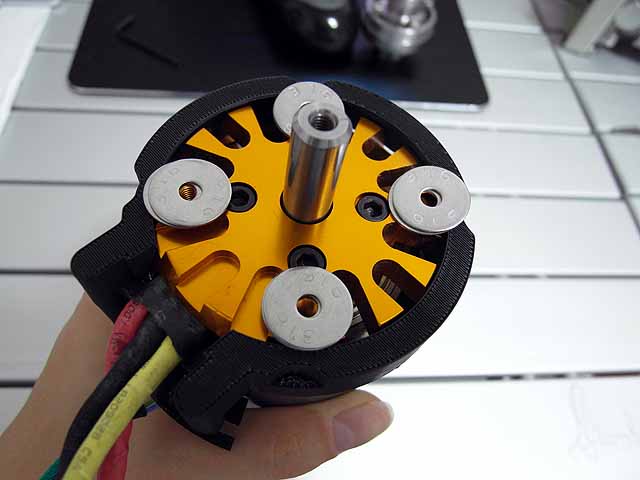

Motor stator attaches to box bottom (older version, some mounting holes missing)



Hydraulic power unit (7/4/2014)

Motor stator attaches to box bottom (older version, some mounting holes missing)



Hydraulic power unit (7/4/2014)

Motor stator attaches to box bottom (older version, some mounting holes missing)



Hydraulic power unit (7/4/2014)

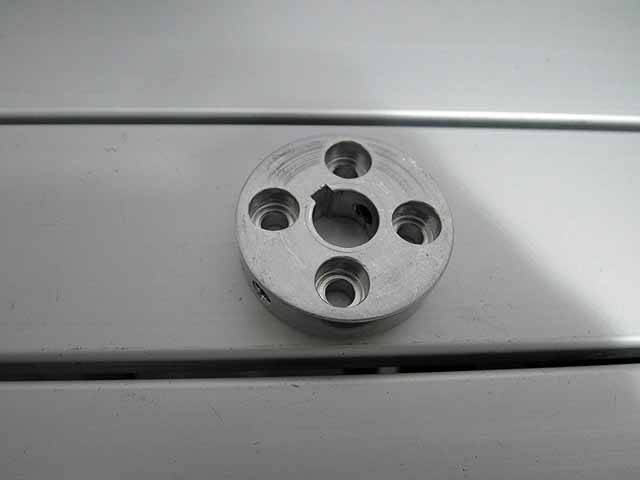

Keyed motor shaft coupler



Hydraulic power unit (7/4/2014)

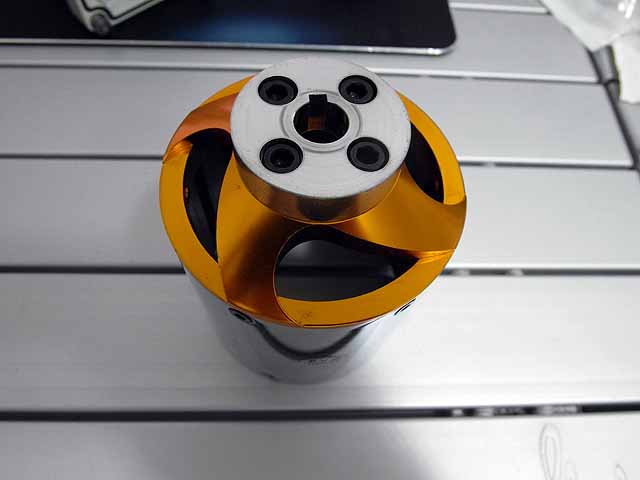

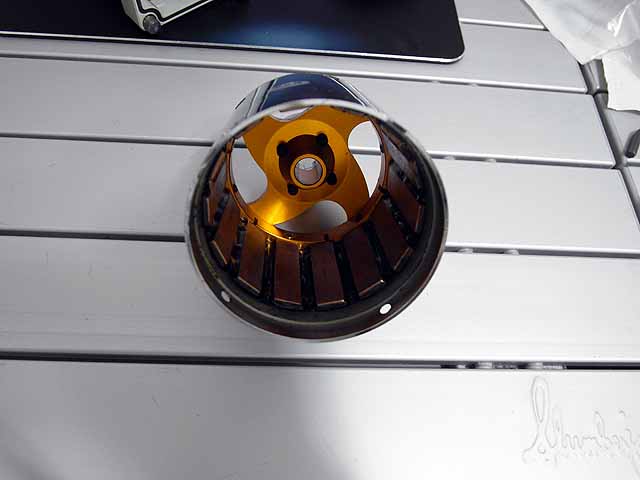

Motor shaft coupler attached to rotor



Hydraulic power unit (7/4/2014)

Rotor magnets



Hydraulic power unit (7/4/2014)

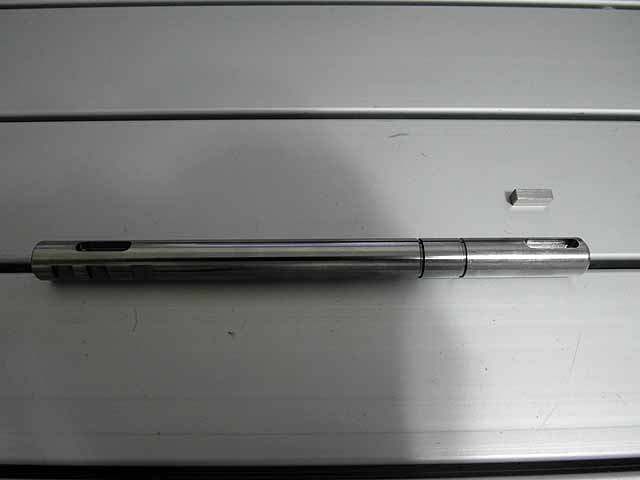

Modified motor shaft with 4mm keyways



Hydraulic power unit (7/4/2014)

Modified motor shaft with 4mm keyways



Hydraulic power unit (7/4/2014)

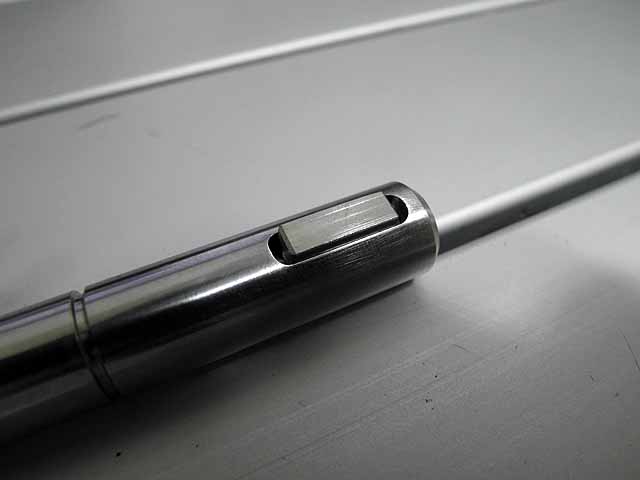

Keyway and key



Hydraulic power unit (7/4/2014)

Coupler to adapt shaft to aviation accessory drive spline



Hydraulic power unit (7/4/2014)

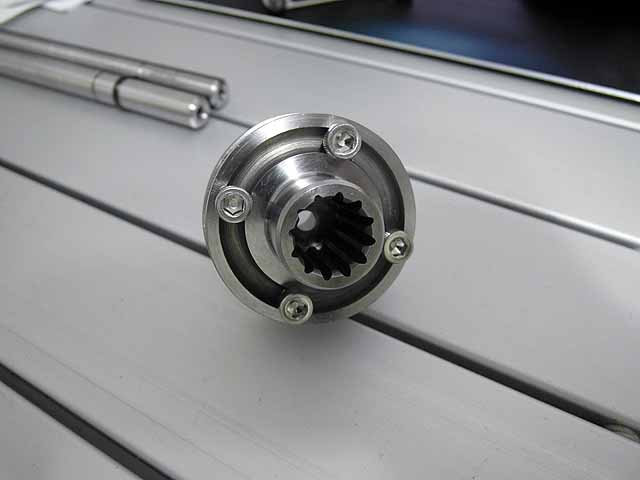

Aviation accessory drive spline. Unit was a drive gear from an accessory drive gearbox. Gear teath were ground off and spline was bolted to addapter.



Hydraulic power unit (7/4/2014)

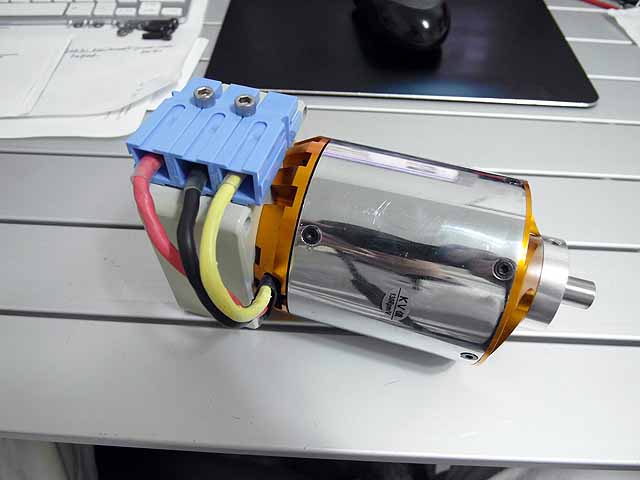

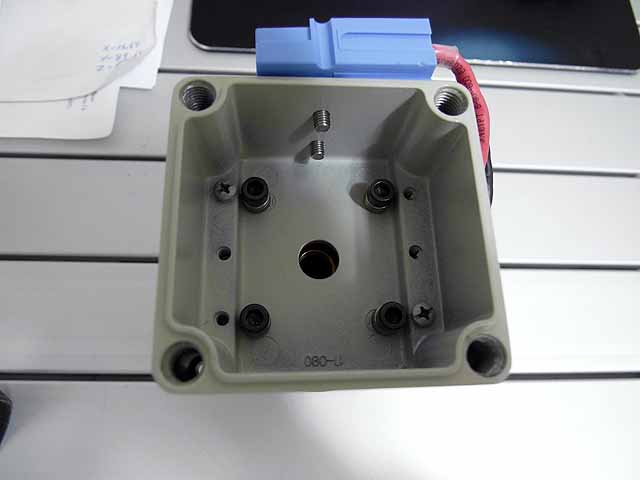

Motor attached to box bottom.



Hydraulic power unit (7/4/2014)

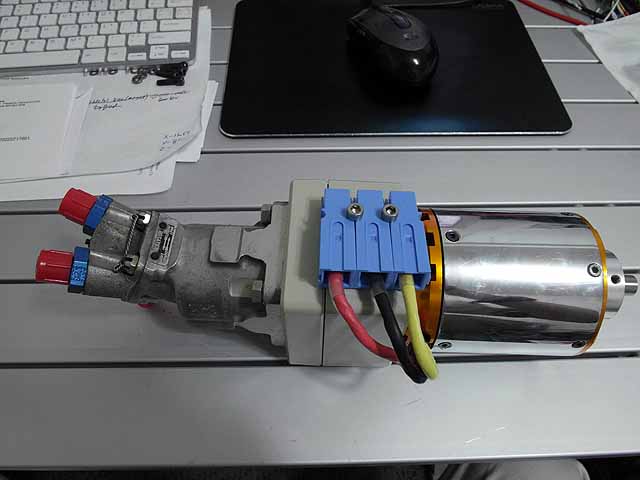

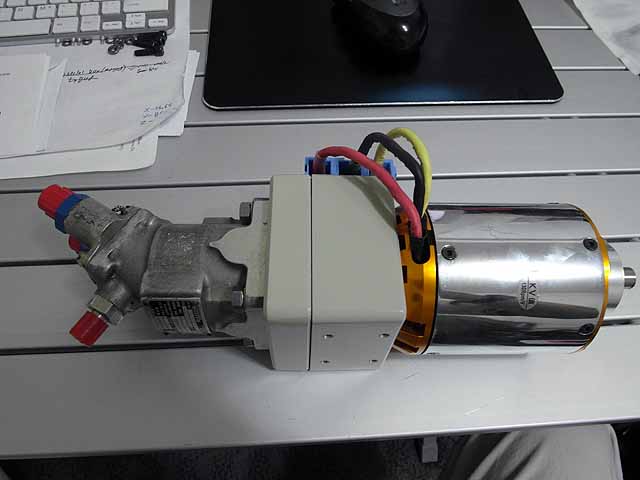

Pump attached to motor.



Hydraulic power unit (7/4/2014)

Pump attached to motor.



Hydraulic power unit (7/4/2014)

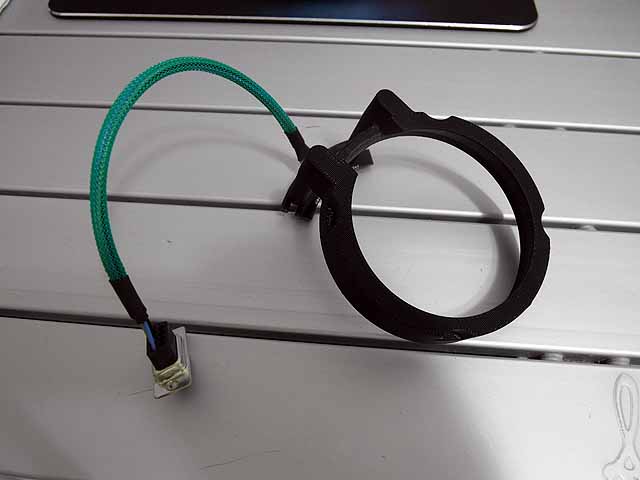

Hall effect sensor board



Hydraulic power unit (7/4/2014)

Hall effect sensor board mounted on motor.



Hydraulic power unit (7/4/2014)

Spacer washers to allow airflow.



Hydraulic power unit (7/4/2014)

Spacer washers to allow airflow.



Hydraulic power unit (7/4/2014)

Hall effect sensor board mounted on motor.



Hydraulic power unit (7/4/2014)

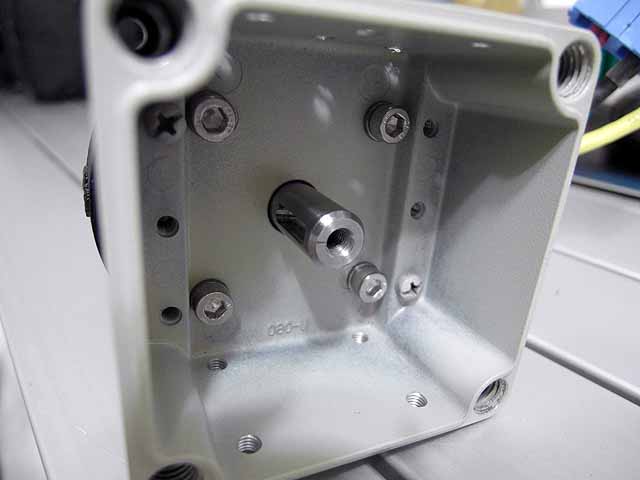

Motor attached to box bottom.



Hydraulic power unit (7/4/2014)

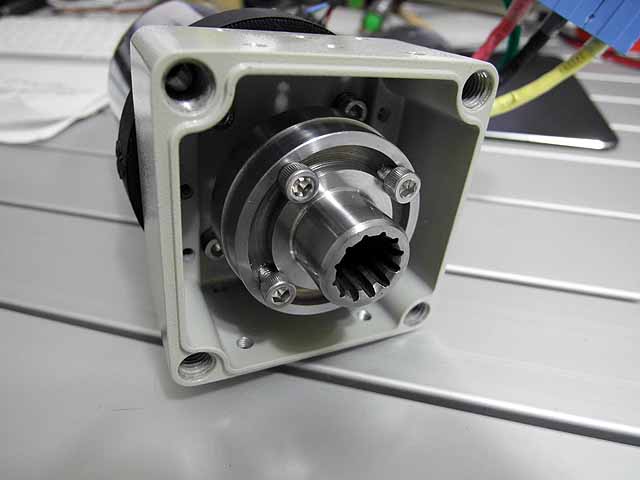

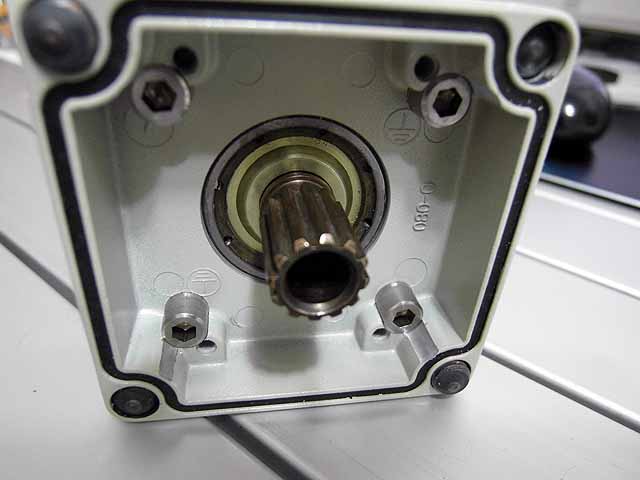

Aviation accessory drive spline connected to motor.



Hydraulic power unit (7/4/2014)

Motor test



Hydraulic power unit (7/4/2014)

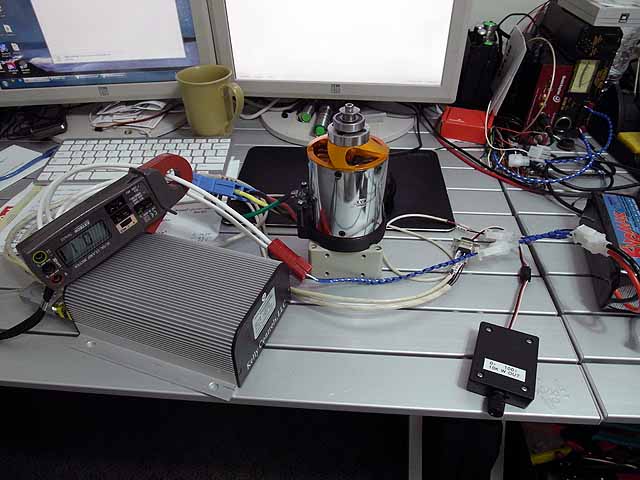

Test of brushless motor
