| Synrad J48-1 Teardown | |
 |
 |
 |
 |
 |
 |
 |
| A synrad J48-1 laser was purchased but would not lase. The electronics were found to work fine, but the tube needs a regas. |
|
 |

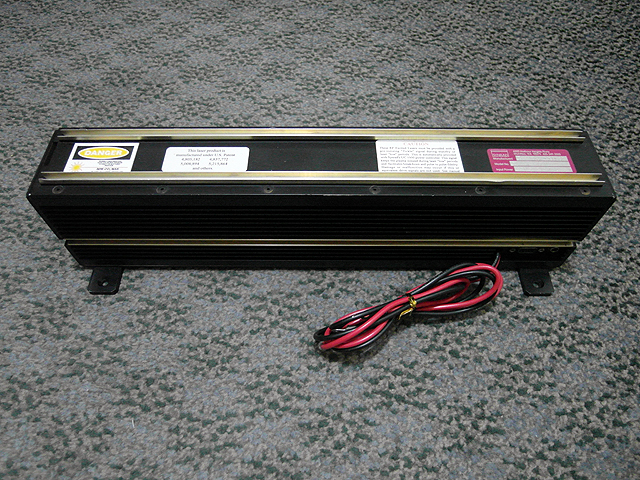

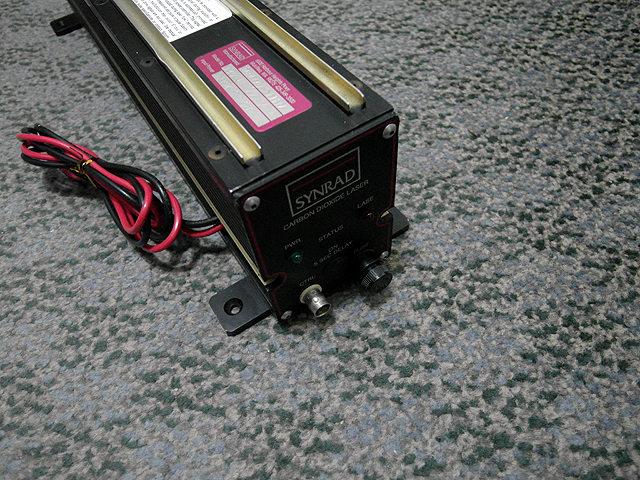

Synrad Laser (7/02/2013) Sealed CO2 laser
|
 |

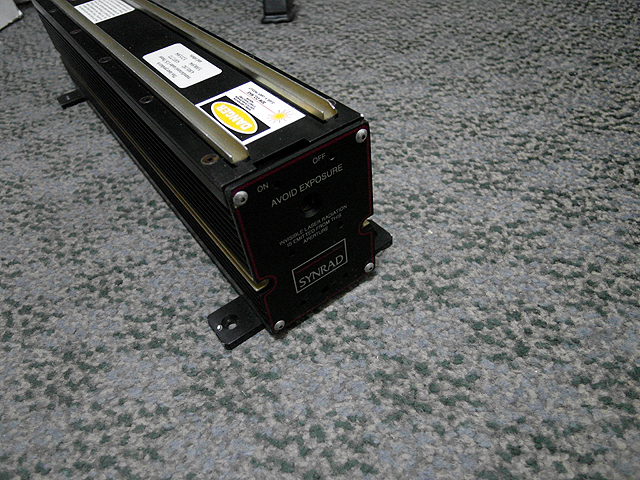

Synrad Laser (7/02/2013) Sealed CO2 laser
|
 |
Synrad Laser (7/02/2013) Sealed CO2 laser
|
 |

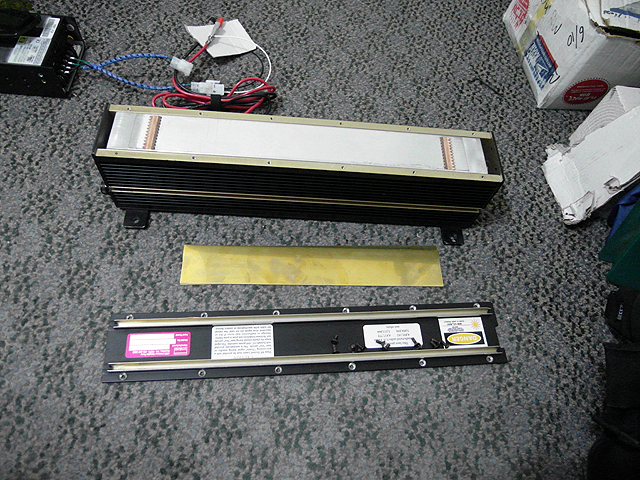

Synrad Laser (7/02/2013) Tube side of casing removed
|
 |

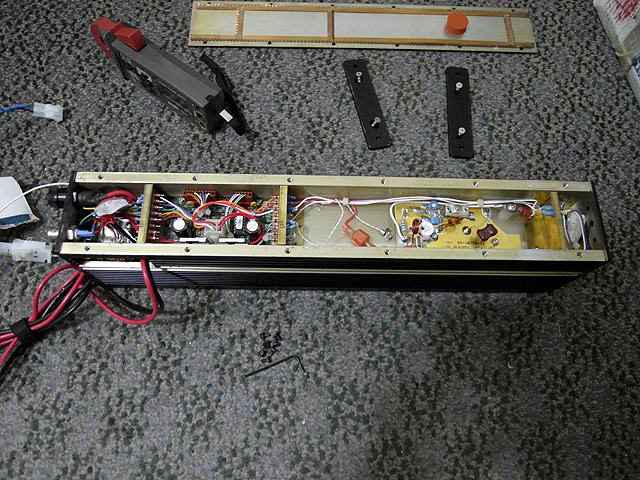

Synrad Laser (7/02/2013) Electronics side of casing removed
|
 |
Shutter Interlock (7/02/2013) Interlock switch for optional manual shutter.
|
 |

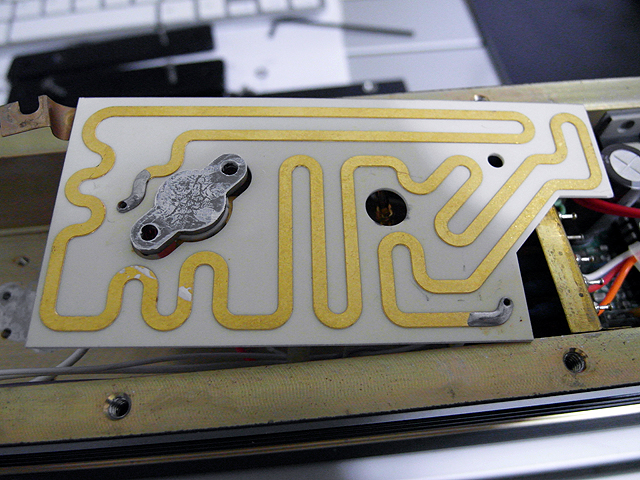

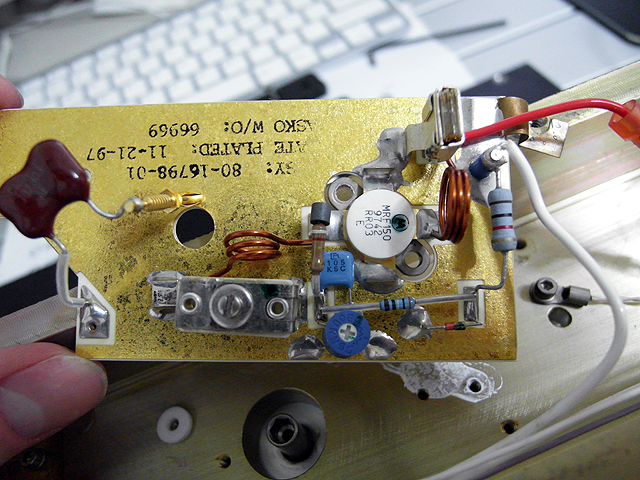

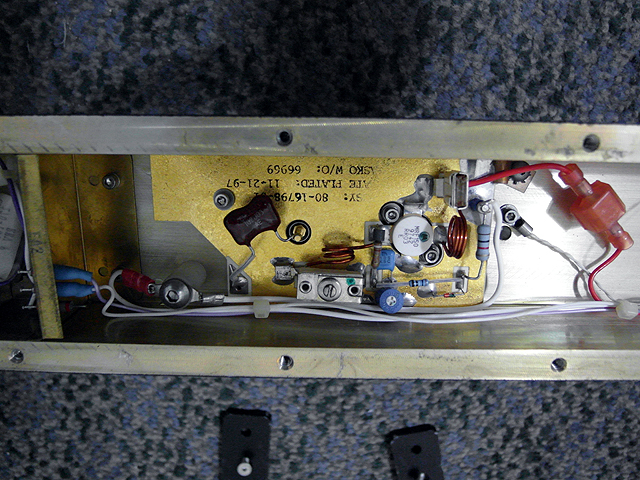

RF driver (7/02/2013) RF driver produces approximately 50MHz to excite the fill gas in the laser tube. Exact frequency is tuned to match the resonance of the tube.
|
 |
RF driver (7/02/2013) RF driver produces approximately 50MHz to excite the fill gas in the laser tube. Exact frequency is tuned to match the resonance of the tube.
|
 |
RF driver (7/02/2013) RF driver produces approximately 50MHz to excite the fill gas in the laser tube. Exact frequency is tuned to match the resonance of the tube.
|
 |

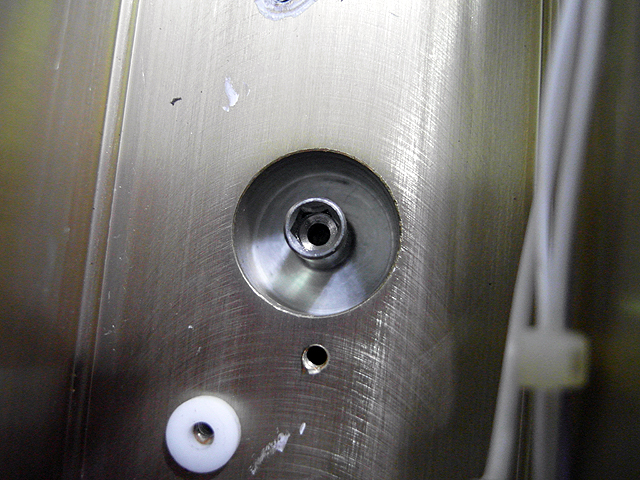

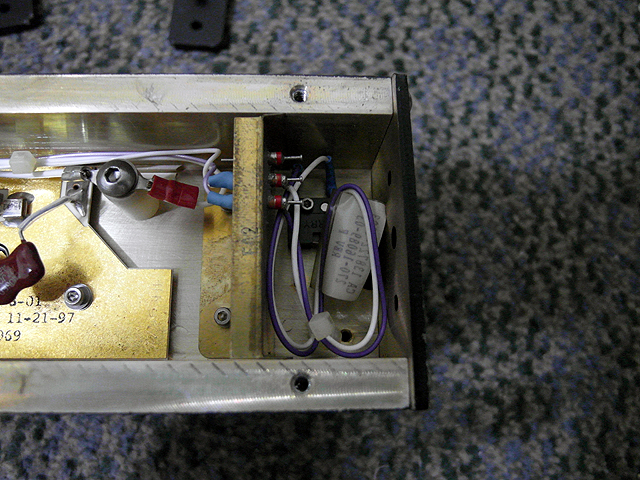

RF feed through (7/02/2013) RF feed through and fill port. The RF driver connects to the mini-banana plug in the center of the Allen socket. The port unscrews to fill the tube.
|
 |

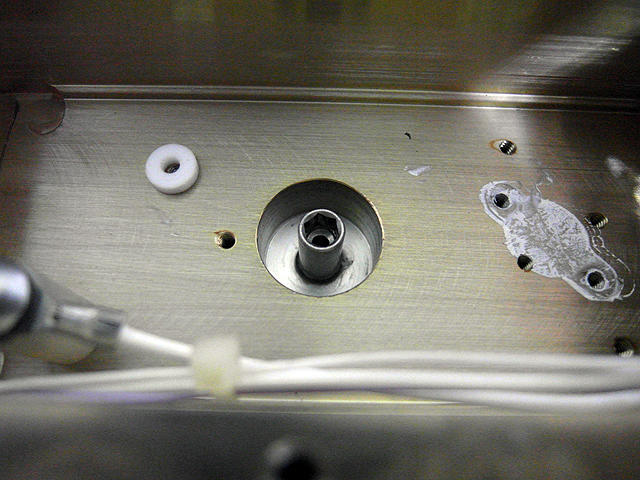

RF feed through (7/02/2013) RF feed through and fill port. The RF driver connects to the mini-banana plug in the center of the Allen socket. The port unscrews to fill the tube.
|
 |

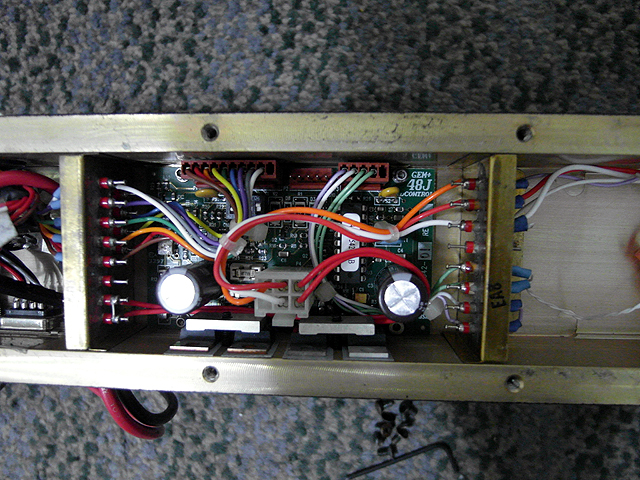

Control electronics (7/02/2013) The J48 lasers use a PIC micro controller, the older H48 lasers use discrete ICs.
|
 |

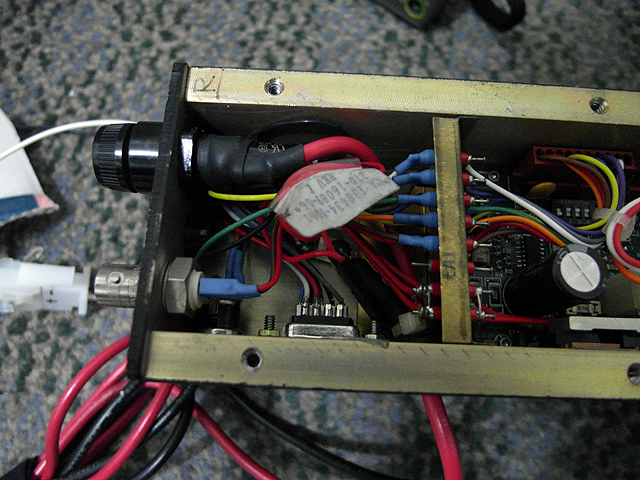

Control electronics (7/02/2013) Power input
|
 |

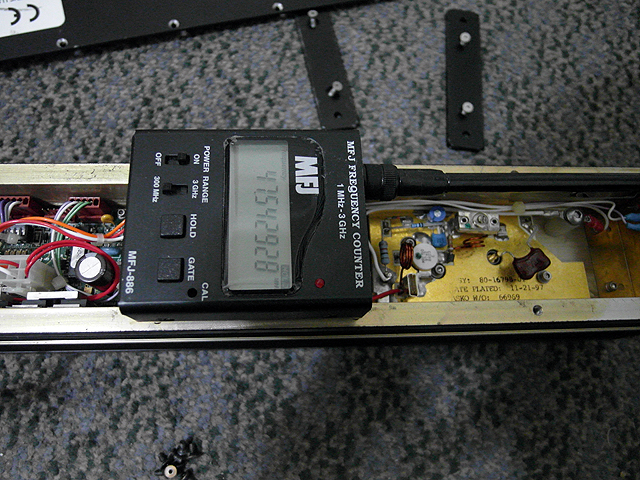

RF driver test (7/02/2013) RF driver tuned to 47.54MHz. Driver operates but tube will not lase. No excitation in the tube bore.
|
 |

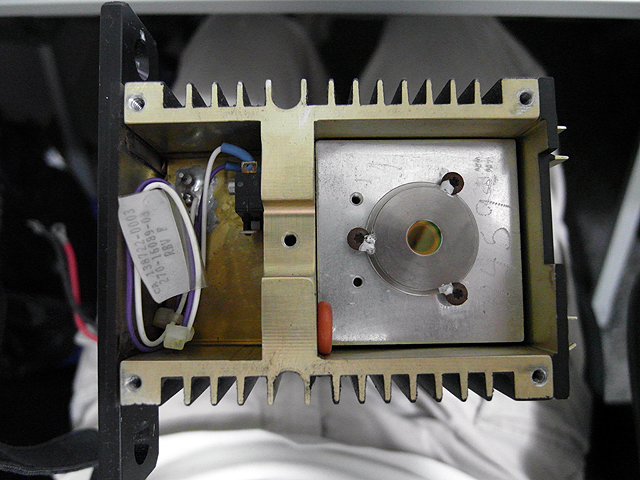

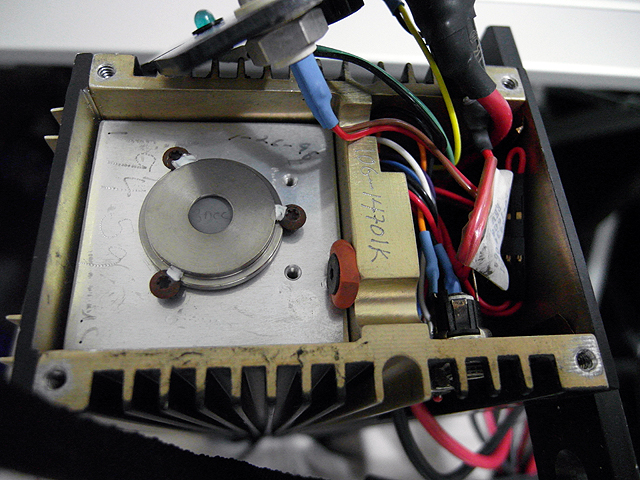

Output coupler (7/02/2013) ZnSe output coupler
|
 |
High reflector (7/02/2013) HR mirror
|
 |

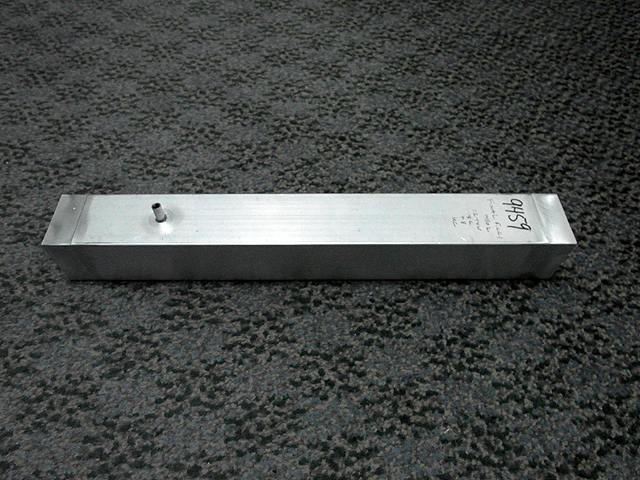

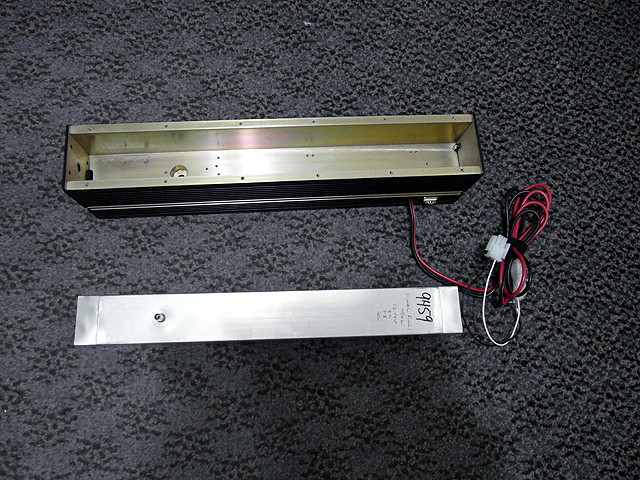

Laser Tube (7/02/2013) Removed from laser
|
 |

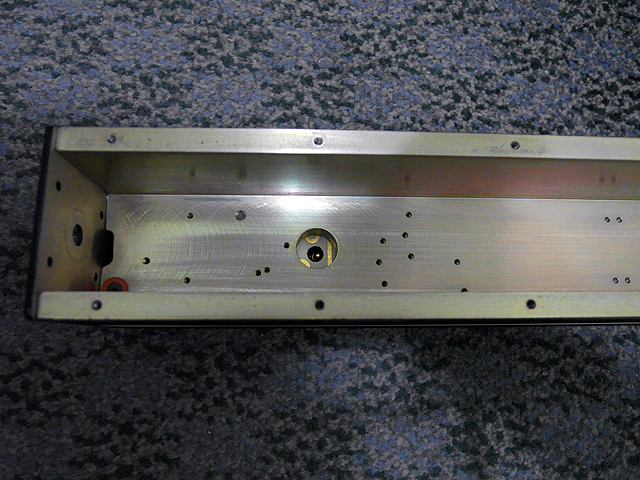

Laser Case (7/02/2013) RF driver connection
|
 |
Laser Tube (7/02/2013) Removed from laser
|
 |

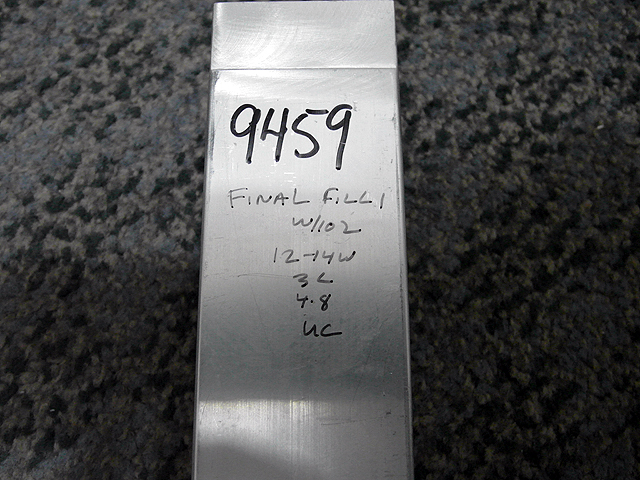

Laser Tube (7/02/2013) Marking on tube
|
 |

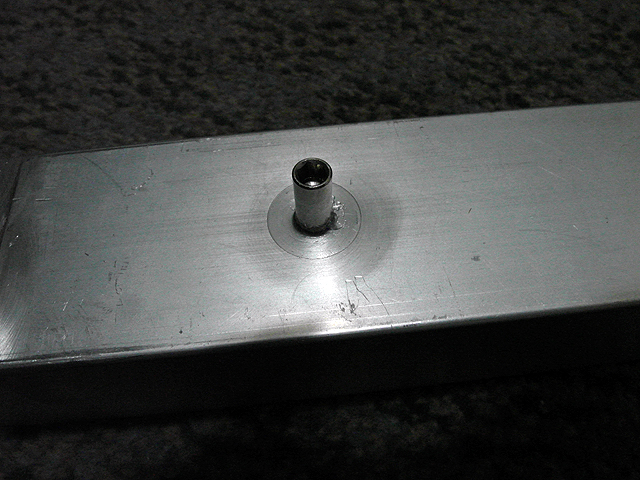

Laser Tube (7/02/2013) RF feed through.
|
