| ISI Model 77 Thermal Imager | |
 |
 |
 |
 |
 |
 |
 |
| An older model thermal imager was connected to a USB video capture system and thermal images were recorded. The thermal imager is an ISI model 77, which used an un-cooled pyroelectric vidicon tube. A pyroelectric tube can only detect changes in temperature and this particular camera does not have an optical chopper, so the image must be kept in motion. |
|
 |

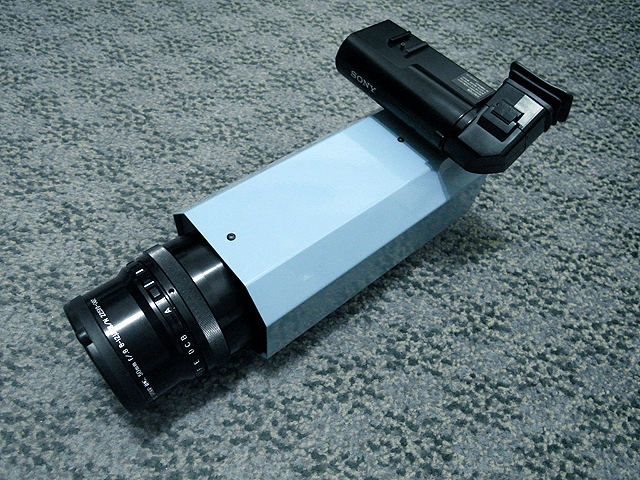

Thermal Imager (7/06/2013) ISI model 77 thermal camera
|
 |
Thermal Imager (7/06/2013) ISI model 77 thermal camera
|
 |

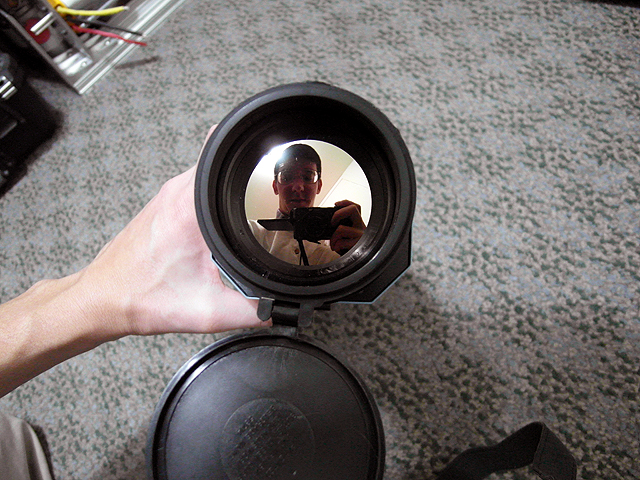

Thermal Imager (7/06/2013) Germanium lens
|
 |

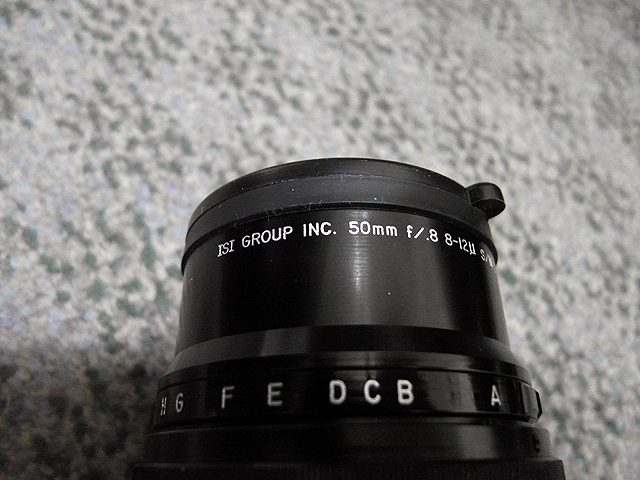

Thermal Imager (7/06/2013) 50mm f0.8 lens, 8-12um wavelength.
|
 |

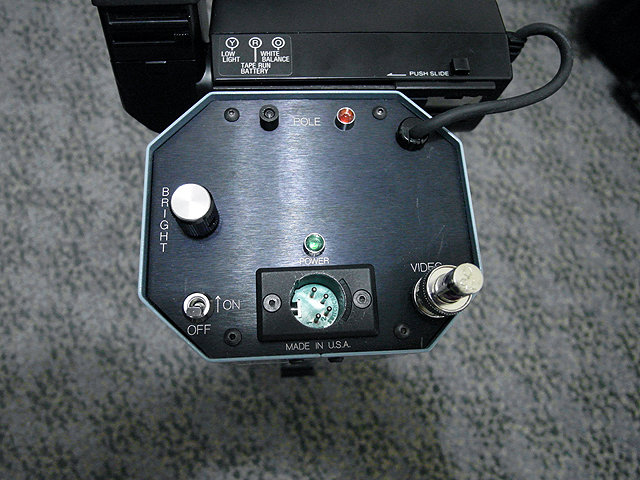

Thermal Imager (7/06/2013) Power switch, video out, brightness control, and pole switch. The pole switch repolarizes pyroelectric crystal if it becomes depolarized by looking at a very hot object or during storage. Camera should be left on for about 45min to heat up before pole system will work properly.
|
 |

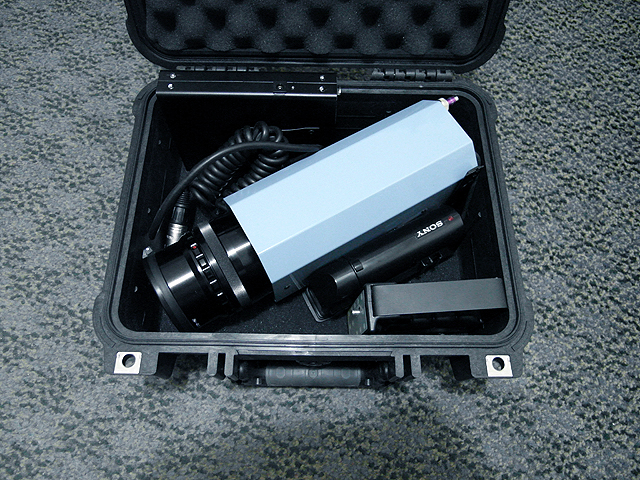

Thermal Imager (7/06/2013) Packed in a pelican case.
|
 |

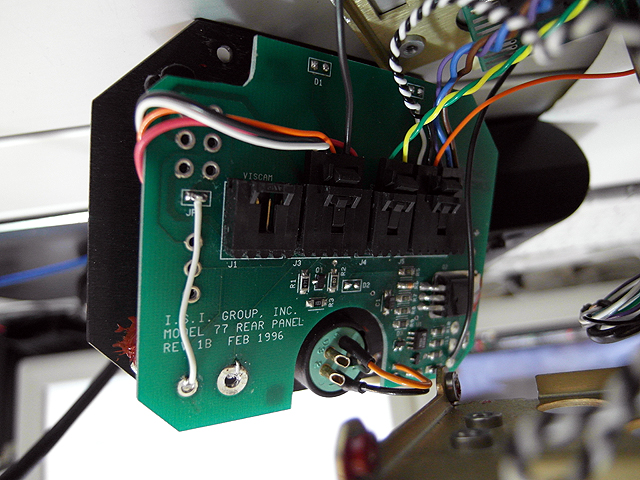

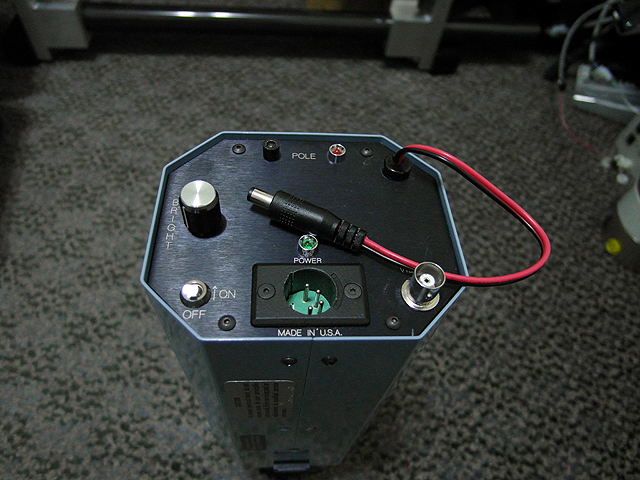

Thermal Imager (8/22/2013) Rear panel |
 |
Thermal Imager (8/22/2013) Vidicon tube |
 |

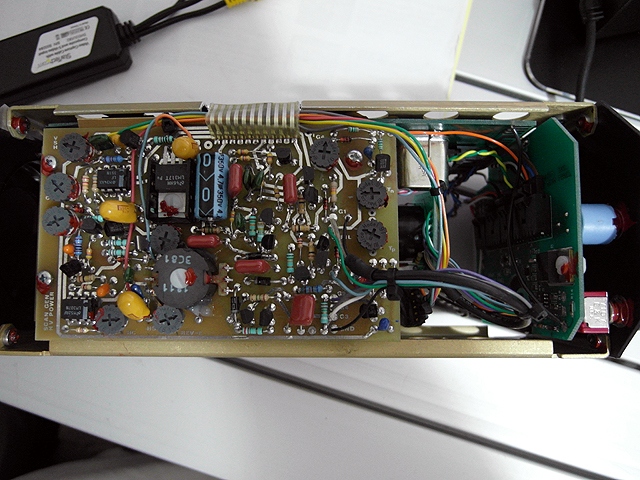

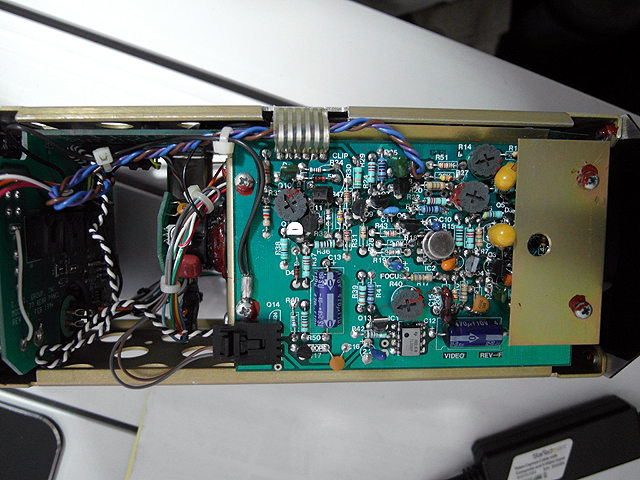

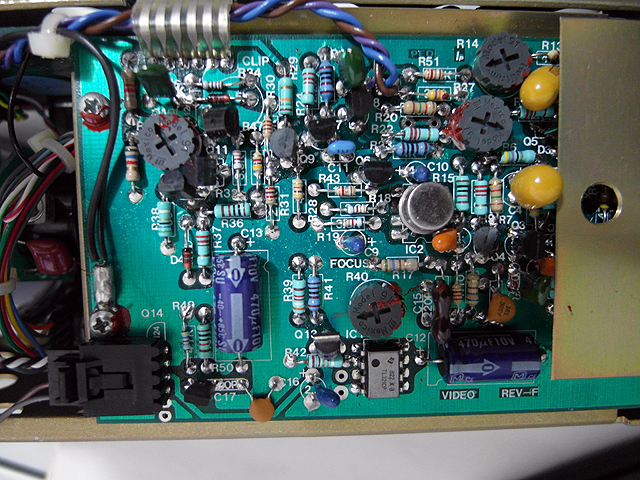

Thermal Imager (8/22/2013) Video output board |
 |
Thermal Imager (8/22/2013) The Ip and G potentiometers control image brightness. |
 |
Thermal Imager (8/22/2013) Digital logic board |
 |

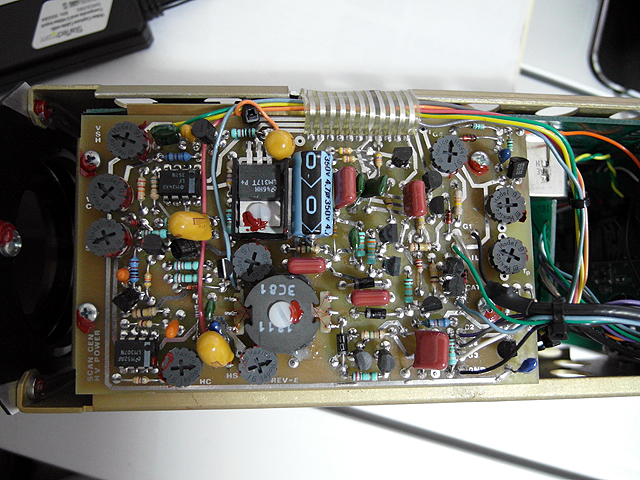

Thermal Imager (8/22/2013) HV sweep board |
 |

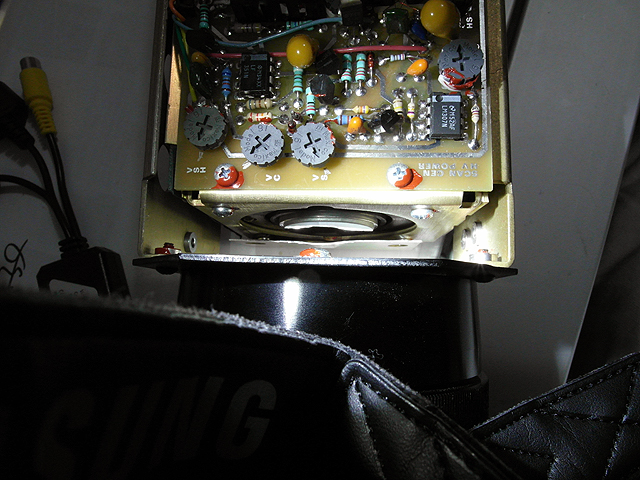

Thermal Imager (8/22/2013) Vc,Hc controls scan vertical,horizontal center Vs,Hs controls scan vertical,horizontal size |
 |

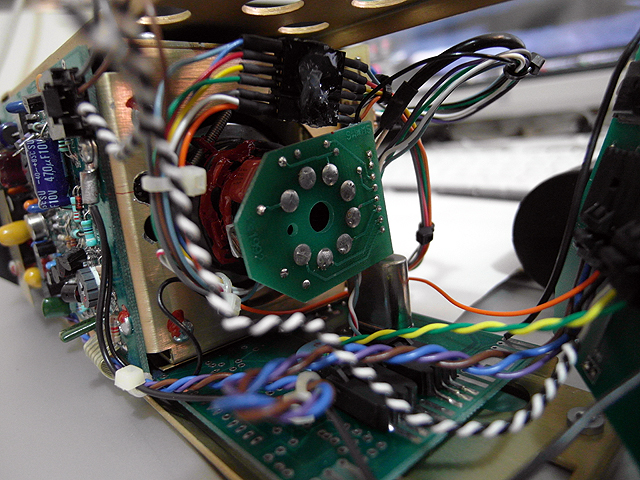

Thermal Imager (8/22/2013) Face of pyroelectric vidicon tube |
 |

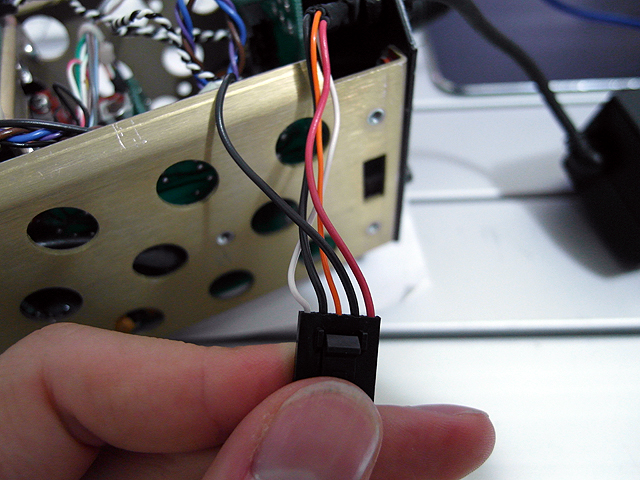

Thermal Imager (8/22/2013) CRT veiwfinder connection |
 |
Thermal Imager (8/22/2013) Power output cord. |
 |

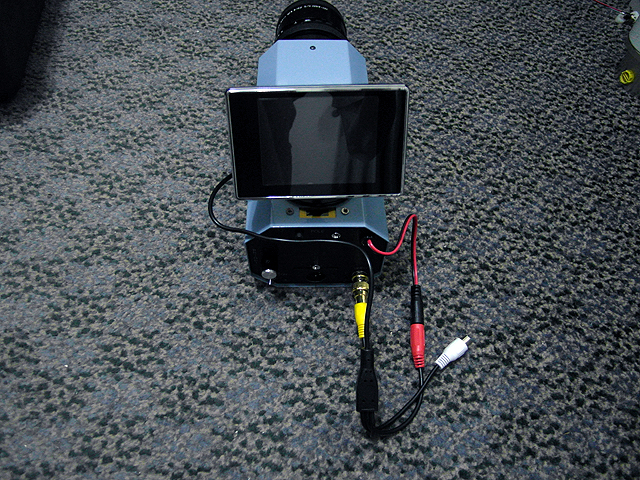

Thermal Imager (8/22/2013) Added LCD display in place of CRT viewfinder. |
 |

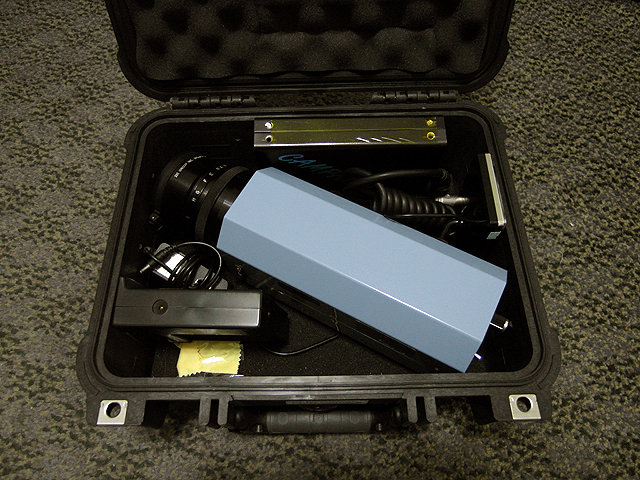

Thermal Imager (8/22/2013) Packed in case |
 |

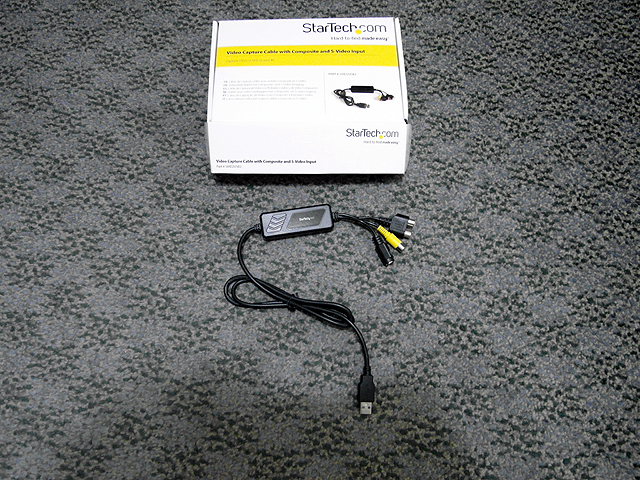

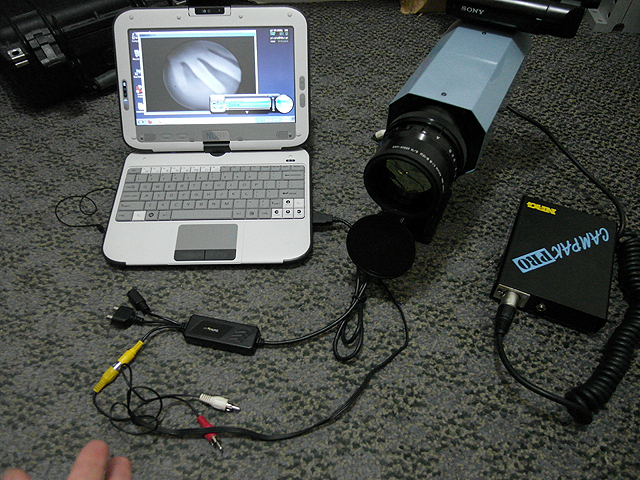

Thermal Imager (7/06/2013) Startech usb video capture system.
|
 |
Thermal Imager (7/06/2013) Thermal image of a gas stove
|
 |

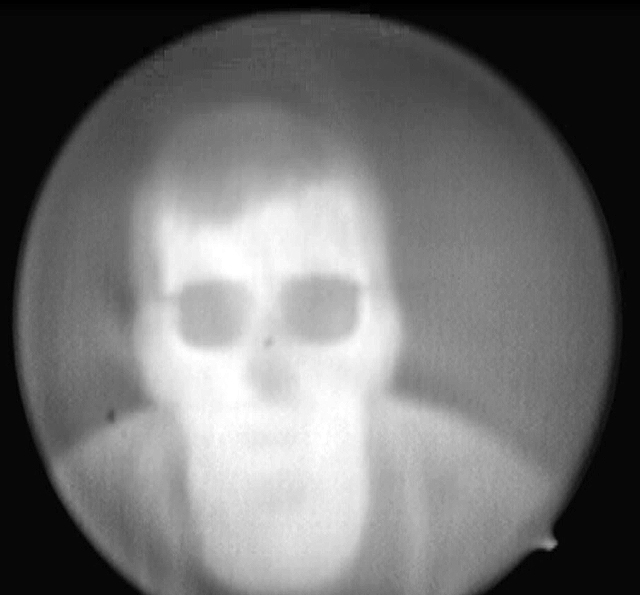

Thermal Imager (7/06/2013) Thermal image of me.
|
 |

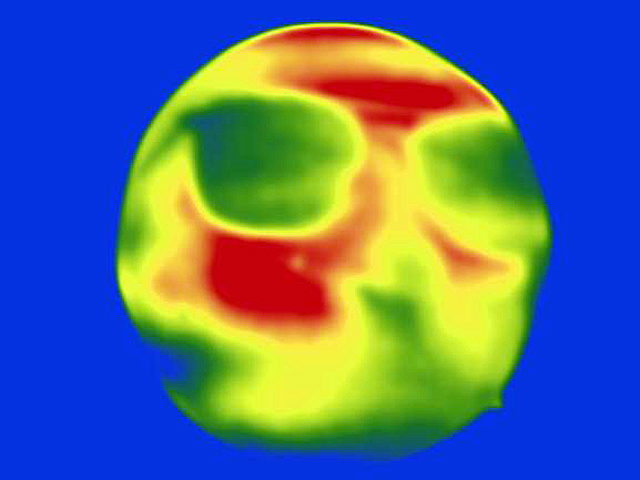

Thermal Imager (7/06/2013) Thermal image of me in false color.
|
Thermal video (7/06/2013) Thermal video of me.
|
|
Thermal video (7/06/2013) Thermal video of radiator, space heater and LED light bulb.
|
|
Thermal video (7/06/2013) Thermal video of lit gas stove.
|
|
Thermal video (7/06/2013) Thermal video of space heater heating elements using a ZnSe 10.5" focal length lens from a laser cutter as a macro lens.
|
|
