FLIR Photon 320 Thermal Imager




FLIR Photon 320 thermal imager. Vanadium Oxide microbolometer

  • 324x256 resolution 38um pixels
  • 7.5-13.5um wavelength
  • mK sensitivity
  • 5-24VDC input
  • ~25deg FOV w/ 30mm lens
  • <10ms thermal time constant
  • 30Hz frame rate


Thermal Imager (5/11/2014)

Thermal imager as purchased



Thermal Imager (5/11/2014)

Thermal imager as purchased



Thermal Imager (5/11/2014)

Hirose connector for power, video, and control



Thermal Imager (5/11/2014)

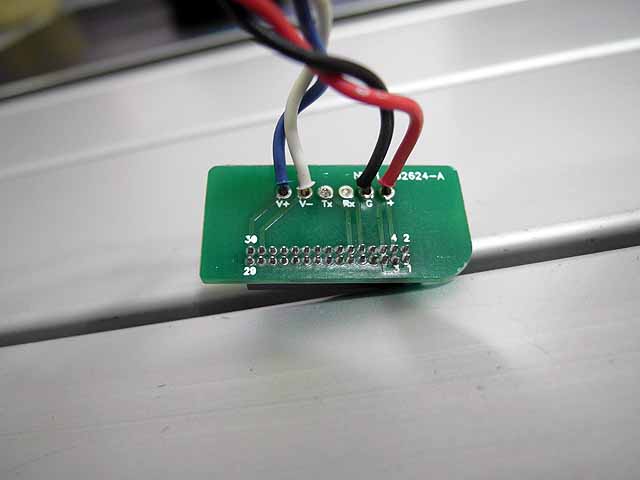

Breakout connector



Thermal Imager (5/11/2014)

Breakout connector



Thermal Imager (5/11/2014)

Breakout connector with power and video connectors



Thermal Imager (5/11/2014)

Power board



Thermal Imager (5/11/2014)

Power board



Thermal Imager (5/11/2014)

Control board with altera Cyclone FPGA



Thermal Imager (5/11/2014)

VOx detector, FFC shutter, and lens mount



Thermal Imager (5/11/2014)

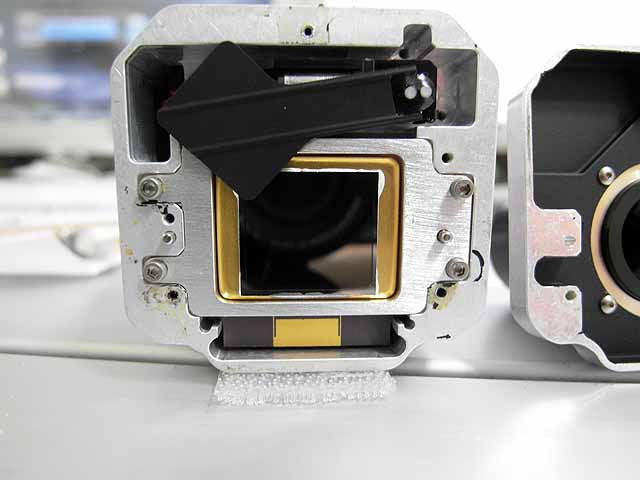

VOx detector and FFC shutter



Thermal Imager (5/11/2014)

VOx detector and FFC shutter



Thermal Imager (5/11/2014)

Lens mount



Thermal Imager (5/11/2014)

Lens



Thermal Imager (5/11/2014)

Focus notch in lens



Thermal Imager (5/11/2014)

Friction lock set screw



Thermal Imager (5/11/2014)

Original flier from FLIR on this camera



Thermal Imager (5/11/2014)

Software interface



Thermal Imager (5/11/2014)

AGC settings that work best



Thermal Imager (5/11/2014)

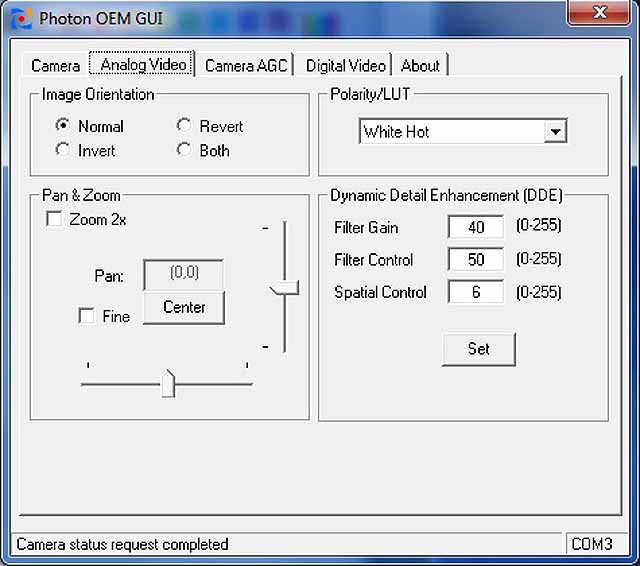

DDE settings that work best



Thermal Imager (5/11/2014)

Picture of me



Thermal Imager (5/11/2014)

Picture of apartment



Thermal Imager (6/19/2014)

Wear saver cover



Thermal Imager (6/19/2014)

Wear saver cover



Thermal Imager (6/19/2014)

Wear saver adapter



Thermal Imager (6/19/2014)

Wear saver adapter



Thermal Imager (6/19/2014)

Wear saver adapter mounted on camera



Thermal Imager (6/19/2014)

Wear saver adapter with cover



Thermal Imager (6/19/2014)

Tripod adapter



Thermal Imager (6/19/2014)

Factory lens removed



Thermal Imager (6/19/2014)

Factory lens removed



Thermal Imager (6/19/2014)

Factory lens removed



Thermal Imager (6/19/2014)

1" optics tube adapter with matching 0-80 mounting holes. Screw pattern is a 0.75" square.



Thermal Imager (6/19/2014)

1" optics tube adapter with matching 0-80 mounting holes. Screw pattern is a 0.75" square.



Thermal Imager (6/19/2014)

1" optics tube adapter mounted on camera face



Thermal Imager (6/19/2014)

1" optics tube adapter mounted on camera face



Thermal Imager (6/19/2014)

Thorlabs LA9410-F Ø1/2" PCX f = 15.0 mm, AR-Coated: 8-12 µm germanium lens and 1/2" to 1" mounting adapter.

This is an AR coated but non-athermalized lens.



Thermal Imager (6/19/2014)

Non-athermalized lens generates halo effect and blurring away from lens center.



Thermal Imager (6/19/2014)

Changed from factory lens to Thorlabs LA9410-F Ø1/2" PCX f = 15.0 mm, AR-Coated: 8-12 µm germanium lens. Non-athermalized lens generates halo effect and blurring away from lens center.



Thermal Imager (6/19/2014)

Changed from factory lens to Thorlabs LA9410-F Ø1/2" PCX f = 15.0 mm, AR-Coated: 8-12 µm germanium lens. Non-athermalized lens generates halo effect and blurring away from lens center.

Second germanium lens held in field of view.



Thermal Imager (6/19/2014)

Use of an athermalized 4.6mm ZnSe lens.

Image of a screw head



Thermal Imager (6/19/2014)

No lens camera looking at anodized aluminum plate(black body source)



Thermal Imager (6/19/2014)

Factory lens reinstalled



Thermal Imager (6/19/2014)

Factory lens looking at anodized aluminum plate(black body source)



Thermal Imager (7/4/2014)

Custom short cable adapter.



Thermal Imager (7/4/2014)

Custom short cable adapter.



Thermal Imager (7/4/2014)

Custom short cable adapter.
