A compact portable turbomolecular pump station was constructed

Portable Turbo Station (7/24/2017)

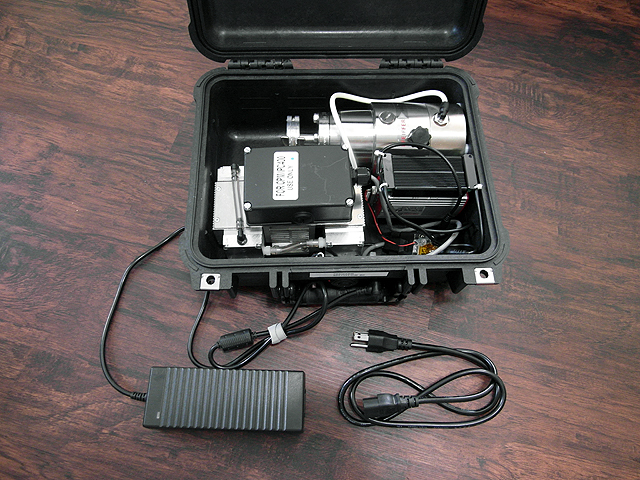

Compact turbo station in pelican 1400 case, runs off of 24V wall adapter. Internal DC-DC converter allows operation from 6-36V allowing operation on battery power. Station uses a KNF N84.4 diaphragm pump, and pfeiffer Splitflow 80 hybrid turbo/molecular drag pump, with a 70L/s pumping rate. It is equivalent to the TPH-071P but also equipped with a differential pumping port for mass spec operation, which is currently plugged. Turbo has 2.75" CF flange (metric threads) with a NW16 adapter and blank-off.

Portable Turbo Station (7/24/2017)

Quad stage diaphragm pump, capable of ~500mTorr ultimate vacuum.

Model: KNF 84.4

Portable Turbo Station (7/24/2017)

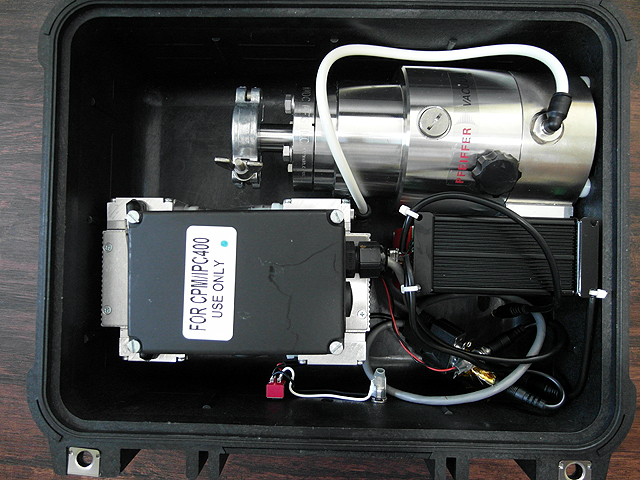

Pfeiffer Spliflow 80 connects to the KNF 84.4 backing pump through a 6mm OD tube

Portable Turbo Station (7/24/2017)

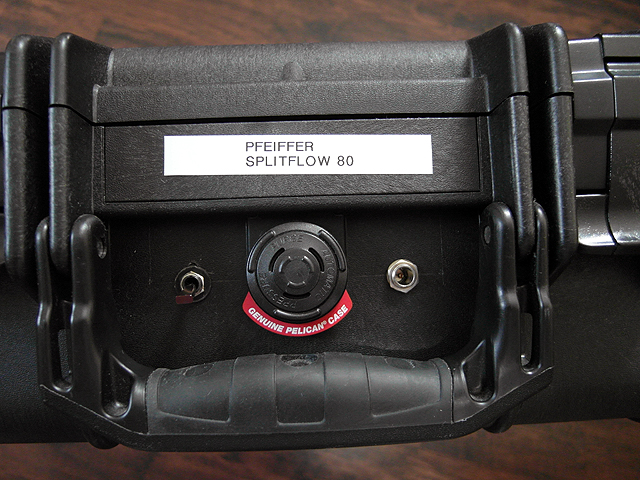

Power switch and power connector

Portable Turbo Station (7/24/2017)

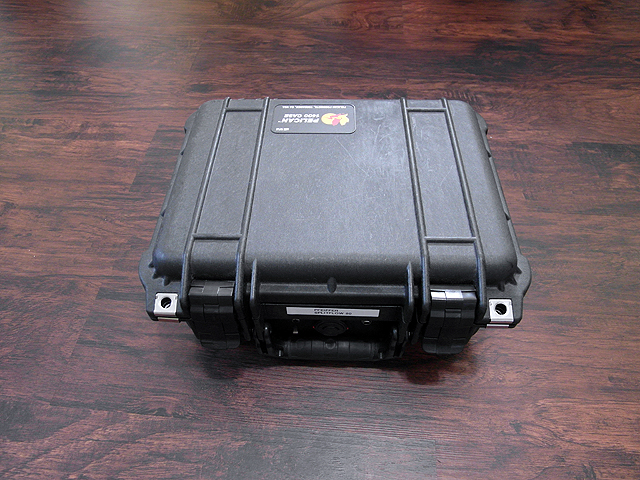

Case closed for east transport and storage

Portable Turbo Station (7/24/2017)

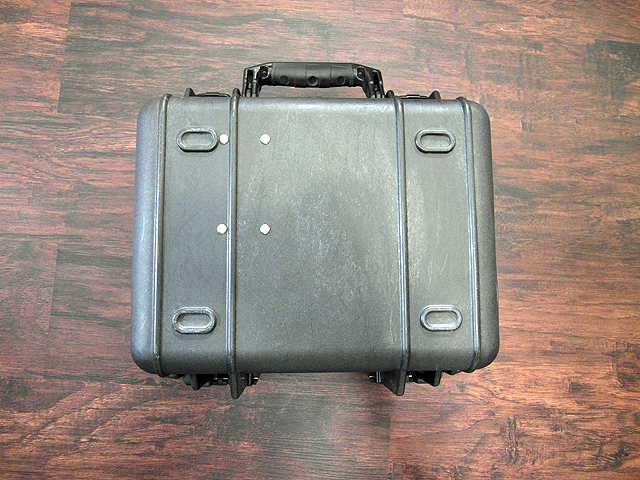

Mounting screws for backing pump

Portable Turbo Station (7/24/2017)

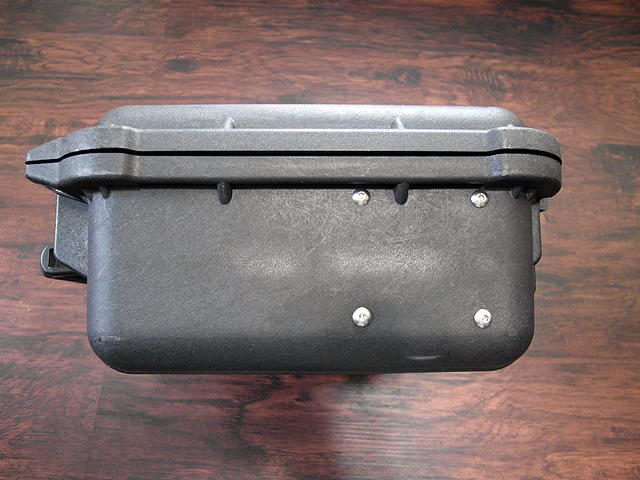

Mounting screws for turbo pump

Portable Turbo Station (7/24/2017)

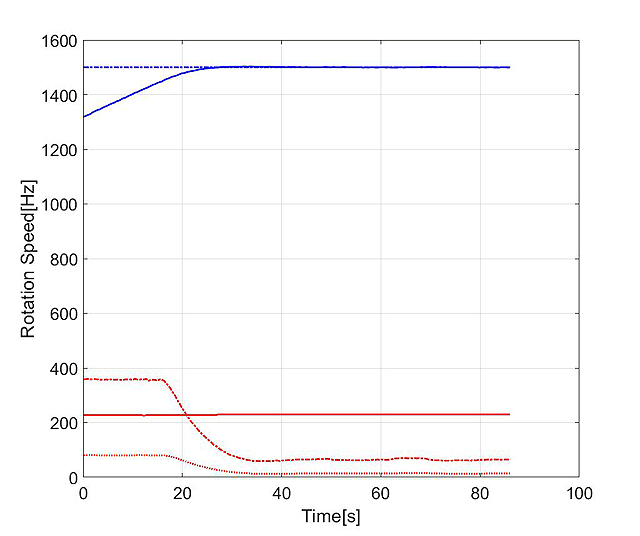

End of acceleration of turbo pump during startup. Rotor spins up to 1500 Hz.

Portable Turbo Station (7/24/2017)

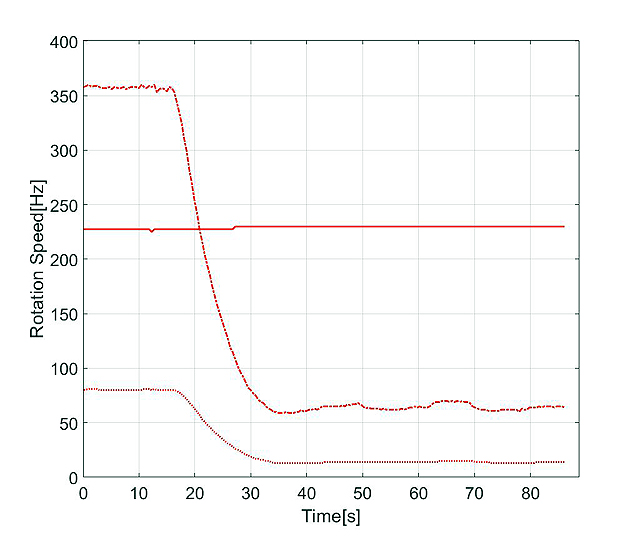

Steady state current is about 0.63A (.- Red is Ix100), Vx10 is solid red, and Power is .. Red.
