| Nuclear Chicago DN3 Neutron Detector | |
 |
 |
 |
 |
 |
 |
 |
| Overview: Neutron detector. |
|
 |
DN-3(4/30/2016) Nuclear Chicago DN-3 neutron probe modified to use with ludlum model 12 ratemeter. |
|

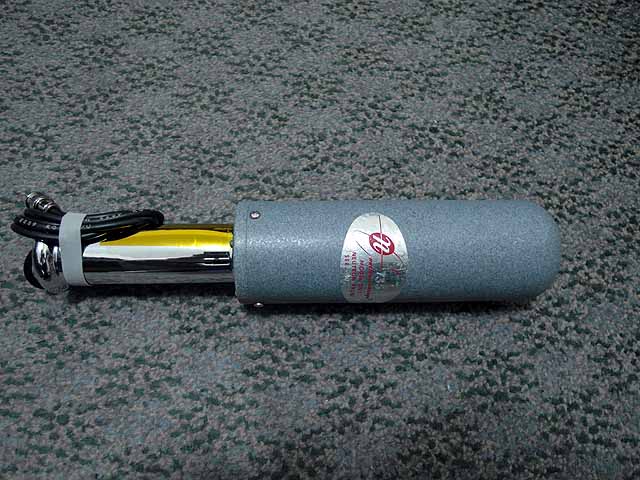

DN-3(8/16/2016) Neutron probe with moderator on |
|
DN-3(8/16/2016) Neutron probe with moderator off |
 |

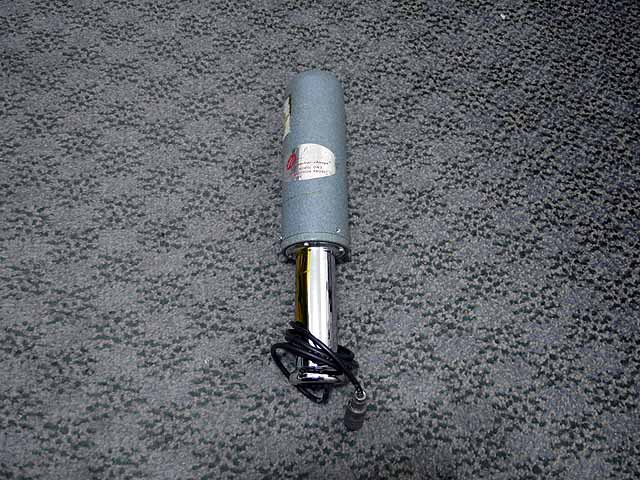

DN-3(4/30/2016) Nuclear Chicago DN-3 neutron probe with original connector |
 |

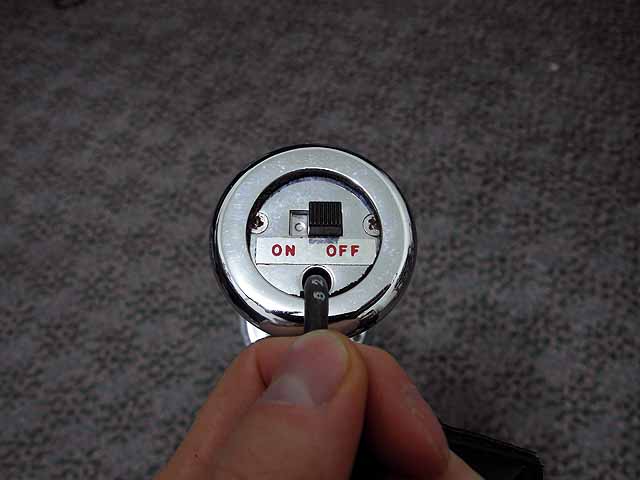

DN-3(4/30/2016) On-off switch for internal pre-amp |
 |

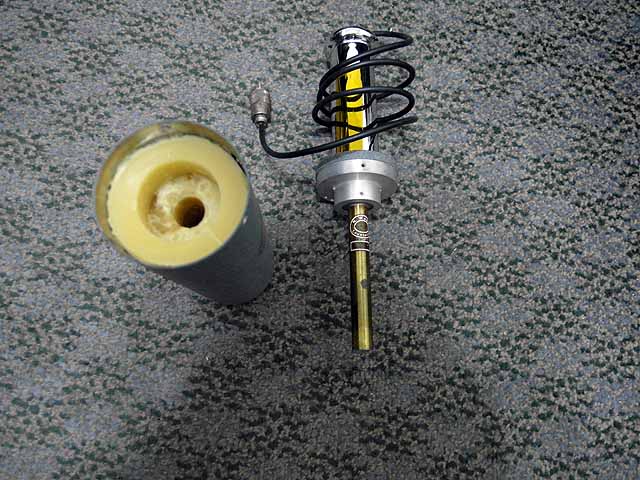

DN-3(4/30/2016) Wax moderator and Nancy Wood BF3 detector tube. |
 |

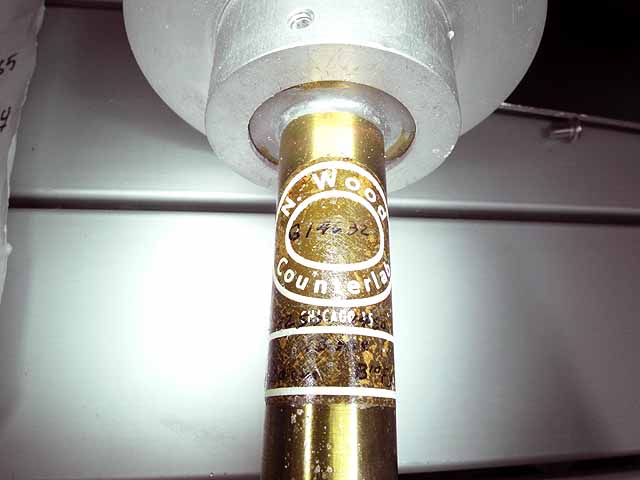

DN-3(4/30/2016) Nancy Wood BF3 detector tube, model G14632 |
 |

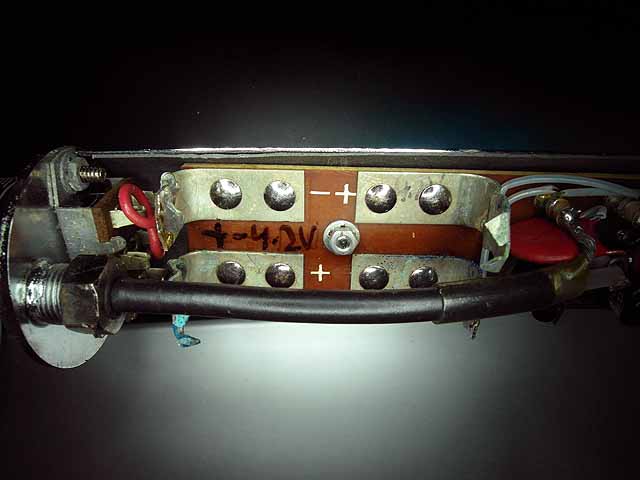

DN-3(4/30/2016) Battery location for powering the pre-amp circuitry |
 |

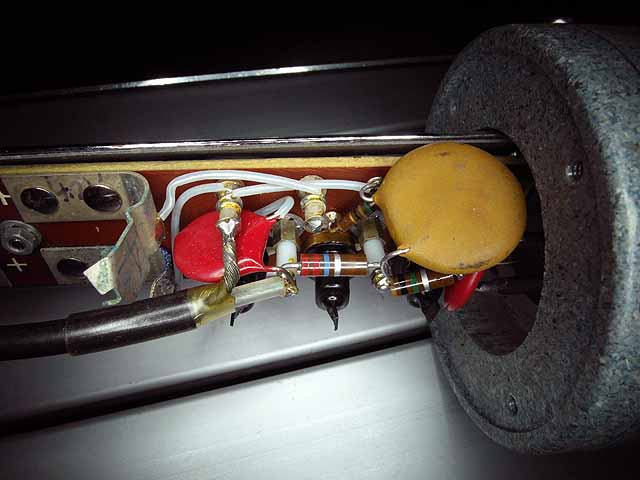

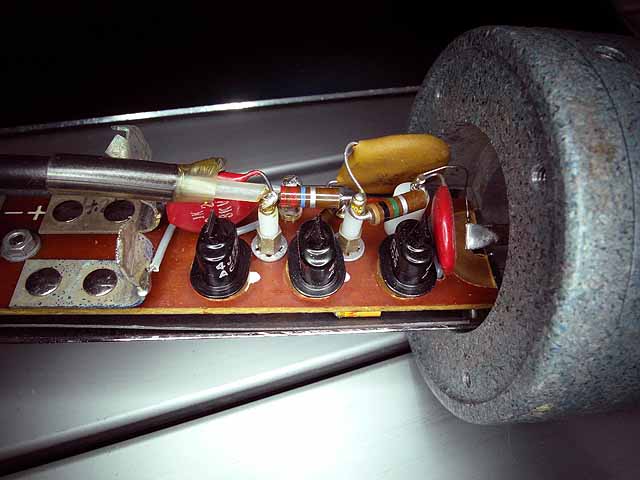

DN-3(4/30/2016) pre-amp circuitry |
 |

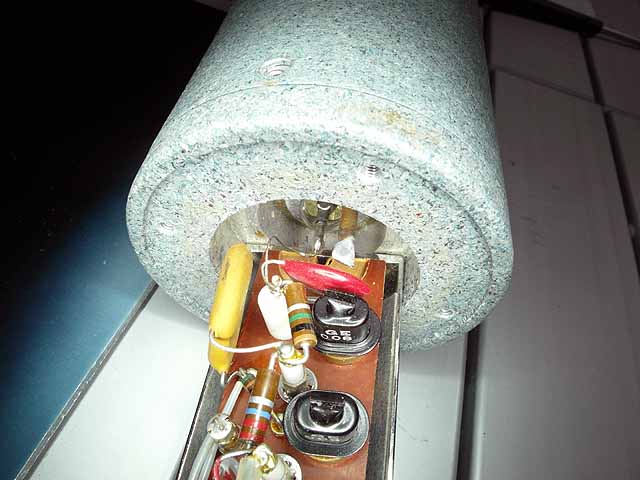

DN-3(4/30/2016) pre-amp circuitry |
 |
DN-3(4/30/2016) Connection to BF3 tube, for use with the ludlum model 12, the preamp is bypassed by soldering the end of the coaxial cable directly to the connector on the BF3 tube |
 |

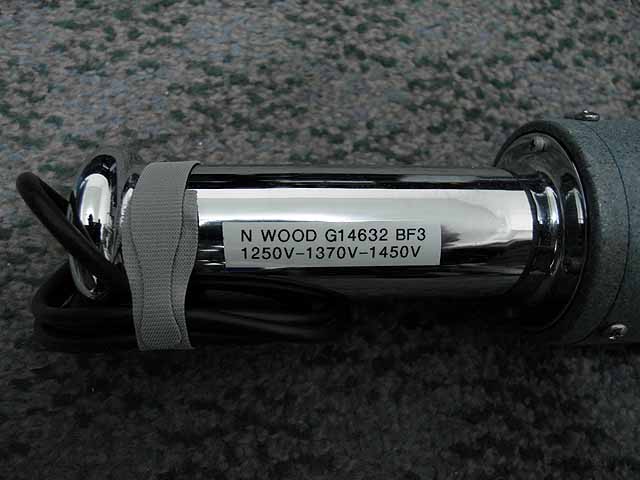

DN-3(4/30/2016) Nancy Wood tub requires 1250-1450V, nominally 1370V in the middle of the plateau region |
 |
DN-3(4/30/2016) Restored and converted DN-3 probe |
