Eberline R0-7 Ion Chamber




Overview:

An Eberline R0-7 Ion chamber is modified to span ragnes of 200R/h to 20MR/h for measurements of bermstrahlung x-ray dose rates inside an industrial electron beam irradiator. Origionaly the meter was capable of reading dose rates up to 20kR/h, however modification of the feedback resistor gains allows operation at a higher range.



R0-7(12/10/2016)

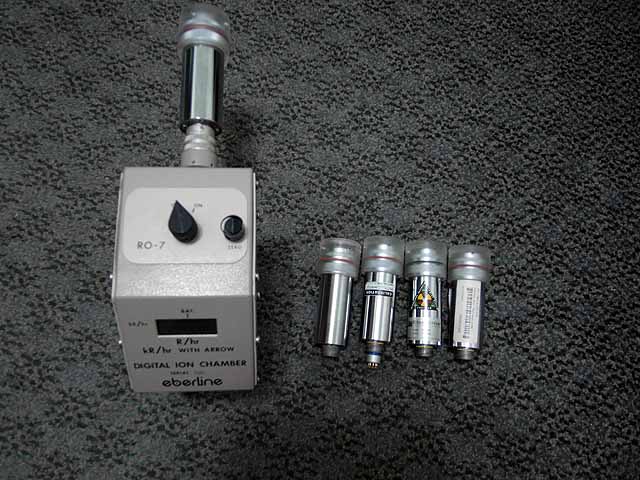

Eberline R0-7 Ion chamber meter with interchangable probe heads



R0-7(12/10/2016)

Eberline R0-7 Ion chamber meter with interchangable probe heads



R0-7(12/10/2016)

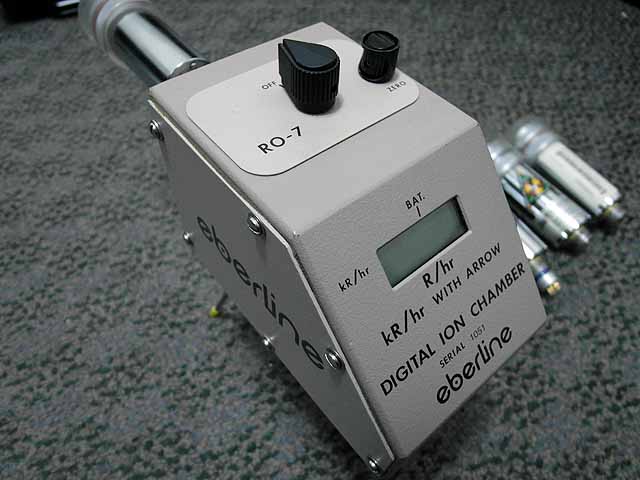

Meter



R0-7(12/10/2016)

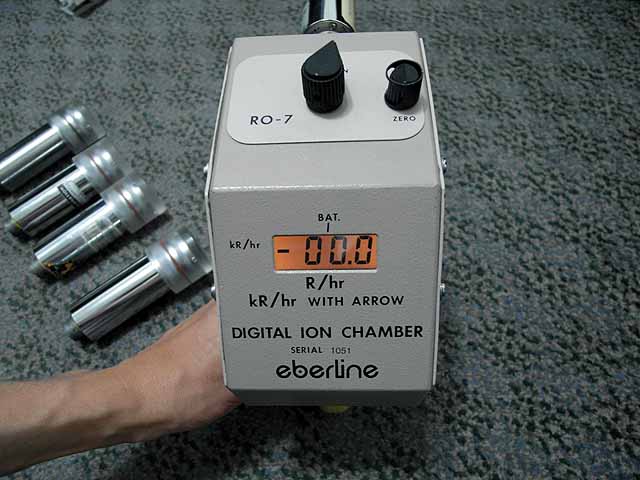

Meter



R0-7(12/10/2016)

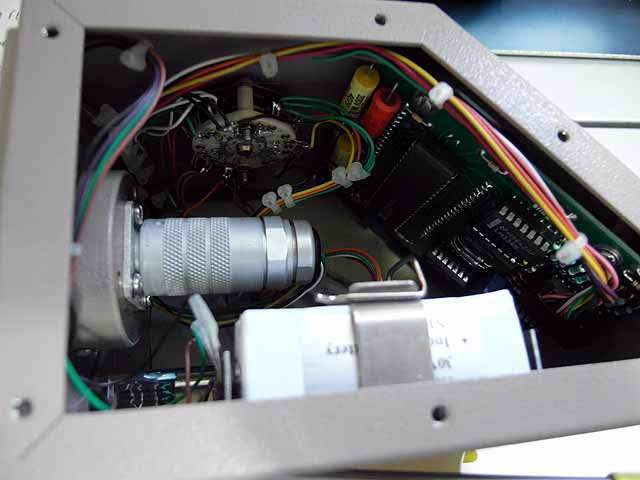

Meter requires 3x 9V batteries for the electronics and 2x 30V batteries for the ion chamber bias



R0-7(12/10/2016)

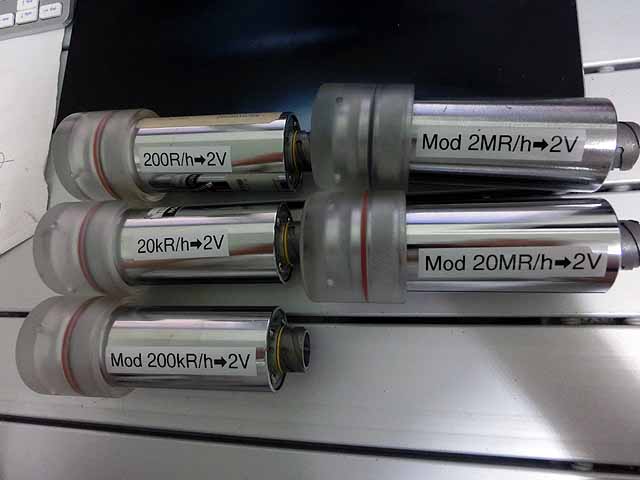

Probe heads



R0-7(12/10/2016)

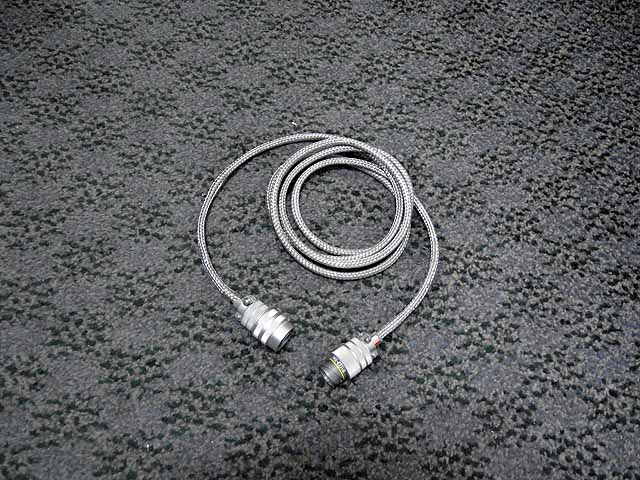

Probe extension cable



R0-7(12/10/2016)

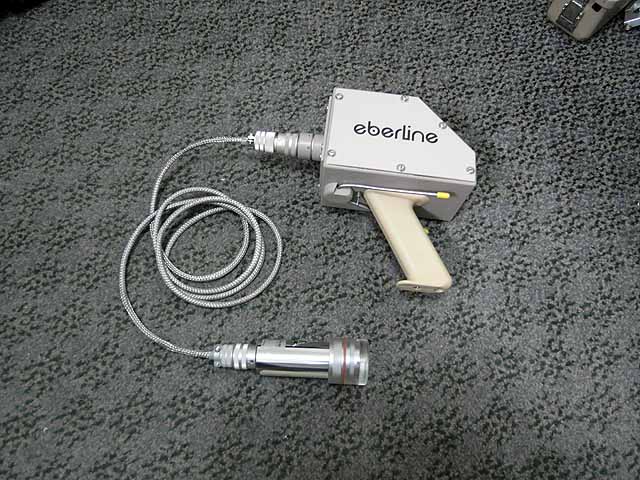

Eberline R0-7 Ion chamber with probe connected with extension cable



R0-7(12/10/2016)

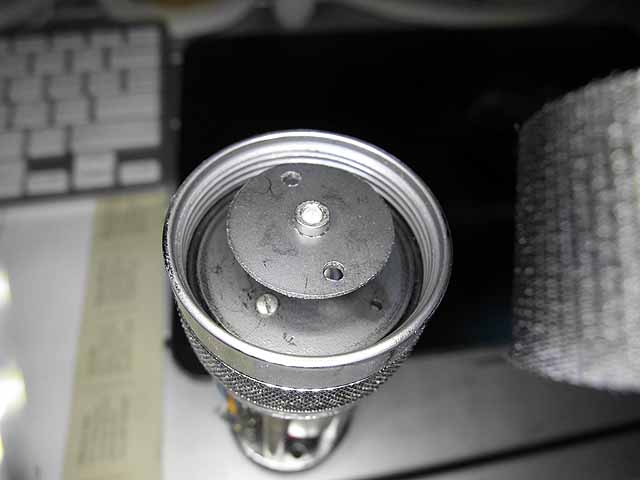

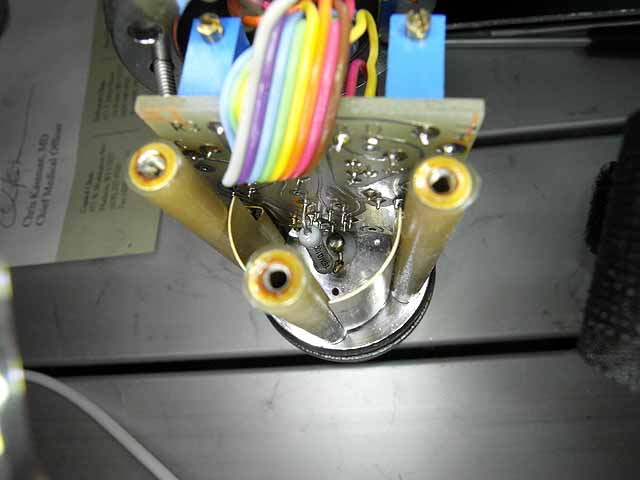

Collector inside probe head



R0-7(12/10/2016)

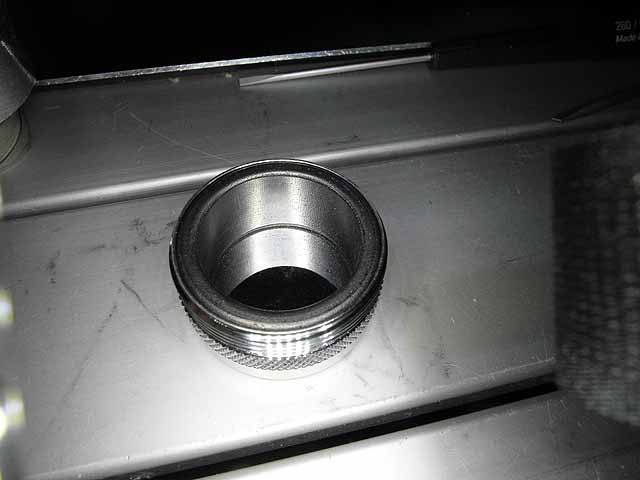

Probe head cap



R0-7(12/10/2016)

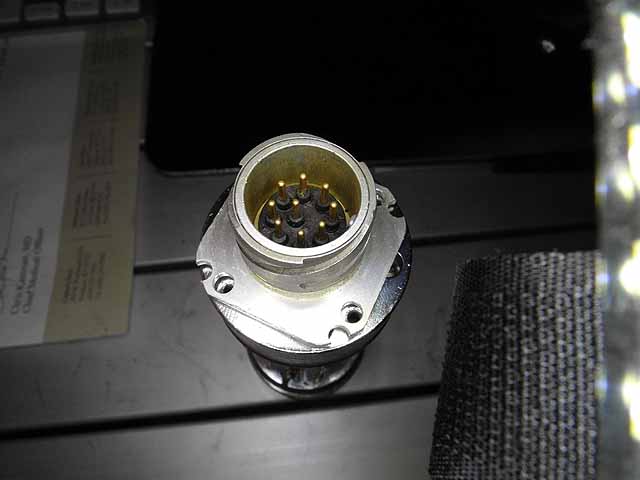

Probe electrical connector



R0-7(12/10/2016)

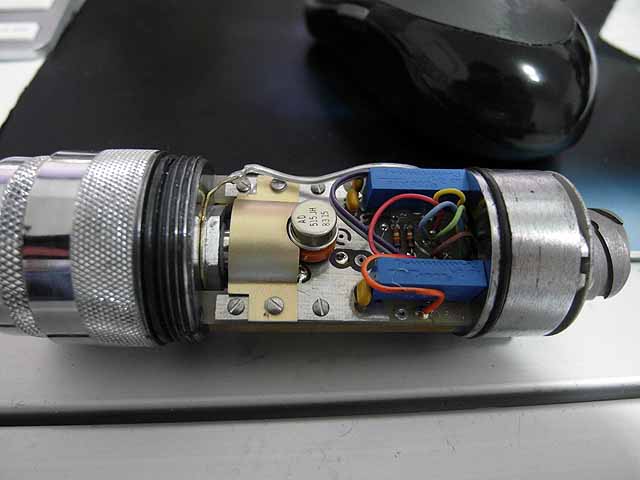

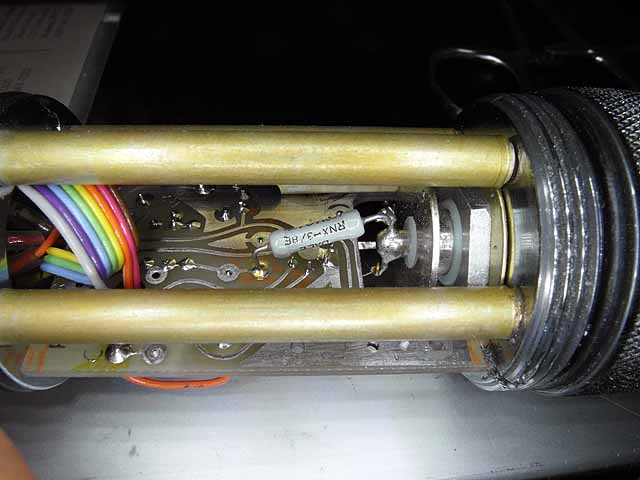

Electrometer amplifier on 20kR/h probe



R0-7(12/10/2016)

Feedback resistor



R0-7(12/10/2016)

Feedback resistor



R0-7(12/10/2016)

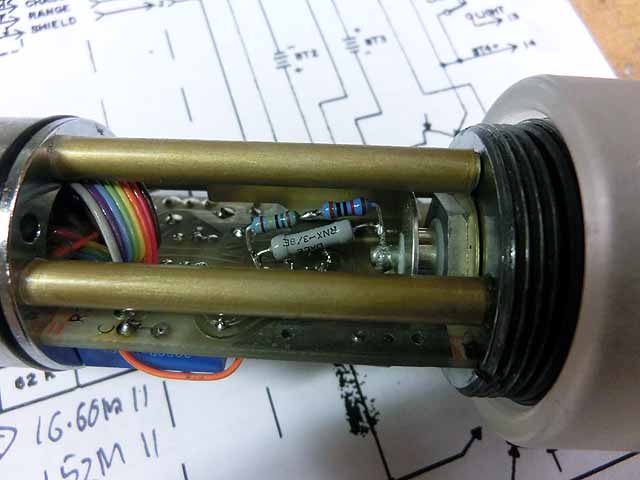

Feedback resistor changed to modify gain of the ion chamber.



R0-7(12/10/2016)

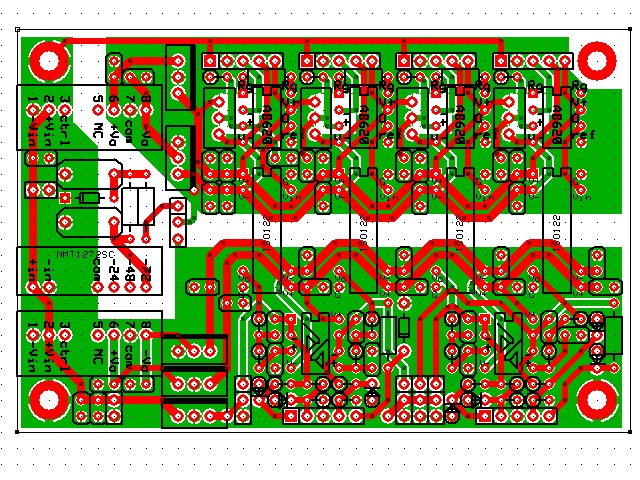

Ion chamber driver board. Can run 4x ion chambers off of a single 12v source.



R0-7(12/10/2016)

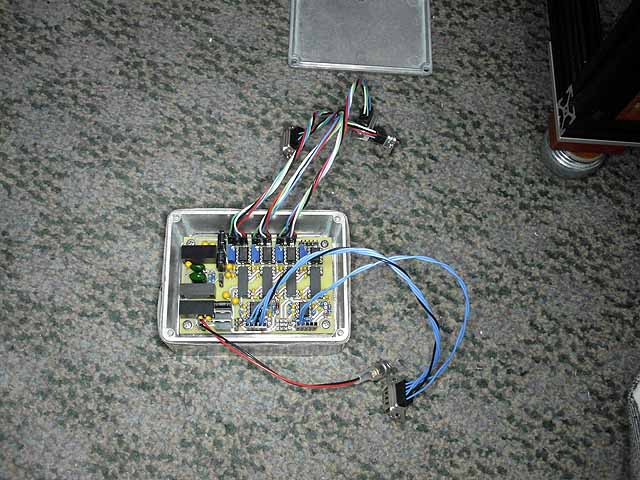

Driver board in shielded box
