Eberline PNC-1 Neutron Detector




Overview:

Neutron detector.

A BF3 (Boron tri fluoride) detector tube enriched to 99% B10 is used to detect neutrons. When neutrons enter the detector tube they interact with the B10 in the following way: B10 + n => Li7 + a. The charge on the alpha particle generated in the reaction produces a signal across the input of the counter that is amplified and recorded.



PNC-1(6/24/2017)

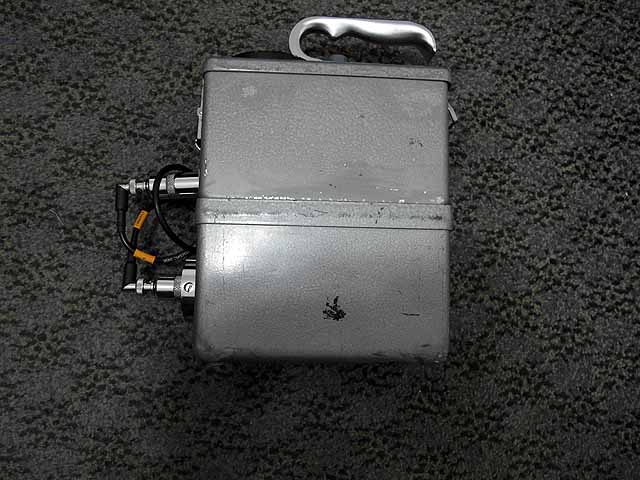

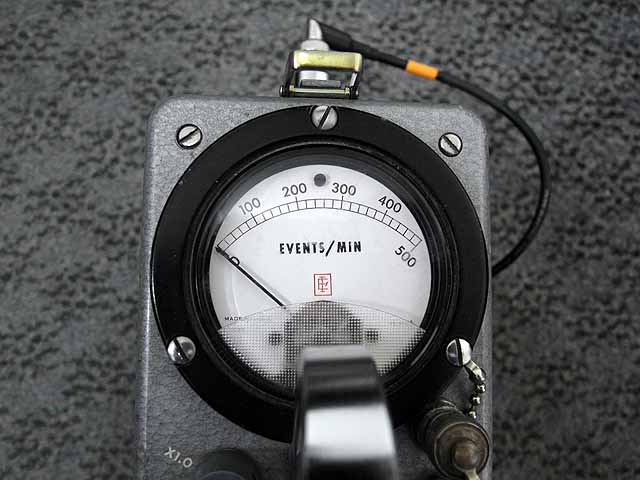

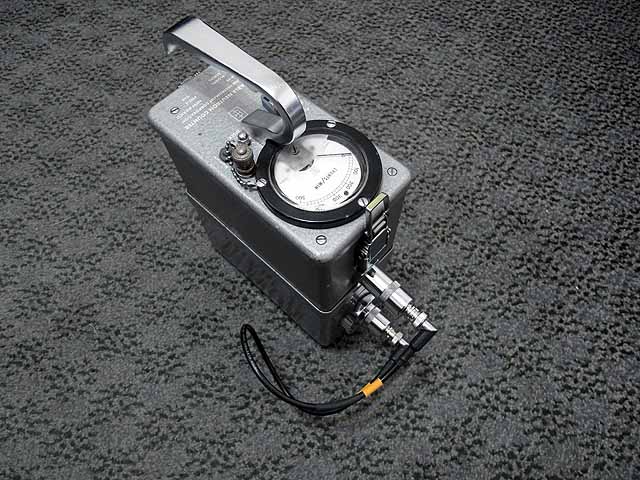

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

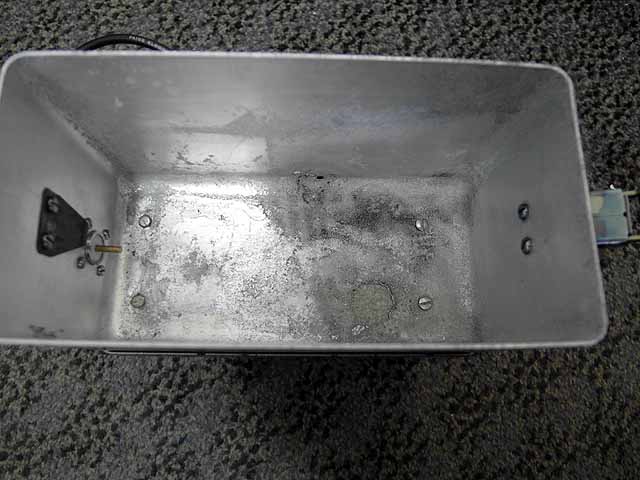

Corrosion cleaned out of case



PNC-1(6/24/2017)

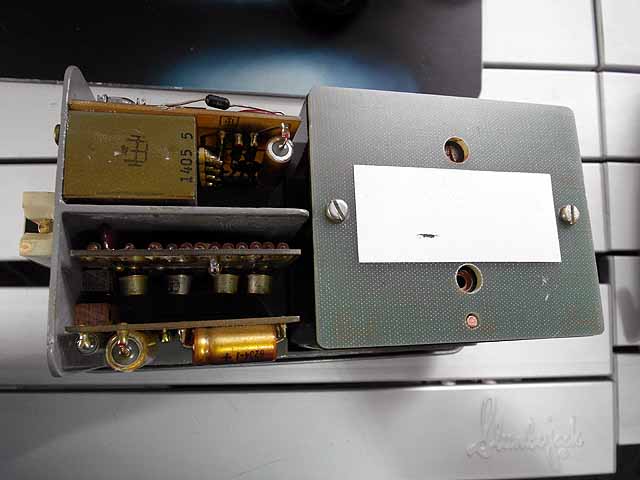

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

Eberline PNC-1 neutron detector



PNC-1(6/24/2017)

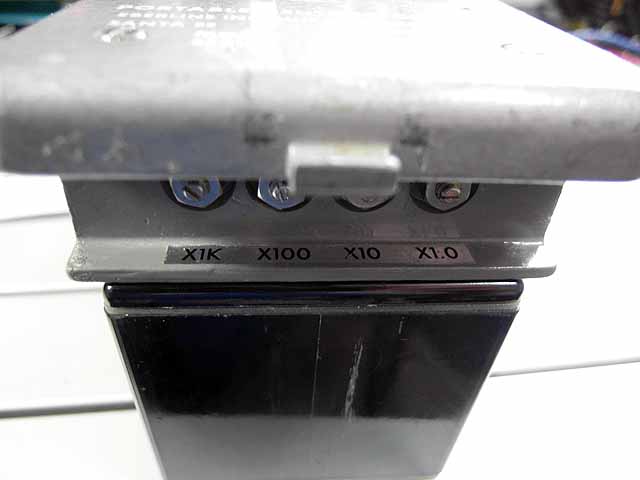

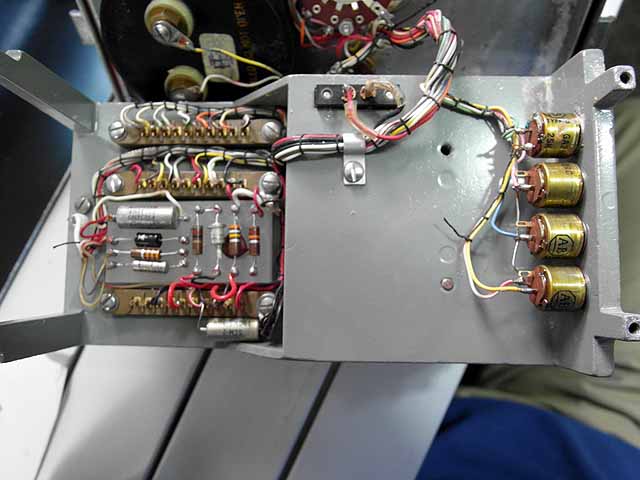

Calibration potentiometers



PNC-1(6/24/2017)

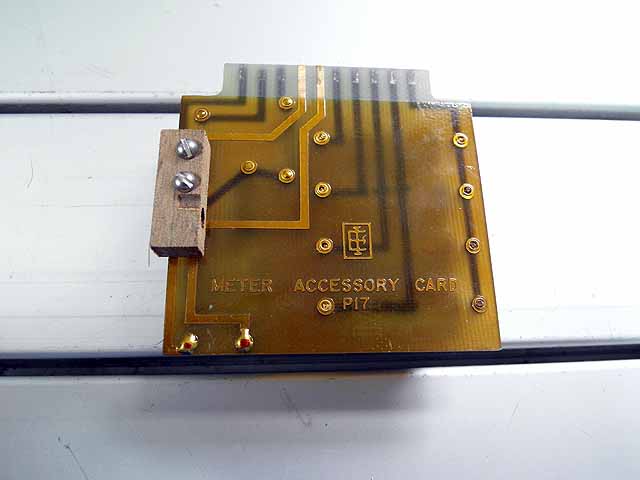

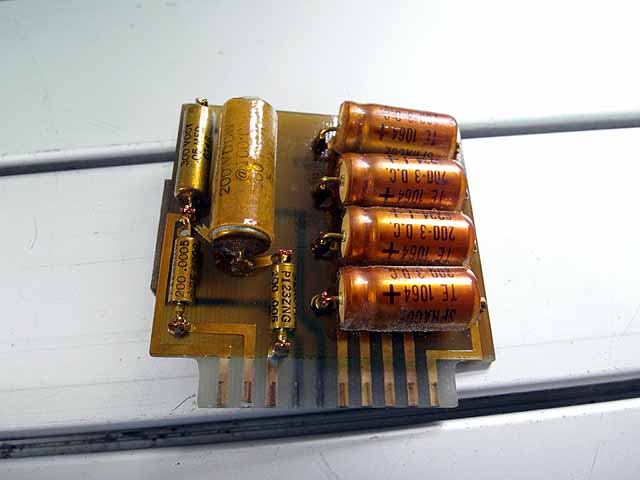

Meter accessory card



PNC-1(6/24/2017)

Meter accessory card



PNC-1(6/24/2017)

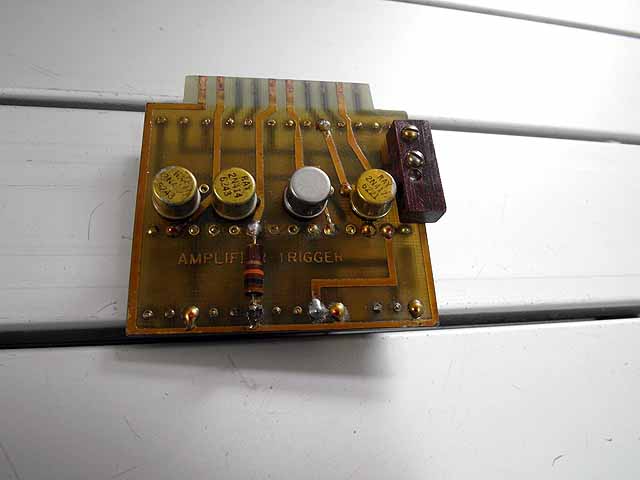

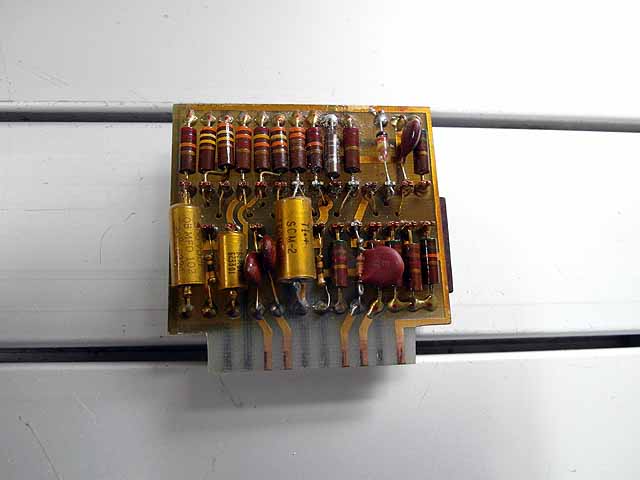

Amplifier / trigger board



PNC-1(6/24/2017)

Amplifier / trigger board



PNC-1(6/24/2017)

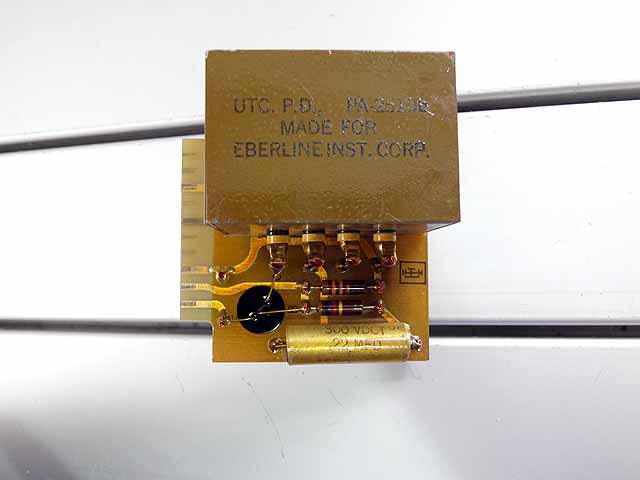

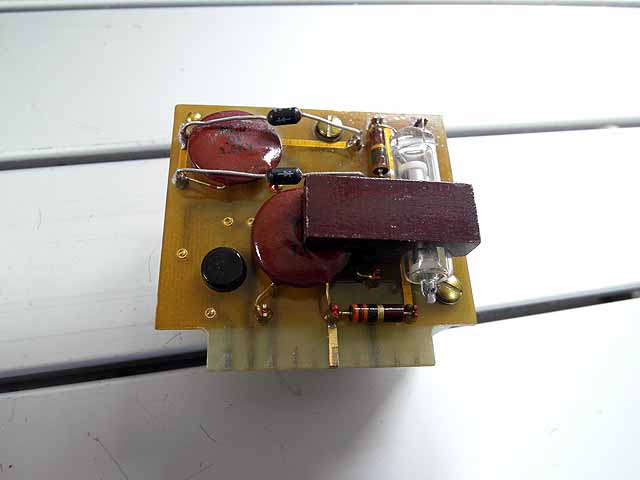

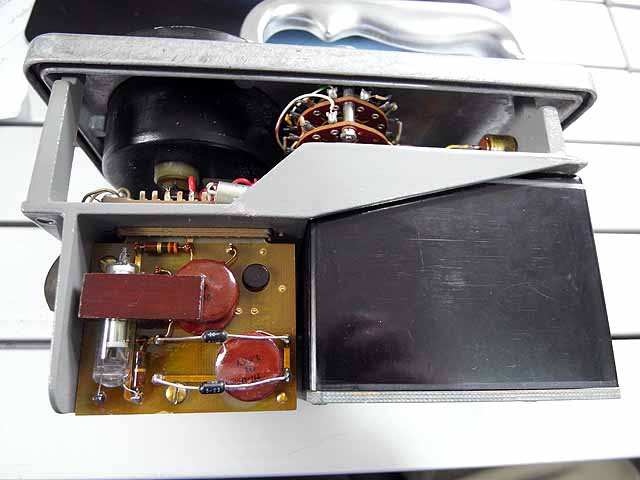

High voltage supply



PNC-1(6/24/2017)

High voltage supply



PNC-1(6/24/2017)

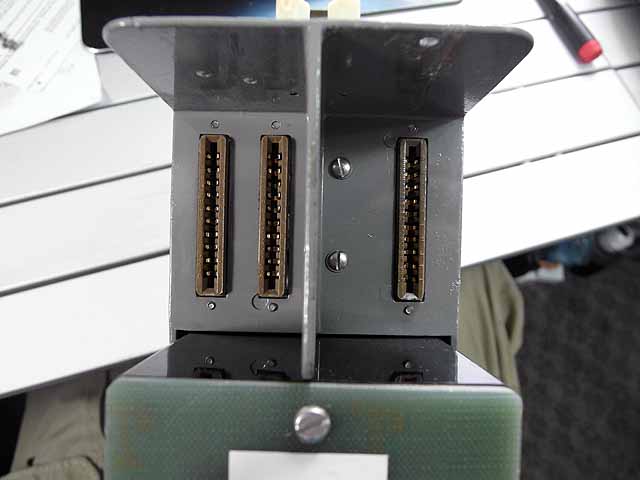

Connector board



PNC-1(6/24/2017)

Connector board and calibration potentiometers



PNC-1(6/24/2017)

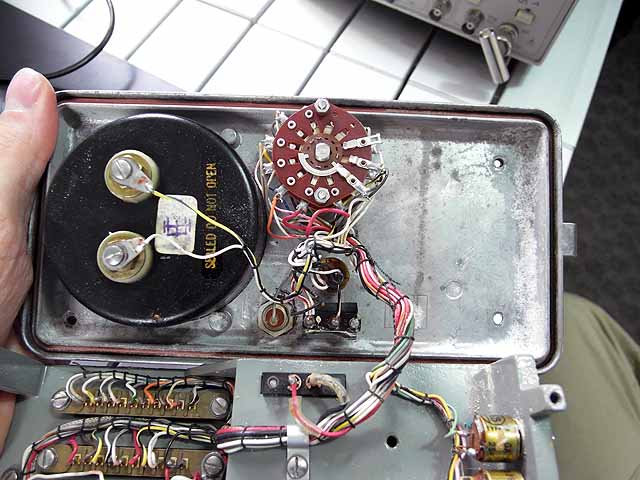

Meter and power switches



PNC-1(6/24/2017)

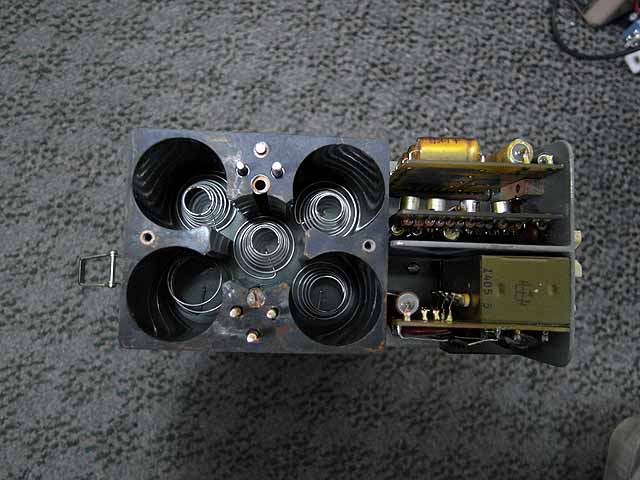

Repaired battery pack



PNC-1(6/24/2017)

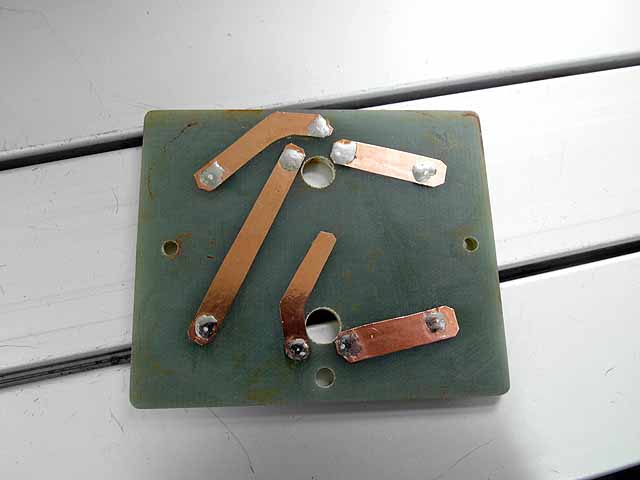

Repaired battery pack cover
