Eberline PNC-4 Neutron Detector




Overview:

Neutron detector.

A BF3 (Boron tri fluoride) detector tube enriched to 99% B10 is used to detect neutrons. When neutrons enter the detector tube they interact with the B10 in the following way: B10 + n => Li7 + a. The charge on the alpha particle generated in the reaction produces a signal across the input of the counter that is amplified and recorded.



PNC-4(4/30/2016)

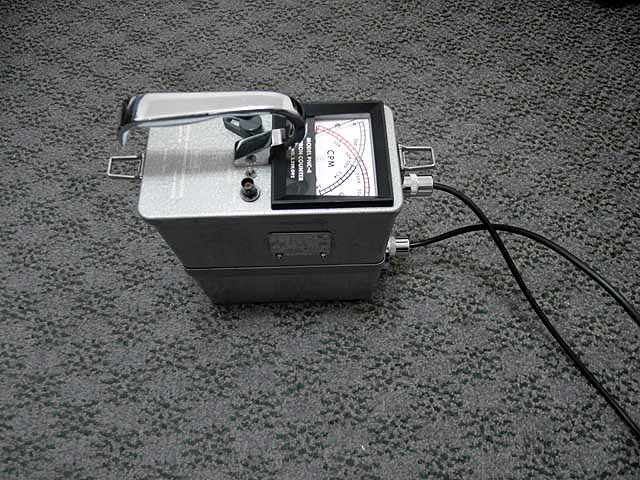

Eberline PNC-4 neutron detector



PNC-4(4/30/2016)

Eberline PNC-4 neutron detector



PNC-4(4/30/2016)

Eberline PNC-4 neutron detector



PNC-4(4/30/2016)

Dual log scale rate meter



PNC-4(4/30/2016)

2.5Kcpm=10mr/h

26Kcpm=100mr/h



PNC-4(4/30/2016)

Top section containing electronics and bottom section containing BF3 tube and moderator



PNC-4(4/30/2016)

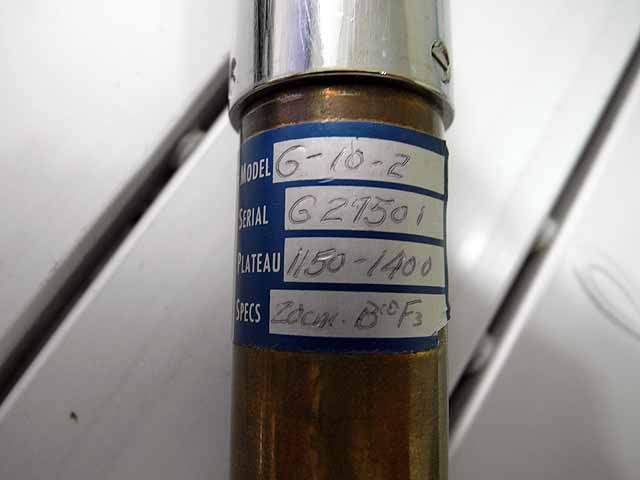

Nancy Wood BF3 tube

  • Model: G-10-2
  • Plateau: 1150-1400V
  • 20cm BF3


PNC-4(4/30/2016)

Tube inserts into moderator



PNC-4(4/30/2016)

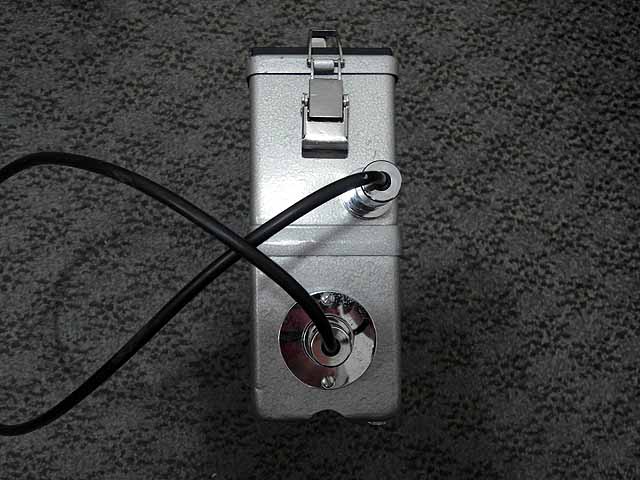

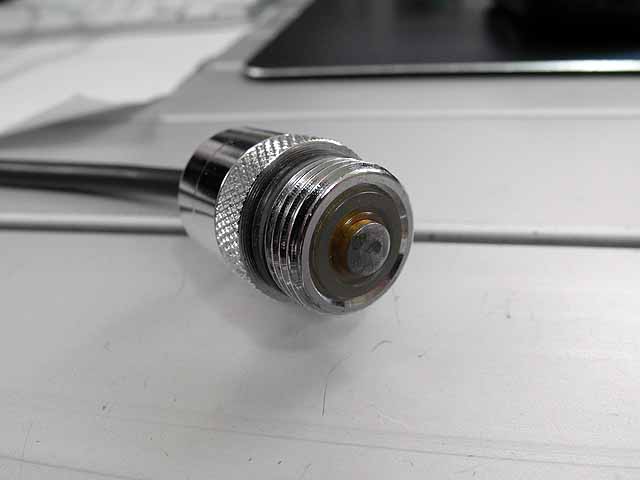

Connectors for cable to probe



PNC-4(4/30/2016)

Connectors for cable to probe



PNC-4(4/30/2016)

Connectors for cable to probe



PNC-4(4/30/2016)

Battery compartment shows only minimal signs of corrosion



PNC-4(4/30/2016)

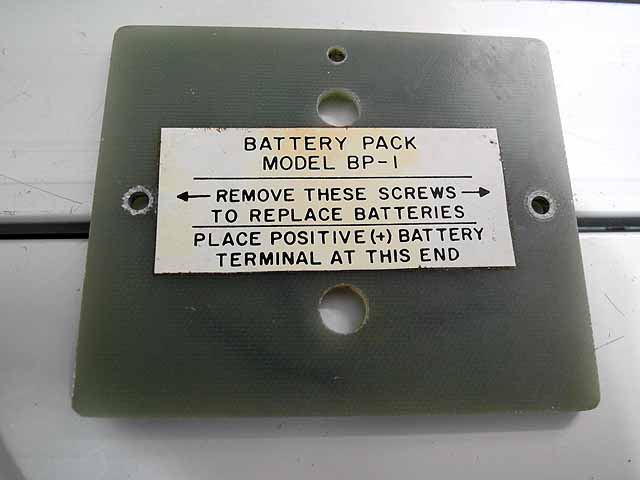

Bakelite battery case



PNC-4(4/30/2016)

Contact pins to top panel



PNC-4(4/30/2016)

Top panel



PNC-4(4/30/2016)

Contact side of top panel



PNC-4(4/30/2016)

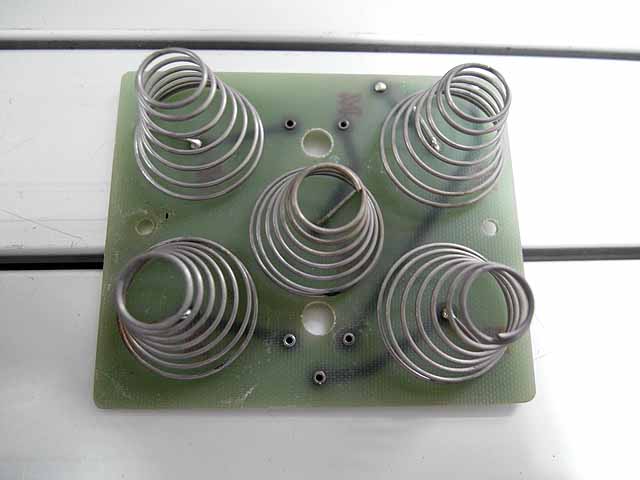

Contact side of bottom panel



PNC-4(4/30/2016)

trace side of bottom panel



PNC-4(4/30/2016)

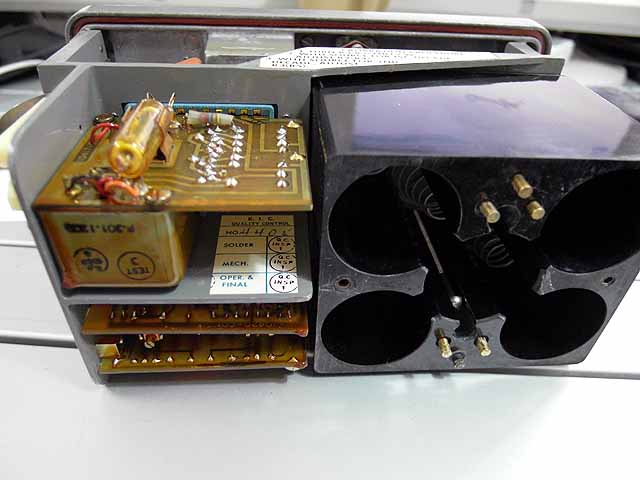

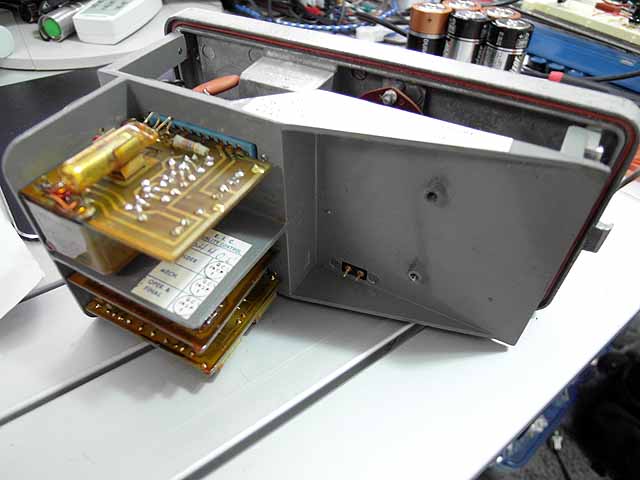

Battery pack removed, showing circuitry cards



PNC-4(4/30/2016)

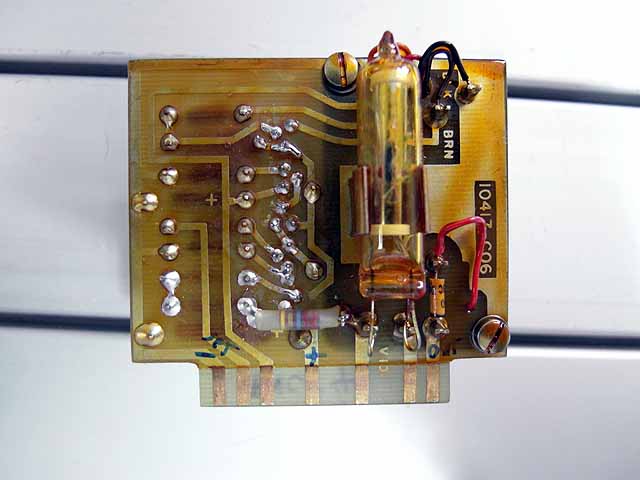

HV supply



PNC-4(4/30/2016)

HV supply



PNC-4(4/30/2016)

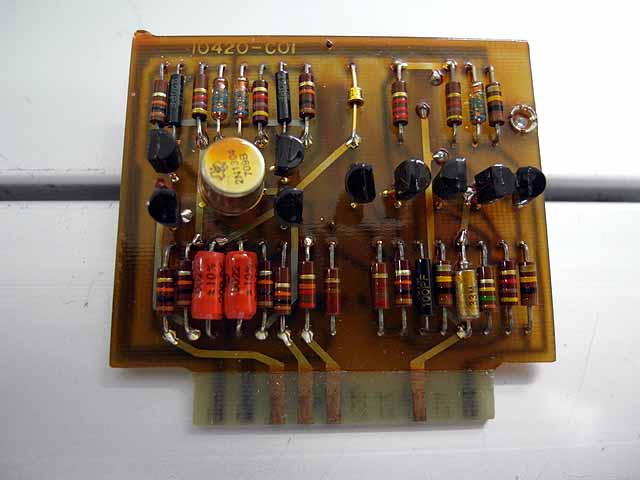

Threshold and count detector, note the tunnel diode in the top middle of the board



PNC-4(4/30/2016)

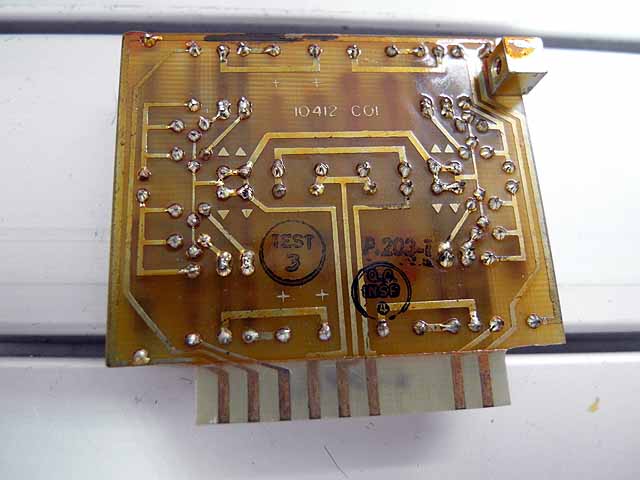

Threshold and count detector



PNC-4(4/30/2016)

Meter drive board



PNC-4(4/30/2016)

Meter drive board



PNC-4(4/30/2016)

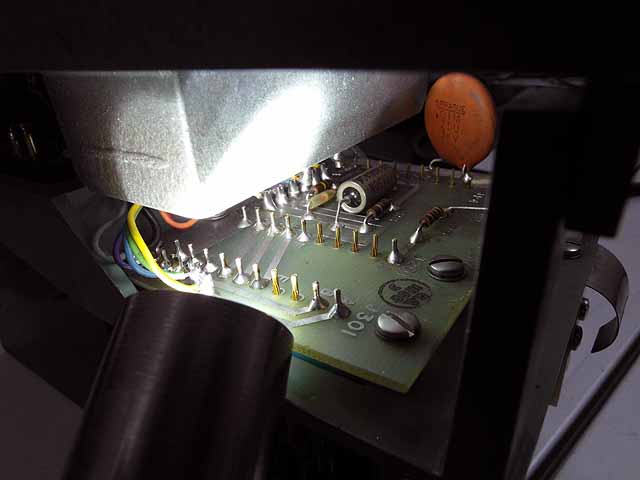

Interconnect board



PNC-4(4/30/2016)

Interconnect board



PNC-4(4/30/2016)

Interconnect board



PNC-4(4/30/2016)

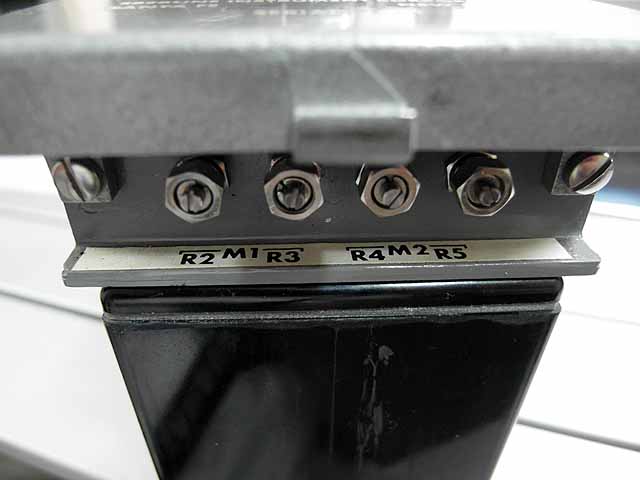

Calibration potentiometers
