Exploranium GR-135 Plus Radioisotope Identifier




Overview:

An SAIC Exploranium model GR-135ND-H portable radioisotope identifier (RIID) incorporating a Sodium Iodide NaI(Tl) based gamma ray spectrometer, a high range Geiger tube and a He3 neutron detector.



Exploranium GR-135 Plus (12/15/2018)

Complete unit found on eBay with some minor problems



Exploranium GR-135 Plus (12/15/2018)

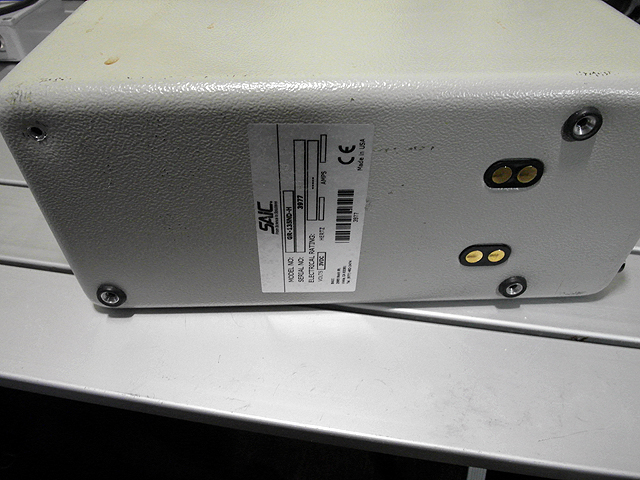

The case detaches via 4 screws on the bottom



Exploranium GR-135 Plus (12/15/2018)

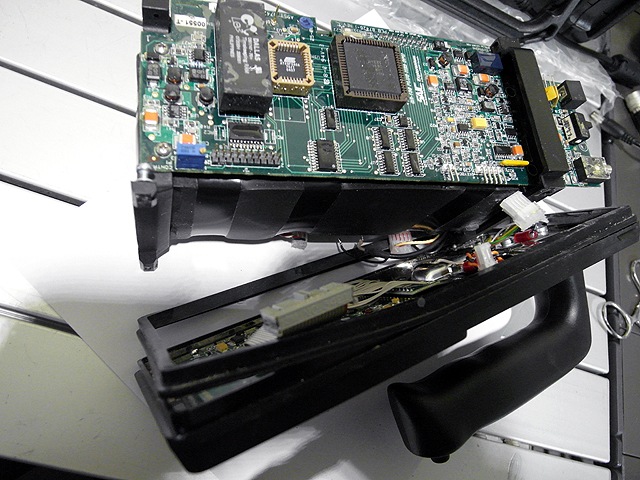

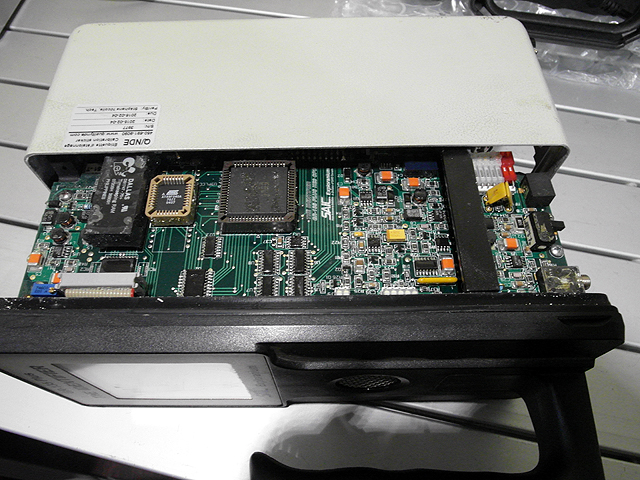

The electronics and detector assemblies are attached to the top part of the case



Exploranium GR-135 Plus (12/15/2018)

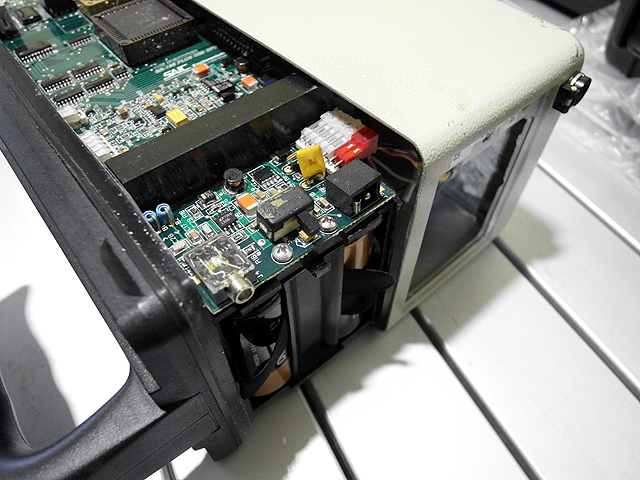

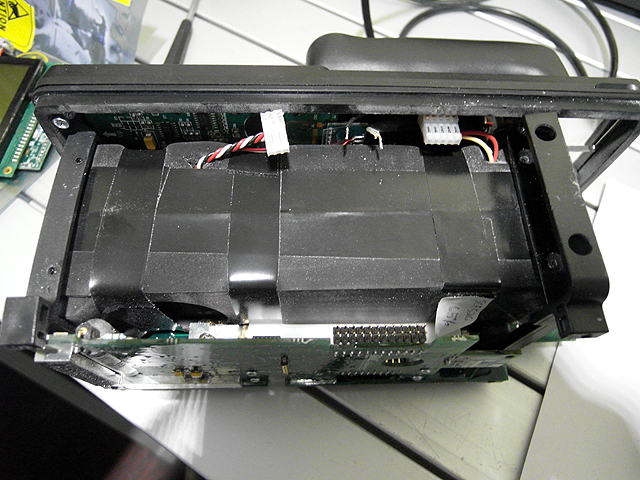

2 D cell batteries are installed in the back



Exploranium GR-135 Plus (12/15/2018)

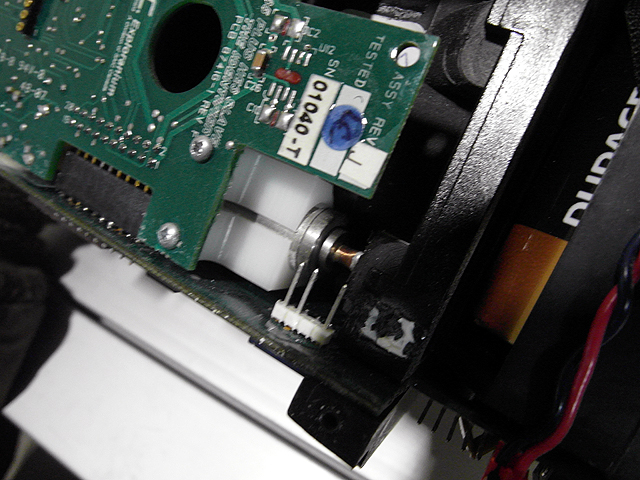

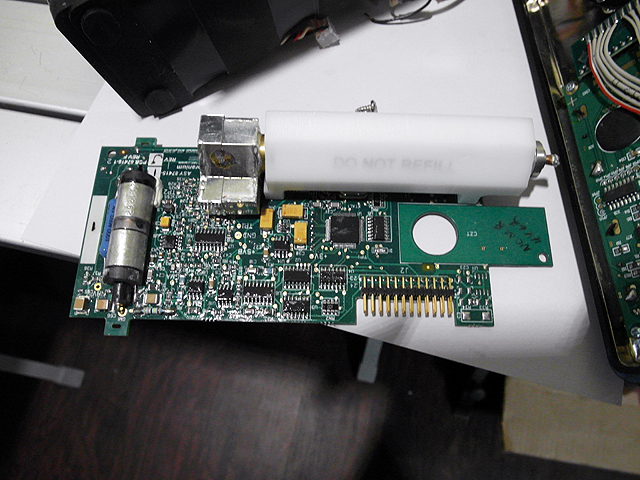

Neutron detector board (with high range Geiger tube) is mounted on the bottom



Exploranium GR-135 Plus (12/15/2018)

He3 tube next to audio connector



Exploranium GR-135 Plus (12/15/2018)

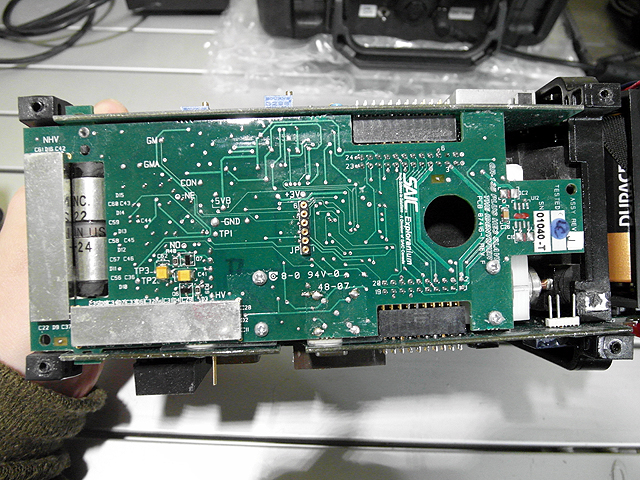

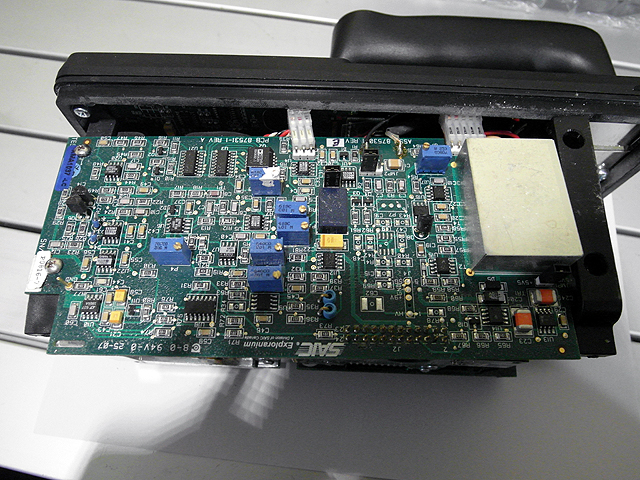

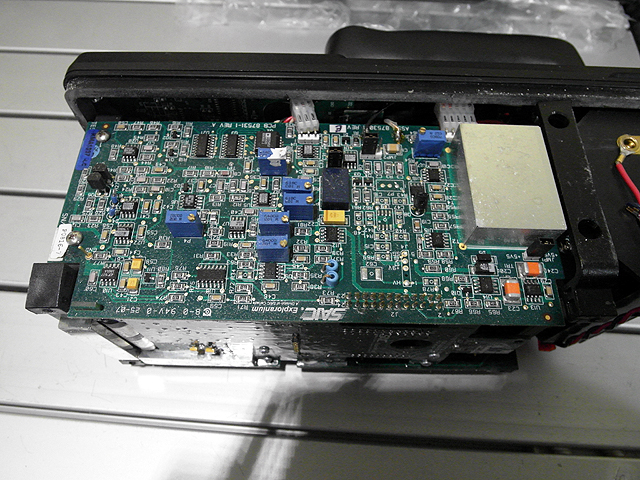

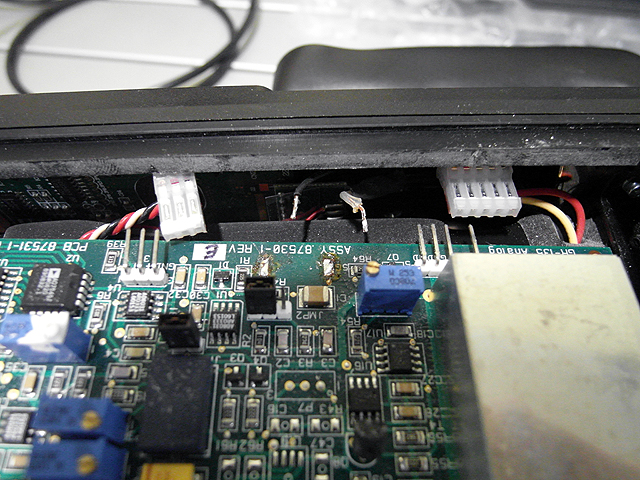

Analog processing board to tun pulse height analysis on the NaI detector



Exploranium GR-135 Plus (12/15/2018)

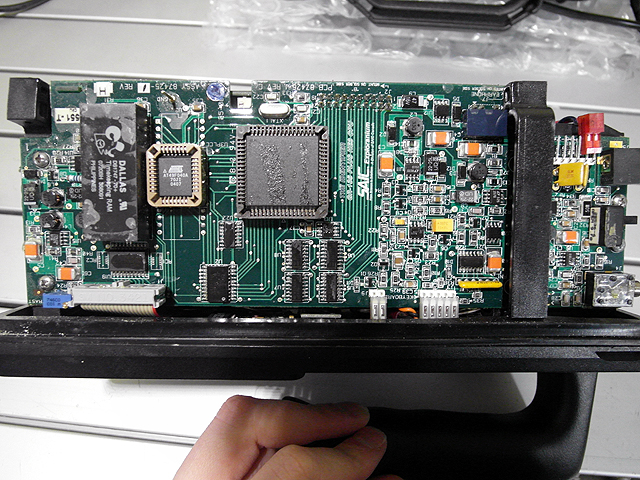

CPU board



Exploranium GR-135 Plus (12/15/2018)

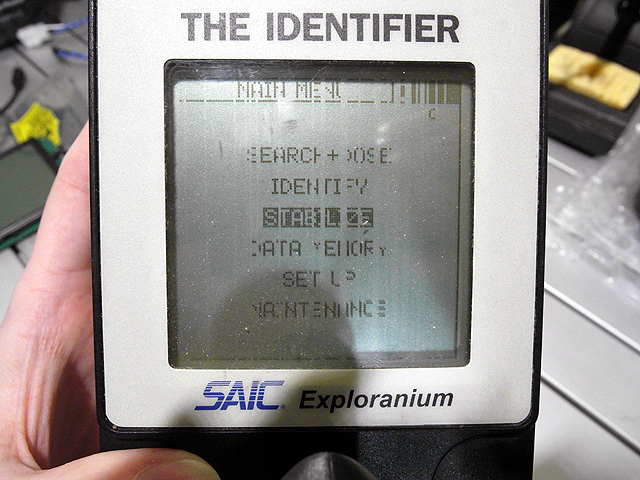

Original LCD screen had some bad lines. This is a common problem with the gr135.



Exploranium GR-135 Plus (12/15/2018)

Battery holder removed



Exploranium GR-135 Plus (12/15/2018)

Analog board unscrewed



Exploranium GR-135 Plus (12/15/2018)

Unsolder the NaI tube wire from the board



Exploranium GR-135 Plus (12/15/2018)

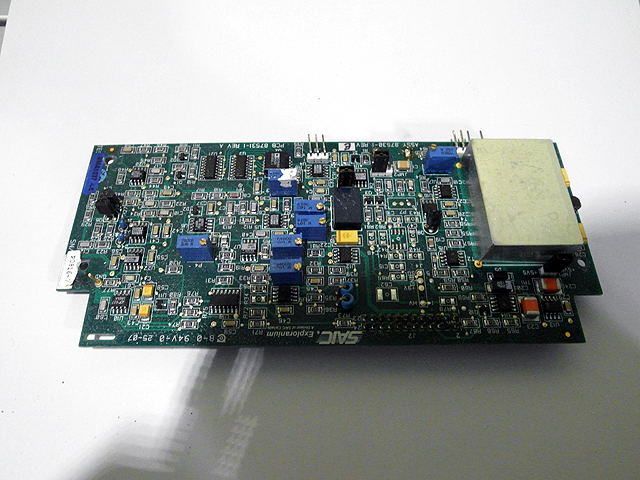

Analog board removed



Exploranium GR-135 Plus (12/15/2018)

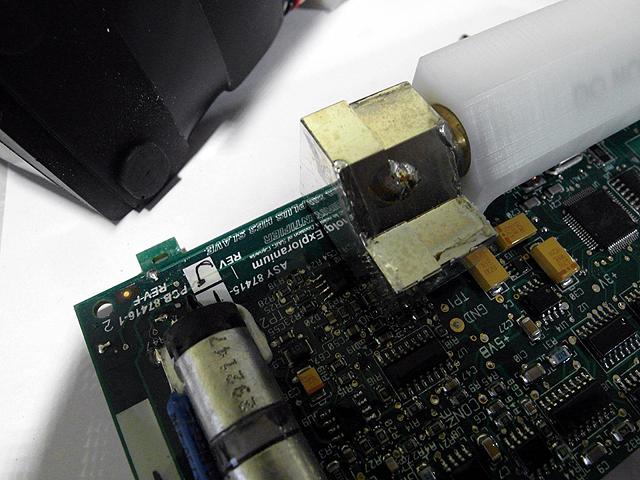

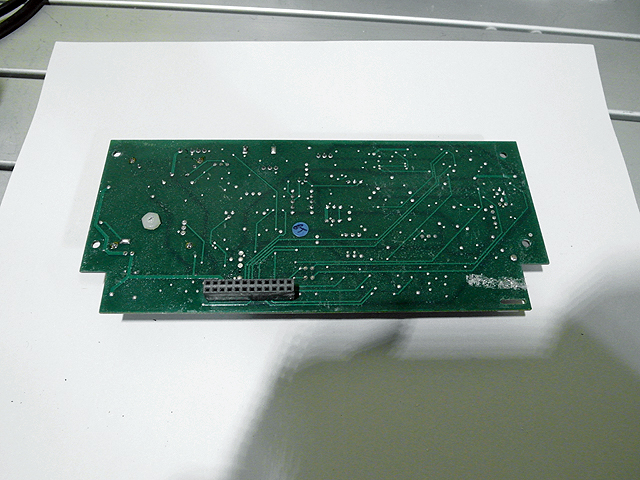

Back of analog board



Exploranium GR-135 Plus (12/15/2018)

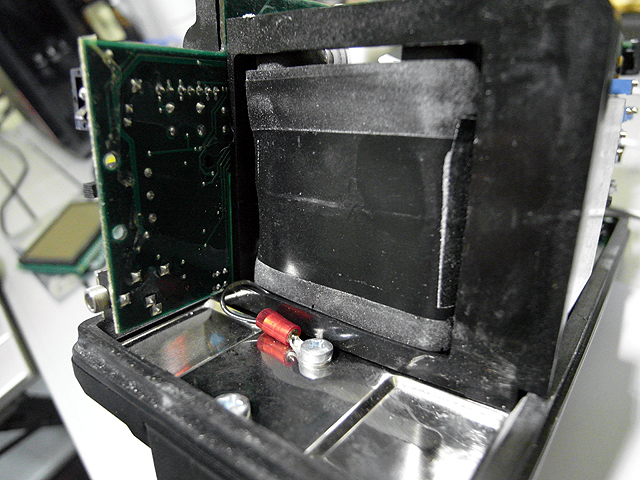

NaI detector in vibration/shock damping foam



Exploranium GR-135 Plus (12/15/2018)

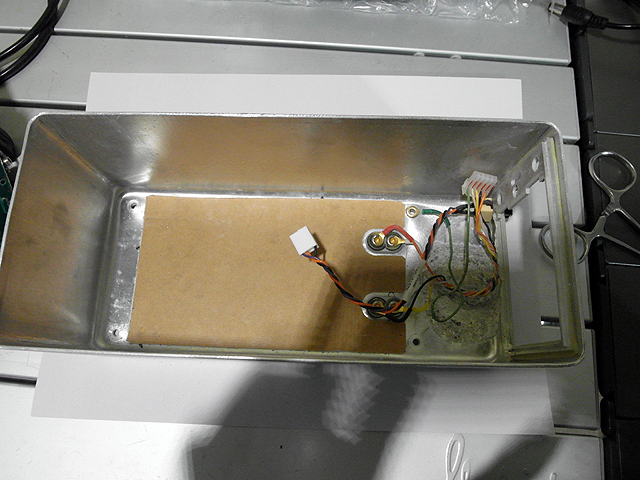

Bottom of case has some corrosion



Exploranium GR-135 Plus (12/15/2018)

4 screws removed to detach top cover



Exploranium GR-135 Plus (12/15/2018)

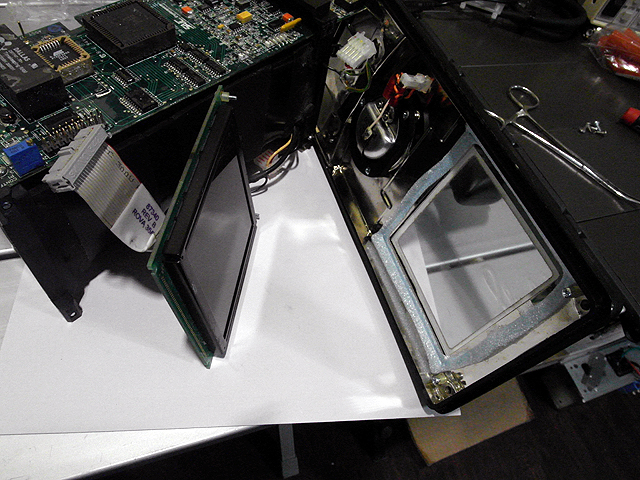

4 more screws to remove LCD. The LCD was replaced with a spare one with fewer bad lines.



Exploranium GR-135 Plus (12/15/2018)

He3 detector, moderator, and Geiger tube



Exploranium GR-135 Plus (12/15/2018)

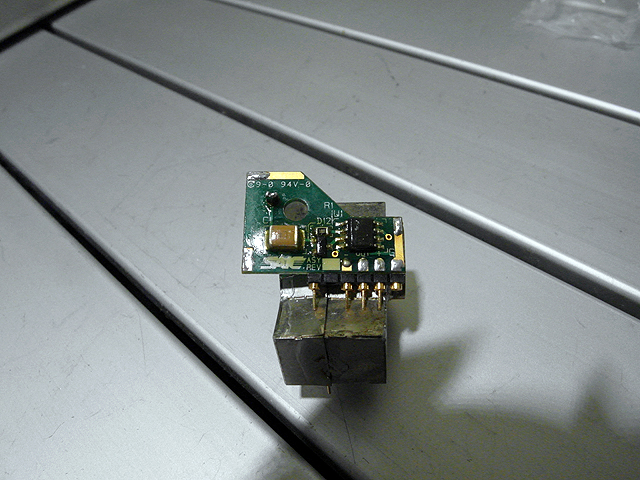

He3 tube charge sensitive amplifier in shielded metal box



Exploranium GR-135 Plus (12/15/2018)

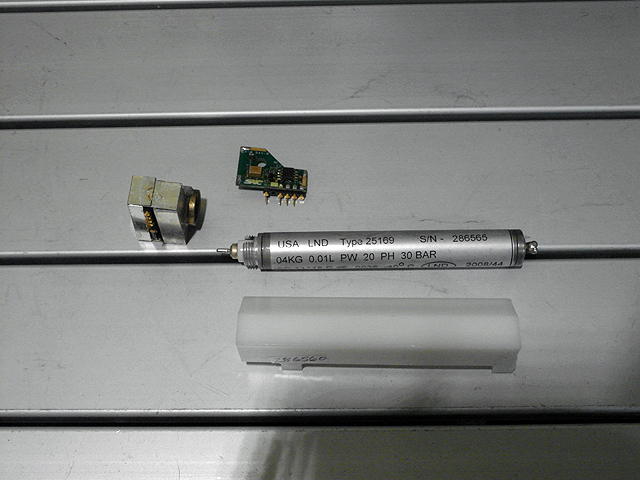

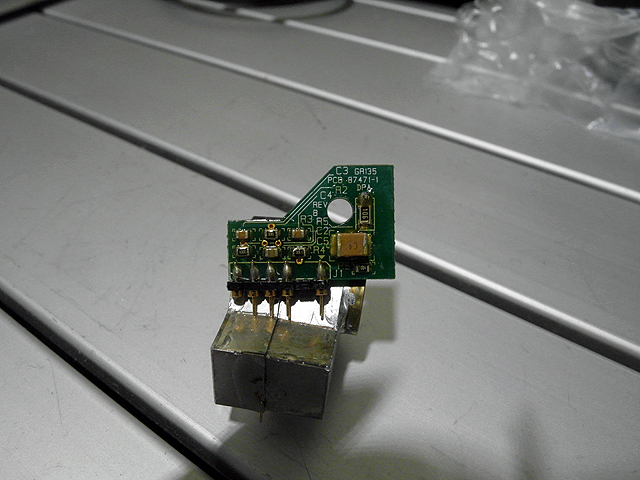

He3 tube and charge sensitive amplifier (from spare parts, not from this unit)



Exploranium GR-135 Plus (12/15/2018)

Charge sensitive amplifier (from spare parts, not from this unit)



Exploranium GR-135 Plus (12/15/2018)

Charge sensitive amplifier (from spare parts, not from this unit)



Exploranium GR-135 Plus (12/15/2018)

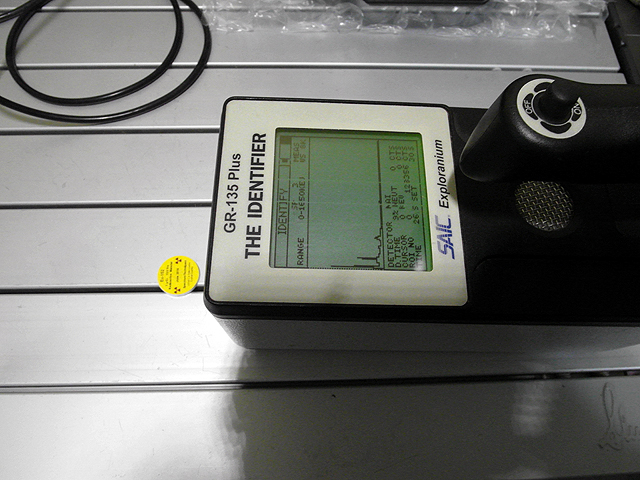

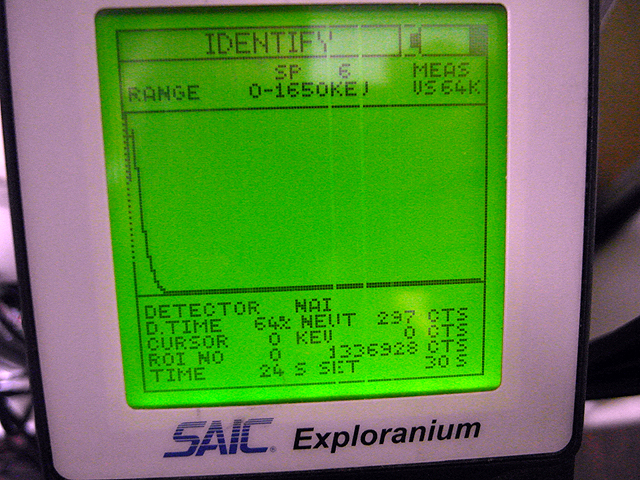

Testing NaI spectrometer



Exploranium GR-135 Plus (12/15/2018)

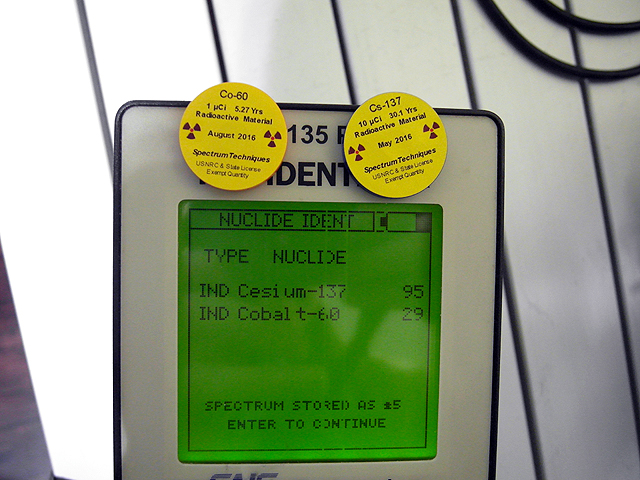

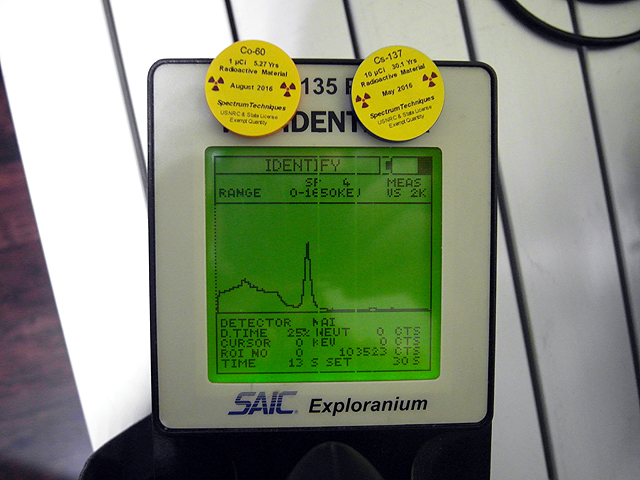

Peaks from a Co60 and Cs137 source simultaneously being detected



Exploranium GR-135 Plus (12/15/2018)

Successful isotope identification



Exploranium GR-135 Plus (12/15/2018)

Testing neutron sensitivity with an IEC fusion neutron source



Exploranium GR-135 Plus (12/15/2018)

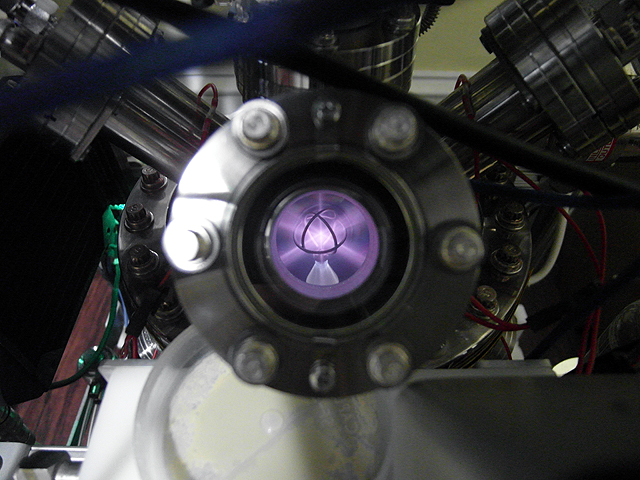

Colliding deuterium beams



Exploranium GR-135 Plus (12/15/2018)

Detecting neutrons and x-rays.



Exploranium GR-135 Plus (12/15/2018)

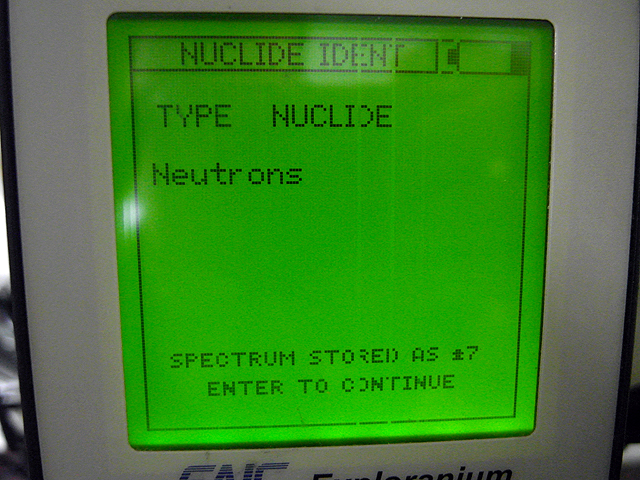

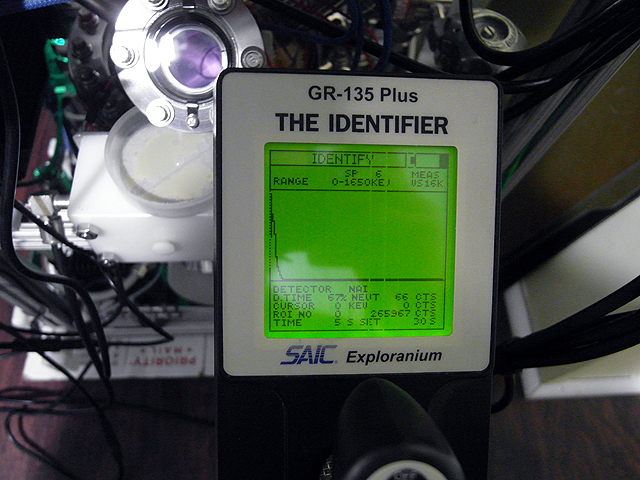

ID of neutrons, unfortunately it doesn't give neutron dose rates, so it will be a little hard to directly calculate neutron flux with this detector.



Exploranium GR-135 Plus (12/15/2018)

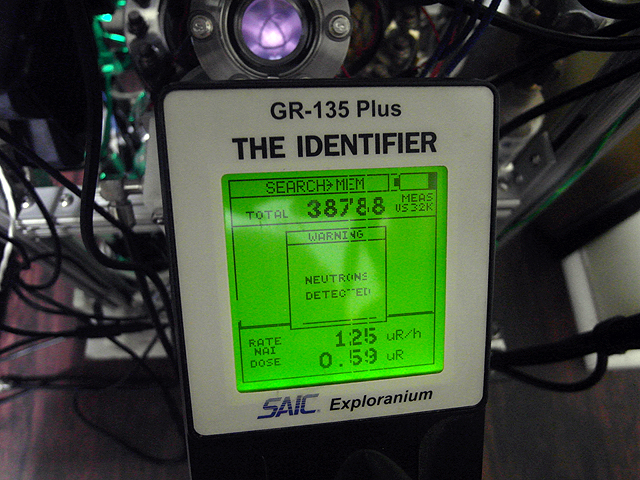

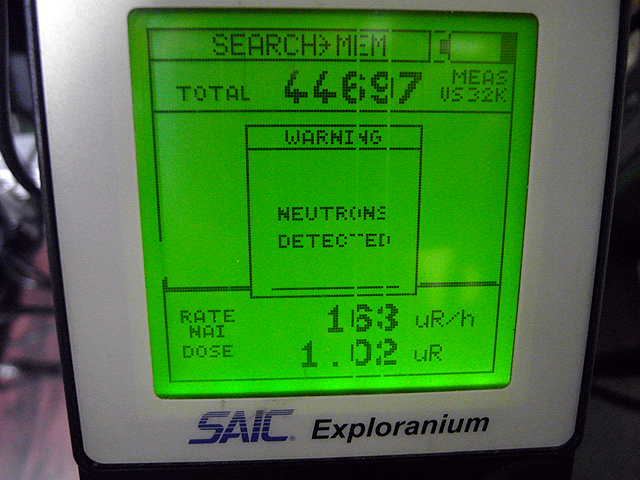

Neutrons detected in search mode



Exploranium GR-135 Plus (12/15/2018)

X-ray dose kept to 163uR/h due to good shielding and lead glass viewports.
