| Faxitron DX-50 CT Scanner | |
 |
 |
 |
 |
 |
 |
 |
| Overview: A Faxitron DX-50 cabinet x-ray system is converted into a small CT scanner to scan electronic components. Software to run the unit and process the scan is coded in Matlab. Teardown of an identical DX-50 unit Files:
Links:
|
|
 |
Faxitron DX-50 CT Scanner (2/10/2019) Faxitron DX-50 cabinet x-ray system |
 |

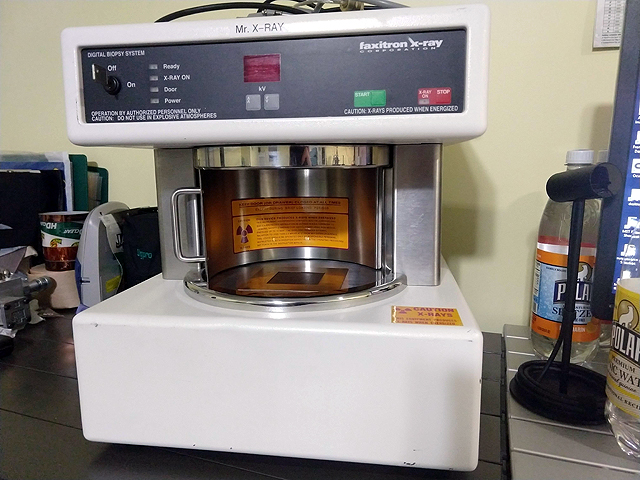

Faxitron DX-50 CT Scanner (2/10/2019) Faxitron DX-50 cabinet x-ray system with stepper motor and stepper controller |
 |
Faxitron DX-50 CT Scanner (2/10/2019) Stepper motor and stepper controller to rotate object to scan |
|
Faxitron DX-50 CT Scanner (2/10/2019) How to convert a X-ray cabinet system into a CT scanner, an overview of the x-ray system, initial tests, and verification of x-ray shielding and interlocks. |
Faxitron DX-50 CT Scanner (2/10/2019) How to convert a X-ray cabinet system into a CT scanner, an overview of the x-ray system, initial tests, and verification of x-ray shielding and interlocks. |
|
Faxitron DX-50 CT Scanner (2/10/2019) Calibration of the Hamamatsu flat panel detector, flatfield and darkfield calibration. |
|
Faxitron DX-50 CT Scanner (2/10/2019) Calibration of the Hamamatsu flat panel detector, flatfield and darkfield calibration. |
|

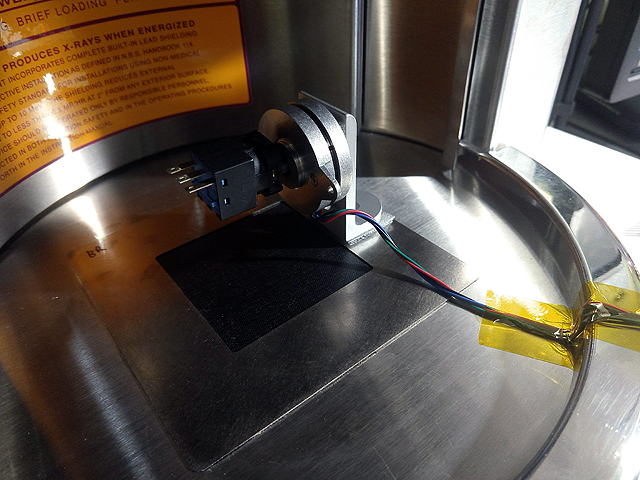

Faxitron DX-50 CT Scanner (2/10/2019) Stepper motor control with a pololou TIC T825, positioning of the stepper within the x-ray system, and routing of the control wiring through the re-entrant sliding shield door. |
|
Faxitron DX-50 CT Scanner (2/10/2019) Projected image of rotated object. Test results with 60 frames incremented at 6 degrees per frame. |
|
Faxitron DX-50 CT Scanner (2/10/2019) Tomographic reconstruction of scanned switch base with IRadon transform. |
|
Faxitron DX-50 CT Scanner (2/10/2019) Projected x-ray image of rotating switch 6 deg per step |
|
Faxitron DX-50 CT Scanner (2/10/2019) Tomographic reconstruction of switch |
|
Faxitron DX-50 CT Scanner (7/14/2019) Upgraded rotation stage |
|
Faxitron DX-50 CT Scanner (7/14/2019) Upgraded rotation stage |
|
Faxitron DX-50 CT Scanner (7/14/2019) Upgraded rotation stage |
|
Faxitron DX-50 CT Scanner (7/14/2019) 200 step rotation of an insect |
|
Faxitron DX-50 CT Scanner (7/14/2019) CT reconstruction of 200 step rotation of an insect |
|
|
Faxitron DX-50 CT Scanner (7/14/2019) Upgraded rotation stage |
|
Faxitron DX-50 CT Scanner (7/14/2019) Upgraded rotation stage |
|

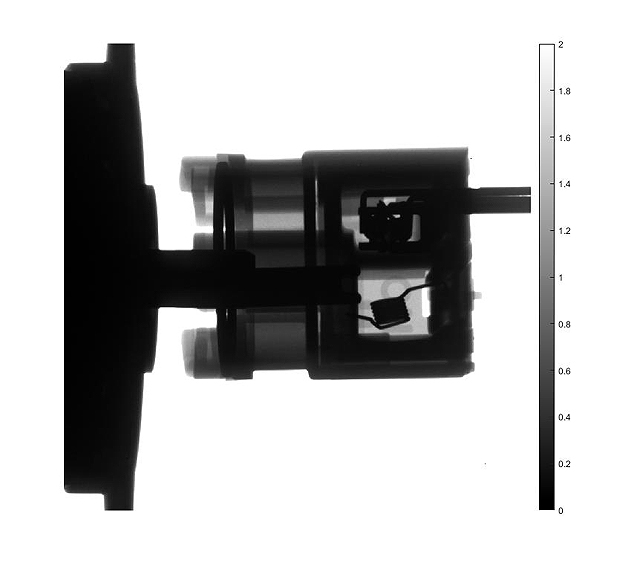

Faxitron DX-50 CT Scanner (2/10/2019) Single frame of switch base |
|

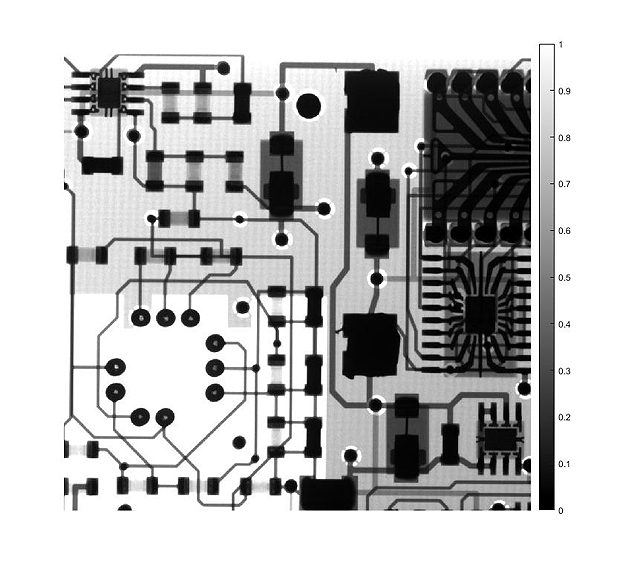

Faxitron DX-50 CT Scanner (2/10/2019) Circuit board with photomultiplier |
|

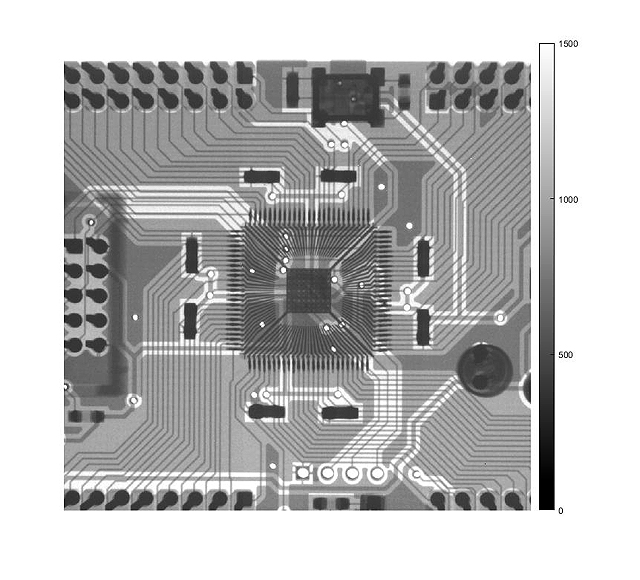

Faxitron DX-50 CT Scanner (2/10/2019) Circuit board for Altera MAXII CPLD |
|
Faxitron DX-50 CT Scanner (2/10/2019) Circuit board |
|

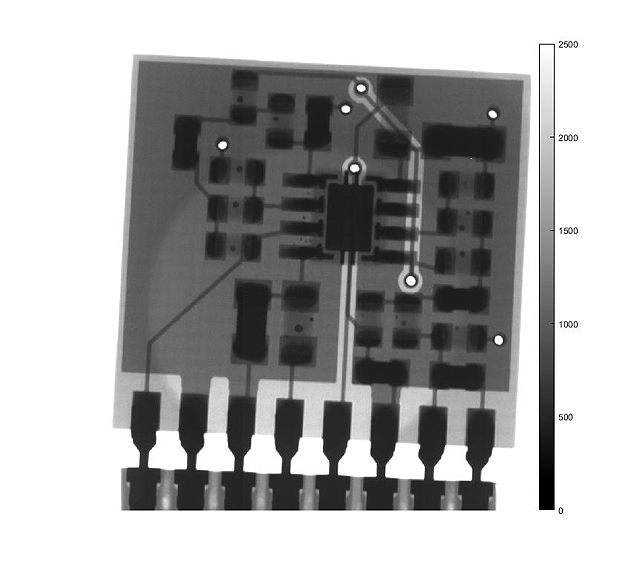

Faxitron DX-50 CT Scanner (2/10/2019) Cremat shaping amplifier |
|

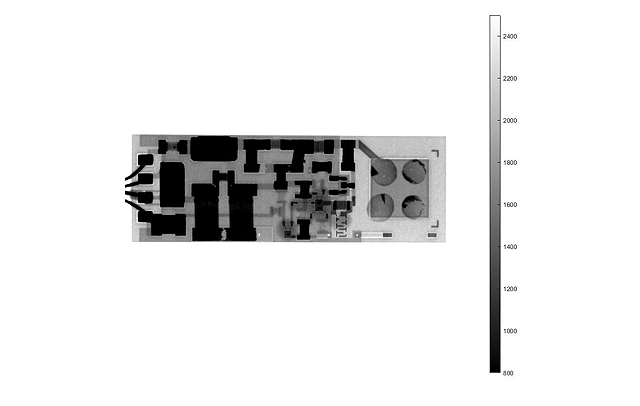

Faxitron DX-50 CT Scanner (2/10/2019) CZT x-ray detector with crystals removed |
|
