IEC Fusion Reactor Mark 3

3D Modeling





Overview:

3D modeling in Autodesk Inventor

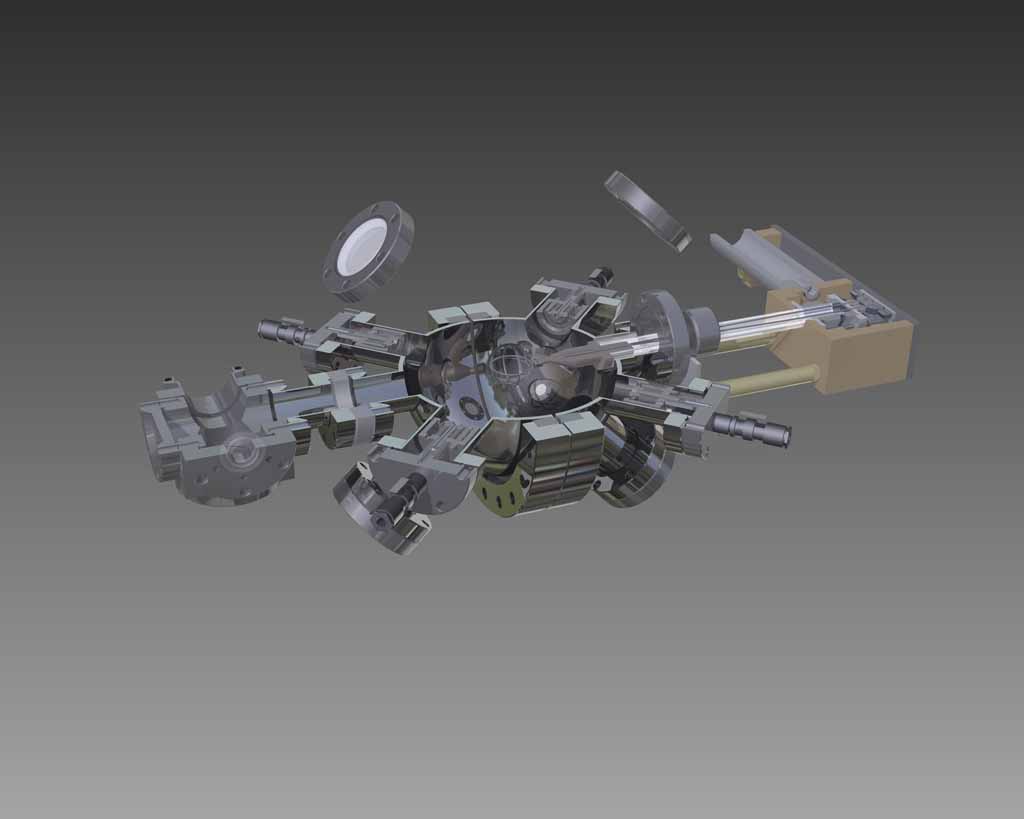

3D PDF Model





Mark 3 (2/25/2017)

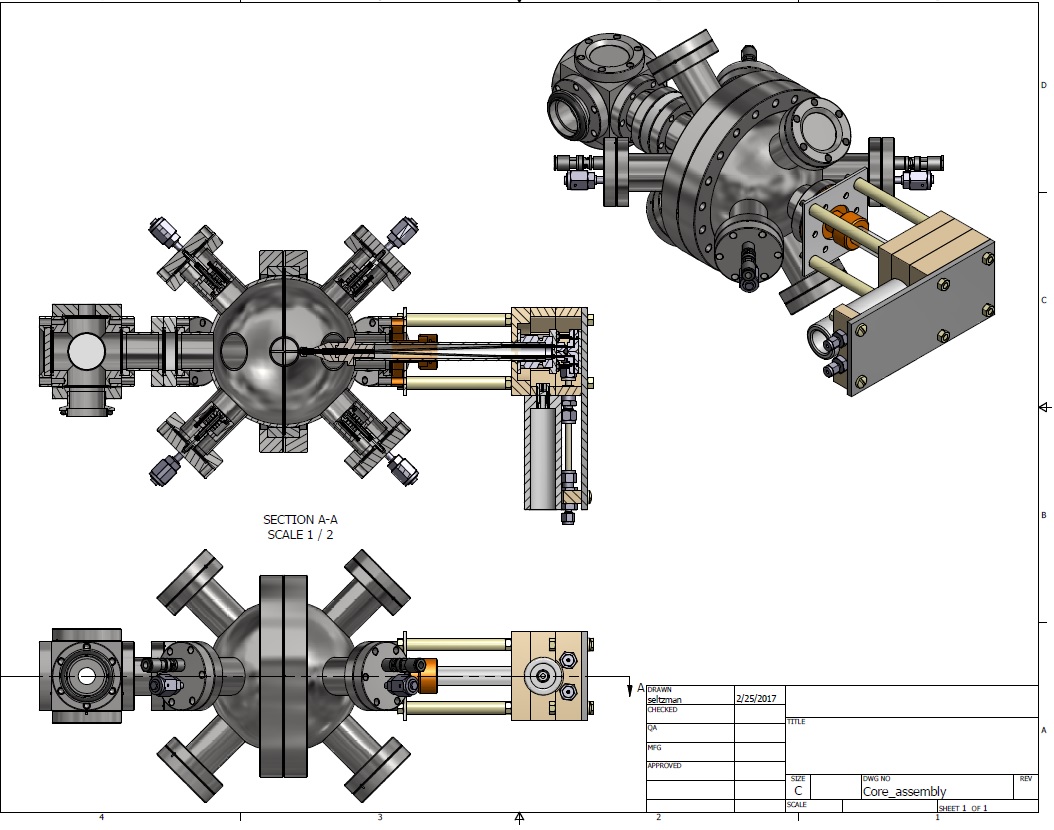

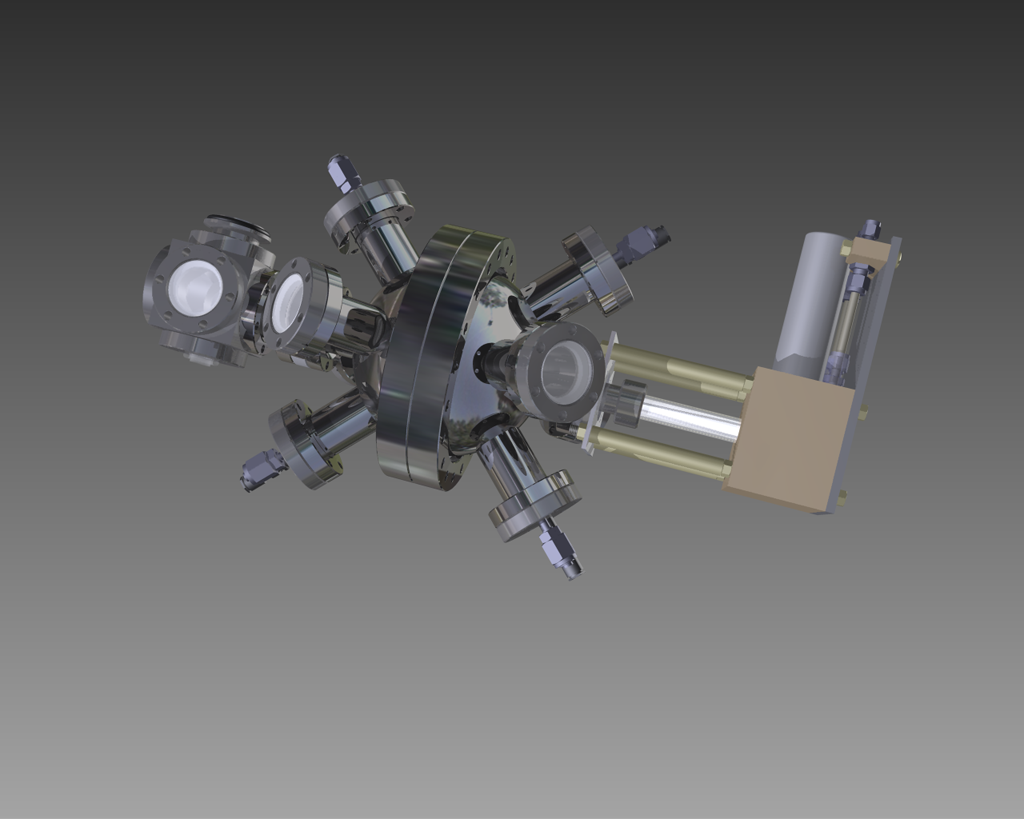

Core assembly



Mark 3 (2/25/2017)

Core assembly



Mark 3 (2/25/2017)

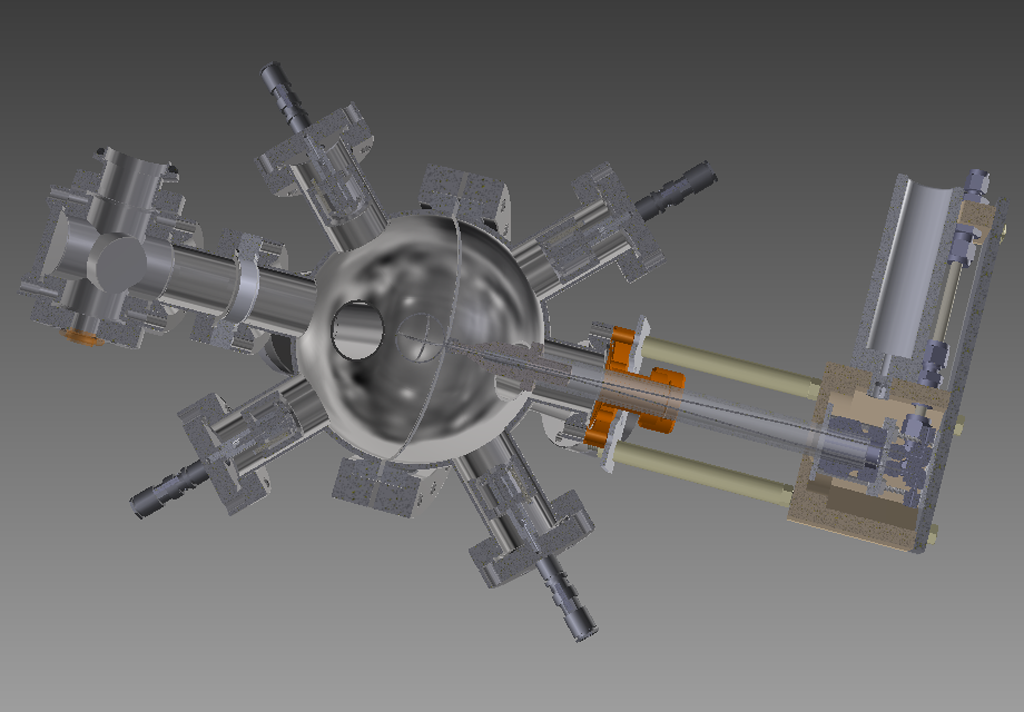

Core half section



Mark 3 (2/25/2017)

Core half section



Mark 3 (2/25/2017)

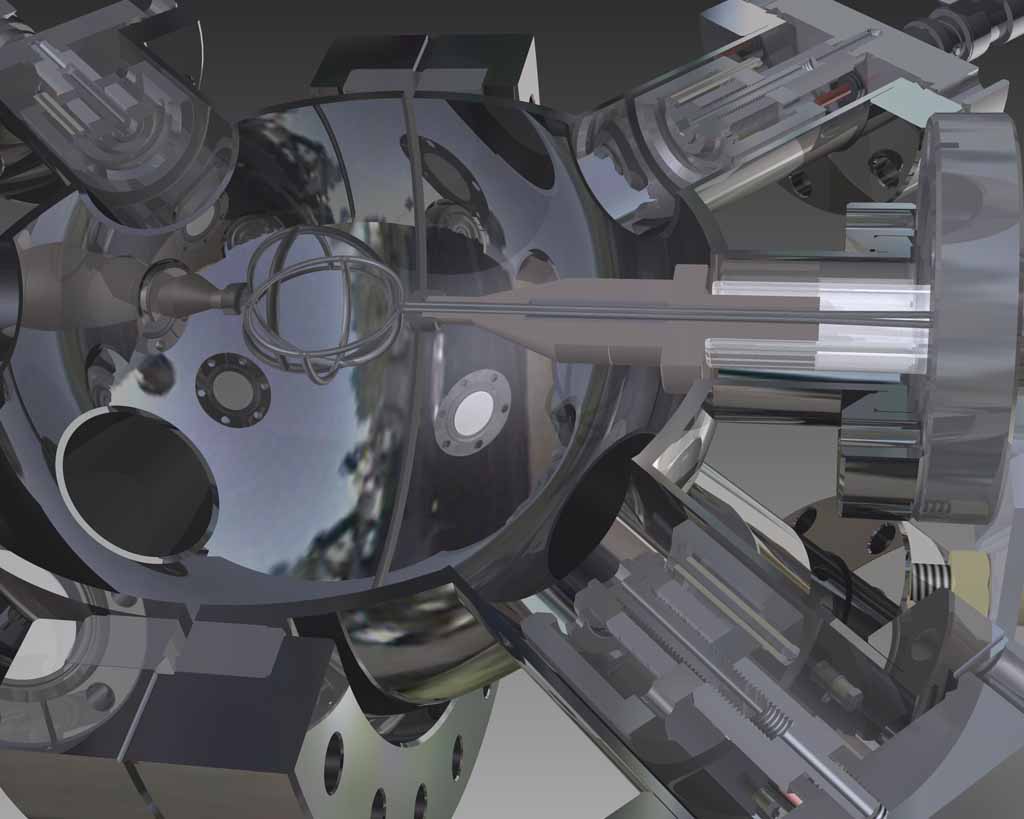

Grid tip and ion injectors



Mark 3 (2/25/2017)

Grid assembly



Mark 3 (2/25/2017)

Grid tip



Mark 3 (2/25/2017)

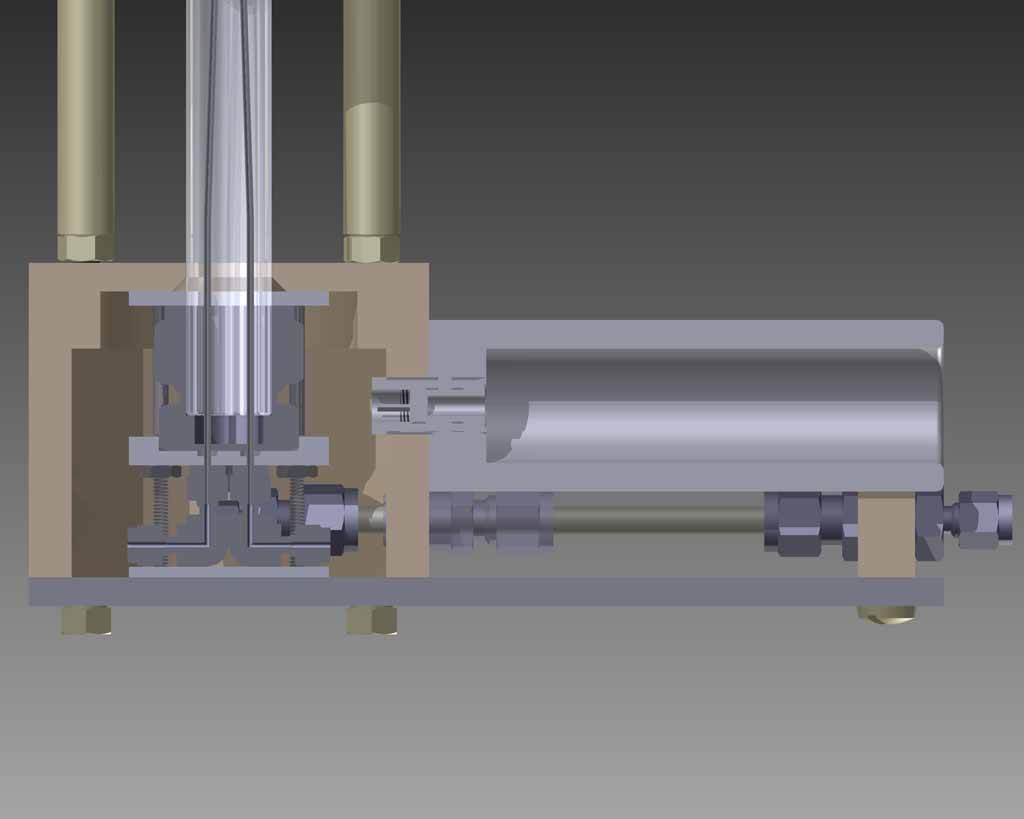

Grid box assembly




Mark 3 (2/25/2017)






Mark 3 (2/25/2017)






Mark 3 (2/25/2017)
