IEC Fusion Reactor Mark 3 Control System, Version 2

Overview:

Upgrades to the previous control system allow complete computer control of all components over a fiber optic Ethernet connection. Ethernet servers connect to RS232 / RS484 control components to run valves, pumps, and power supplies.

Control System (8/21/2013)

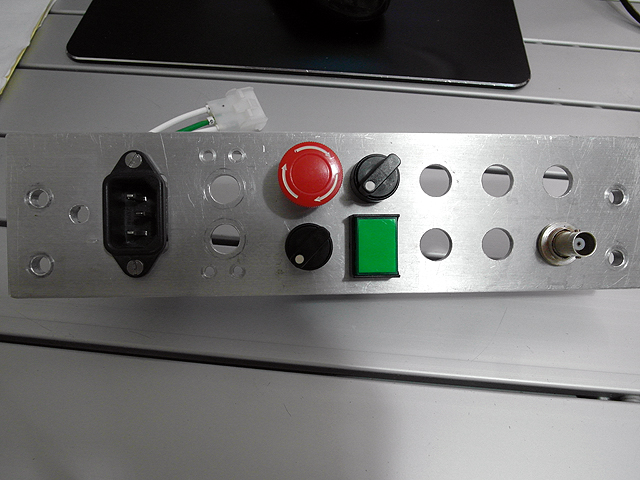

Control panel front

Control System (8/21/2013)

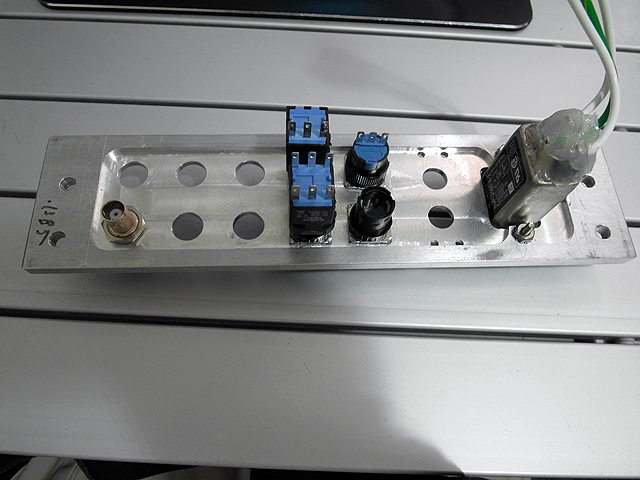

Control panel back

Control System (8/21/2013)

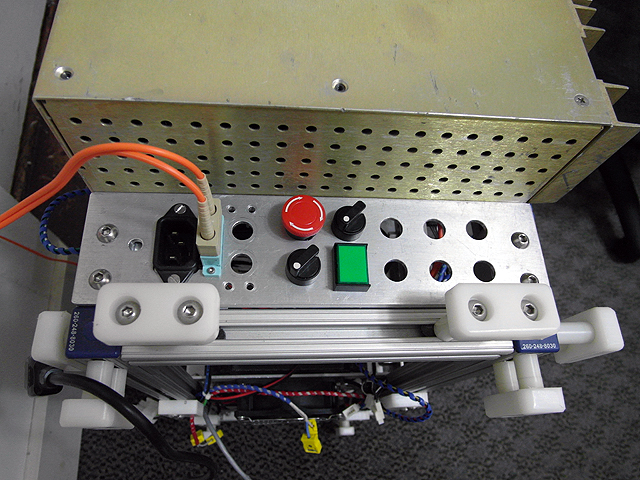

Added Ethernet fiber optic feed through

Control System (8/21/2013)

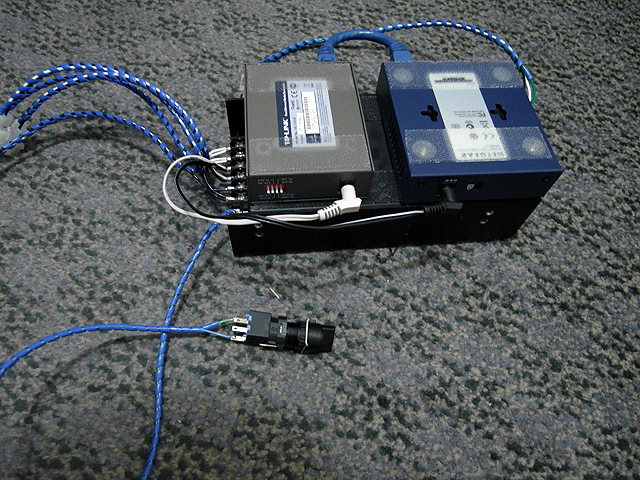

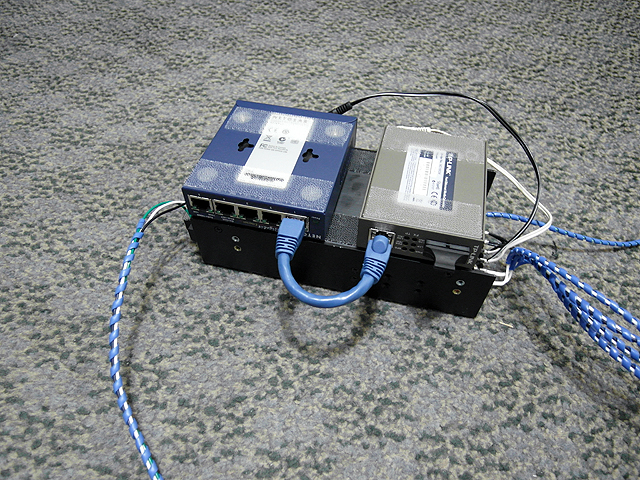

Power supply, ethernet switch and fiber media converter.

Control System (8/21/2013)

Power supply, ethernet switch and fiber media converter.

Control System (8/21/2013)

Power supply, ethernet switch and fiber media converter.

Control System (8/21/2013)

RS232 ethernet server for MKS quattro 999 vacuum gauge.

Control System (8/21/2013)

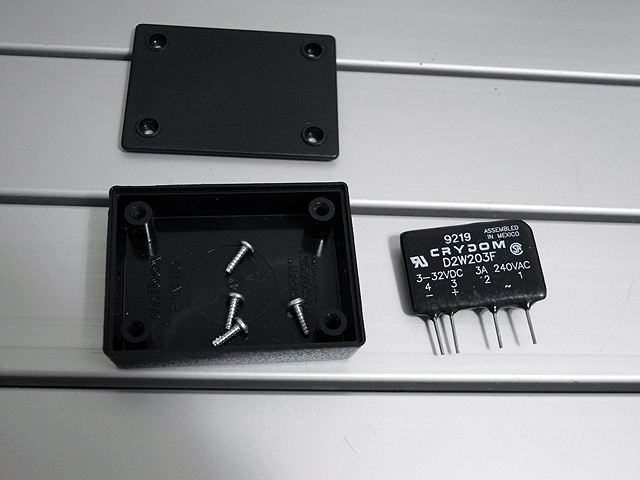

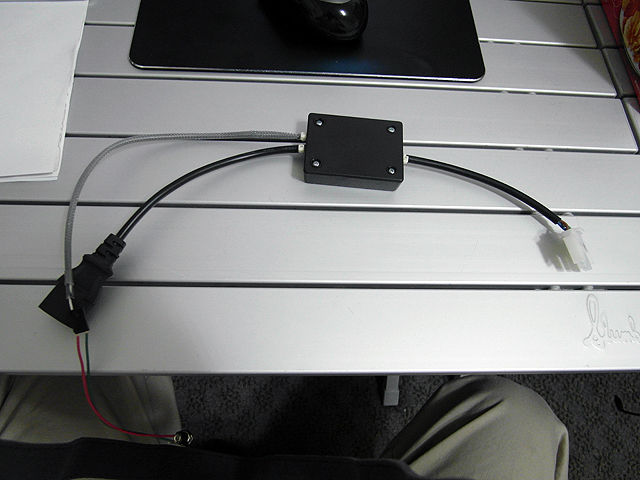

AC Solid state relay

Control System (8/21/2013)

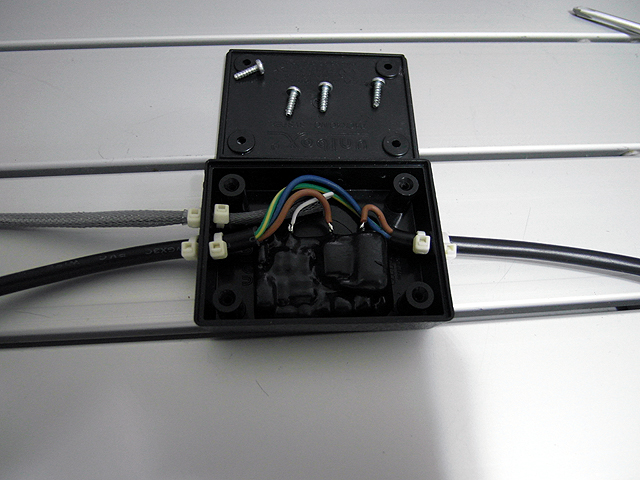

AC Solid state relay

Control System (8/21/2013)

AC Solid state relay

Control System (8/21/2013)

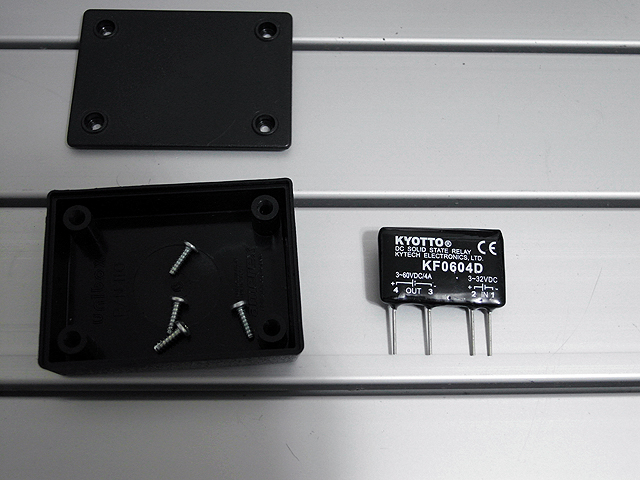

DC Solid state relay

Control System (5/1/2016)

Deuterium Gas Control

PID controller feeding back off of pressure gauge to control piezo gas valve and maintian constant pressure.

Control System (5/1/2016)

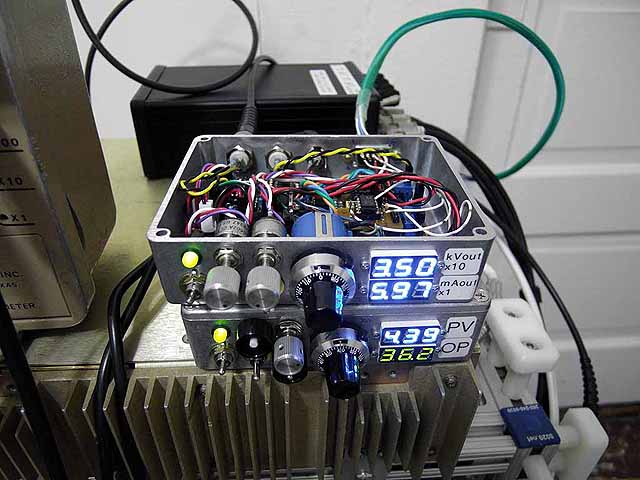

PI controller feeding back off of neutron detector to hold constant neutron flux.

Control System (5/1/2016)

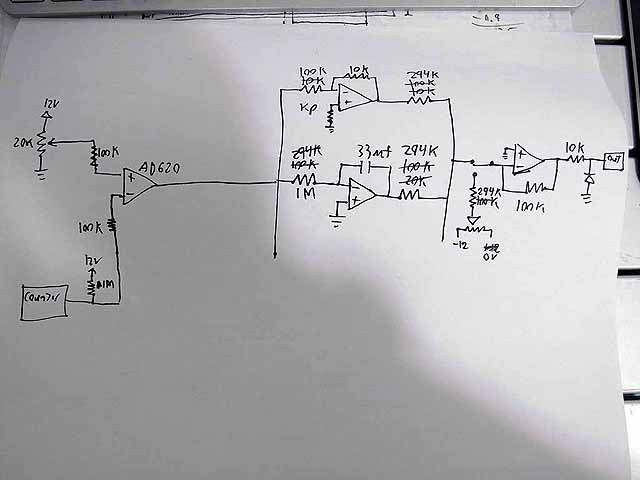

PI controller schematic

Control System (5/1/2016)

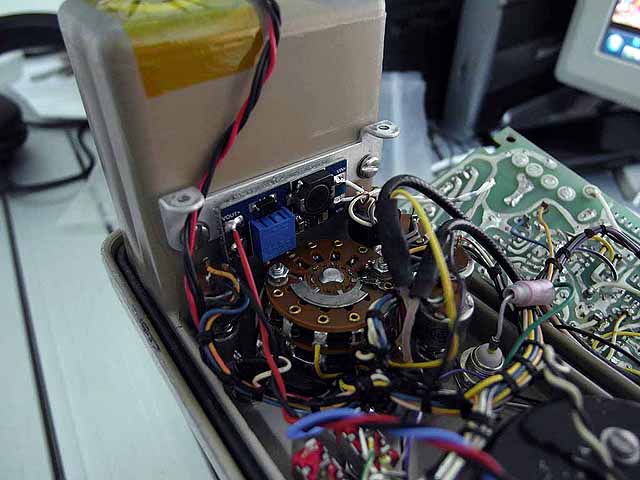

Modifications to ludlum model 12 to provide an analog output preportional to the meter reading

Control System (5/1/2016)

dc-dc converter to provide 12v

Control System (5/1/2016)

opamp to provide 0-10v out for 0 to full scale.

Control System (5/1/2016)

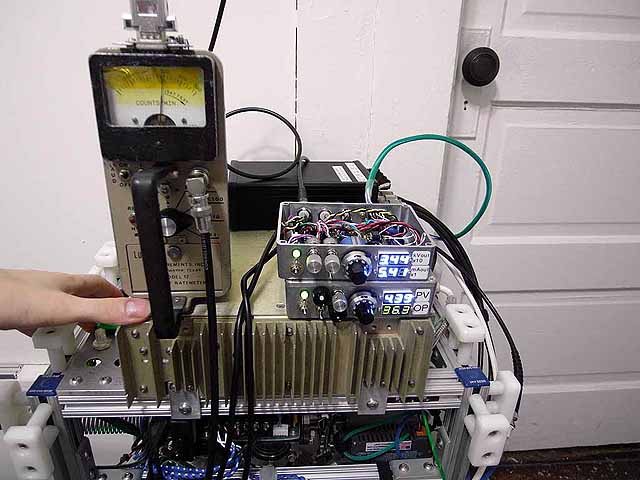

Control system holding constant neutron flux

Control System (5/1/2016)

Video of system holding constant neutron flux

Control System (5/1/2016)
