| Mark 3 Deuterium Handling System | |
 |
 |
 |
 |
 |
 |
 |
| Overview: System for handling and storing Deuterium from the electrolyzer. |
|
Gas Handling System Schematic (to be added)
|
|
 |
Tank Mount CAD (4/10/2006) |
 |
Tank Mount (4/10/2006)
|
 |
Diaphragm Valve (4/10/2006)
|
 |
Diaphragm Toggle Valve (4/10/2006) Connects heavy water electrolyzer to storage tank. |
 |
Deuterium Tank Mount (5/16/2006) Mounting bracket to attach tank mounts to reactor frame. |
 |
Deuterium Tank Mount (5/20/2006) Storage tank mounts to aluminum brackets that attach to reactor frame. |
 |

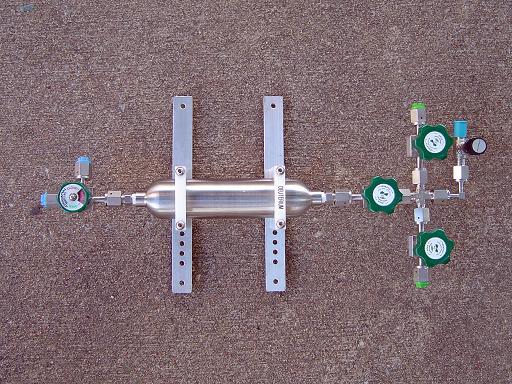

Gas Handling System (5/20/2006) Initial Setup. |
 |
Toggle Valve Guard (5/20/2006) Guard panel for lower toggle valve,milled out of a flat sheet of aluminum. |
 |

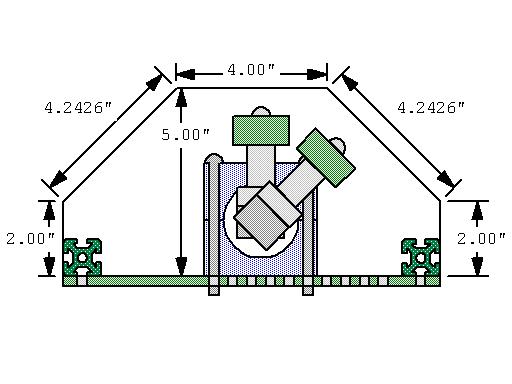

Toggle Valve Guard (5/20/2006) Bent into shape around valve (optional positioning of toggle valve at an angle is also shown). |
 |

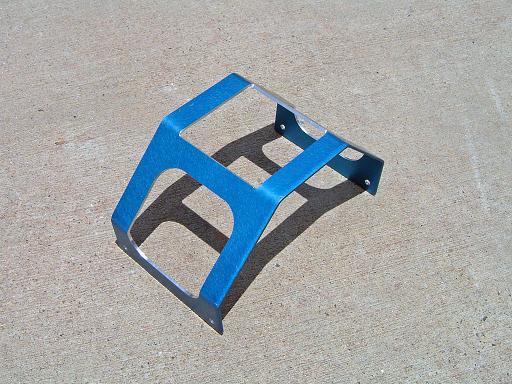

Toggle Valve Guard (5/27/2006) Bent into shape from machined aluminum sheet. |
 |
Toggle Valve Guard (5/27/2006) Mounted on reactor over lower deuterium toggle valve. |
 |
Heavy water electrolyzer is constructed. |
 |

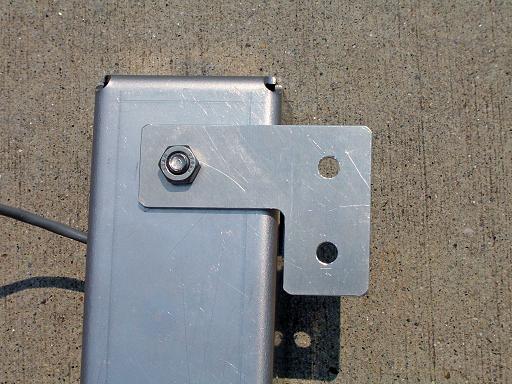

Electrolyzer Mount (6/10/2006) Mounting plate for heavy water electrolyzer. |
 |
Electrolyzer Mount (6/14/2006)
|
 |
Electrolyzer (6/14/2006) Electrolyzer is attached to reactor frame. |
 |
Valve Cluster Mount Standoff (6/10/2006)
|
 |
Valve Cluster Mount Standoff (6/10/2006) Machined out of 1/4" aluminum. |
 |
Valve Cluster Mount (6/10/2006) Standoffs are attached to 8020 extrusion. |
 |
Baratron Pressure Sensor (7/2/2006) 1000 torr capacitive manometer for measuring the pressure within the deuterium storage tank. |
 |
Baratron Pressure Sensor (7/2/2006) Top view of terminals. |
 |
Dual Tank Mount CAD (7/30/2006) Dual tank mount accommodates a second 300 cc tank for additional deuterium storage capability. |
 |
Dual Tank Mount (7/30/2006) Dual tank mount milled out of 1/2" HDPE. |
 |
Dual Tanks Mounted (7/30/2006)
|
 |
Baratron Test (9/30/2006) 1000 torr Baratron at atmospheric pressure reading 762 torr. |
 |

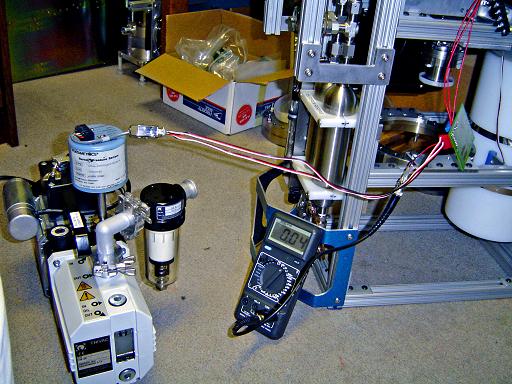

Baratron Test (9/30/2006) Baratron under vacuum (not low range calibrated). |
 |
Convectron (9/10/2007) Convectron gauges will measure reactor and deuterium manifold pressure. |
 |

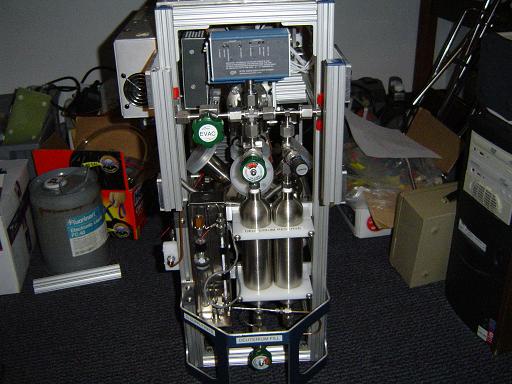

Convectron mounted (9/10/2007) Convectron gauge mounted on new gas handling system. |
 |
Metering solenoid (9/10/2007) Metering solenoid from argon ion laser will be used to automatically regulate deuterium flow into the reactor.
|
 |
Metering solenoid (9/10/2007) Metering solenoid and deuterium metering manifold. |
 |
Deuterium manifold clamp (9/10/2007) Manifold clamp (right) and solenoid clamp (left) |
 |
Deuterium manifold clamp (9/10/2007) Shown with new metering manifold. |
 |
Solenoid clamp (9/10/2007) Shown with metering solenoid. |
 |
Fuel solenoid (1/08/2008) Solenoid for switching on fuel flow. |
 |
Fuel solenoid (1/08/2008) Two solenoids mounted on gas handling manifold, one for high flow, one for low flow through a metering valve. |
 |
Deuterium manifold (1/08/2008) Metering manifold mounted on gas handling system. |
 |
Gas handling system (1/08/2008) Metering manifold, control solenoids, and pressure gauge mounted. |
 |
Mass flow controller (1/20/2008) Cole parmer mass flow controller measures and controls deuterium flow into the reactor. Range is 10ml/min. |
 |
Mass flow controller mount (2/06/2008) Mount for mass flow controller. |
 |
Mass flow controller mount (2/06/2008) Mount for mass flow controller. |
 |
Mass flow controller mounted (2/06/2008) Mass flow controller mounted on reactor frame. |
|
|
|
|
|
|
|
|
|
|
|
|
