| IEC Fusion Reactor Mark 3 Spellman Power Supply | |
 |
 |
 |
 |
 |
 |
 |
Overview: The Spellman PTV series power supply will provide -40kV for use
on the ion accelerating grid. This power supply can generate a stable output and is equipped with internal
voltage and current monitoring as well as analog voltage control. |
|
 |

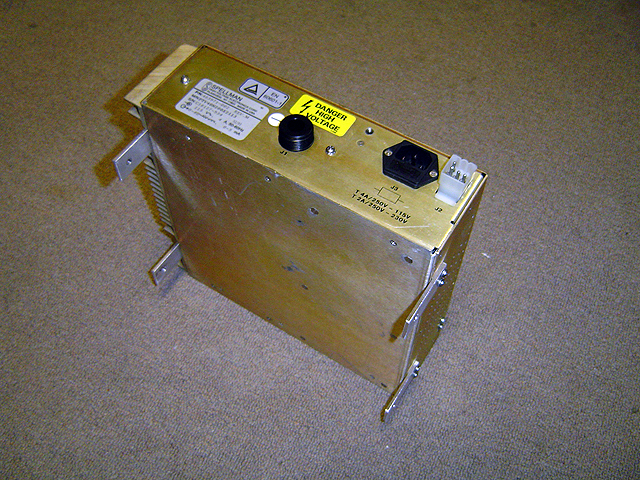

Spellman Power Supply (11/5/2006) Spellman PTV40N200 power supply will provide -40kV at low current for use in testing and diagnostics, as well as portable reactor operation. |
 |

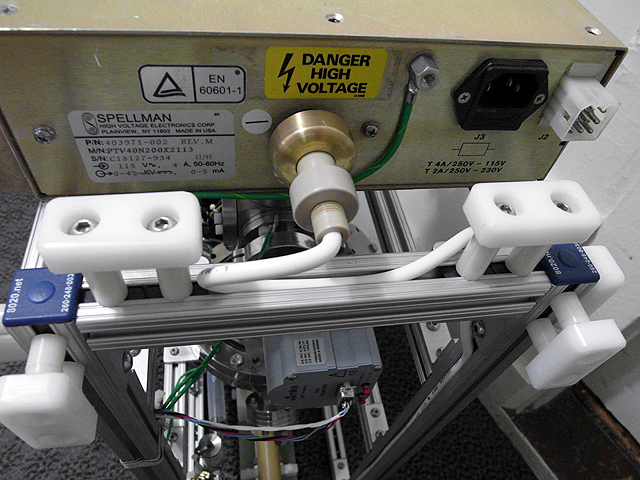

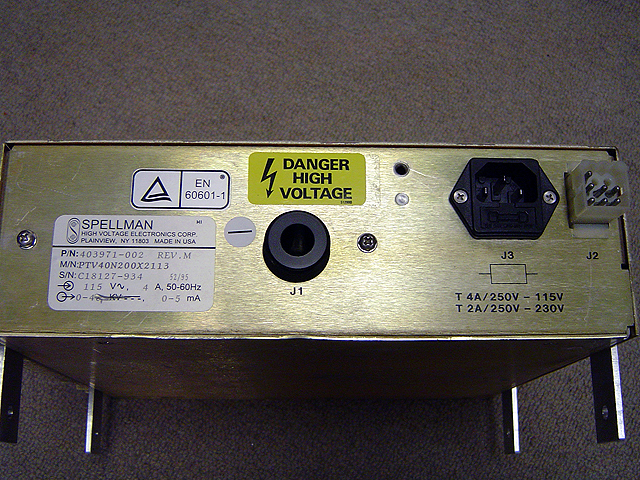

Spellman Power Supply (11/5/2006) HV connector is an Amphinol LGH4i connector with a 1"-14tpi threaded interface. The supply is controlled via a 9 pin molex connector. |
 |

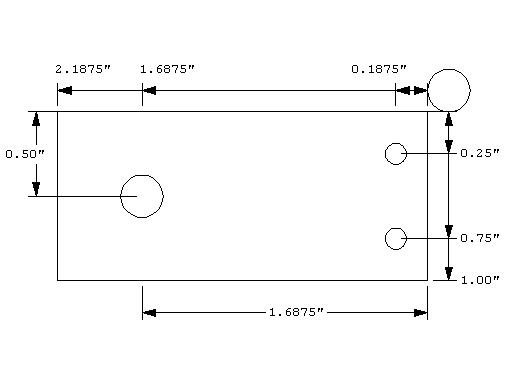

Spellman Mounting Strip Cad (11/5/2006) Mounts power supply to optional 8020 frame. |
 |

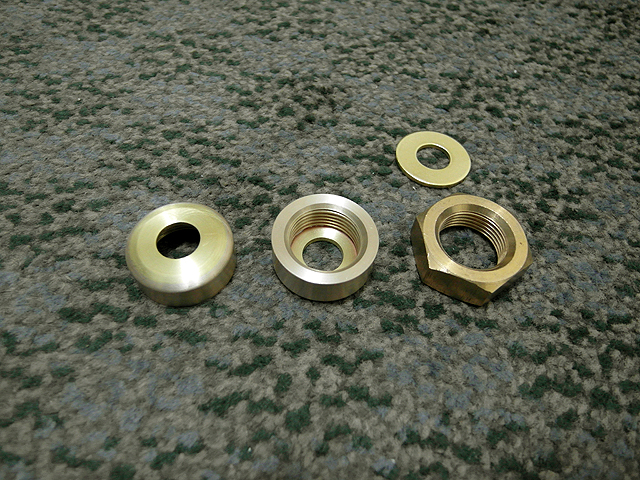

Spellman Power Supply (8/22/2013) 1"-14tpi threaded nut and washer brazed to nut surface. |
 |
Spellman Power Supply (8/22/2013) Retainer nut fits on power supply thread. |
 |

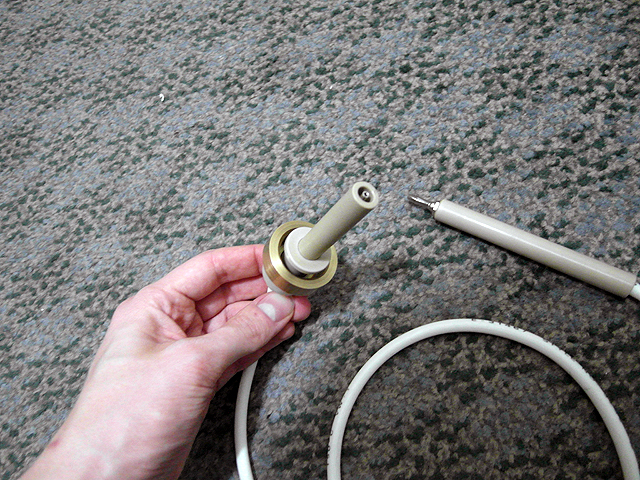

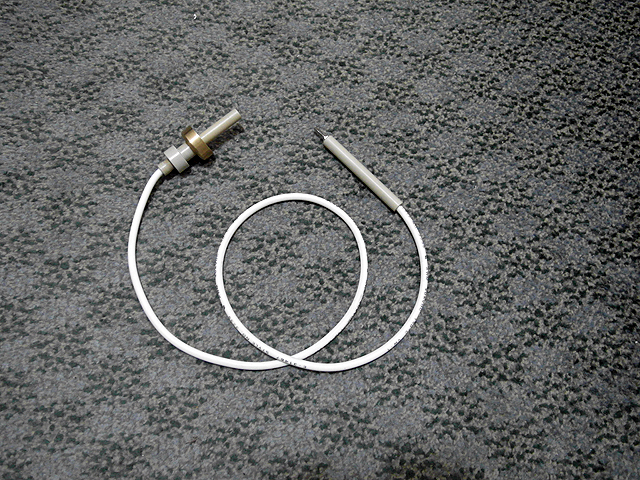

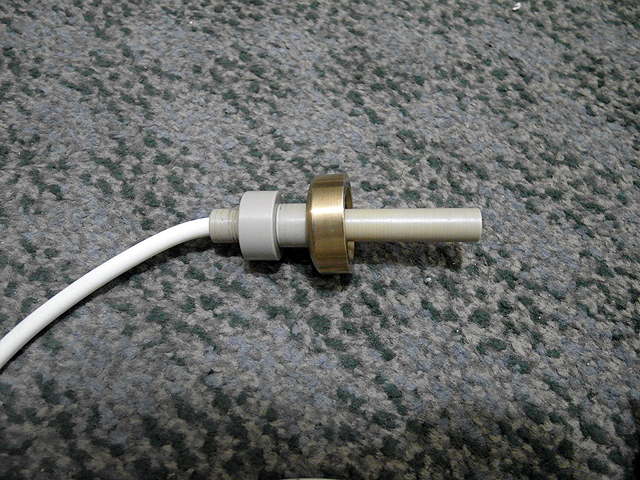

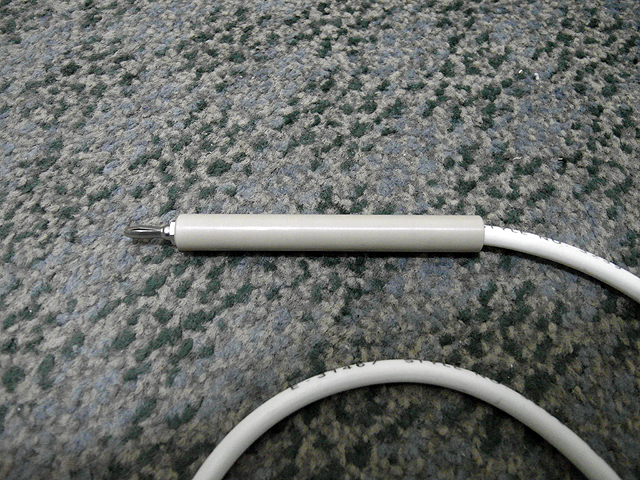

Spellman Power Supply (8/22/2013) PEEK fitting and HV cable |
 |
Spellman Power Supply (8/22/2013) PEEK fitting and HV cable |
 |
Spellman Power Supply (8/22/2013) PEEK fitting and HV cable |
 |
Spellman Power Supply (8/22/2013) PEEK fitting and HV cable |
 |

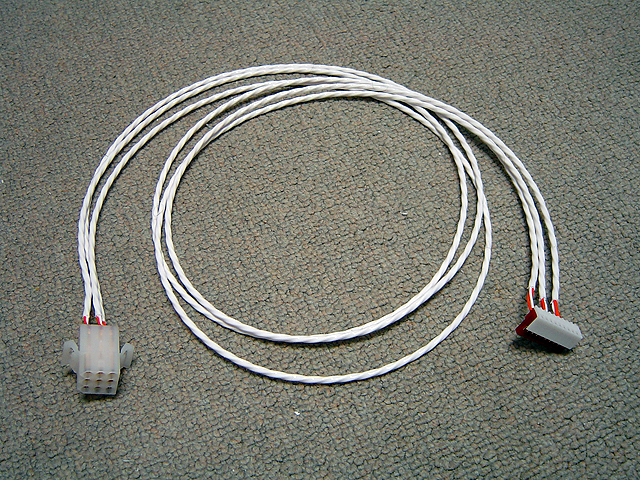

Spellman Power Supply (8/22/2013) Control cable |
 |

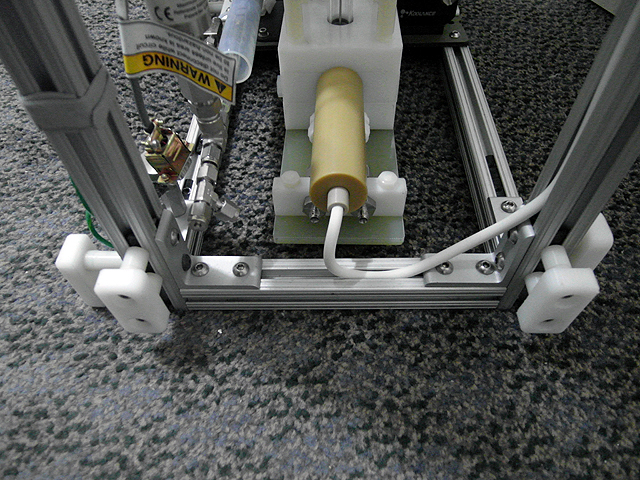

Spellman Power Supply (8/22/2013) PEEK fitting and HV cable connecting power supply to grid. |
 |
Spellman Power Supply (8/22/2013) PEEK fitting and HV cable connecting power supply to grid. |
 |

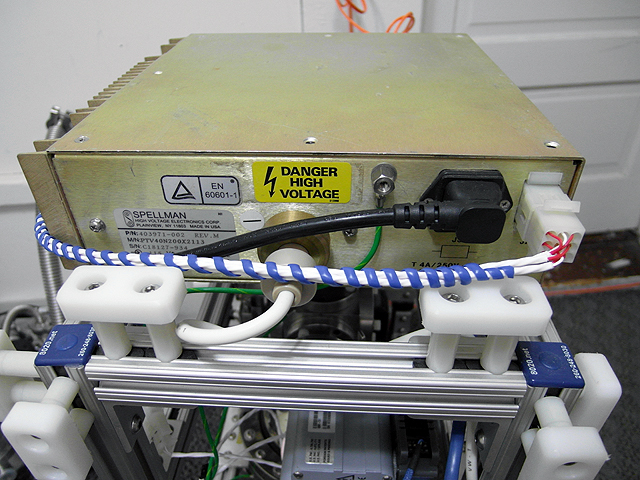

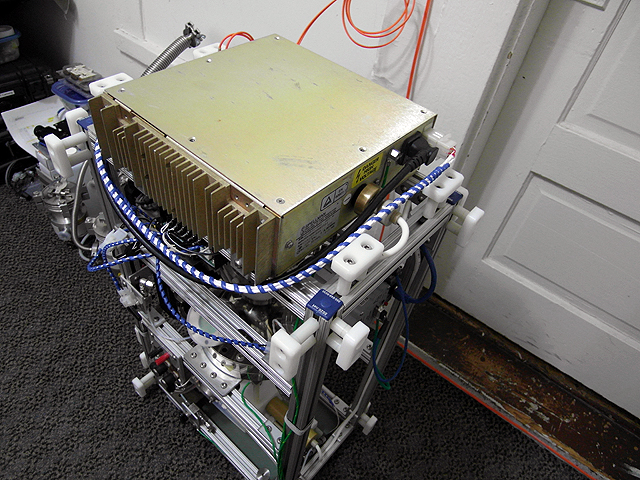

Spellman Power Supply (8/22/2013) Mounted on fusor |
 |
Spellman Power Supply (8/22/2013) Mounted on fusor |
 |
Spellman Power Supply (8/22/2013)
|
 |

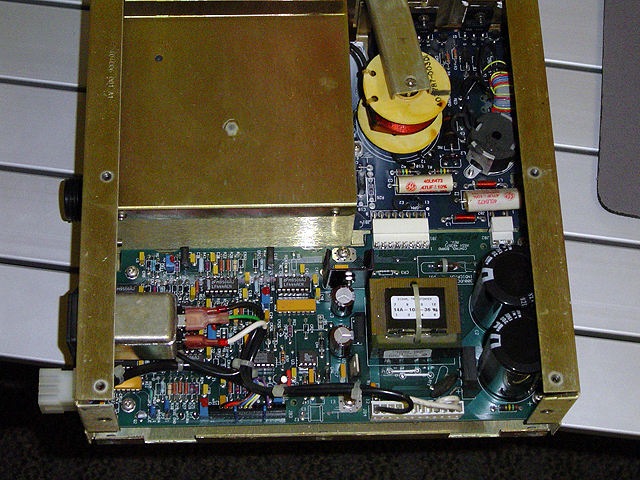

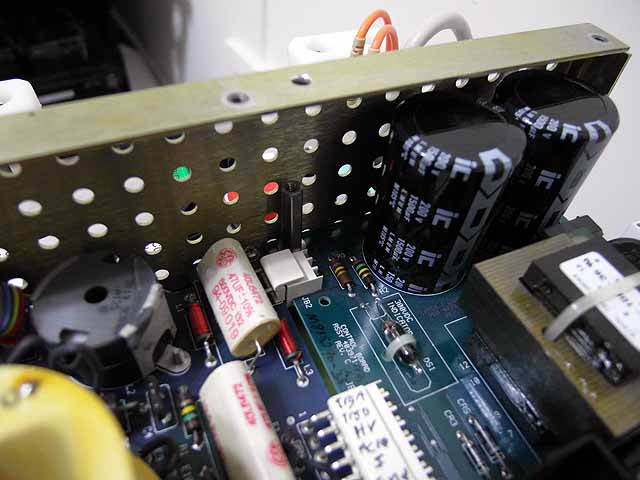

Spellman Power Supply (8/22/2013) Circuit boards |
 |

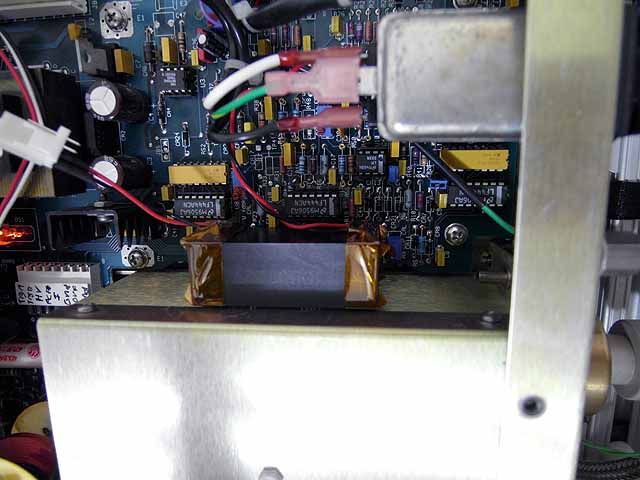

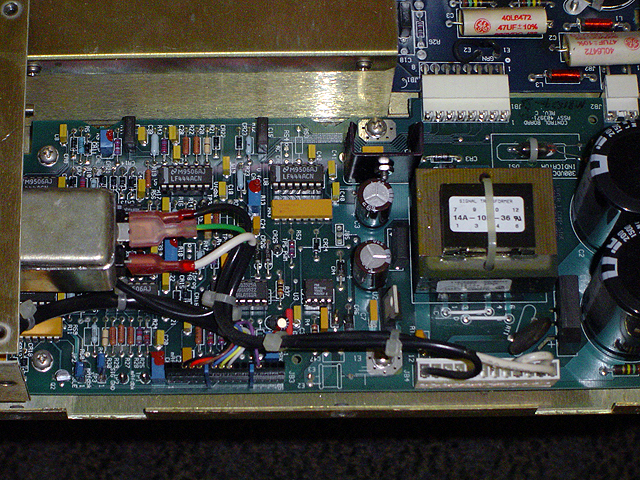

Spellman Power Supply (8/22/2013) Control board |
 |

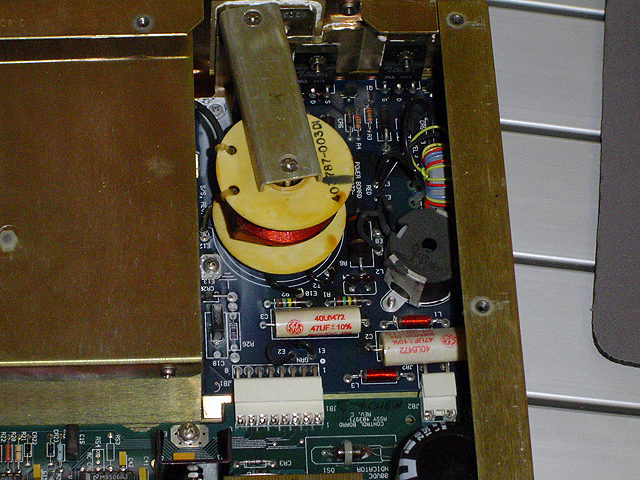

Spellman Power Supply (8/22/2013) Power board |
 |

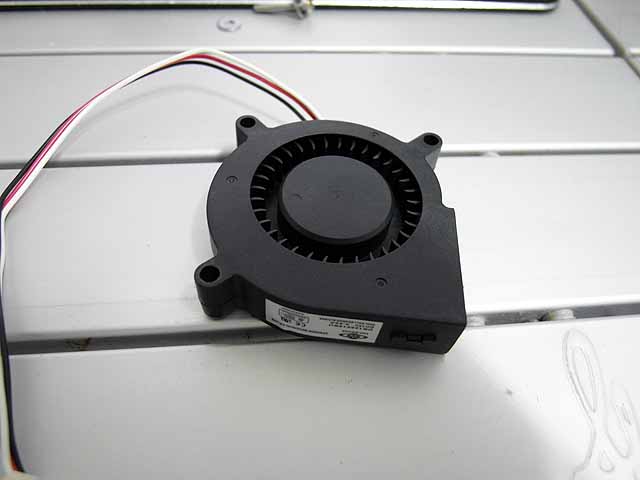

Spellman Power Supply (11/15/2013) 5v DC blower to cool the transformer after supply was modified for higher output current |
 |
Spellman Power Supply (11/15/2013) Standoff to mount blower |
 |

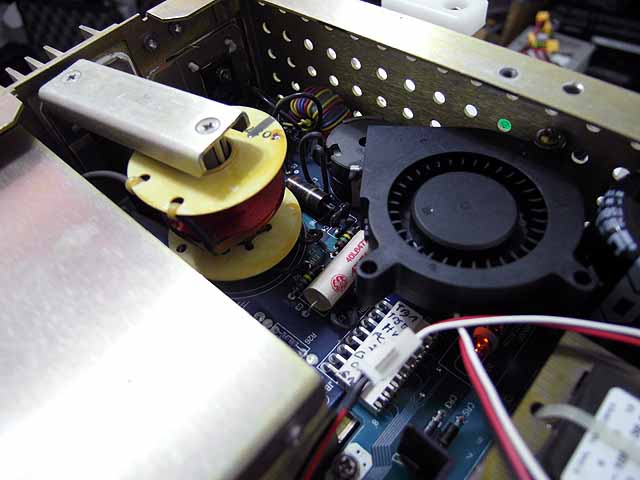

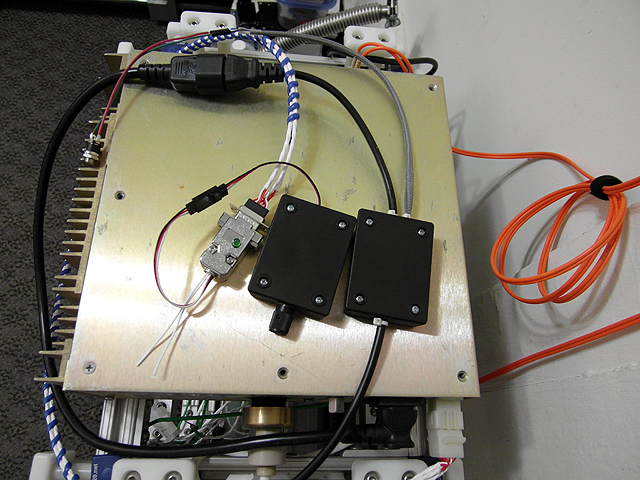

Spellman Power Supply (11/15/2013) Blower mounted |
 |
Spellman Power Supply (11/15/2013) AC-DC power brick to power blower |
|
|
|
