Overview:

A magnetic ion beam deflector is installed to prevent viewport damage due to ion / electron beam bombardment. Additional lead glass disks are installed infront of the viewports for x-ray shielding

Viewport Shield(11/15/2015)

Ion / electron beam bonbardment of viewport

Viewport Shield(11/15/2015)

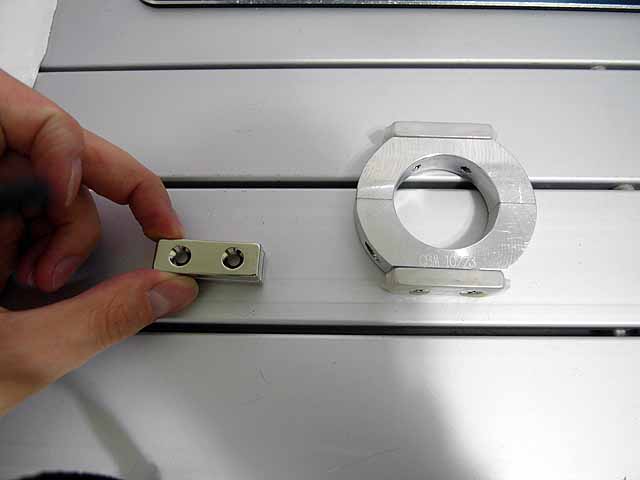

NdFeB magnets mounted on modified aluminum clamp

Viewport Shield(11/15/2015)

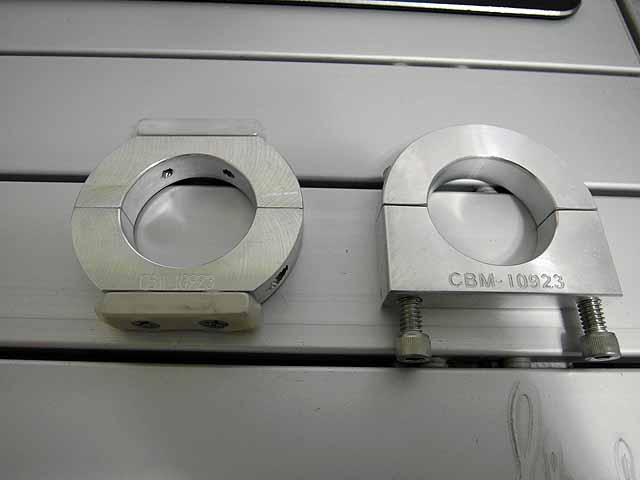

NdFeB magnets mounted on aluminum clamp

Viewport Shield(11/15/2015)

Magnetic deflector mounted on fusor to protect viewport

Viewport Shield(11/15/2015)

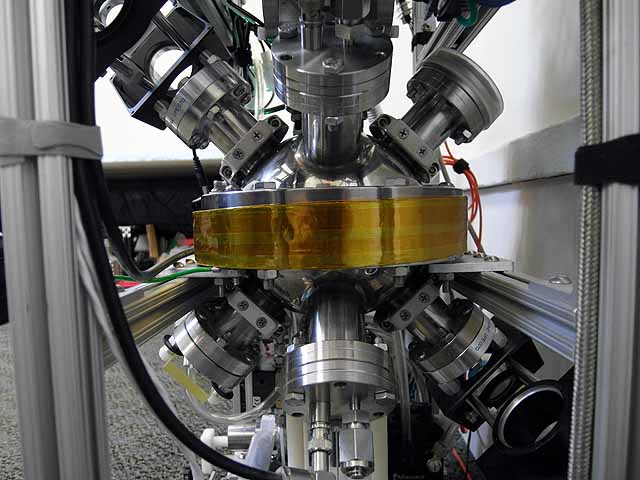

Magnetic deflectors for all 4 viewports

Viewport Shield(11/15/2015)

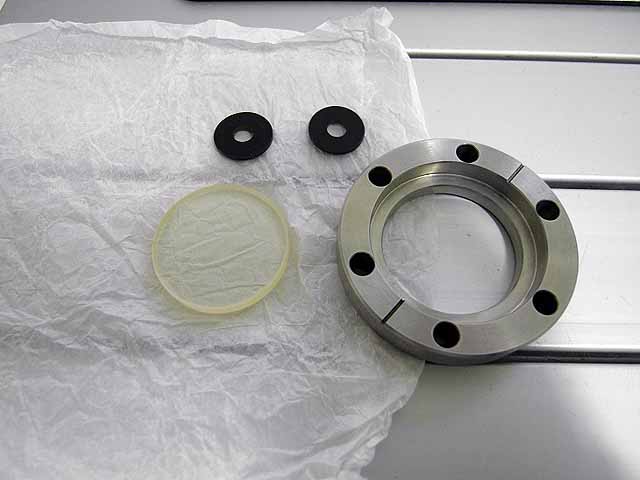

Lead glass disk for x-ray shielding and holder

Viewport Shield(11/15/2015)

Lead glass disk mounted on viewport

Viewport Shield(11/15/2015)

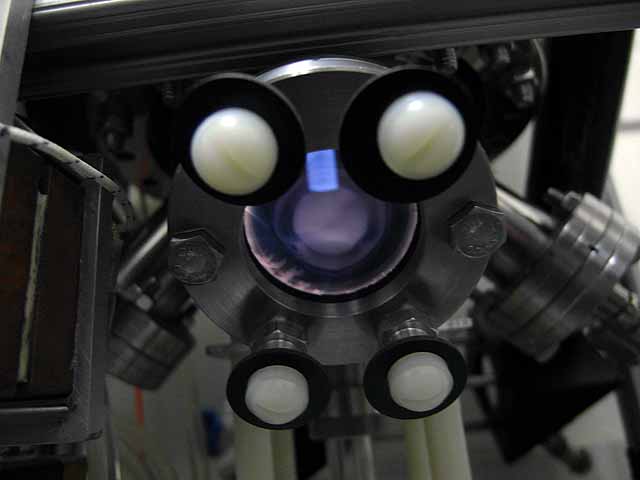

Ion / electron beam now deflected.

Viewport Shield(5/1/2016)

Ion / electron beam now deflected.

Viewport Shield(5/1/2016)

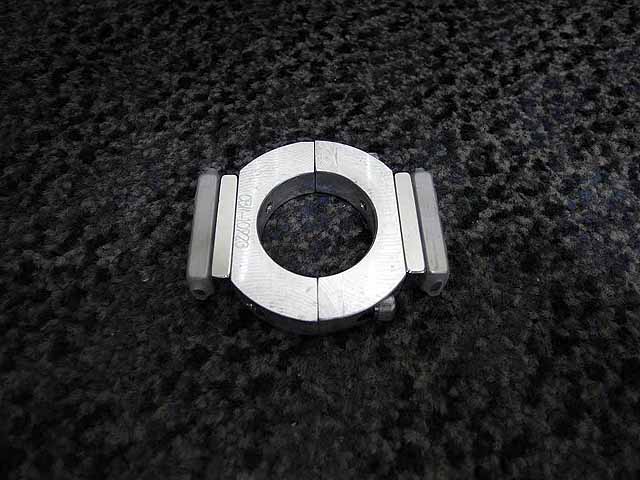

Second magnet added for greater deflection power for D- ions

Viewport Shield(5/1/2016)

Due to the previously observed interaction of the sputtered material and D- beam with AR dielectric coatings an internal shield system was designed to prevent exposure of the viewport internal surface with plasma or sputtered material.

Viewport Shield(5/1/2016)

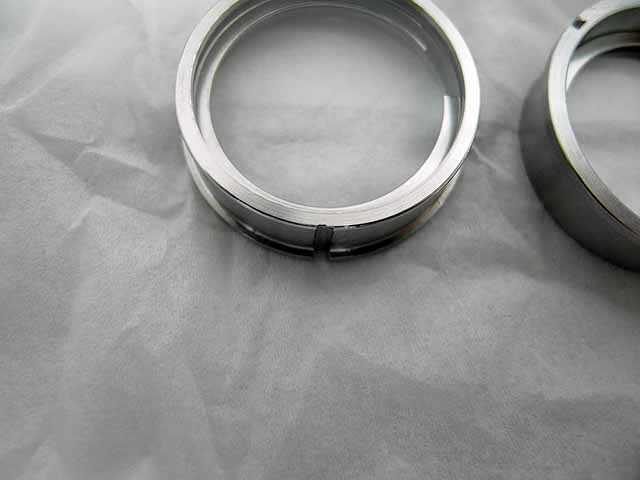

A pump out duct in the side of the adapter vents the volume between the shield and the viewport.

Viewport Shield(5/1/2016)

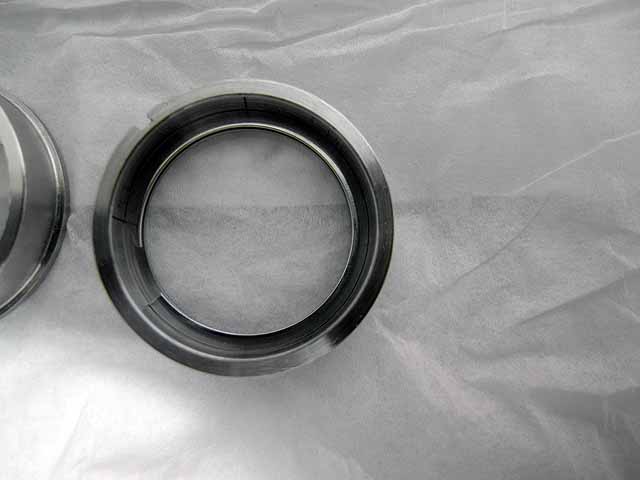

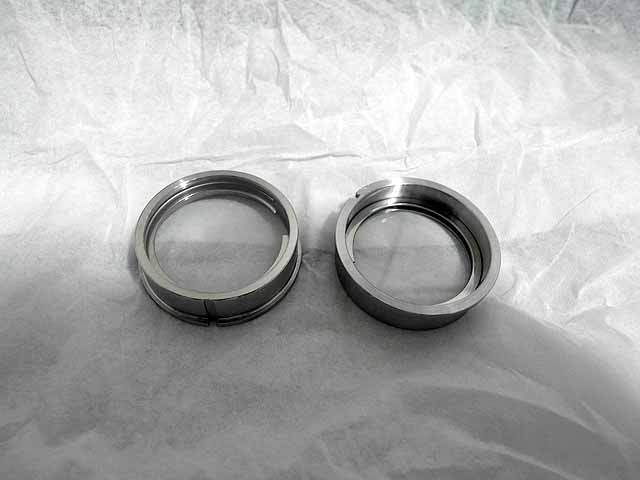

A stainless adapter holds a 1.25" diameter 1/8" thick glass disk inside the vacuum system in front of the the viewport. The glass disk is held in place with a internal retaining ring. No groove in machined in the adapter, the friction force of the ring is sufficient to securely hold the disk in place.

Viewport Shield(5/1/2016)

Dimensions of the shield holder are as follows
Glass disk is McMaster 8477K28
Retaining ring is McMaster 92479A790

Viewport Shield(5/1/2016)

The adapter allows the glass disk to hang off of the free space inside the copper o-ring between the two conflat flanges.

Viewport Shield(5/1/2016)

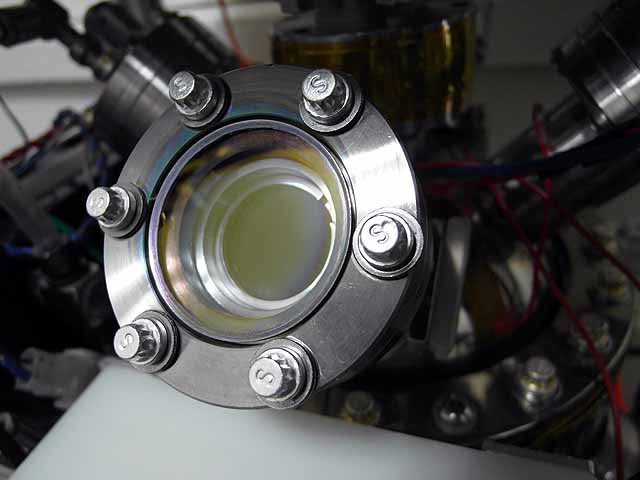

The viton o-ring sealed glass disk viewports were replaced with AR coated vacuum rated viewports.

Viewport Shield(5/1/2016)

The small distance between the shield and viewport, and large aperture of the shield prevents any restriction in field of view.

Viewport Shield(5/1/2016)

The small distance between the shield and viewport, and large aperture of the shield prevents any restriction in field of view.

Viewport Shield(5/1/2016)

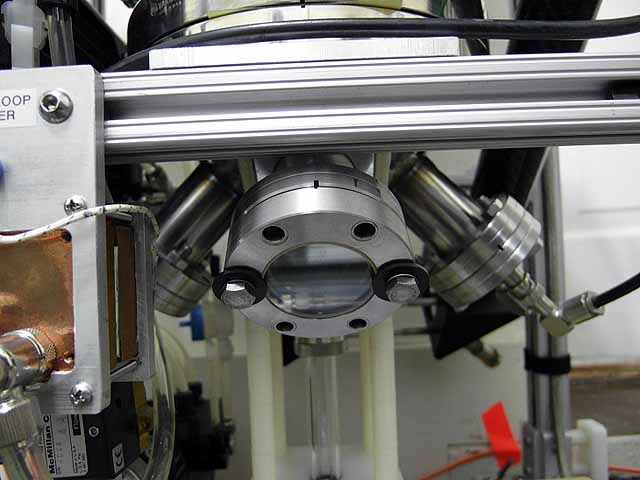

The lead glass x-ray shield is held in place with an o-ring but a plastic holder will be machined to securely hold it in pace.

Viewport Shield(5/1/2016)
