| Radiation Shielded Camera Version 3 | |
 |
 |
 |
 |
 |
 |
 |
| Overview: A GoPro Hero 3+ silver camera and thermal-eye 2500AS thermal imager were shielded with lead and sent through an industrial irradiator while viewing plastic and mineral samples. Radcam version 3 is an improved version of radcam2 including a thermal imager, more secure camera mounts, and external power feedthroughs for the GoPro allowing charging inside the lead box. The plastics were used to produce lichtenberg figures. The irradiation facility is the Mercury Plastics NeoBeam facility which is used for cross linking plastics. The accelerator can produce a 5MeV, 20mA electron beam which is scanned over a moving cart. These videos were of a Lichtenberg production run by Bert Hickman who sells the Lichtenberg figures on his website: http://www.capturedlightning.com/ Irradiation run videos and pictures: Radcam3 Neobeam Run |
|
 |

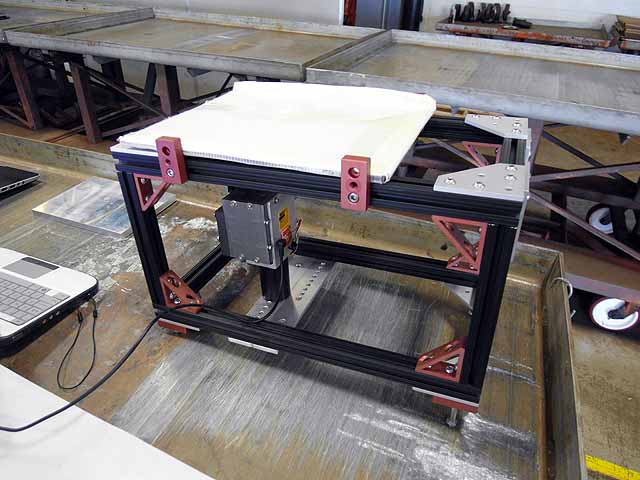

Radiation Shielded Camera (12/11/2015) Shielded GoPro and Thermal-eye 2500AS thermal imager |
 |
Radiation Shielded Camera (12/11/2015) Irradiation run videos and pictures: Radcam3 Neobeam Run |
 |
Radiation Shielded Camera (12/11/2015) Front cover of box and box.1/4" thick lead with lap joints. |
 |
Radiation Shielded Camera (12/11/2015) Lead glass window holder, 1/2" thick lead window |
 |

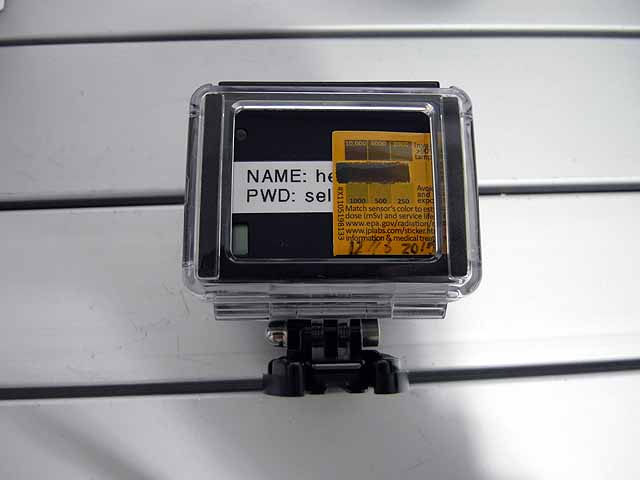

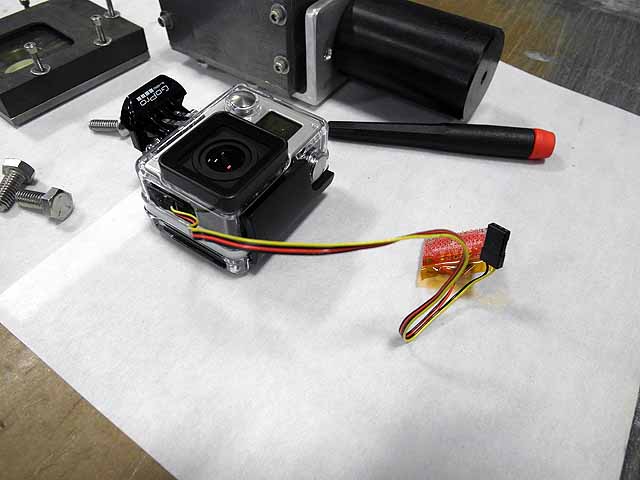

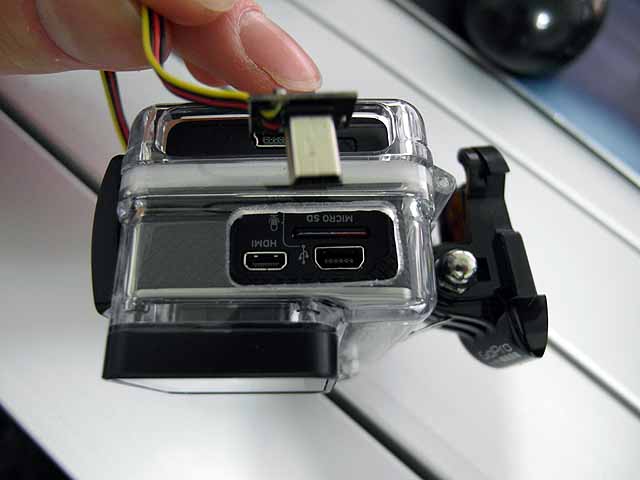

Radiation Shielded Camera (12/11/2015) GoPro power/USB input connector and power cable to charge the GoPro without removing it from the lead box |
 |
Radiation Shielded Camera (12/11/2015) GoPro power/USB input connector and power cable to charge the GoPro without removing it from the lead box |
 |
Radiation Shielded Camera (12/11/2015) Power cable snakes around lap joint |
 |
Radiation Shielded Camera (12/11/2015) Power cable snakes around lap joint, in lead box |
 |
Radiation Shielded Camera (12/11/2015) GoPro can be tethered to external power supply for charging |
 |
Radiation Shielded Camera (12/11/2015) GoPro can be tethered to external power supply for charging |
 |
Radiation Shielded Camera (12/11/2015) GoPro on more ridged mount to prevent vibration |
 |

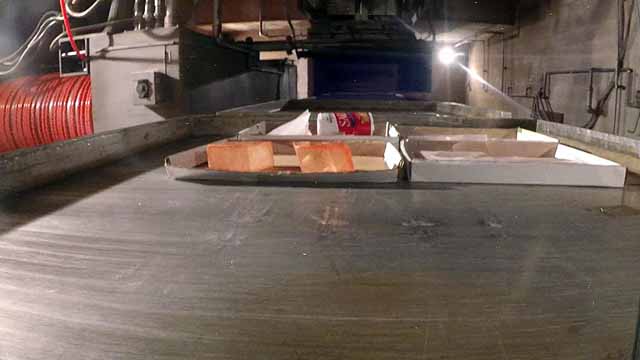

Radiation Shielded Camera (12/11/2015) Irradiation of calcite |
 |
Radiation Shielded Camera (12/11/2015) Irradiation of calcite |
 |
Radiation Shielded Camera (12/11/2015) Irradiation of calcite |
 |

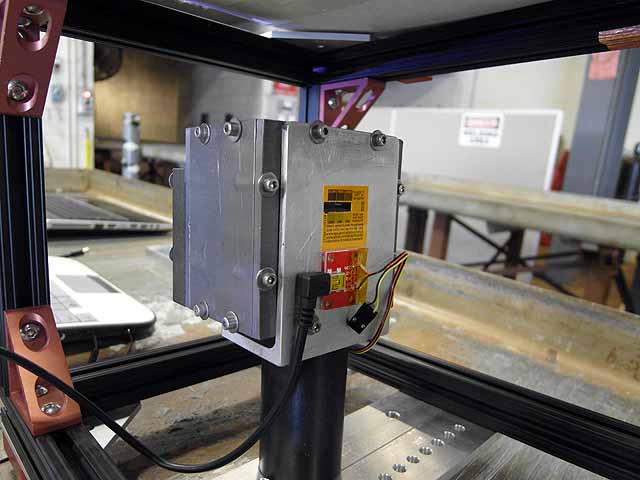

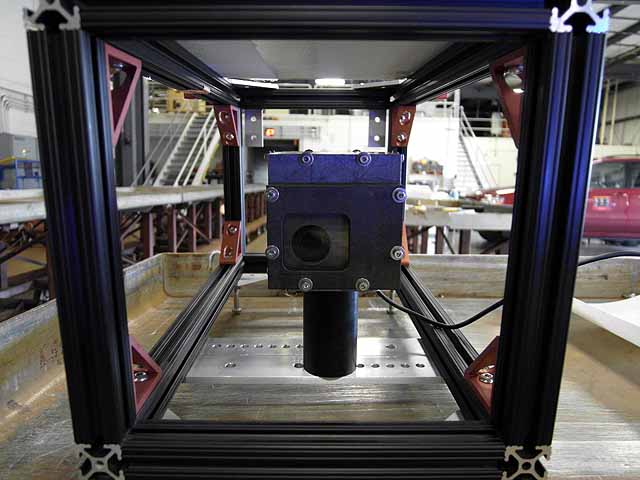

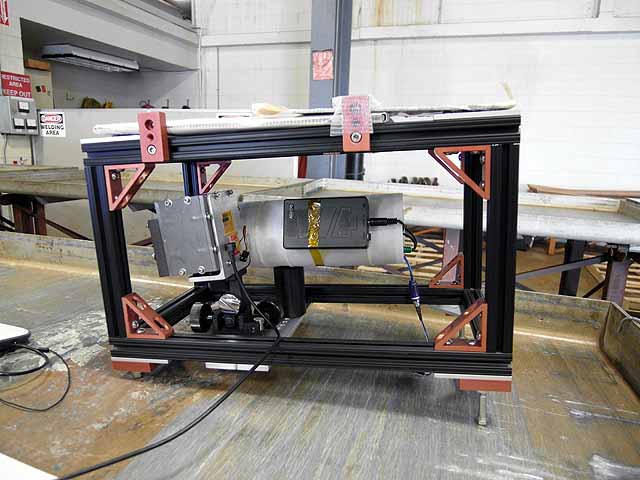

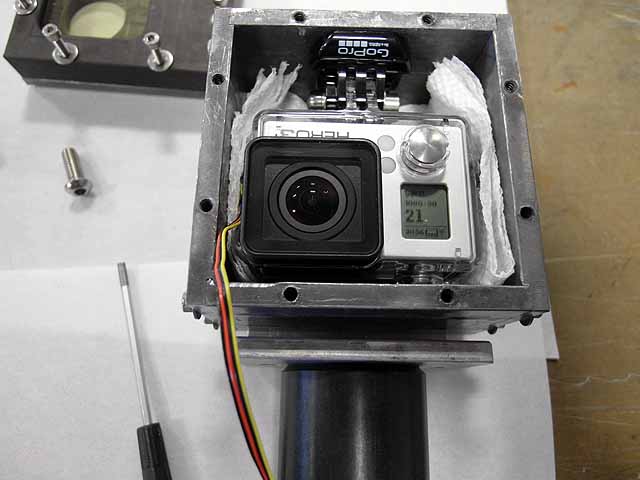

Radiation Shielded Camera (12/11/2015) Thermal imager and GoPro mounted in camera box |
|
Radiation Shielded Camera (12/11/2015) Thermal imager and GoPro mounted in camera box |
 |

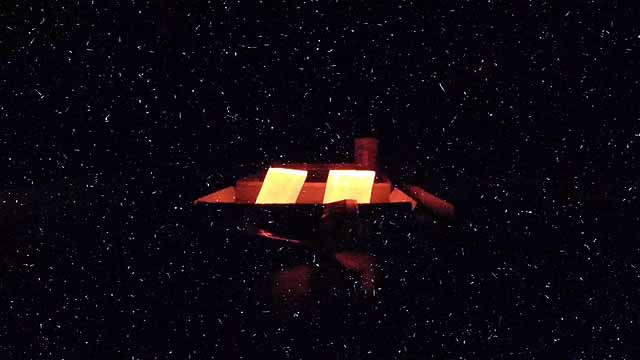

Radiation Shielded Camera (12/11/2015) Thermal and visible video side by side |
 |

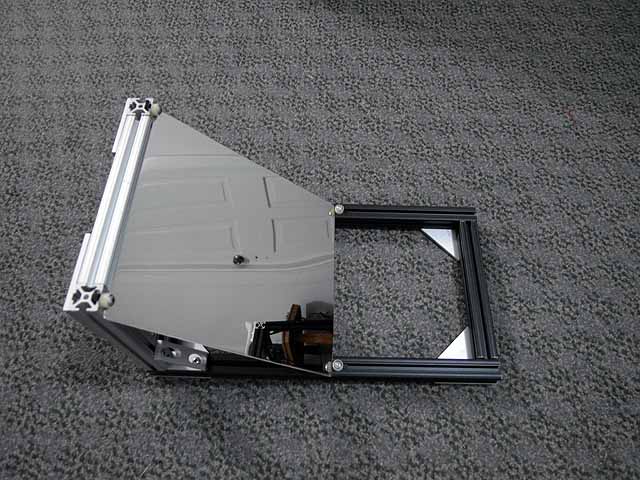

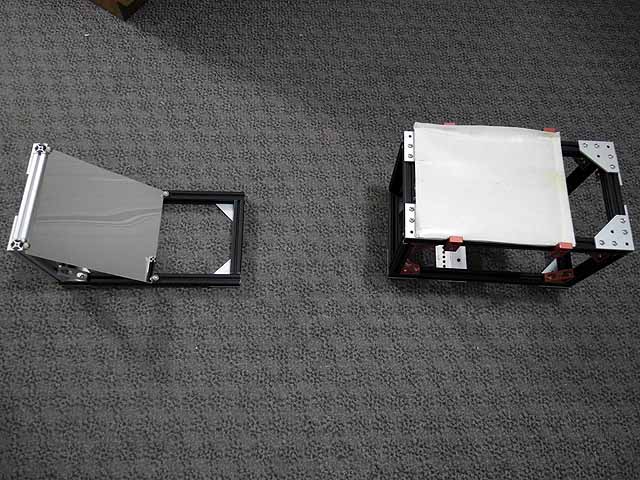

Radiation Shielded Camera (12/11/2015) Stainless steel mirror, to allow viewing the accelerator beam window can be positioned farther away from camera box to prevent x-ray noise from interfering with the picture |
 |
Radiation Shielded Camera (12/11/2015) Stainless steel mirror, to allow viewing the accelerator beam window can be positioned farther away from camera box to prevent x-ray noise from interfering with the picture |
 |

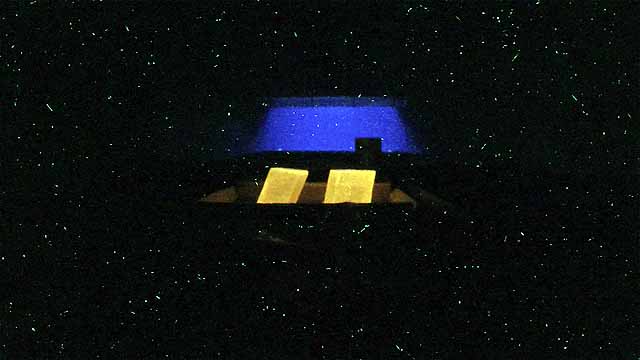

Radiation Shielded Camera (12/11/2015) Thermal and visible video side by side, viewing accelerator beam window |
 |
Radiation Shielded Camera (12/11/2015)
|
Radiation Shielded Camera (12/11/2015) Irradiation run videos and pictures: Radcam3 Neobeam Run |
|
