MST Terrella Experiment
MST Terrella Experiment |
|
 |
 |
 |
 |
 |
 |
 |
Overview: A terrella (permanent magnet simulating the interaction of plasma with earth's magnetosphere) was inserted into the edge plasma of Madison symmetric torus with a 300-400kA discharge and imaged with an 80k frames/sec camera.
|
|
 |

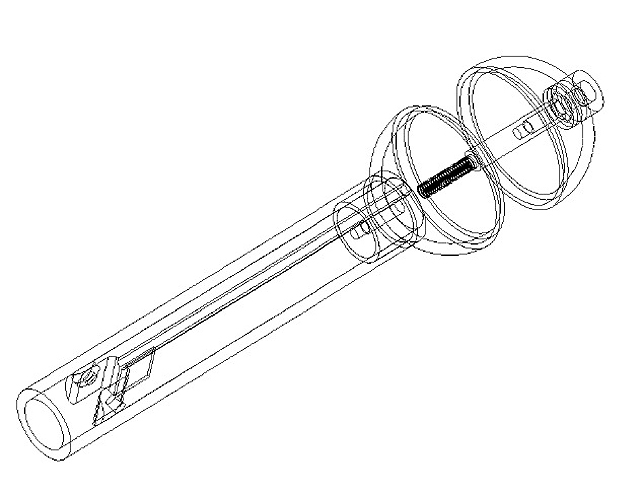

Terrella (8/23/2013) Terrella cad |
 |

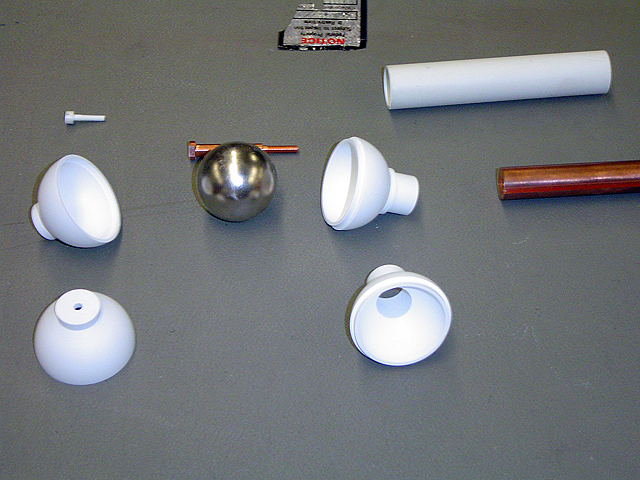

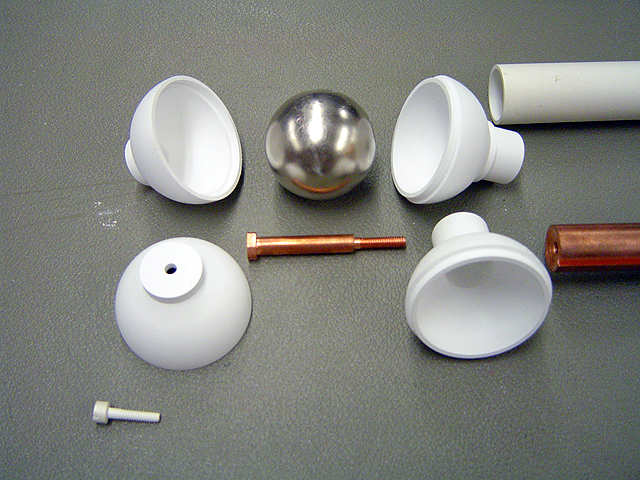

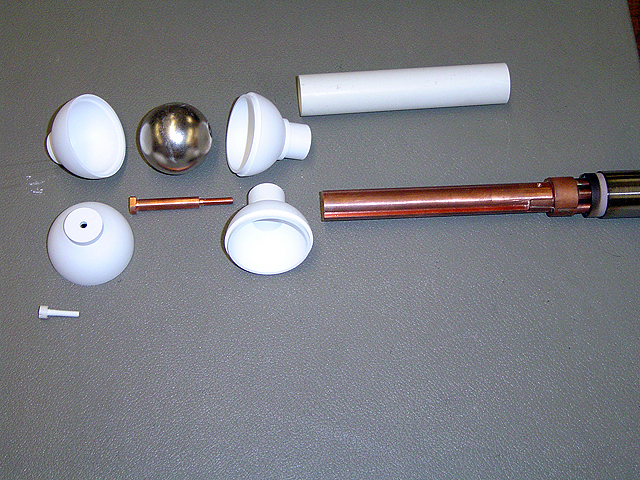

Terrella (8/23/2013) Boron nitride ceramic shields, NdFeB magnet, and copper cooling stalk. |
 |
Terrella (8/23/2013) Boron nitride ceramic shields, NdFeB magnet, and copper cooling stalk. |
 |
Terrella (8/23/2013) Boron nitride ceramic shields, NdFeB magnet, and copper cooling stalk. |
 |

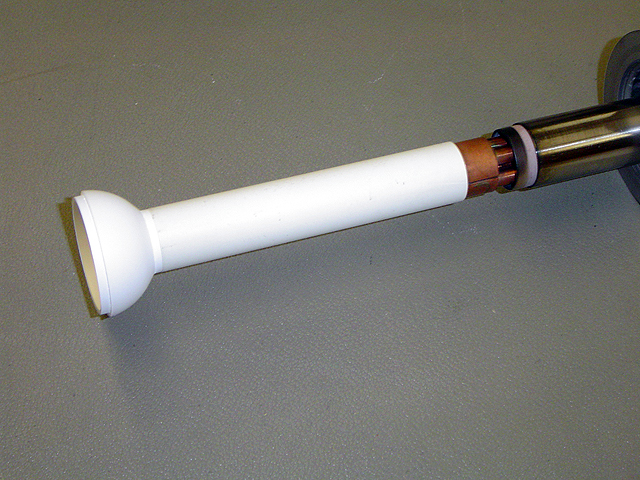

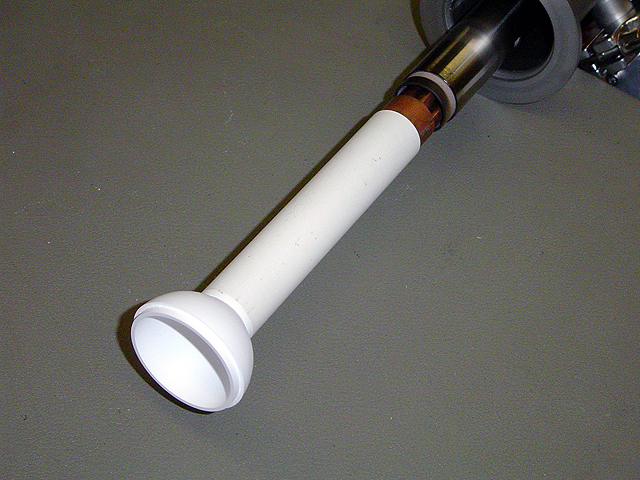

Terrella (8/23/2013) Boron nitride ceramic shields on stalk |
 |
Terrella (8/23/2013) Boron nitride ceramic shields on stalk |
 |

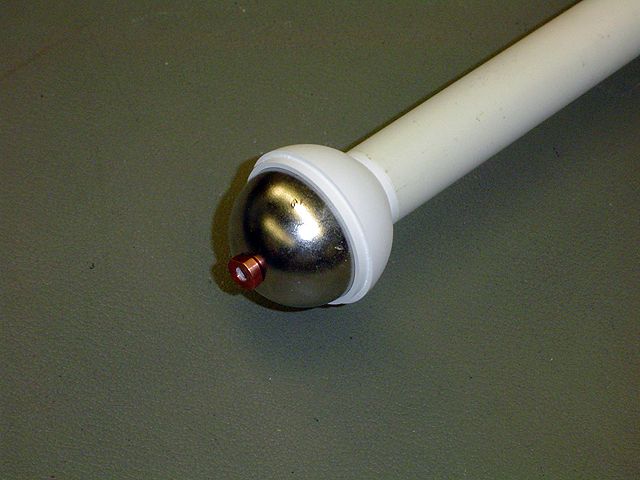

Terrella (8/23/2013) Magnet installed |
 |

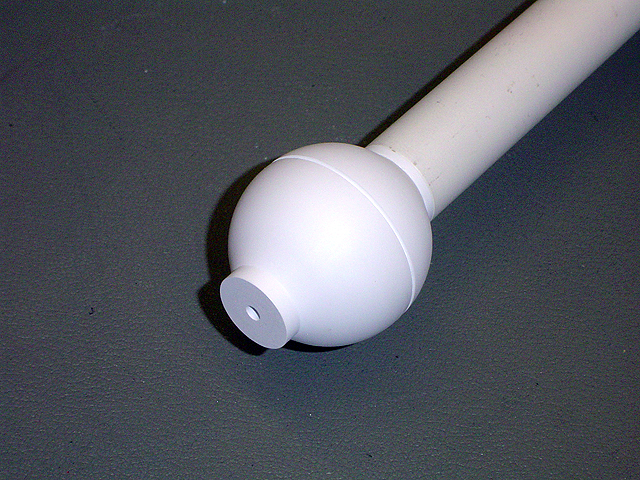

Terrella (8/23/2013) Boron nitride shield closed. |
 |

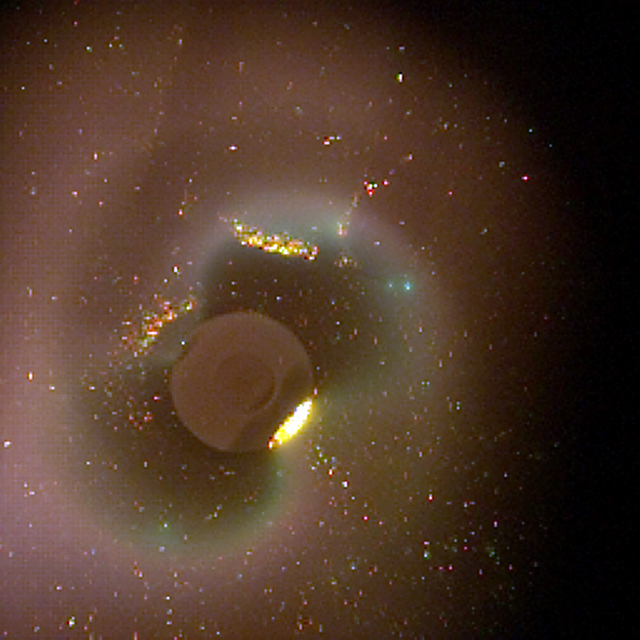

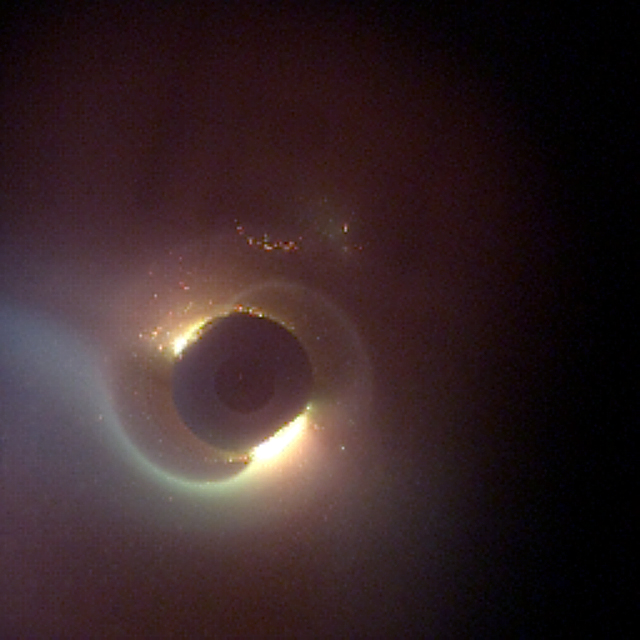

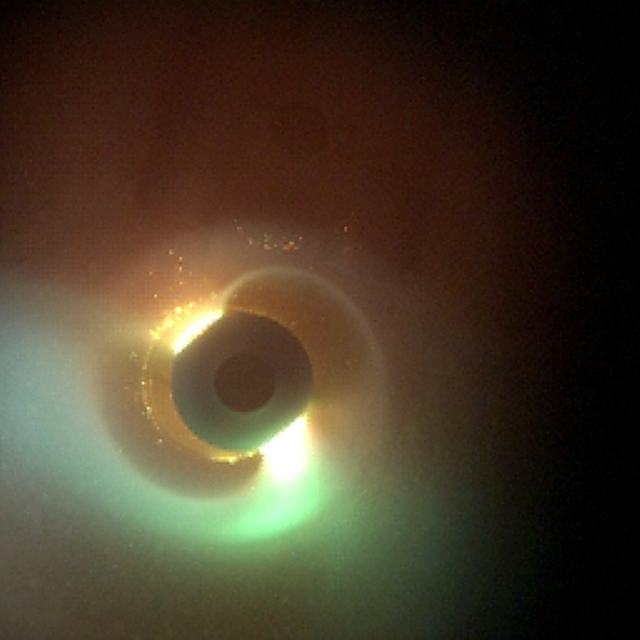

Terrella (8/23/2013) In MST plasma discharge. |
 |
Terrella (8/23/2013) In MST plasma discharge. |
 |
Terrella (8/23/2013) In MST plasma discharge. |
 |
Terrella (8/23/2013) In MST plasma discharge. |
 |
Terrella (8/23/2013) In MST plasma discharge. |
Terrella (8/23/2013) A terrella was placed in a 300-400kA discharge in Madison Symmetric Torus and imaged at 79k fps. Towards the end of shot, the terrella came loose from it's mounting screw and began to rotate, providing an angular sweep of magnetic field. |
|
Terrella (8/23/2013) A terrella was placed in a 300-400kA discharge in Madison Symmetric Torus and imaged at 79k fps. Terrella was aligned 5 degrees CW from anti-parallel to field orientation. |
|
Terrella (8/23/2013) A terrella was placed in a 300-400kA discharge in Madison Symmetric Torus and imaged at 79k fps. Terrella was aligned parallel to field orientation. |
|
Terrella (8/23/2013) A terrella was placed in a 300-400kA discharge in Madison Symmetric Torus and imaged at 79k fps. Terrella was aligned 20 degrees CCW from anti-parallel to field orientation. |
|
|
|
|
|
|
|
|
|
