| Overview: Baseplate designs for the mass production anode layer ion source
|
|
ALIS Baseplate (4/2/2017)
|
|
 |

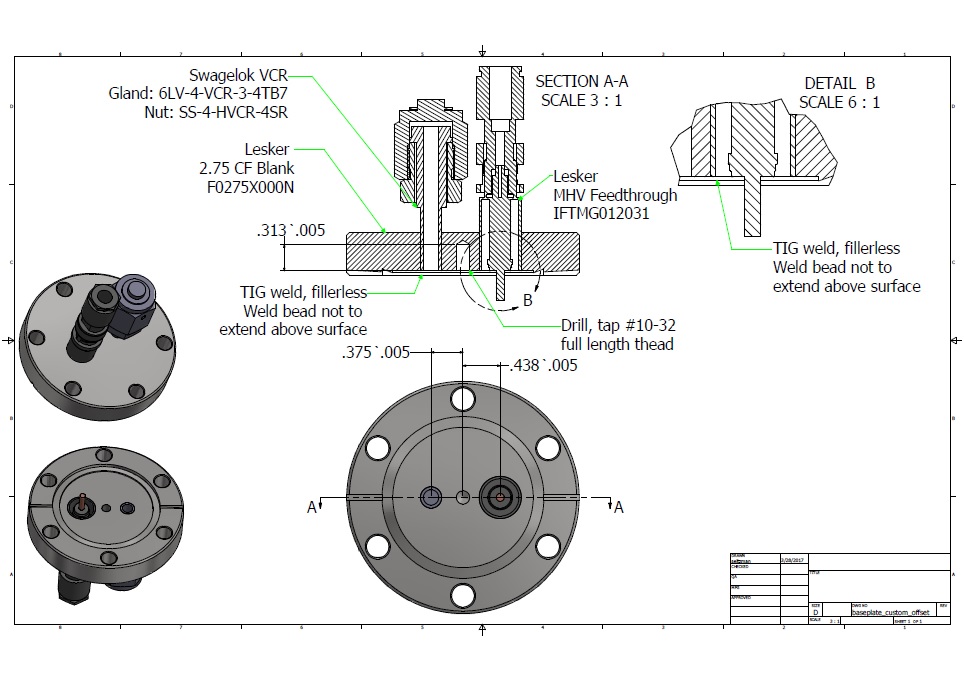

ALIS Baseplate (4/2/2017) Custom design with single electrical feedthrough and gas feedthrough. |
 |

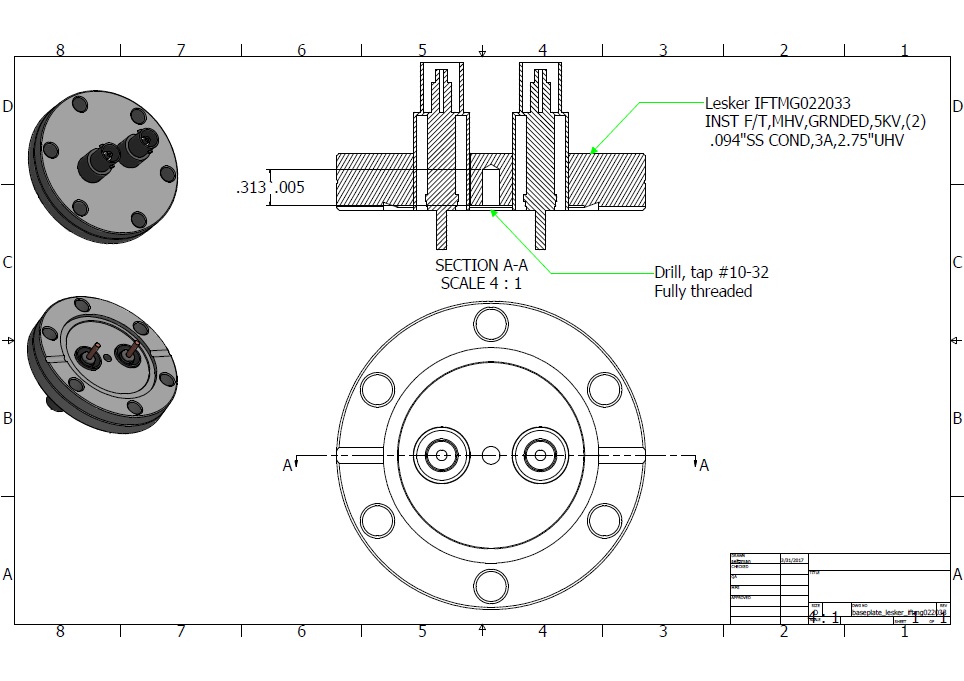

ALIS Baseplate (4/2/2017) Baseplate based on Lesker IFTMG022033 dual feedthrough Unmodified baseplate costs $154.88 from lesker |
 |

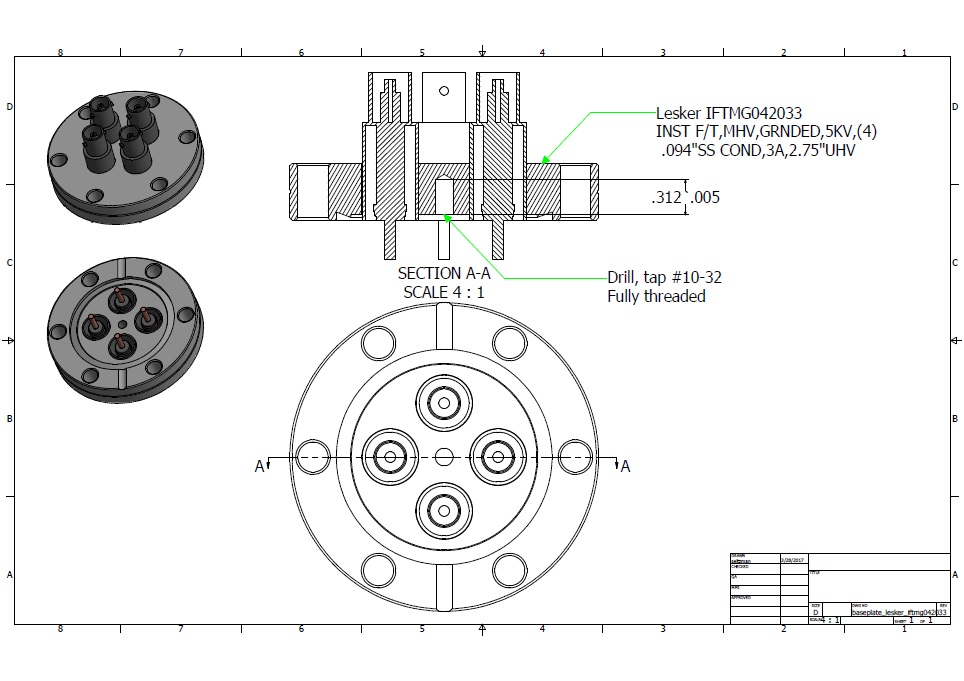

ALIS Baseplate (4/2/2017) Baseplate based on Lesker IFTMG042033 quad feedthrough Unmodified baseplate costs $235.84 from lesker |
ALIS Baseplate (4/2/2017)
|
|
|
|
