IEC Fusion Reactor Mark 3 Cooling System, Version 3

Overview:

Upgrades to the version 2 grid cooling system

Grid Cooling System (7/27/2016):

Upgraded cooling system

Grid Cooling System (7/27/2016):

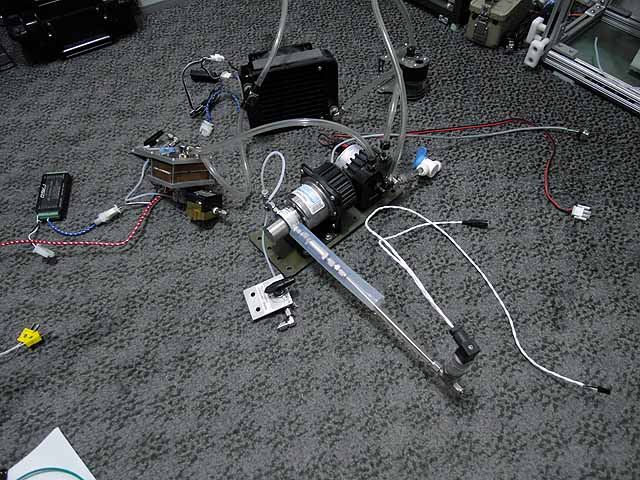

Version 2 grid cooling system

Grid Cooling System (7/27/2016):

Version 3(left) and version 2(right) radiator and fan

Grid Cooling System (7/27/2016):

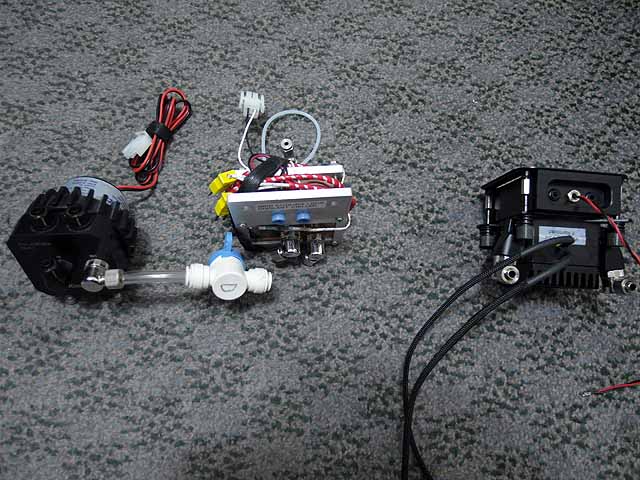

Version 2 water pump and thermoelectric heat exchanger(left 2) and newer version 3 integrated water pump/heat exchanger system

Grid Cooling System (7/27/2016):

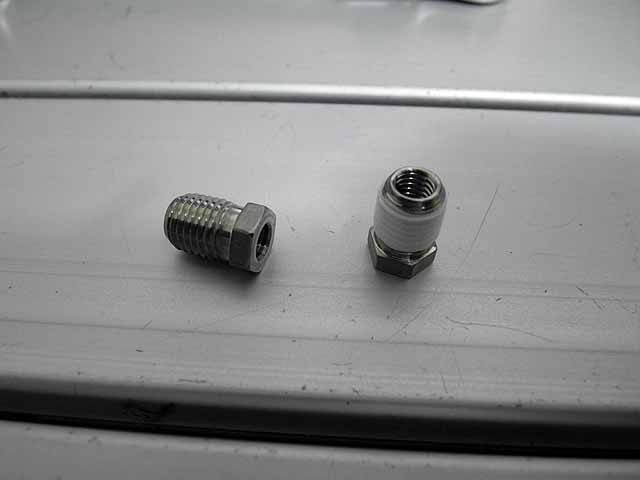

1/16npt to 10-32 adapter

Grid Cooling System (7/27/2016):

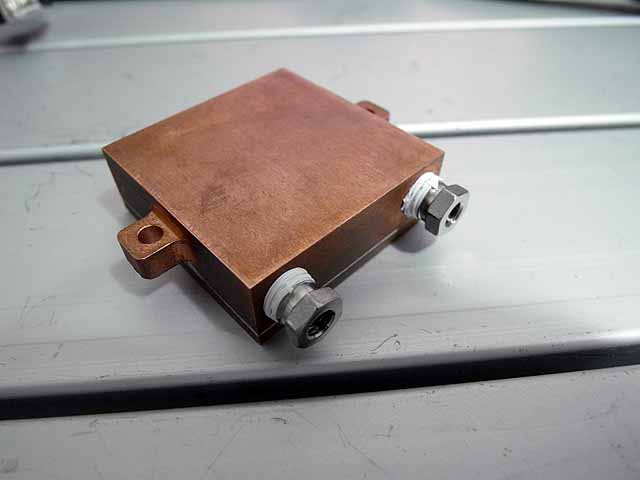

Fluorinert cooling block

http://www.customthermoelectric.com/

WBA-1.62-0.55-CU-01

Grid Cooling System (7/27/2016):

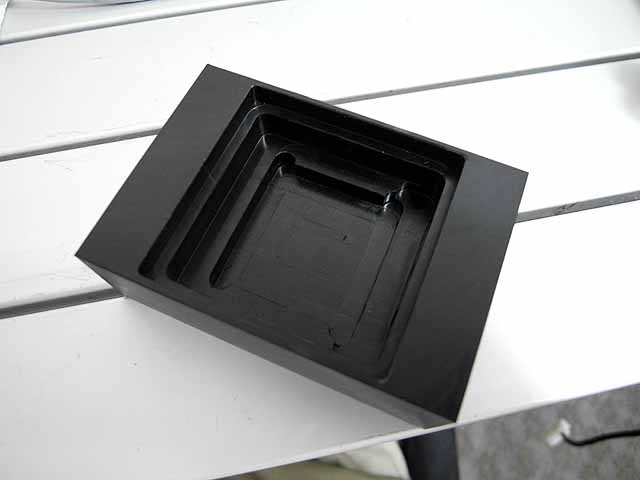

Base to hold pump, thermoelectric cooler, and Fluorinert cooling block

Grid Cooling System (7/27/2016):

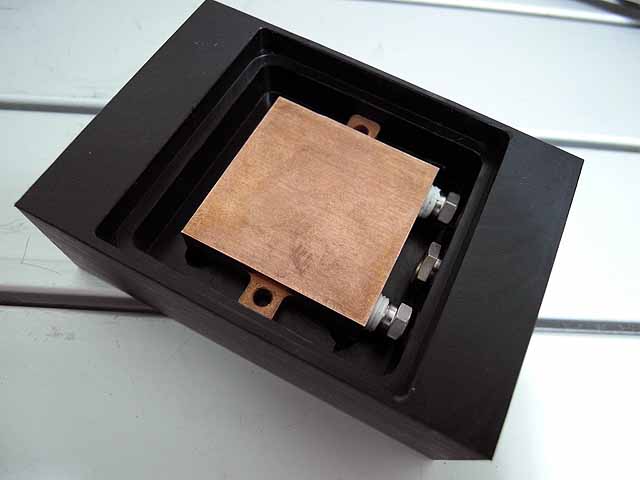

cooling block mounted in acetal cooling system base

Grid Cooling System (7/27/2016):

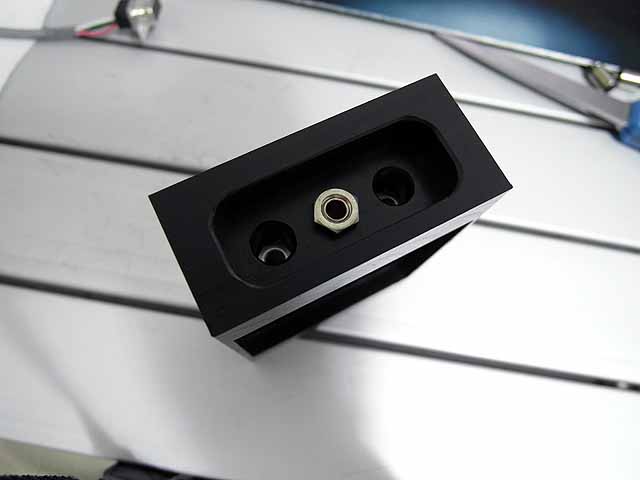

base liquid and power feedthroughs

Grid Cooling System (7/27/2016):

base designs

Grid Cooling System (7/27/2016):

base designs

Grid Cooling System (7/27/2016):

base designs

Grid Cooling System (7/27/2016):

swiftech apogee drive 2 integrated water block/water pump

http://www.swiftech.com/ApogeeDrive2.aspx

Grid Cooling System (7/27/2016):

swiftech apogee drive 2 integrated water block/water pump

Grid Cooling System (7/27/2016):

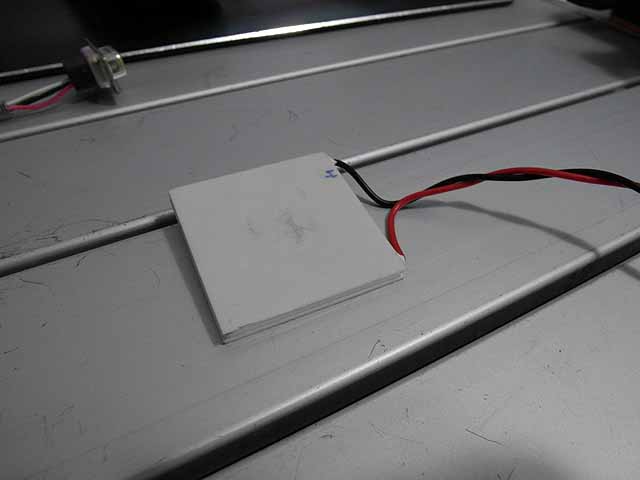

TEC1-12709 Thermoelectric Cooler, 90w

• TEC1-12709 Thermoelectric Cooler Peltier 12V 90W

• Model number: TEC1-12709

• Voltage(V): 12V Umax (V): 15.4V Imax (A): 9A

• QMax (W) : 138.6W

• Dimensions : 40mm x 40mm x 3.6mm

Grid Cooling System (7/27/2016):

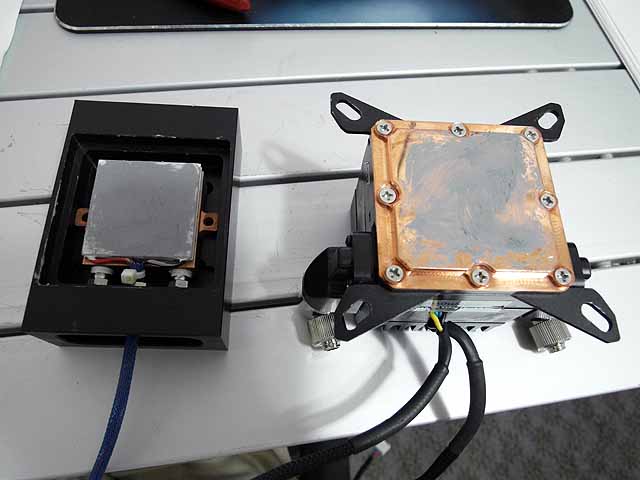

Thermoelectric cooler installed and coated with thermal interface material

Grid Cooling System (7/27/2016):

&luorinert pump, filter and pressure sensor

Grid Cooling System (7/27/2016):

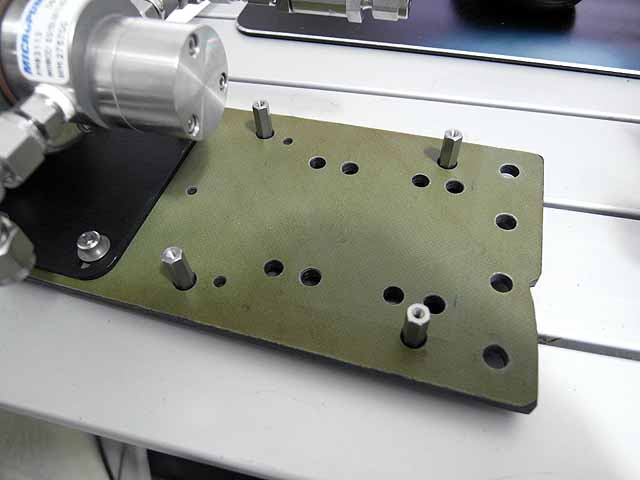

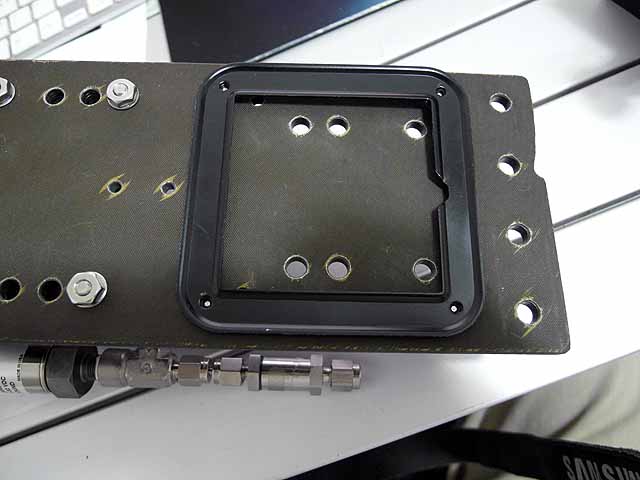

Modified CPU cooler retention plate with standoffs

Grid Cooling System (7/27/2016):

CPU cooler retention plate mounted on cooling system

Grid Cooling System (7/27/2016):

CPU cooler retention plate mounted on cooling system

Grid Cooling System (7/27/2016):

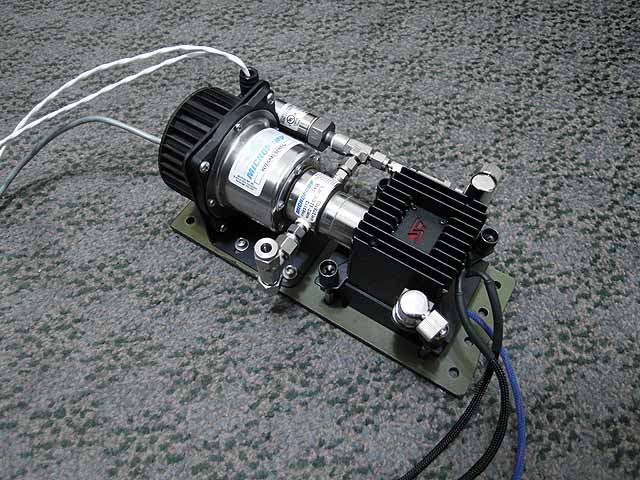

Cooling system assembled

Grid Cooling System (7/27/2016):

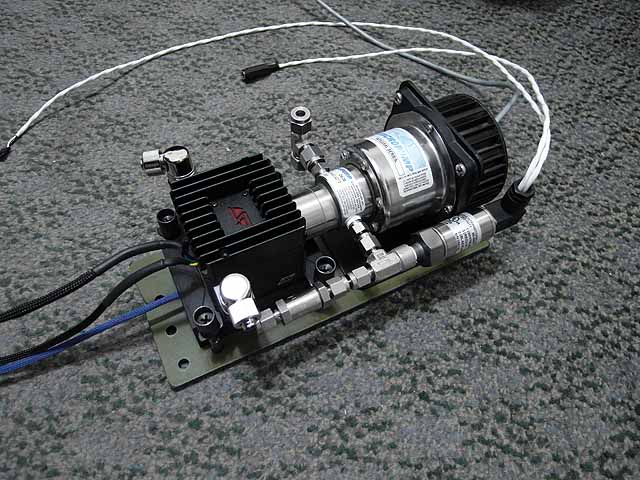

Cooling system assembled

Grid Cooling System (7/27/2016):

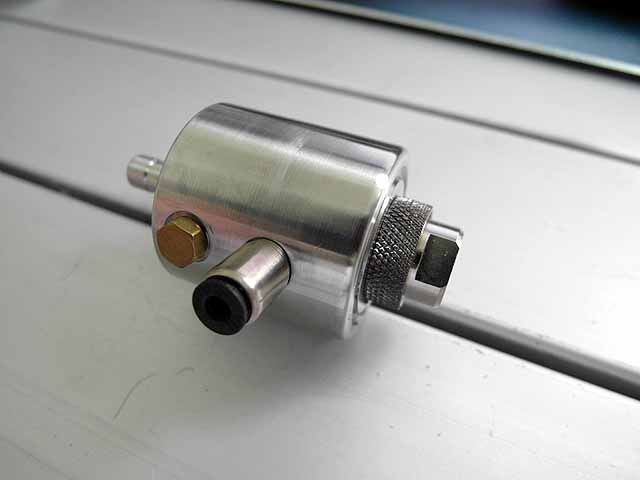

&luorinert reservoir

Grid Cooling System (7/27/2016):

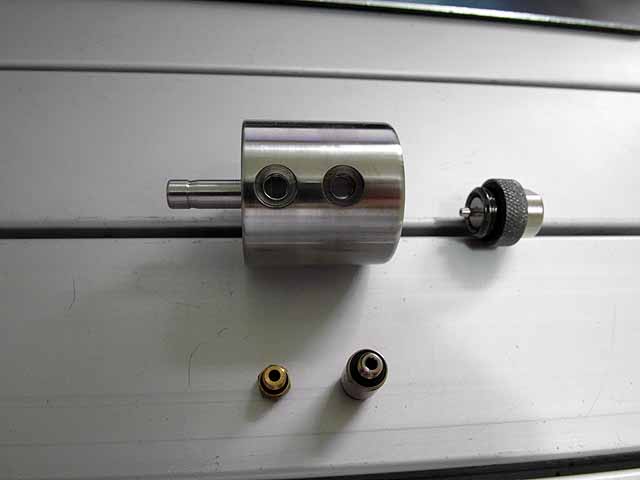

&luorinert reservoir

Grid Cooling System (7/27/2016):

&luorinert reservoir

Grid Cooling System (7/27/2016):

Cooling system connected to radiator with dry break quick connects

Grid Cooling System (7/27/2016):

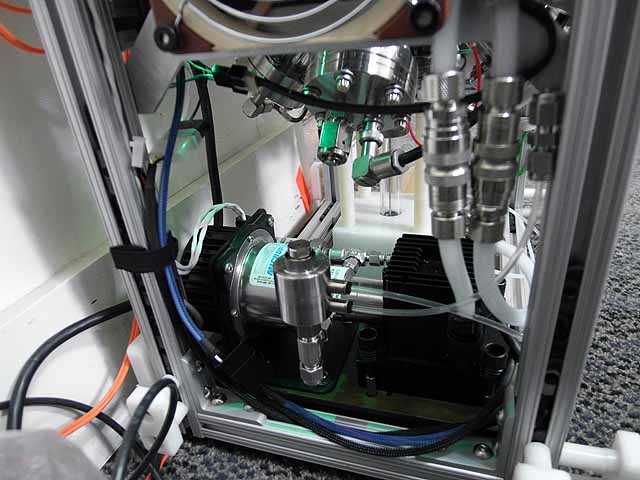

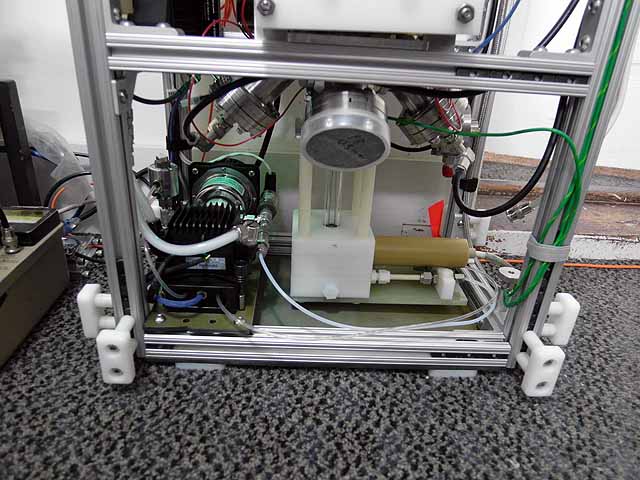

Cooling system connected to grid &

Grid Cooling System (7/27/2016):

Grid Cooling System (7/27/2016):
