| Radiation Shielded Camera Version 4 | |
 |
 |
 |
 |
 |
 |
 |
| Overview: A Gear360 was shielded with lead and sent through an industrial irradiator while viewing plastic and mineral samples. The irradiation facility is the Mercury Plastics NeoBeam facility which is used for cross linking plastics. The accelerator can produce a 5MeV, 20mA electron beam which is scanned over a moving cart. These videos were of a Lichtenberg production run by Bert Hickman who sells the Lichtenberg figures on his website: http://www.capturedlightning.com/
Irradiation run videos and pictures: Radcam4 Neobeam Run |
|
 |
Radiation Shielded Camera (12/10/2016) Irradiation run videos and pictures: Radcam4 Neobeam Run |
 |

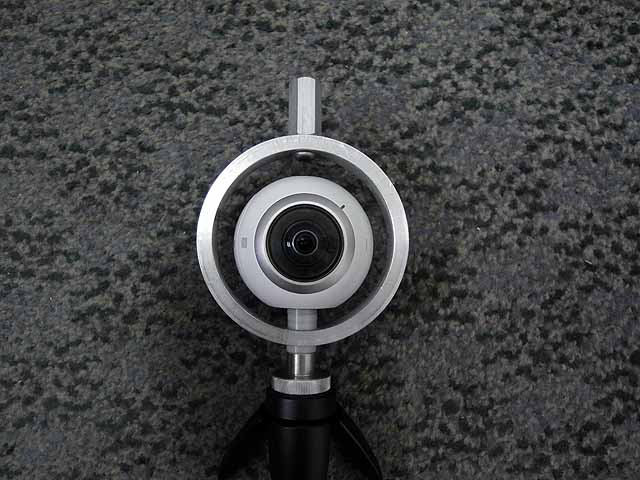

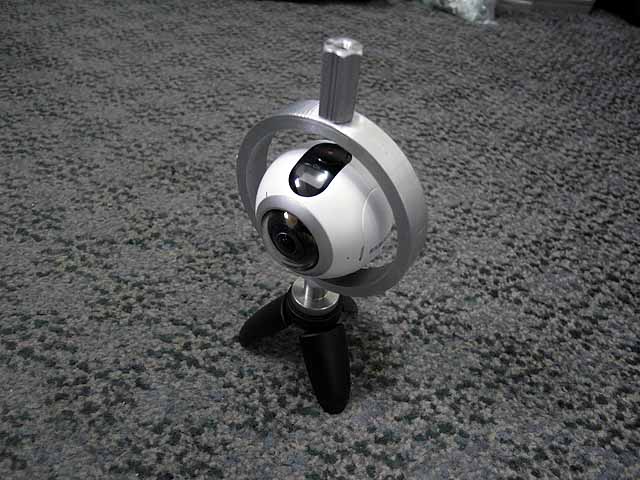

Radiation Shielded Camera (12/10/2016) Gear 360 and mini tripod |
 |
Radiation Shielded Camera (12/10/2016) Gear 360 and mini tripod |
 |

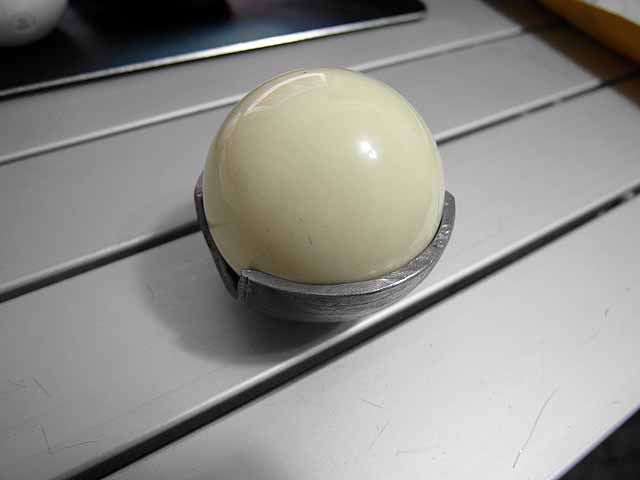

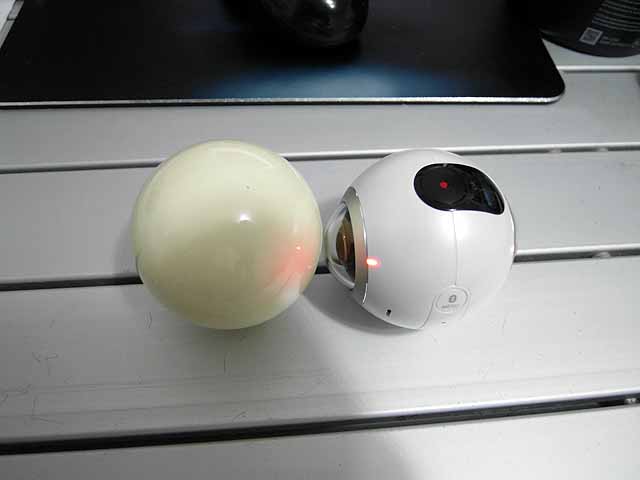

Radiation Shielded Camera (12/10/2016) Gear 360 and oversize billiard ball |
 |
Radiation Shielded Camera (12/10/2016) Billiard ball is used to form 1/8" lead sheet into a sphere |
 |

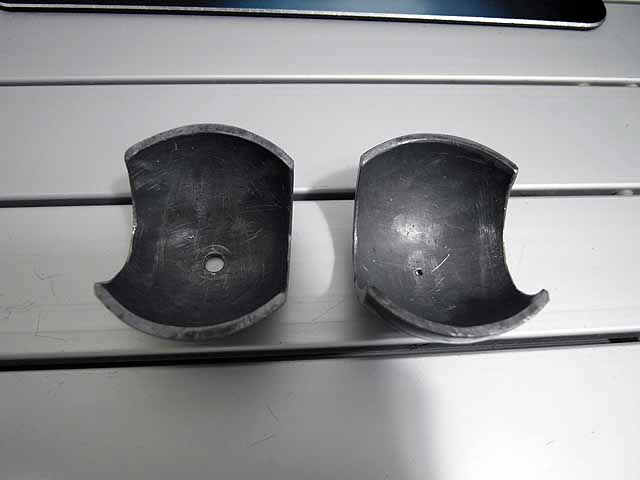

Radiation Shielded Camera (12/10/2016) Test fit of lead shield |
 |

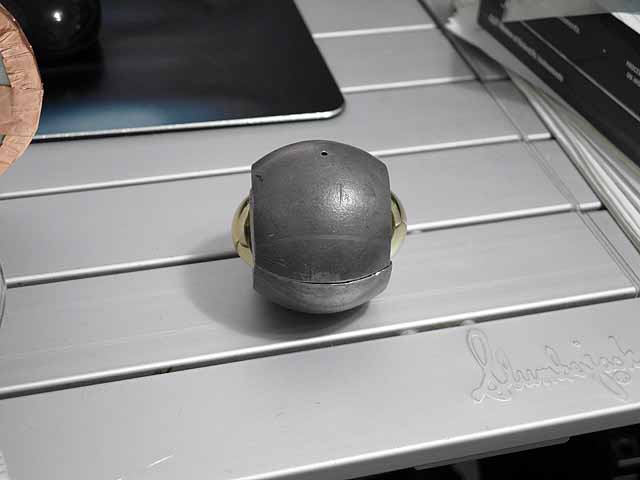

Radiation Shielded Camera (12/10/2016) Final lead shield for camera |
 |

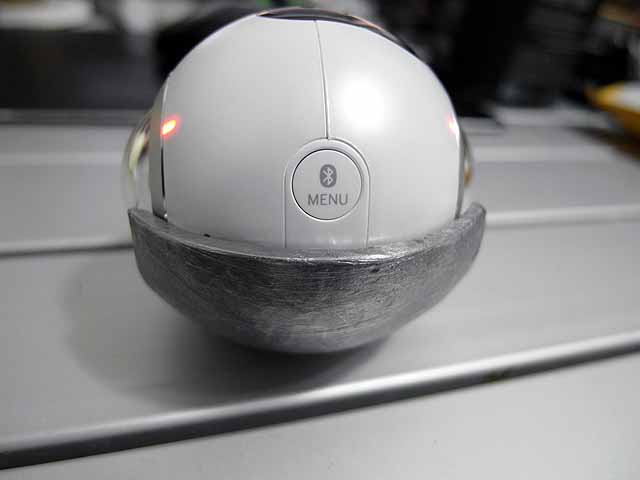

Radiation Shielded Camera (12/10/2016) Lead x-ray shield fits around gear 360 |
 |
Radiation Shielded Camera (12/10/2016) Lead x-ray shield fits around gear 360 |
 |

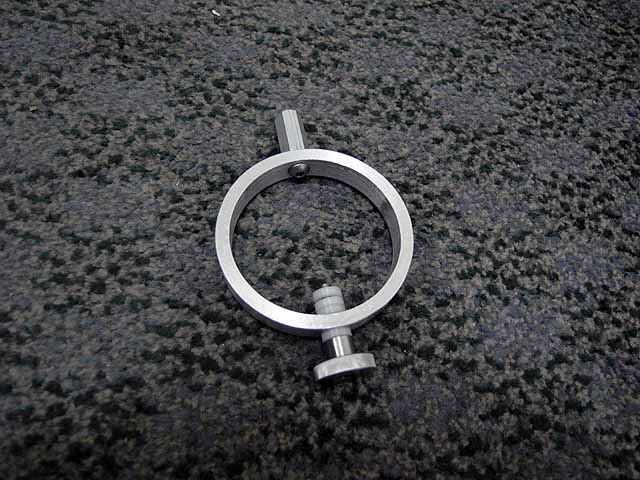

Radiation Shielded Camera (12/10/2016) Top shield mount holds lead umbrella shield over gear 360 to prevent direct bombardment with electron beam |
 |

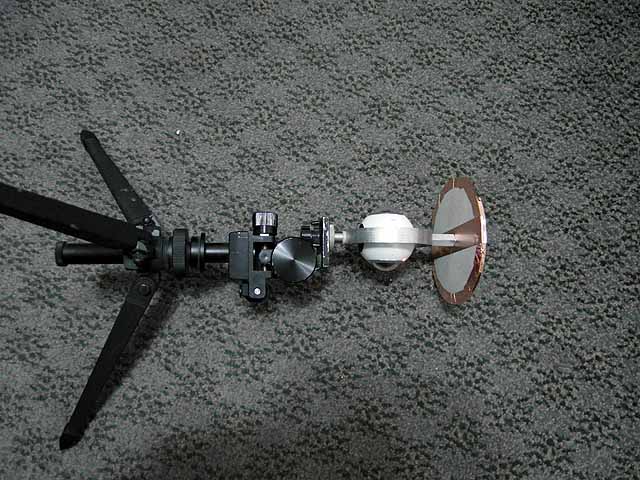

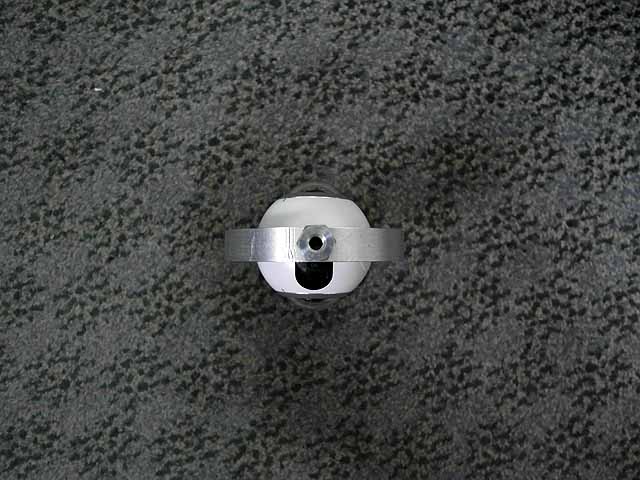

Radiation Shielded Camera (12/10/2016) Shield mount allows an unrestricted field of view |
 |
Radiation Shielded Camera (12/10/2016) Shield mount allows an unrestricted field of view |
 |
Radiation Shielded Camera (12/10/2016) Shield mount allows an unrestricted field of view |
 |

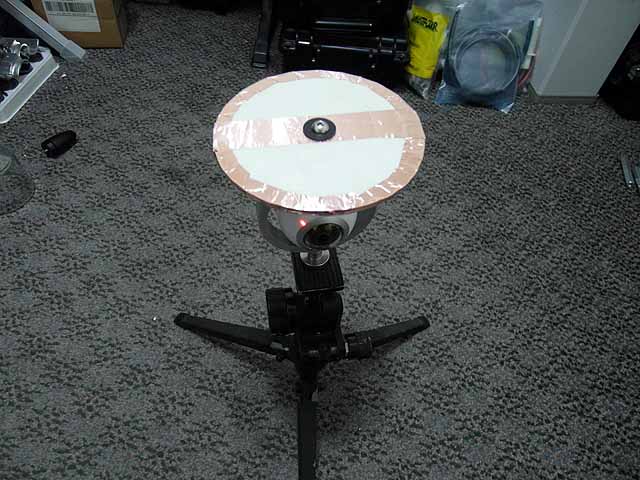

Radiation Shielded Camera (12/10/2016) Camera with lead umbrella shield |
 |
Radiation Shielded Camera (12/10/2016) Camera with lead umbrella shield |
 |

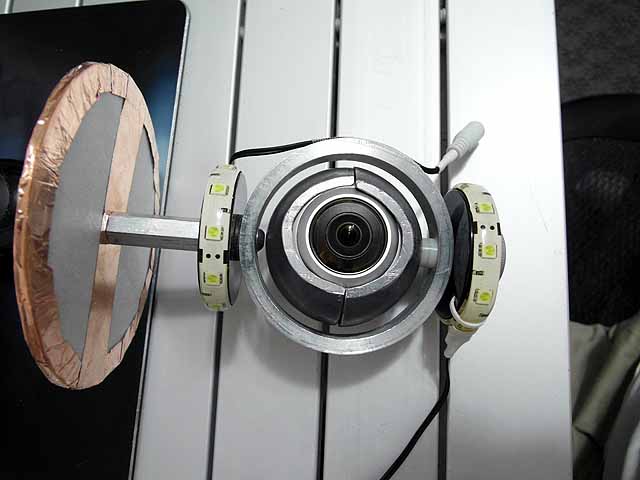

Radiation Shielded Camera (12/10/2016) Test fit with lead shielding, light rings provide optional illumination with irradiator tunnel lights off |
 |
Radiation Shielded Camera (12/10/2016) Test fit with lead shielding |
 |

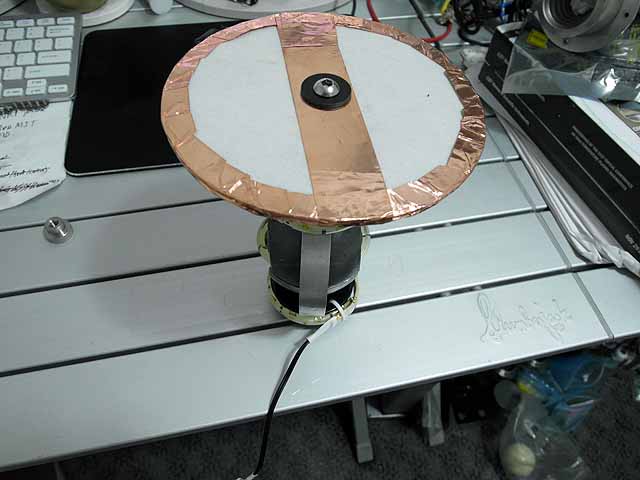

Radiation Shielded Camera (12/10/2016) Test fit with lead shielding, umbrella shield is a 5" lead disk |
 |

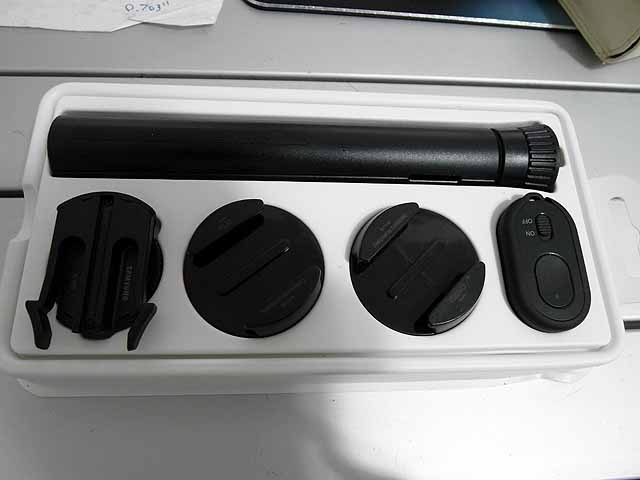

Radiation Shielded Camera (12/10/2016) Remote to control gear 360 |
|
Radiation Shielded Camera (12/10/2016) Irradiation run videos and pictures: Radcam4 Neobeam Run |
