Resonant Power Supply




Overview:

A resonant transformer switching power converter for klystron pulse applications.

Publications / Presentations





Resonant 3 Phase power supply (5/18/2012)

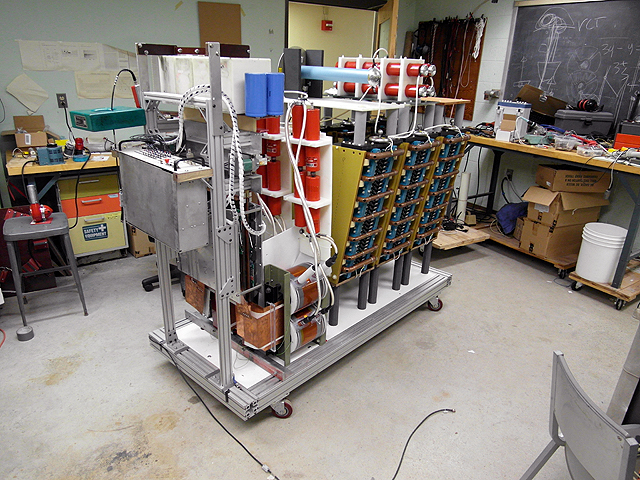

Resonant 3 phase switching power supply. Designed to power a klystron amplifier for fusion power research (Electron Bernstein wave heating in the reverse field pinch).

The supply has been tested at up to 100kV 50A output, but nominally runs at ~78kV, 30A(dependant on klystron tube specifications)



Power supply construction (5/18/2012)

Construction between fall 2008 and spring 2012.



Power supply upgrades (8/25/2013)

Upgrades between spring 2012 and fall 2013.
